MHD-55
Cod EAN: 4007754013740

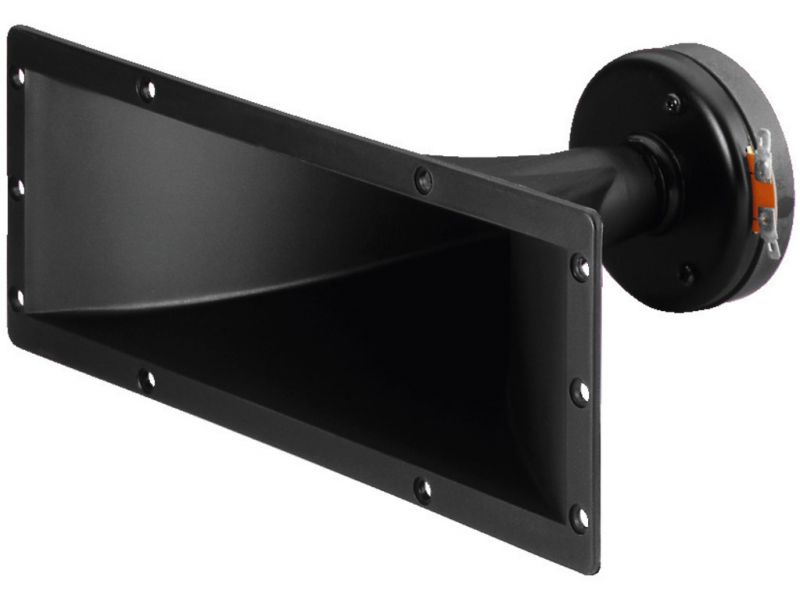

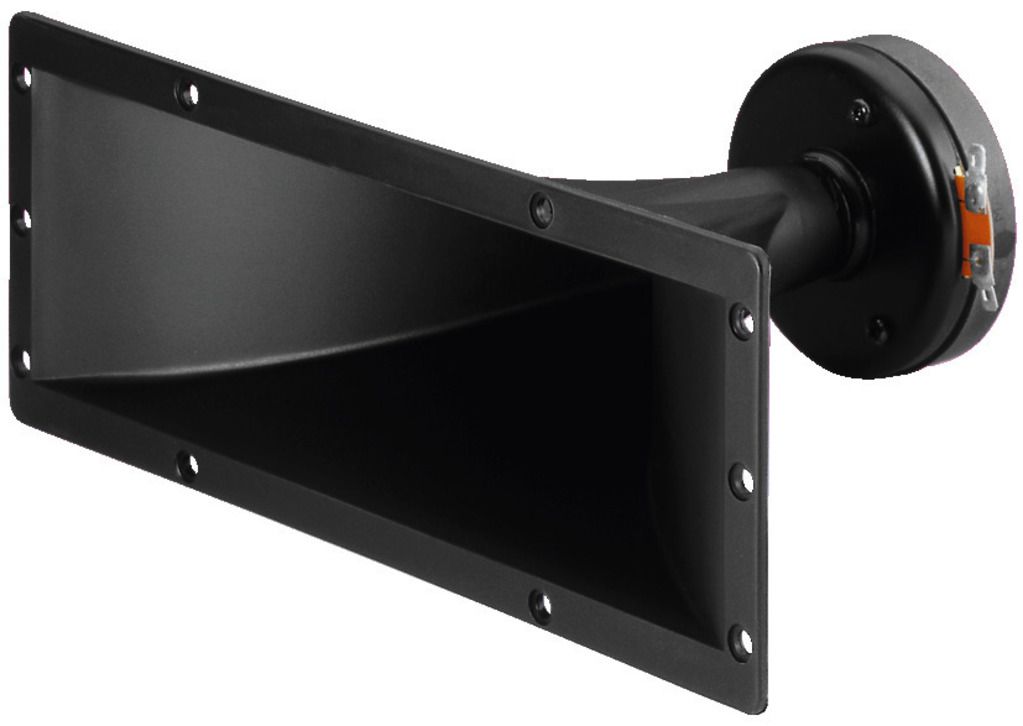

PA horn tweeter, 30 W, 8 Ω Plastic version Good efficiency Wide bandwidth, suitable for general PA applications Replacement voice coils are available at option (MHD-1255/VC)
MHD-55
PA horn tweeter, 30 W, 8 Ω
- Plastic version
- Good efficiency
- Wide bandwidth, suitable for general PA applications
- Replacement voice coils are available at option (MHD-1255/VC)
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

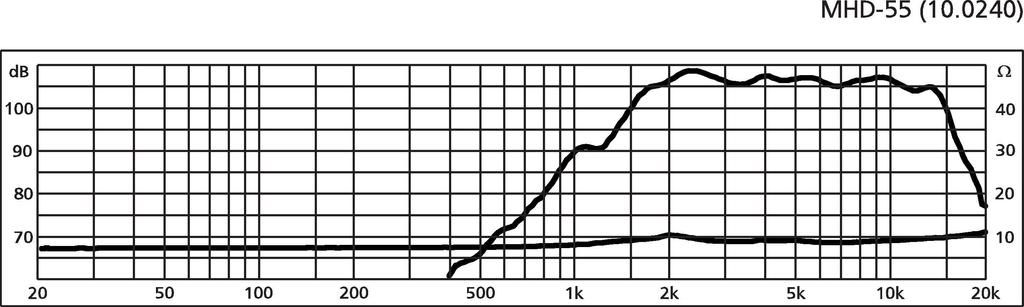

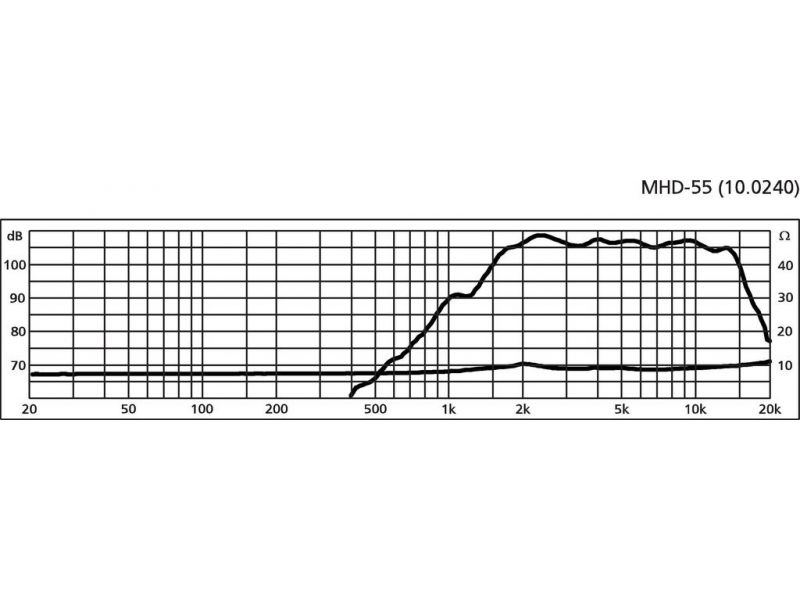

| Frequency range | fx-15 kHz |
| Resonant frequency (fs) | 2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 3,000 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 55 W |
| SPL | 103 dB/W/m |
| Voice coil diameter | Ø 24.6 mm |
| Magnet diameter | Ø 80 mm |

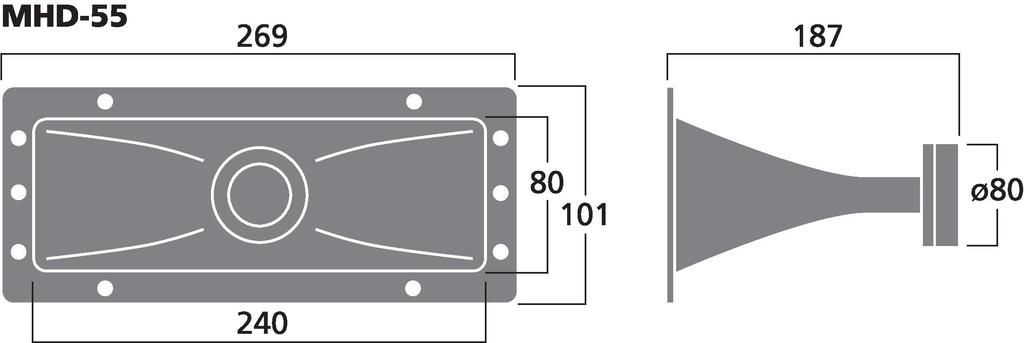

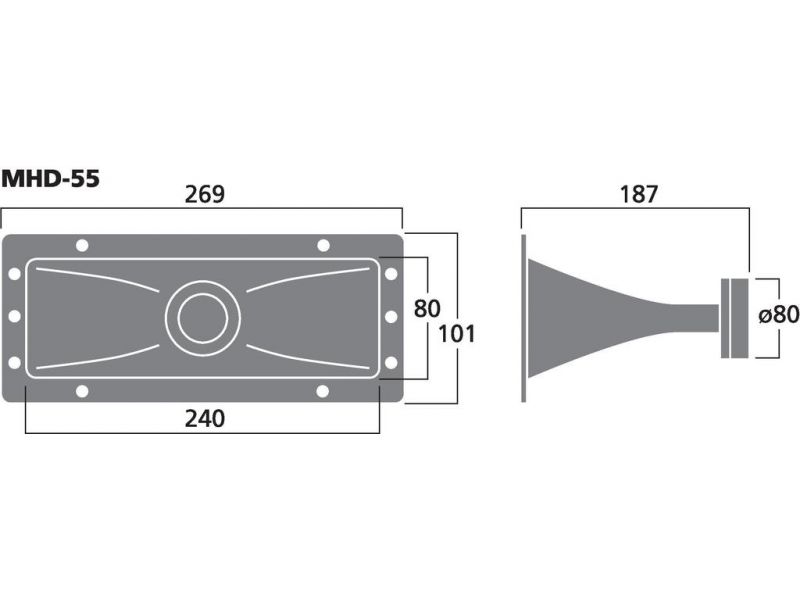

| Mounting cutout | 240 x 80 mm |
| Mounting depth | 187 mm |
| Dimensions | 269 x 101 x 187 mm |
| Width | 269 mm |
| Height | 101 mm |
| Depth | 187 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.88 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.2 x 0.11 x 0.275 m |
| Gross weight | 1.08 kg |
| Net weight | 0.88 kg |
