MKA-50SET/SW

Cod EAN: 4007754241907

Active 2-way stereo speaker systems, 2 x 20 W Set consists of an active and a passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals Active speaker system with integrated 2-channel amplifier...

Citeste mai mult



MKA-50SET/SW

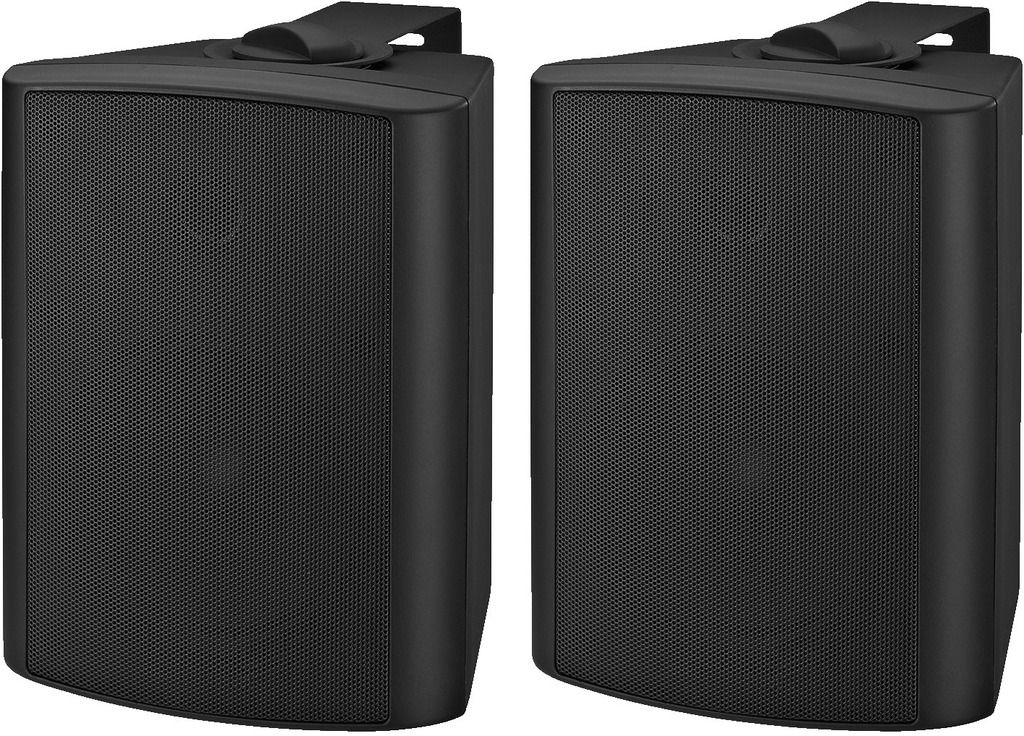

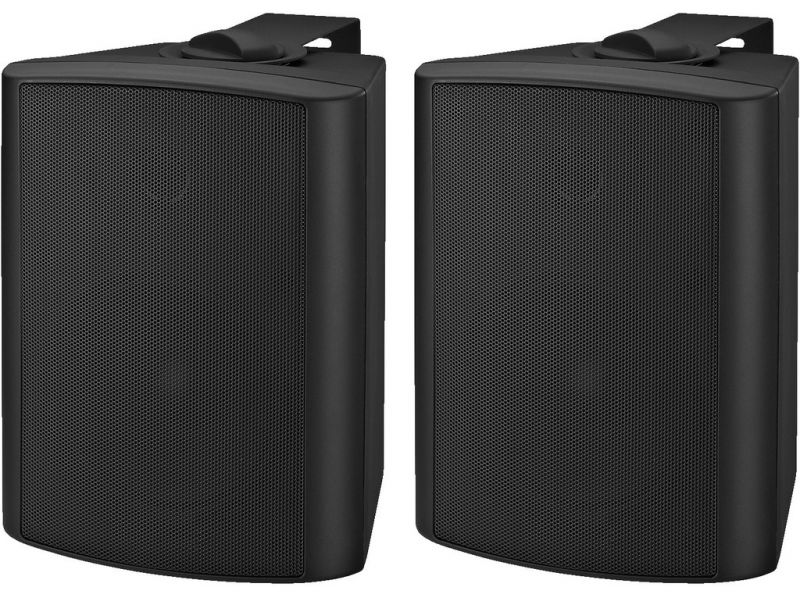

Active 2-way stereo speaker systems, 2 x 20 W
  • Set consists of an active and a passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals
  • Active speaker system with integrated 2-channel amplifier and power supply
  • Speakers with magnetic shielding
  • Auto-standby function
  • Volume control and 2-way tone control
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active/passive
Transmission technology cable
Total output power 2 x 40 W
Power rating (RMS) 2 x 20 W
Frequency range 60-20,000 Hz
Input signal 420 mV/24 kΩ
System 2-way
Bass speaker 13 cm (5") bass-midrange speaker
Tweeter 2.5 cm (1") tweeter
Number of speakers 2
Speaker size 13 cm (5")
SPL 89 dB/W/m
Max. rated SPL 102 dB
Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°
Radiation angle, vertical 100°
Housing material plastic
Colour black
Mounting device mounting bracket
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/110 VA
Dimensions 180 x 250 x 160 mm
Width 180 mm
Height 250 mm
Depth 160 mm
Weight 5.9 kg (pair)
Inputs 1 x RCA L/R (active speak. system only) 1 x 3.5 mm jack screw terminals (both speaker systems)
Other features pair
Packaging dimensions (W x H x L) 0.21 x 0.27 x 0.435 m
Gross weight 6.36 kg
Net weight 5.87 kg
