MMX-31

Cod EAN: 4007754187823

Microphone mixer Quick method to mix three microphones to one microphone input and still allow for individual level adjustment. 3 mono microphone channels (6.3 mm jack) with separate level control each 1 mono output via 3 m connection cable with 6....

Citeste mai mult

Intreaba despre produs
Cumpara acum

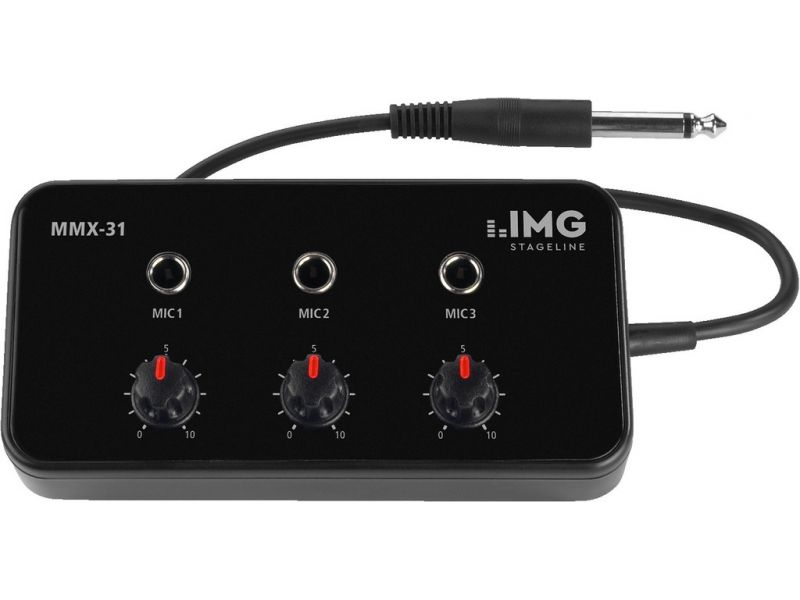

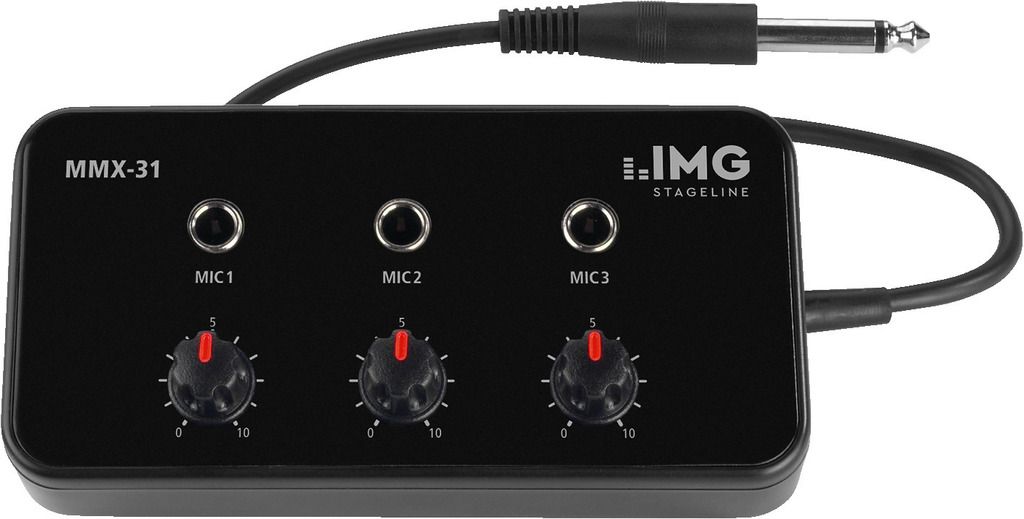

MMX-31

Microphone mixer
Quick method to mix three microphones to one microphone input and still allow for individual level adjustment.
  • 3 mono microphone channels (6.3 mm jack) with separate level control each
  • 1 mono output via 3 m connection cable with 6.3 mm plug
  • Passive operation, no power supply required
  • Can also be used as an extension for microphone inputs which are difficult to access
  • Dimensions: 127 x 48 x 72 mm
  • Weight: 210 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Input channels 3
Number of mix/mono 3
Mic input 3 x 6.3 mm mono jack
Master output 1 x 6.3 mm mono jack
Power supply not required
Admiss. ambient temp. 0-40 °C
Dimensions 127x48x72 mm
Width 127 mm
Height 48 mm
Depth 72 mm
Weight 210 g
Packaging dimensions (W x H x L) 0.09 x 0.06 x 0.14 m
Gross weight 0.247 kg
Net weight 0.207 kg

Fisiere de descarcat

Fisa produsului MMX-31 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
