MPR-1
Cod EAN: 4007754180114
1-channel microphone preamplifier, with switchable phantom power. 1 microphone input, XLR, bal. or 6.3 mm jack, bal. Gain control: up to 50 dB max. Clip LED 30 V phantom power, can be activated as required Manufacturer information: MONACOR IN...

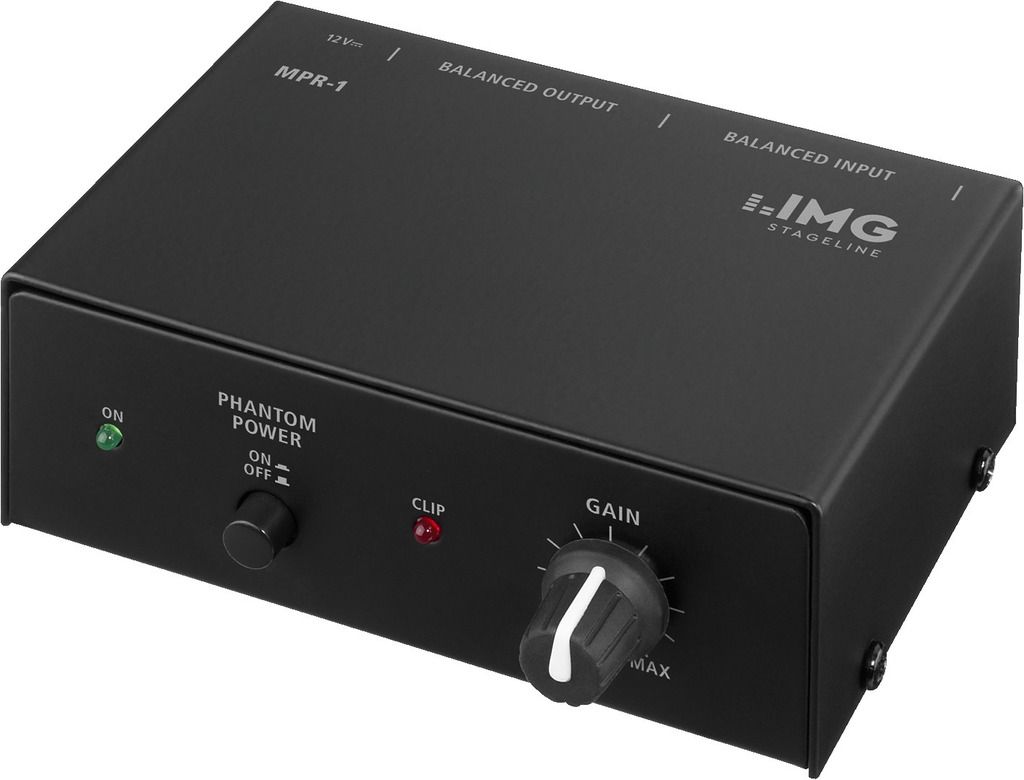

MPR-1
1-channel microphone preamplifier,
with switchable phantom power.
- 1 microphone input, XLR, bal. or 6.3 mm jack, bal.
- Gain control: up to 50 dB max.
- Clip LED
- 30 V phantom power, can be activated as required
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Description | microphone preamplifier |
| Frequency range | 10-30,000 Hz |
| Input signal | 3.5 mV (XLR, bal.)16 mV (jack, bal.) |
| Input impedance | 10 kΩ |
| Output signal | 1 V |
| Gain | 50 dB (with bal. connection)44 dB (with unbal. connection) |
| S/N ratio | 58 dB |
| THD | 0.1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via encl. plug-in power supply |
| Dimensions | 113 x 92 x 40 mm |
| Weight | 345 g |
| Inputs | 1 x XLR, 1 x 6.3 mm jack |
| Outputs | 1 x XLR, 1 x 6.3 mm jack |
