MPS-1

Cod EAN: 4007754180138

Microphone splitter, for distributing one input signal to two outputs, e.g. monitor mixer and main mixer. Galvanically isolated output with ground lift switch and feed-through output XLR connections (600 Ω) for input and output Frequency range: 35-...

Citeste mai mult

Intreaba despre produs
Cumpara acum

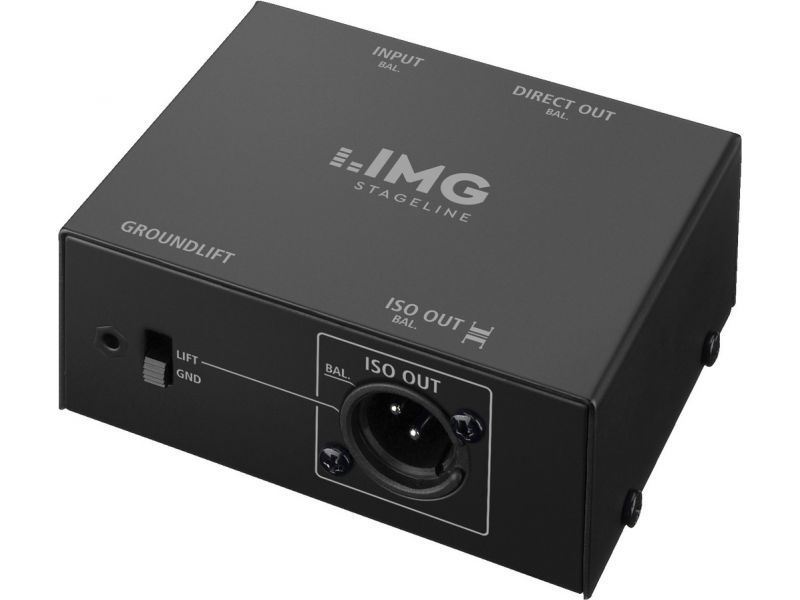

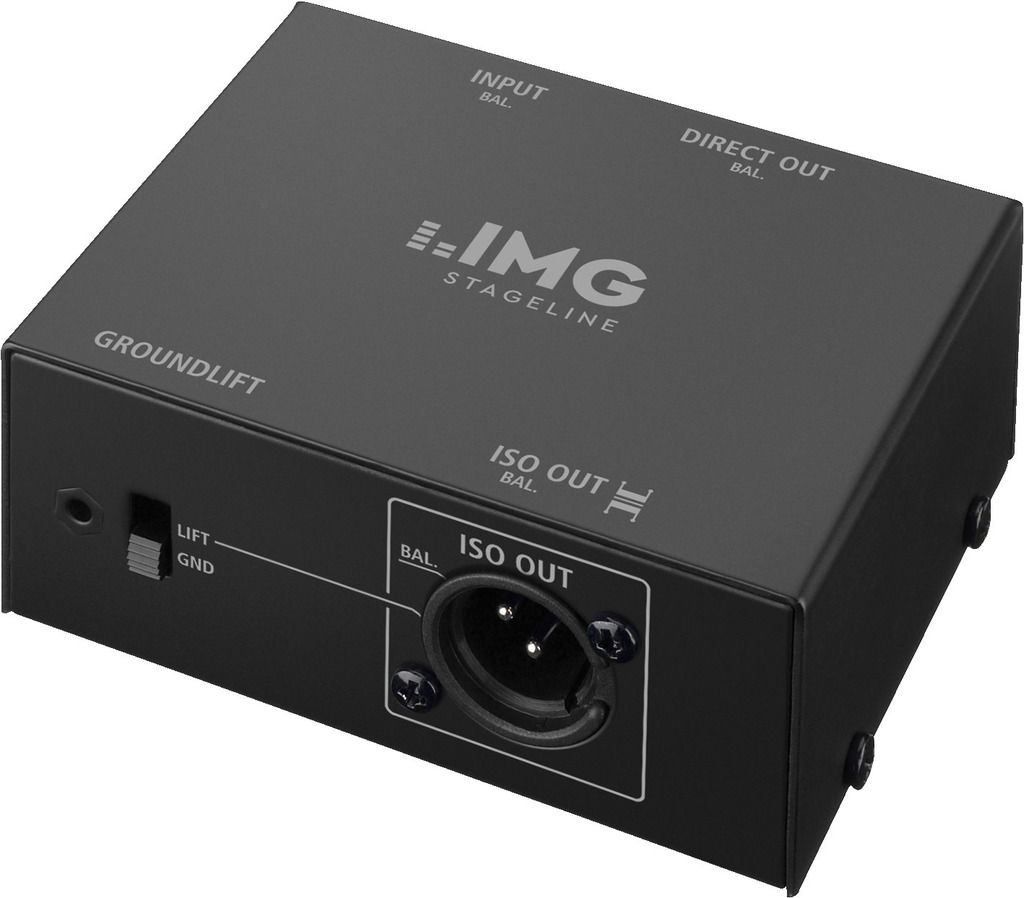

MPS-1

Microphone splitter,
for distributing one input signal to two outputs, e.g. monitor mixer and main mixer.
  • Galvanically isolated output with ground lift switch and feed-through output
  • XLR connections (600 Ω) for input and output
  • Frequency range: 35-30,000 Hz
  • Dimensions: 100 x 80 x 40 mm
  • Weight: 310 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description microphone splitter
Frequency range 35-30,000 Hz
Input impedance 600 Ω
Output impedance 600 Ω
Admiss. ambient temp. 0-40 °C
Dimensions 100 x 80 x 40 mm
Weight 310 g
Inputs 1 x XLR, bal.
Outputs 2 x XLR, bal.
Other features ground lift switch

Fisiere de descarcat

Fisa produsului MPS-1 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
