MDF-INS-HDWP
Cod EAN 4007754276480
MondeF HDMI™ wall module

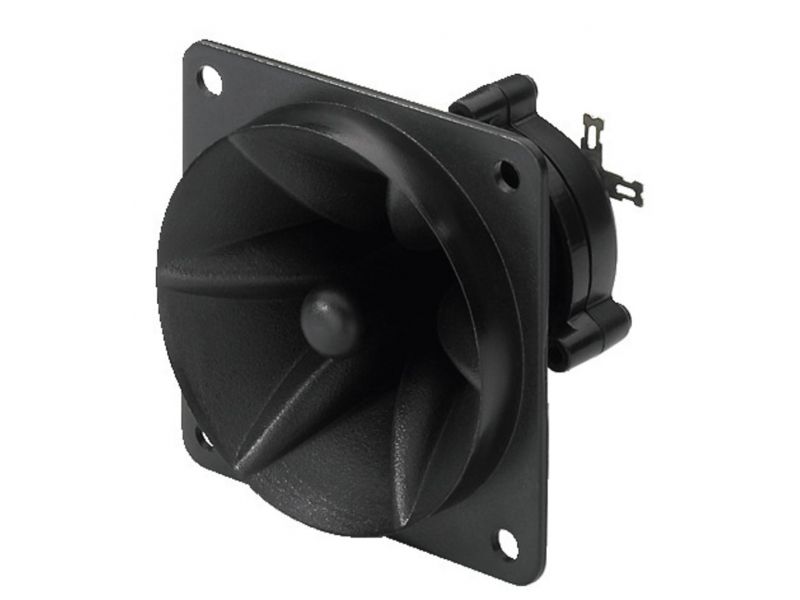

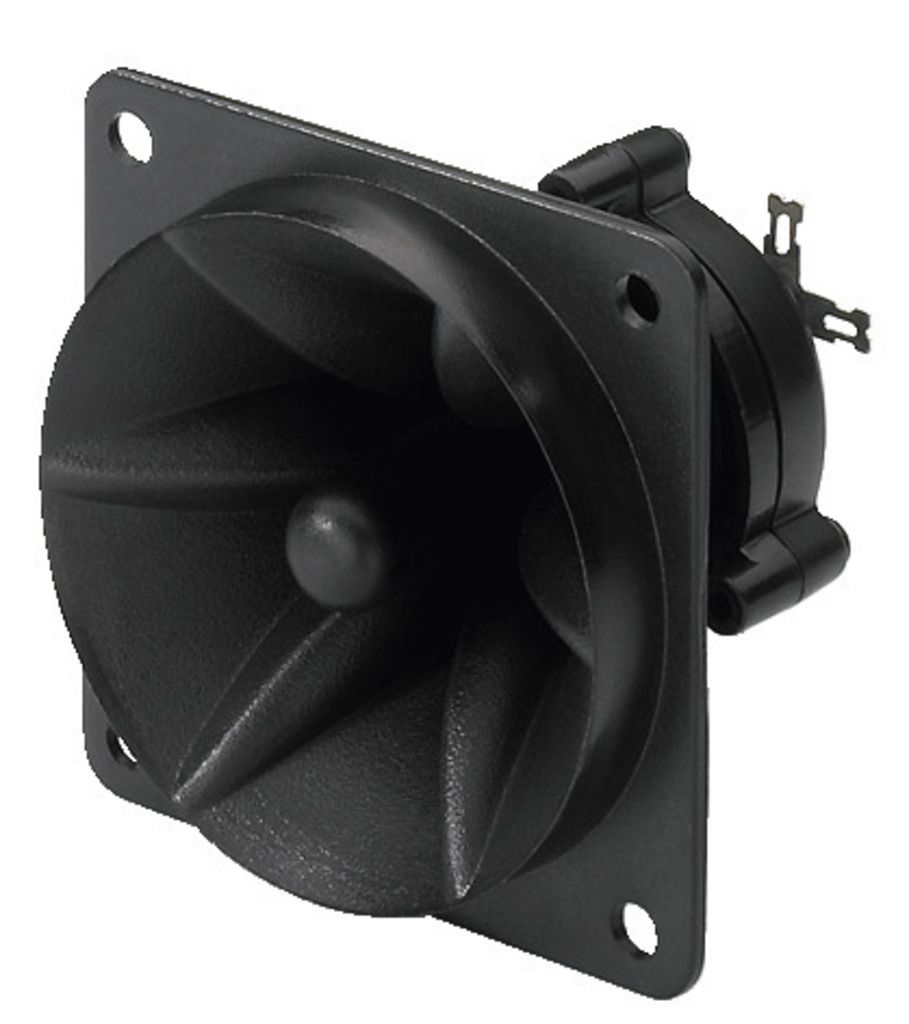

Piezo tweeter
Impedance (Z) | > 1,000 Ω |
Transmission technology | cable |
Frequency range | 4,000-20,000 Hz |
Power rating (RMS) | 60 W |
Peak music power output (MAX) | 115 W (8 Ω system) 225 W (4 Ω system) |
SPL | 94 dB/W/m |
Max. voltage | ~ 30 V |

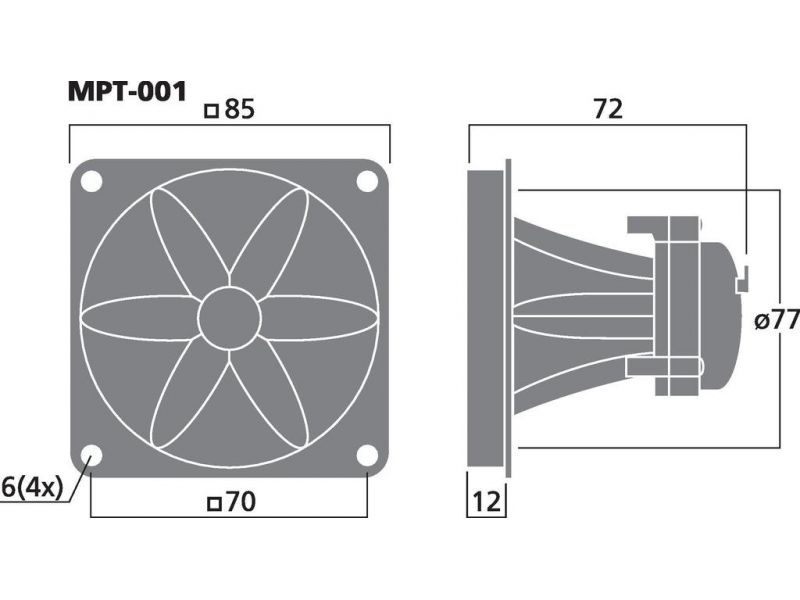

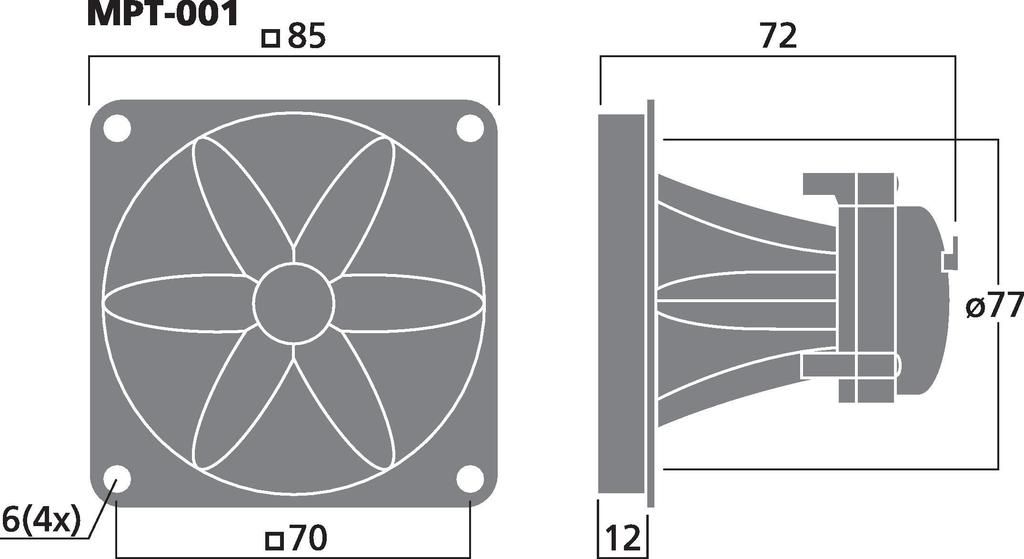

Mounting cutout | Ø 77 mm |
Mounting depth | 60 mm |
Hole spacing X-axis | 70 mm |
Hole spacing Y-axis | 70 mm |
Dimensions | 85 x 85 x 72 mm |
Width | 85 mm |
Height | 85 mm |
Depth | 72 mm |
Colour | black |
Admiss. ambient temp. | 0-40 °C |
Weight | 0.059 kg |
Packing unit | 1 |
Packaging dimensions (W x H x L) | 0.085 x 0.075 x 0.085 m |
Gross weight | 0.061 kg |
Net weight | 0.059 kg |
