MPT-025
Cod EAN: 4007754181210

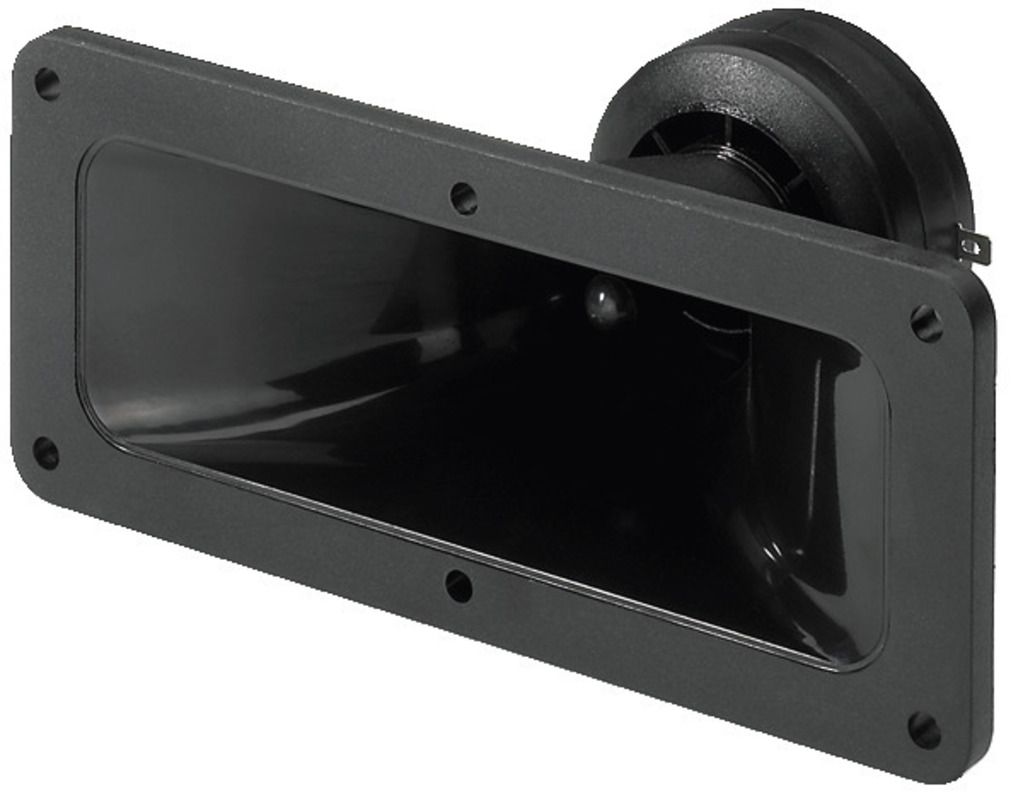

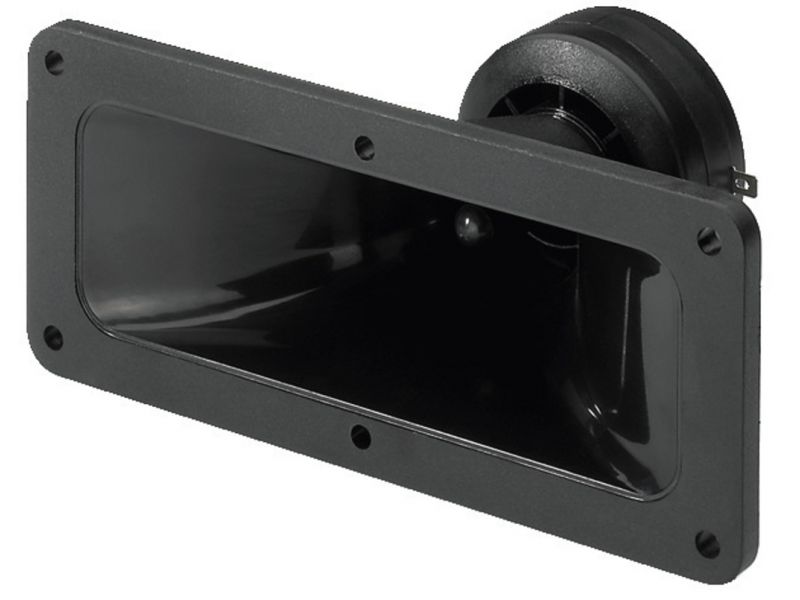

Piezo tweeter Large rectangular design
MPT-025
Piezo tweeter
- Large rectangular design
Parametrii
| Impedance (Z) | > 1,000 Ω |
| Frequency range | 3,000-20,000 Hz |
| Peak music power output (MAX) | 115 W (8 Ω system) 225 W (4 Ω system) |
| SPL | 92 dB/W/m |
| Max. voltage | ~ 30 V |
| Radiation angle | V: 45°/H: 90° |

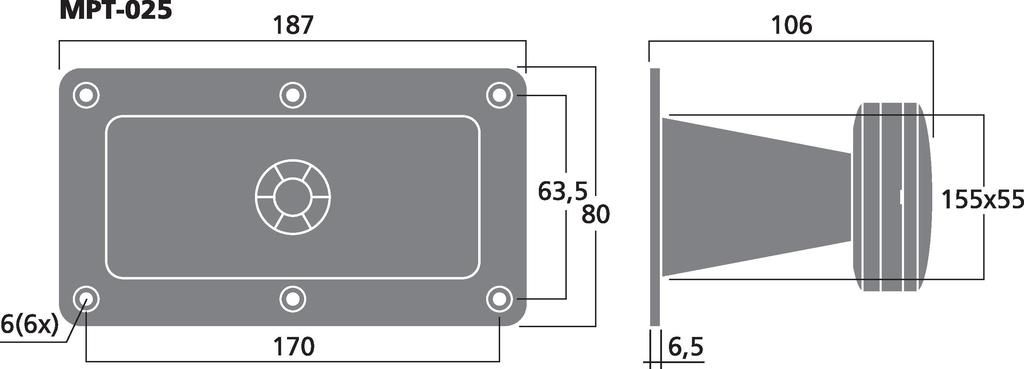

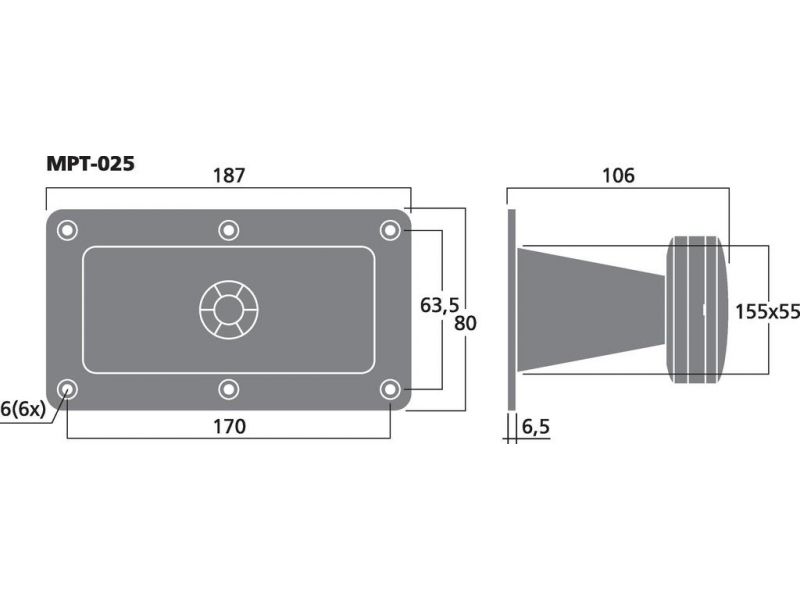

| Mounting cutout | 155 x 55 mm |
| Mounting depth | 100 mm |
| Mounting hole diameter | 63.5 mm |
| Hole spacing X-axis | 170 mm |
| Dimensions | 187 x 80 x 106 mm |
| Width | 187 mm |
| Height | 80 mm |
| Depth | 106 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.094 kg |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.08 x 0.105 x 0.19 m |
| Gross weight | 0.099 kg |
| Net weight | 0.094 kg |
