MPT-165
Cod EAN: 4007754181241
Piezo tweeter Bullet typeDeep low limit frequency
MPT-165
Piezo tweeter
- Bullet type
- Deep low limit frequency
Parametrii
| Impedance (Z) | > 1,000 Ω |
| Frequency range | 1,800-20,000 Hz |
| Peak music power output (MAX) | 115 W (8 Ω system) 225 W (4 Ω system) |
| SPL | 93 dB/W/m |
| Max. voltage | ~ 30 V |
| Radiation angle | V: 45°/H: 45° |

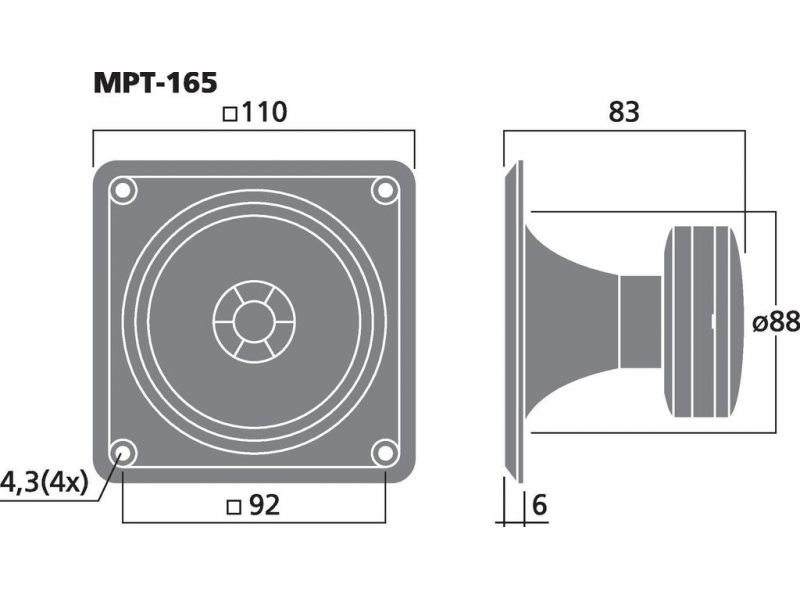

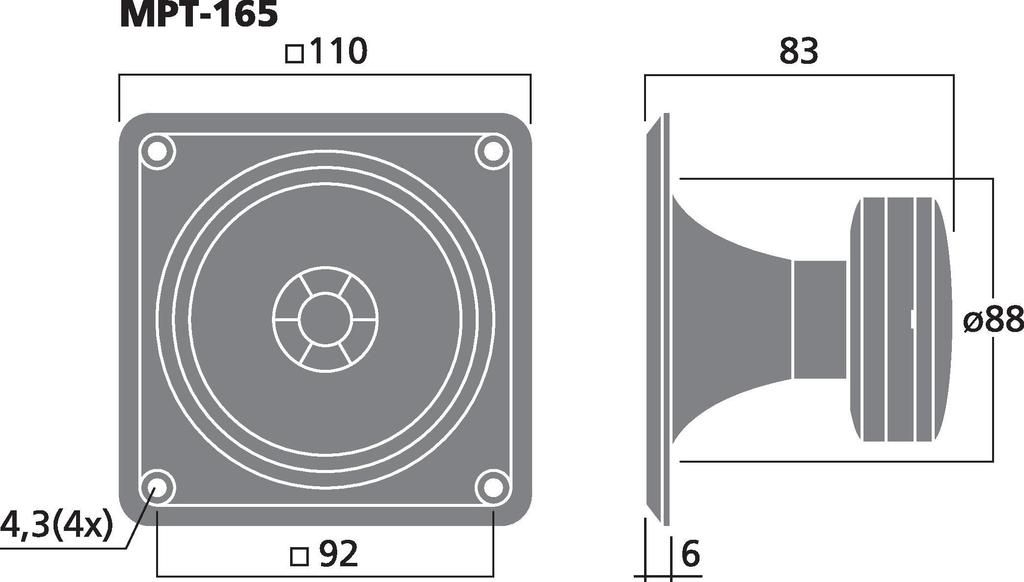

| Mounting cutout | Ø 88 mm |
| Mounting depth | 80 mm |
| Hole spacing X-axis | 92 mm |
| Hole spacing Y-axis | 92 mm |
| Dimensions | 110 x 110 x 83 mm |
| Width | 110 mm |
| Height | 110 mm |
| Depth | 83 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.083 kg |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.11 x 0.08 x 0.11 m |
| Gross weight | 0.085 kg |
| Net weight | 0.083 kg |
