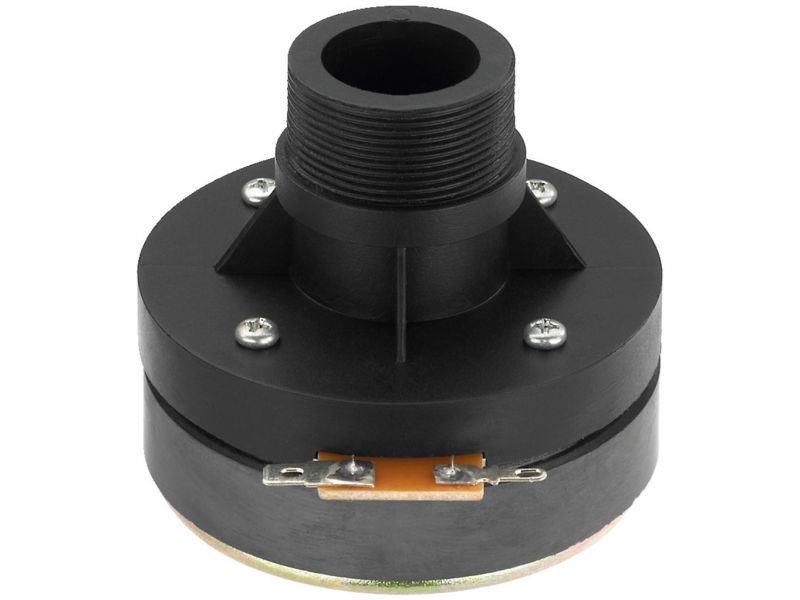

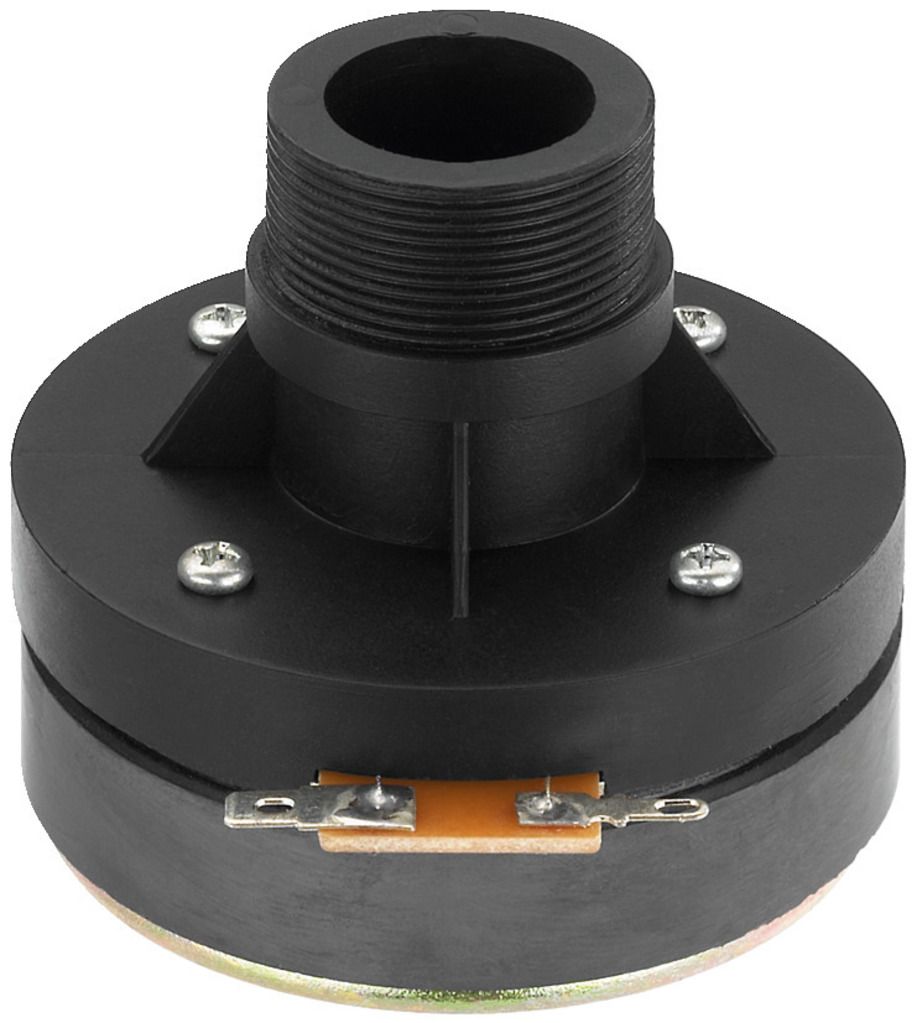

MRD-80
Cod EAN: 4007754171990
PA horn driver, 30 W, 8 Ω PA tweeter driver with 35 mm (1⅜") standard thread Very compact size High efficiency Suitable for horns MRH-83, MRH-170 and MRH-80
MRD-80
PA horn driver, 30 W, 8 Ω
- PA tweeter driver with 35 mm (1⅜") standard thread
- Very compact size
- High efficiency
- Suitable for horns MRH-83, MRH-170 and MRH-80
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | fx-17,500 Hz |
| Resonant frequency (fs) | 2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 5,000 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 107 dB/W/m |
| Voice coil diameter | Ø 25.5 mm |
| Magnet diameter | Ø 80 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |

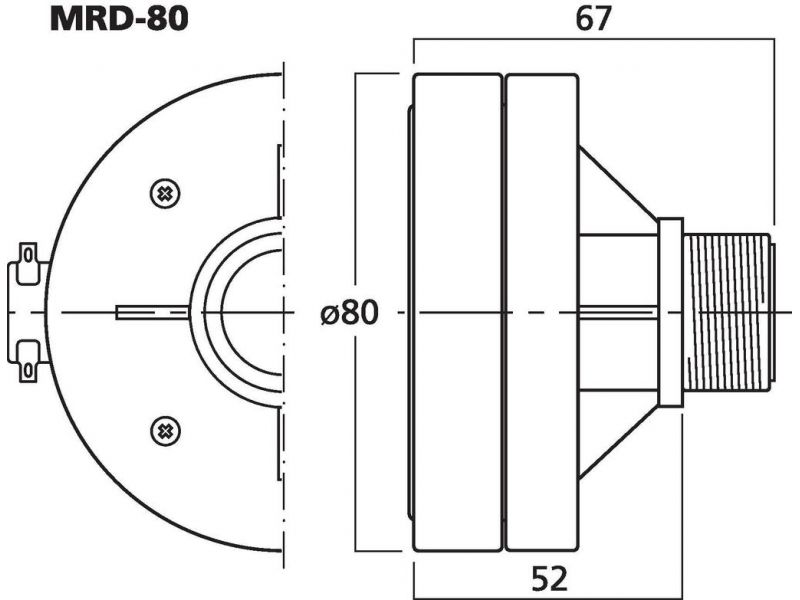

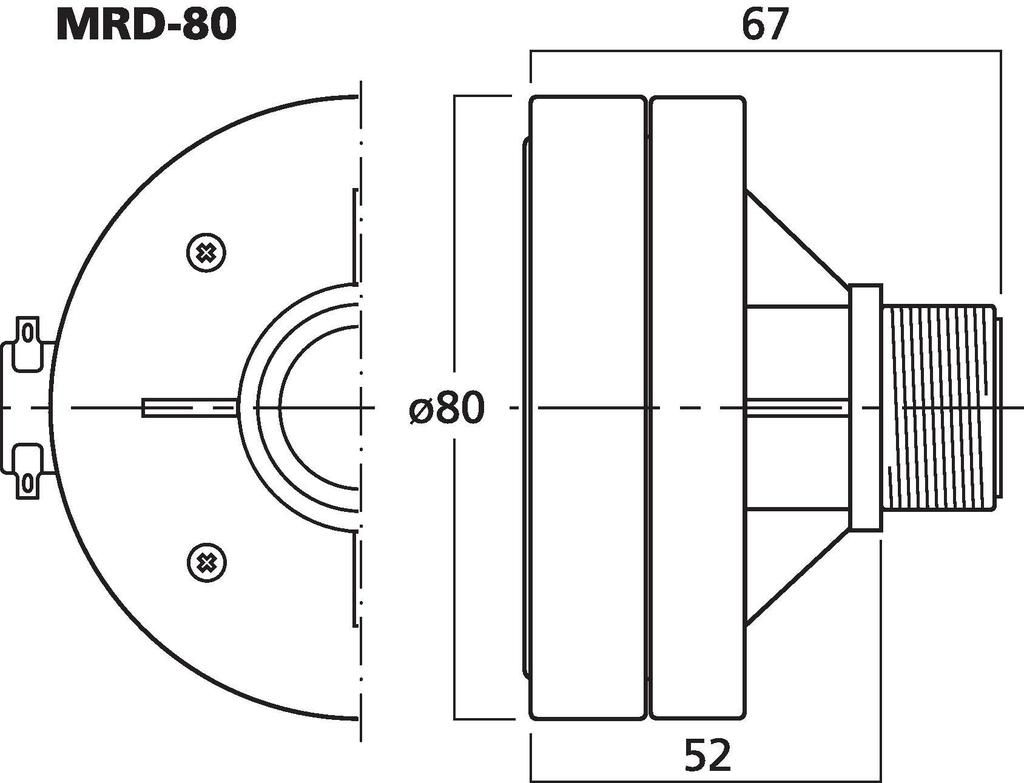

| Dimensions | Ø 80 mm x 67 mm |
| Outside diameter | Ø 80 mm |
| Width | Ø 80 mm |
| Height | Ø 80 mm |
| Depth | 67 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.71 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.085 x 0.075 x 0.095 m |
| Gross weight | 0.75 kg |
| Net weight | 0.715 kg |
