MRH-202
Cod EAN: 4007754428728
PA mid-high range horn Horn made of reinforced ABS plastic Low-resonance due to robust design with a wall thickness of 8 mm 25 mm (1") flange connection with standard 2-hole, 3-hole and 4-hole screw connection Consistent radiation pattern Recommended...

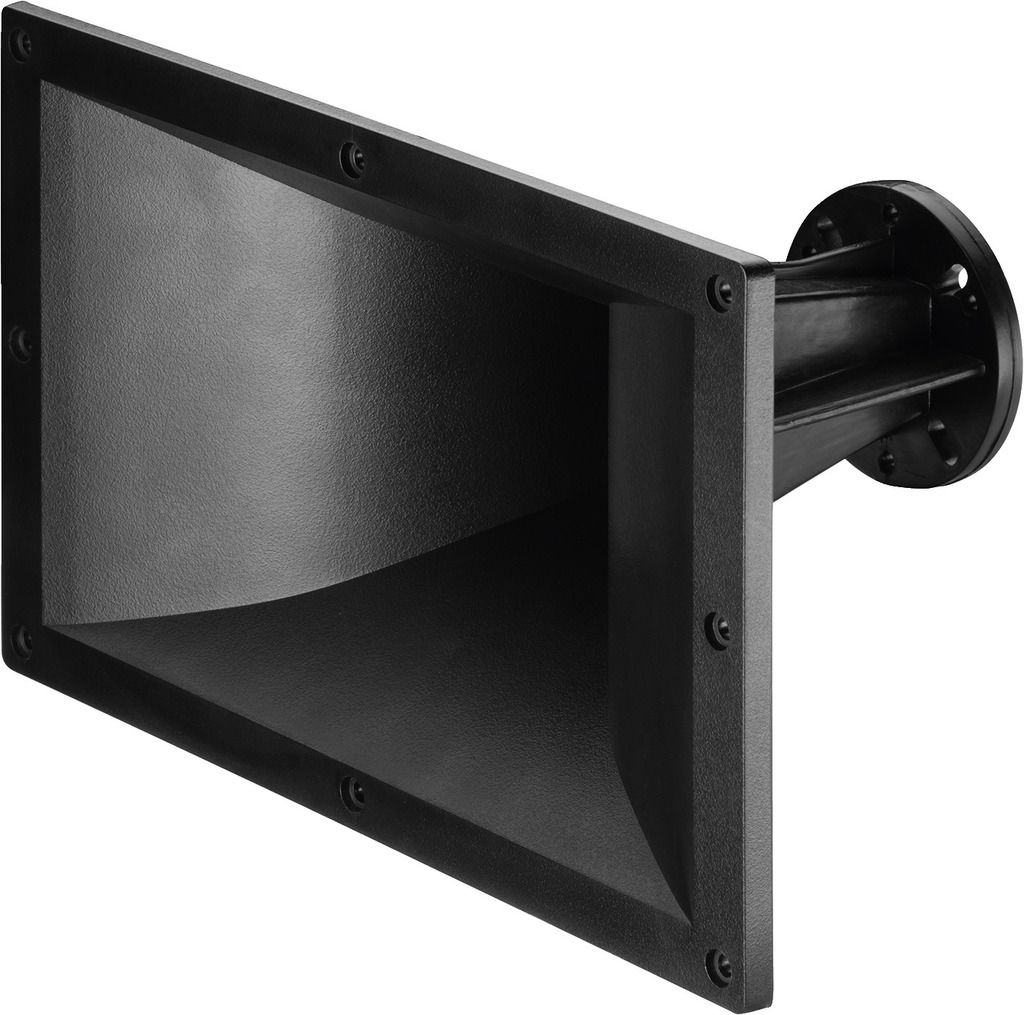

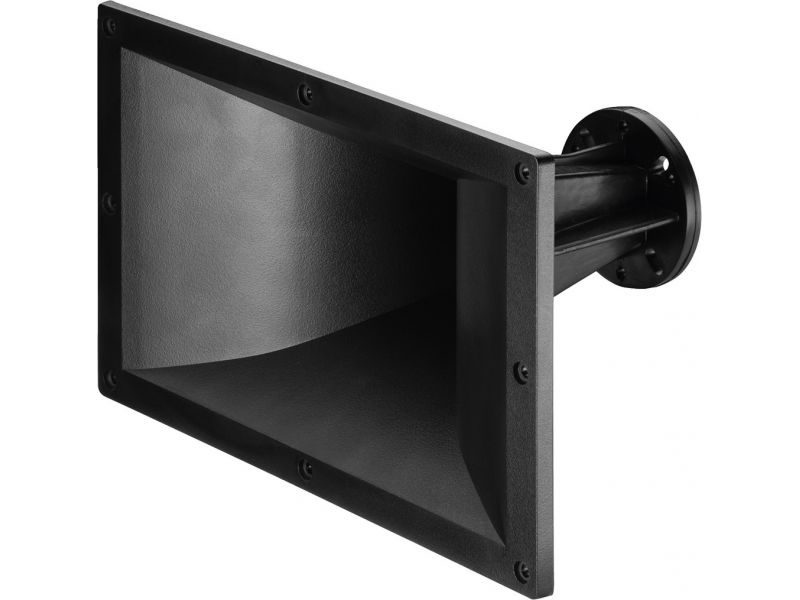

MRH-202
PA mid-high range horn
- Horn made of reinforced ABS plastic
- Low-resonance due to robust design with a wall thickness of 8 mm
- 25 mm (1") flange connection with standard 2-hole, 3-hole and 4-hole screw connection
- Consistent radiation pattern
- Recommended minimum crossover frequency: 1 kHz
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametrii
| Description | mid-high range horn |
| Material | ABS plastic |
| Frequency range | 700-20,000 Hz |
| Crossover frequency | 1,000 Hz |
| Radiation angle (vert./hor.) | 60°/100° |
| Radiation angle, vertical | 60° |
| Radiation angle, horizontal | 100° |
| Suitable outlet | 25 mm |

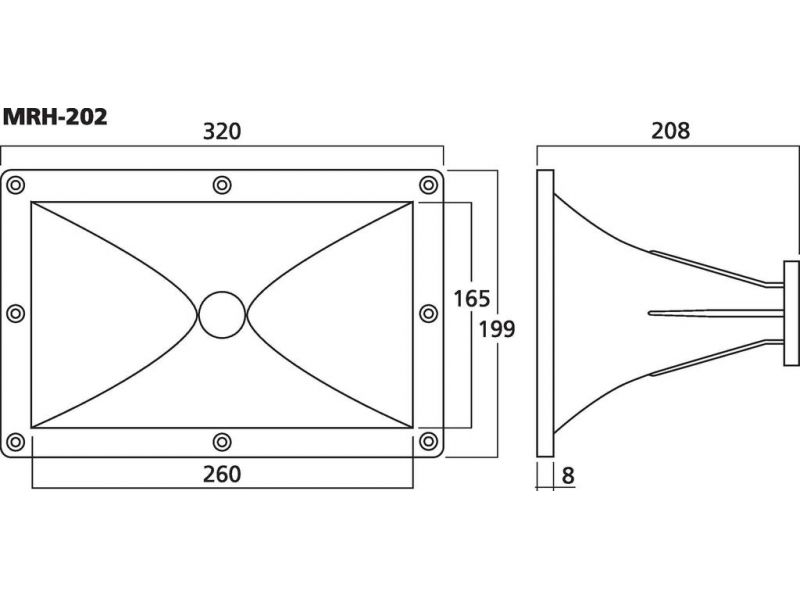

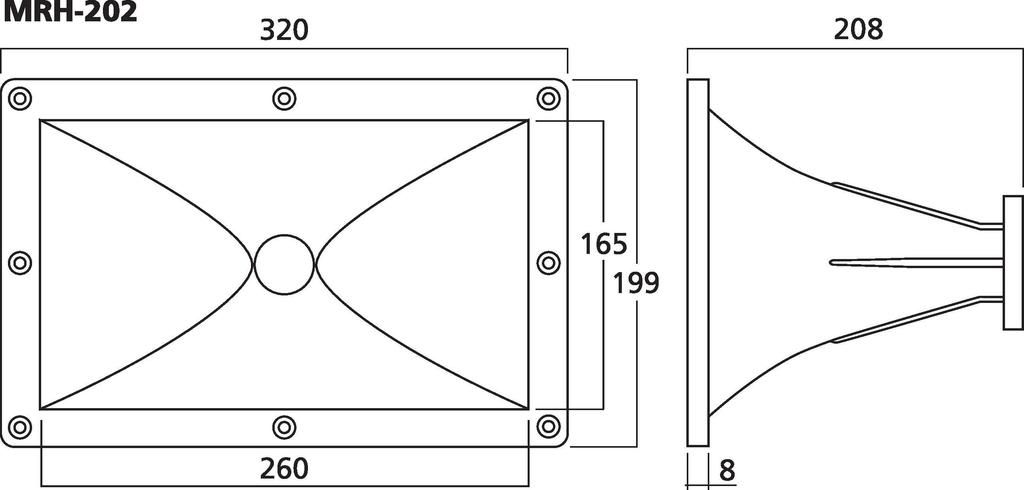

| Mounting cutout | 260 x 165 mm |
| Mounting depth | 200 mm |
| Dimensions | 318 x 199 x 208 mm |
| Height | 199 mm |
| Width | 318 mm |
| Depth | 208 mm |
| Weight | 0.62 kg |
