MRH-80
Cod EAN: 4007754192131
PA horn tweeter for MRD-80 35 mm (1⅜") standard thread Plastic CD design (constant directivity) Effective throat: 25 mm (1") Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com

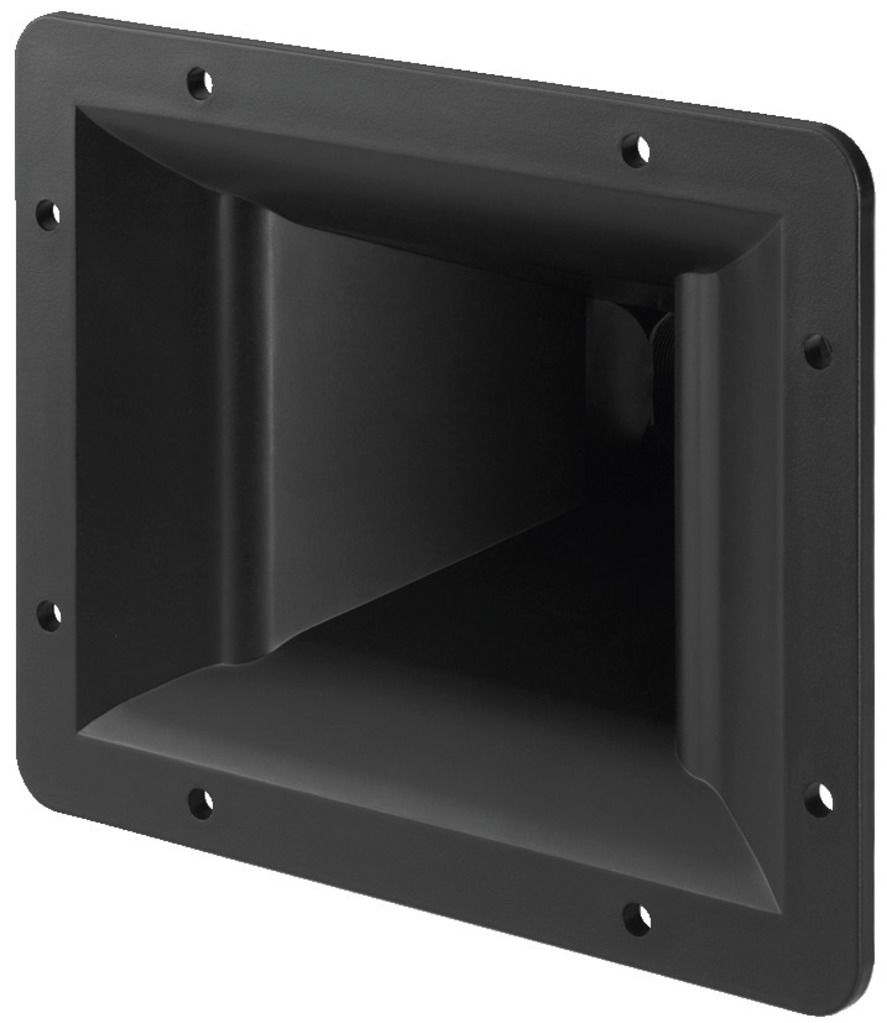

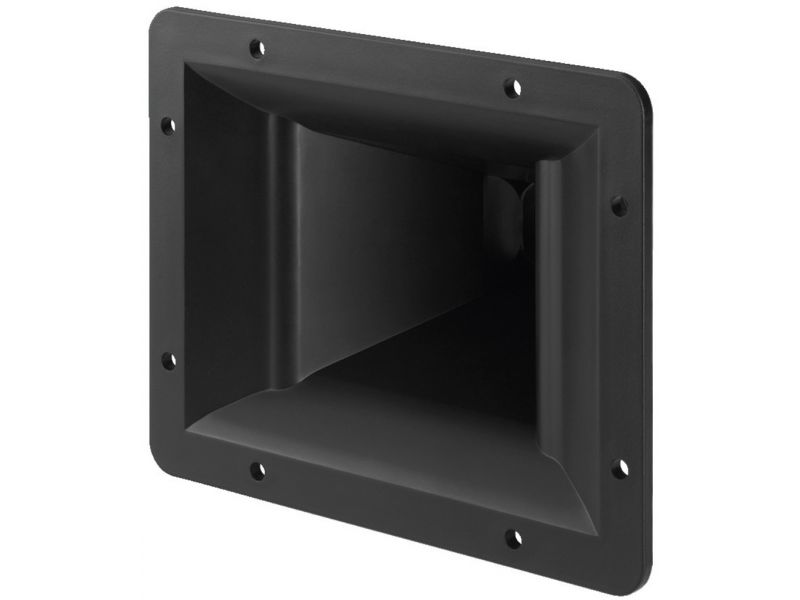

MRH-80
PA horn tweeter for MRD-80
- 35 mm (1⅜") standard thread
- Plastic
- CD design (constant directivity)
- Effective throat: 25 mm (1")
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Description | horn tweeter |
| Material | plastic |
| Frequency range | 2,500-18,000 Hz |
| Crossover frequency | 2,500 Hz |
| Radiation angle (vert./hor.) | 60°/90° |
| Radiation angle, vertical | 60° |
| Radiation angle, horizontal | 90° |

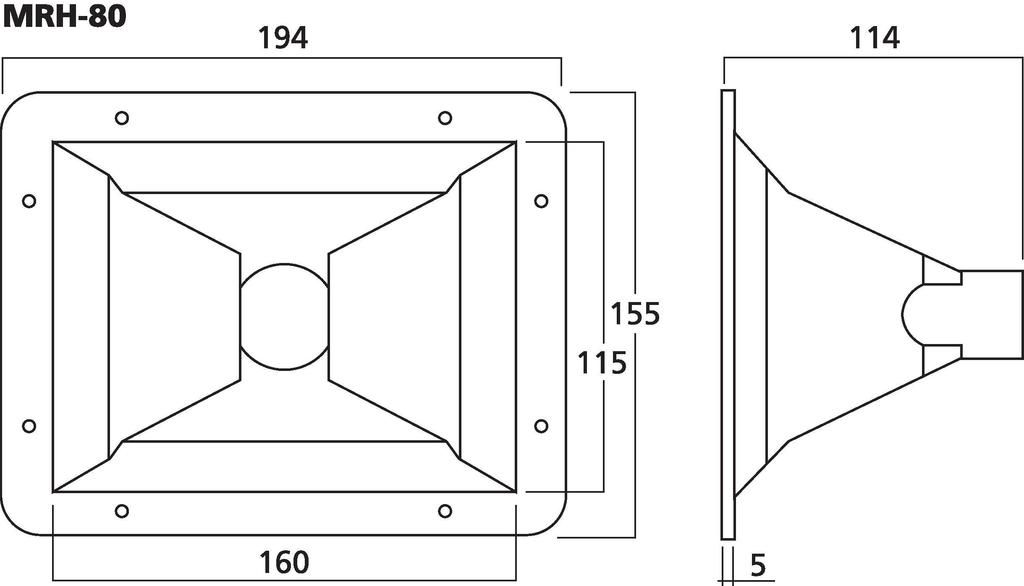

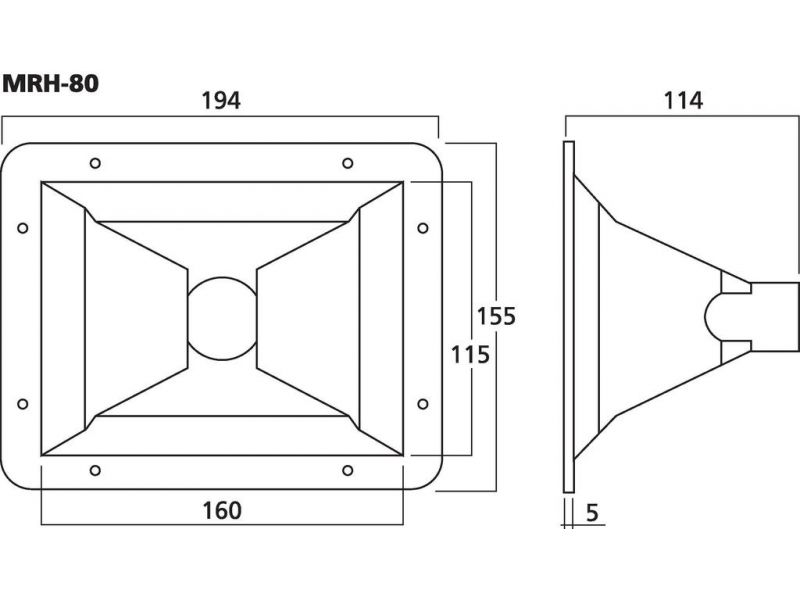

| Mounting cutout | 160 x 115 mm |
| Mounting depth | 110 mm |
| Dimensions | 194 x 155 x 114 mm |
| Height | 155 mm |
| Width | 194 mm |
| Depth | 114 mm |
| Weight | 168 g |
