MSH-115

Cod EAN: 4007754034301

A design which has become classic by now and materials which seem to be basic but of perfect workmanship, thus allowing for an excellent sound! Hi-fi midrange speaker, 50 W, 8 Ω High-end technology matching the SPH-... series Coated special cone...

Citeste mai mult

Intreaba despre produs
Cumpara acum

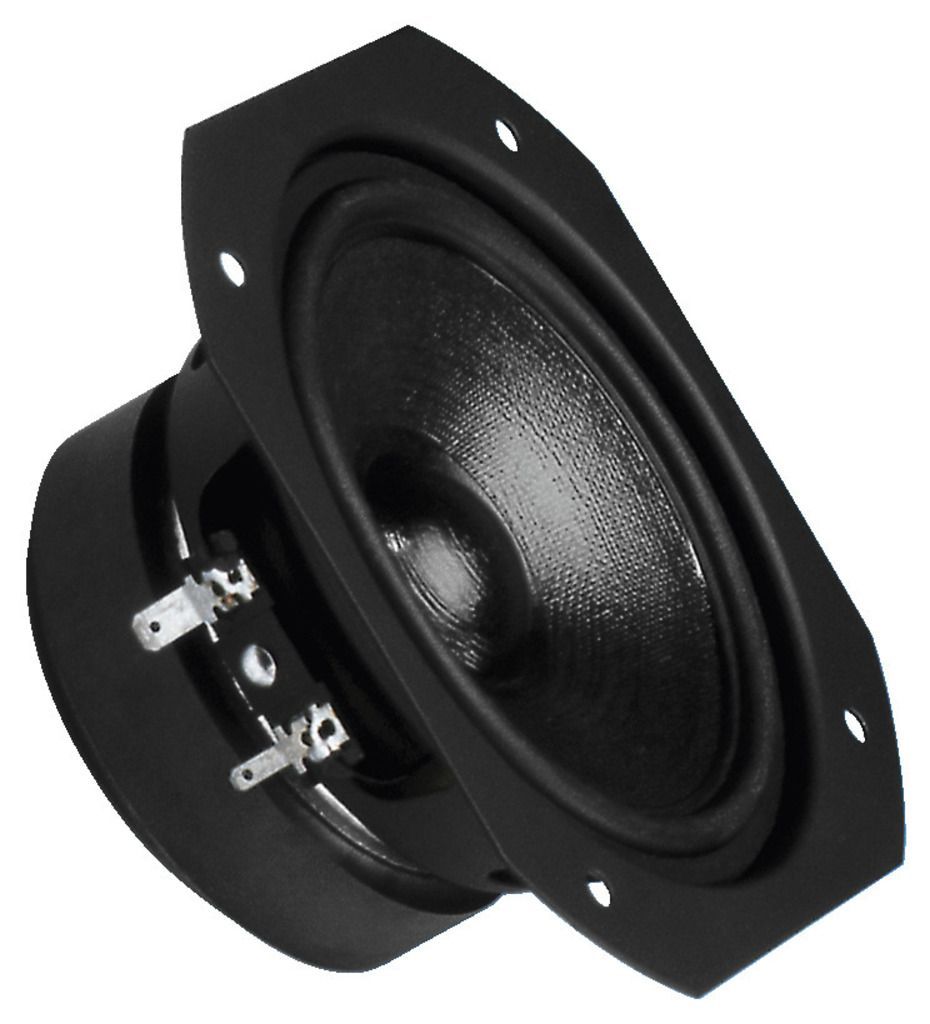

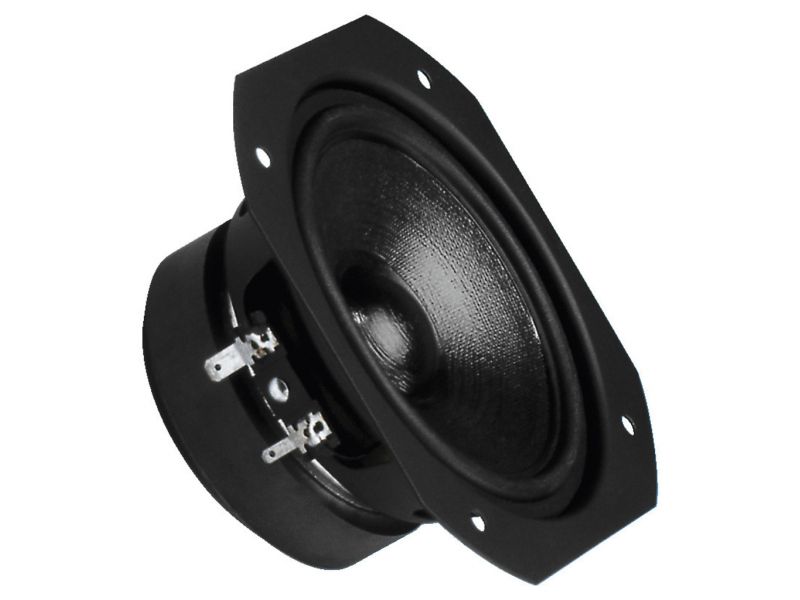

MSH-115

A design which has become classic by now and materials which seem to be basic but of perfect workmanship, thus allowing for an excellent sound!
Hi-fi midrange speaker, 50 W, 8 Ω
  • High-end technology matching the SPH-... series
  • Coated special cone
  • Dust cap with high damping
  • Extra flat basket (no need to recessed installation)
  • Top linearity
  • Perfect mass-drive ratio
  • Wide bandwidth
  • Hi-fi for highest requirements
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

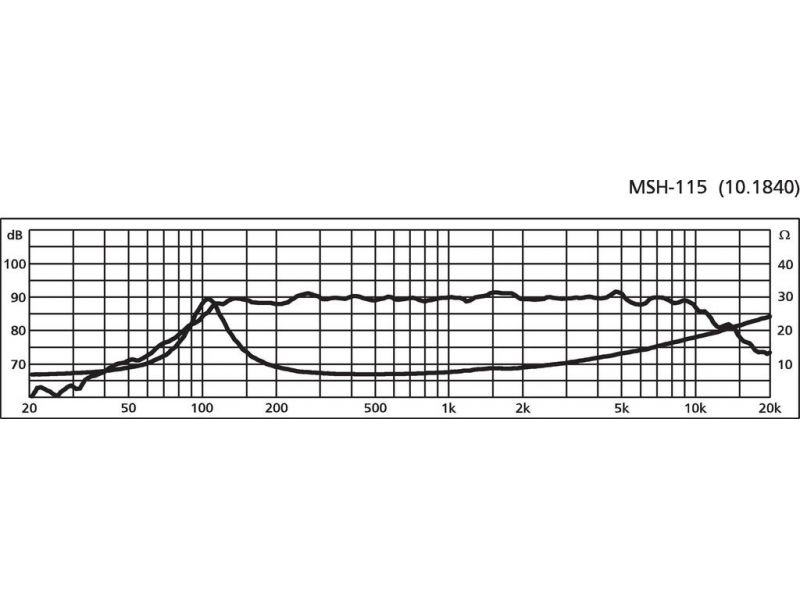

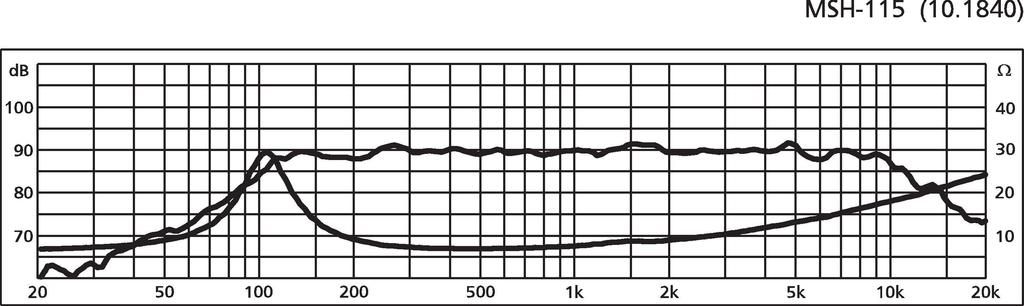

Frequency range fx-10,000 Hz
Resonant frequency (fs) 85 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 300/5,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 120 W
SPL 89 dB/W/m
Suspension compl. (Cms) 0.8 mm/N
Moving mass (Mms) 4.5 g
Mech. Q factor (Qms) 1.98
Electr. Q factor (Qes) 0.55
Total Q factor (Qts) 0.43
Equivalent volume (Vas) 4 l
DC resistance (Re) 6.3 Ω
Force factor (BxL) 4.80 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.5 mm
Eff. cone area (Sd) 55 cm2
Magnet weight 230 g
Magnet diameter Ø 72 mm

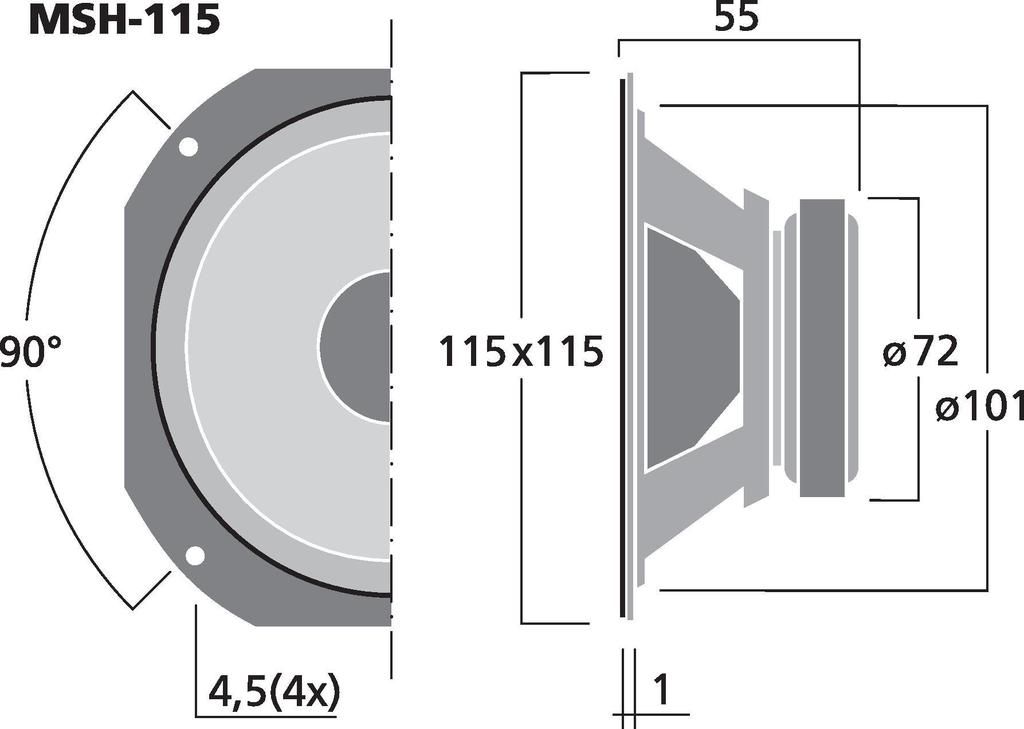

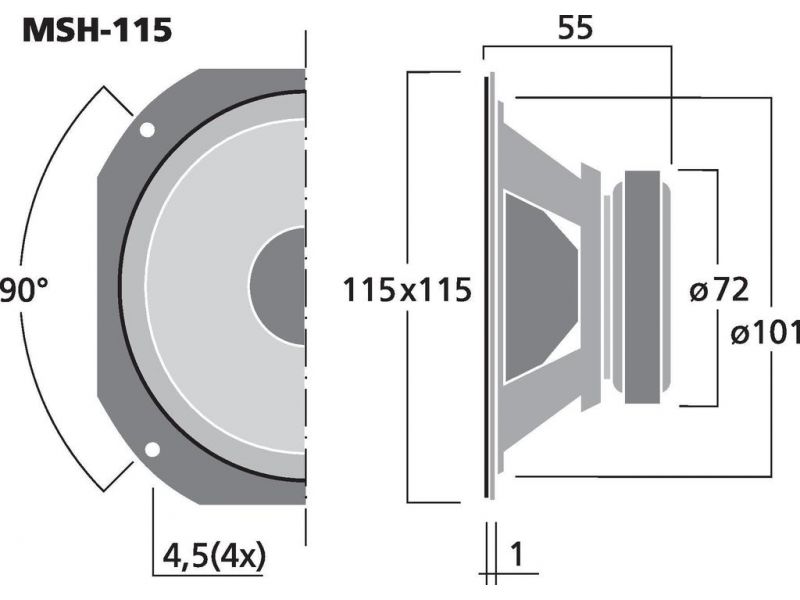

Mounting cutout Ø 101 mm
Mounting depth 54 mm
Dimensions 115 x 115 x 55 mm
Width 115 mm
Height 115 mm
Depth 55 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.56 kg
Packing unit 1
Type of speaker 4"
Packaging dimensions (W x H x L) 0.125 x 0.065 x 0.145 m
Gross weight 0.605 kg
Net weight 0.56 kg

Fisiere de descarcat

Fisa produsului MSH-115 konformitaetserklaerung-ce konformitaetserklaerung-ukca
