NAC3MX-W-TOP

Cod EAN: 7613187011849

NEUTRIK POWERCON True1 TOP Connectors Complies with safety requirements of IEC 60320, VDE-certified For mains connection up to ˜ 250 V/16 A Connections for ground, phase and neutral conductor, connector can be connected under load Robust version with...

Citeste mai mult

Intreaba despre produs
Cumpara acum


NAC3MX-W-TOP

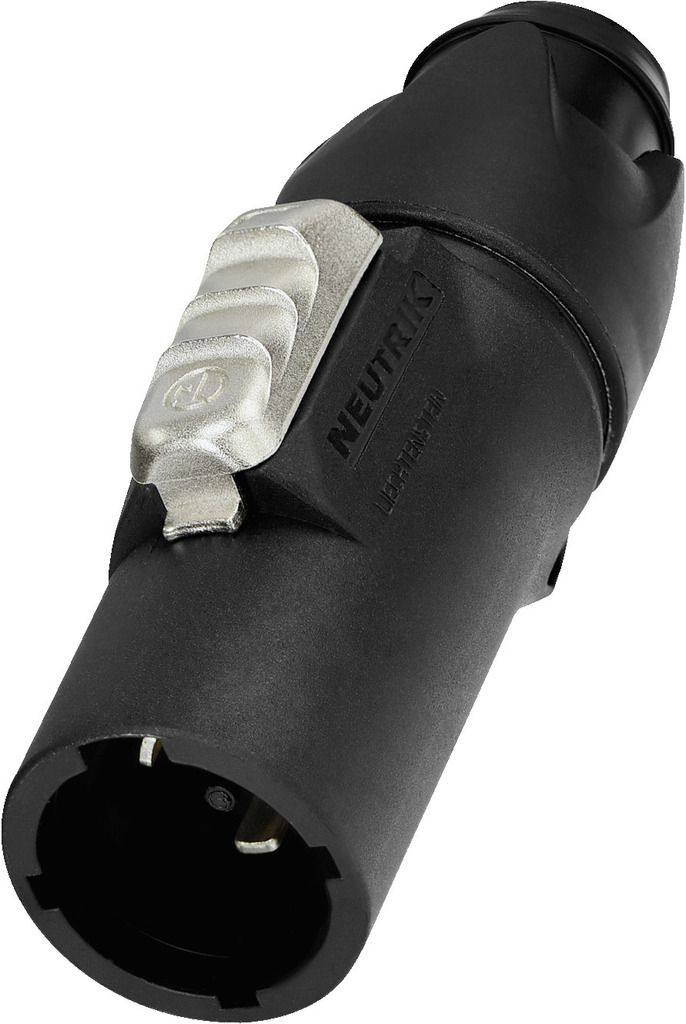

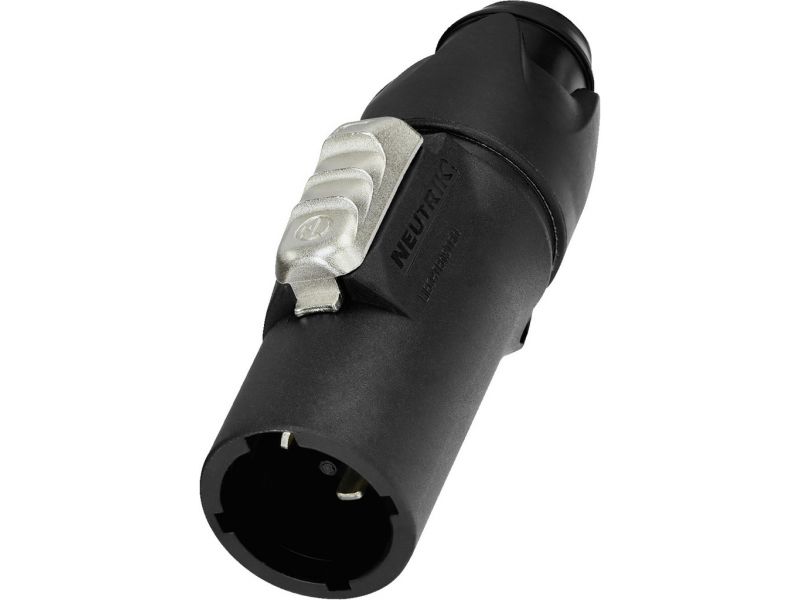

NEUTRIK POWERCON True1 TOP Connectors
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ˜ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
  • Self-extinguishing according to UL 94V-0
  • Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)
NEUTRIK POWERCON True1 TOP plug
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ˜ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Robust version with latching device and cable inlet with self-adjusting clamps
  • Self-extinguishing according to UL 94V-0
  • Protection classs IP65

Parametrii

Description plug
Type NEUTRIK POWERCON TOP
Quantity 1
Features latching device
Colour/colour coding black
Power rating ˜ 250 V/16 A
Insulating resistance > 100 MΩ
Dielectric strength DC 4 kV/˜ 2.8 kV
Certification UL, VDE
Pole number 2+PE
Cable inlet 6-12 mm
Strain relief yes
Material silver-plated bronze contacts, plastic
Admiss. ambient temp. -30-+80 °C
Dimensions Ø 26.5 mm x 77-80 mm
Weight 32 g

Fisiere de descarcat

Fisa produsului NAC3MX-W-TOP
