NP-2XBAG

Cod EAN: 7613187000713

NEUTRIK 6.3 mm mono plug High-quality version Nickel-plated, black body Strain relief and cable bending protection For cables up to: Ø 4-7 mm Note: The supplied strain relief clamp cannot be used with a cable diameter > 5.5 mm.



NP-2XBAG

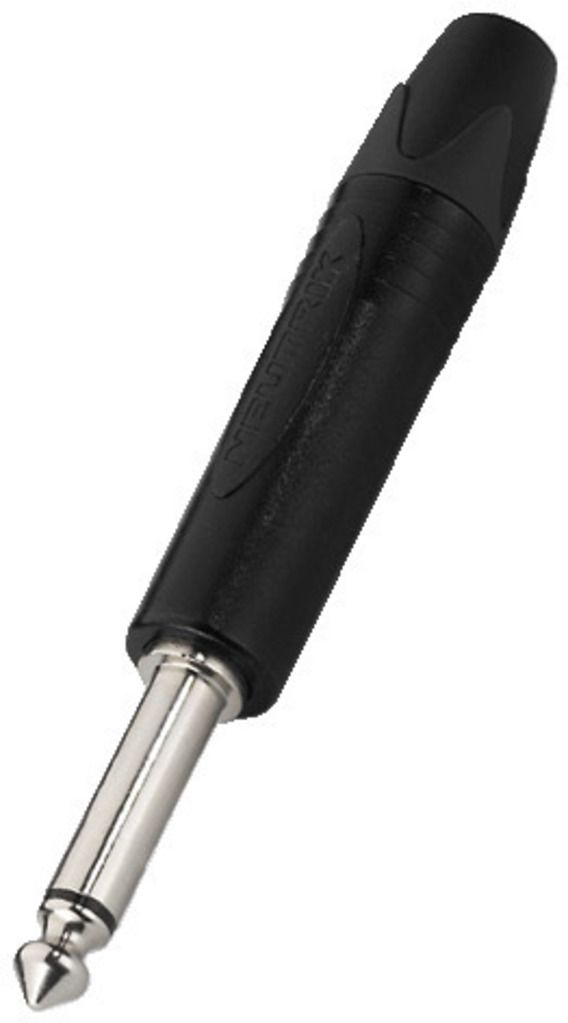

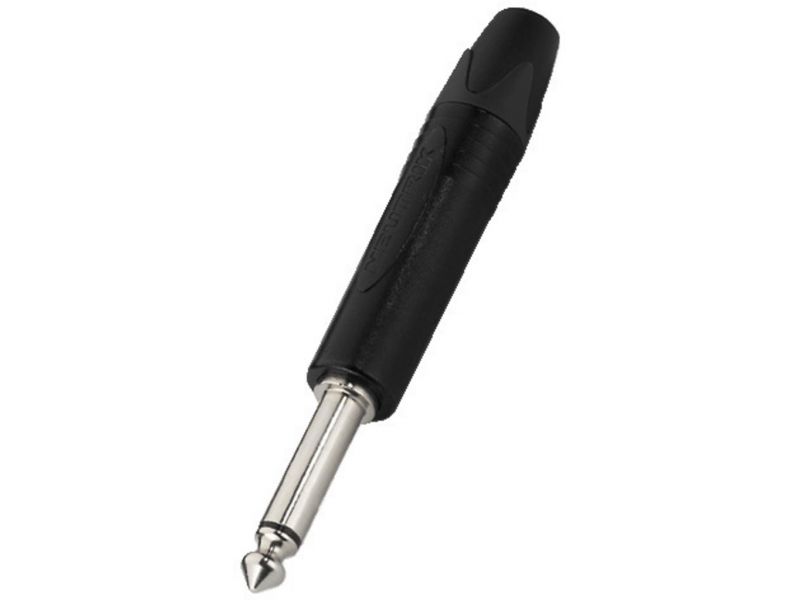

NEUTRIK 6.3 mm mono plug
  • High-quality version
  • Nickel-plated, black body
  • Strain relief and cable bending protection
  • For cables up to: Ø 4-7 mm

Note:
The supplied strain relief clamp cannot be used with a cable diameter > 5.5 mm.

Parametrii

Description plug
Type NEUTRIK plug 6.3 mm
Quantity 1
Features slimline
Colour/colour coding black
Power rating < 50 V
Insulating resistance > 2 GΩ
Dielectric strength DC 1 kV
Certification IEC 60603-11 / EIA RS-453IEC 68-2-20
Pole number 2
Cable inlet Ø 4-7 mm
Suitable cable cross section 1 mm2
Connection soldering contacts
Strain relief self-adjusting clamps
Cable bending protection yes
Mono yes
Material diecast zinc
Admiss. ambient temp. -20-+65 °C
Weight 24 g
