NTE-10/3
Cod EAN: 4007754208771
Audio transformer 1:3/1:10 for microphone signals, from NEUTRIK. Very compact design, e.g. also suitable for installation into connector housings Unshielded version with bare wire connections (70 mm) Wideband version Balance adjustment Galvanic iso...

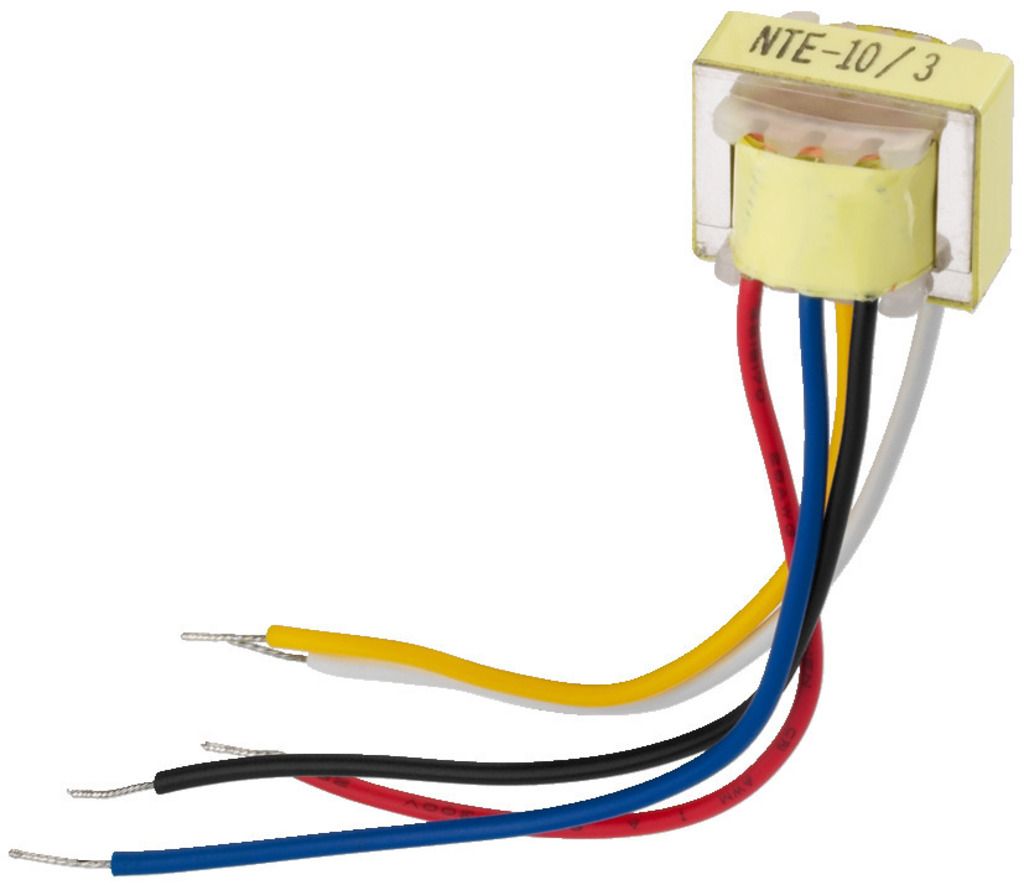

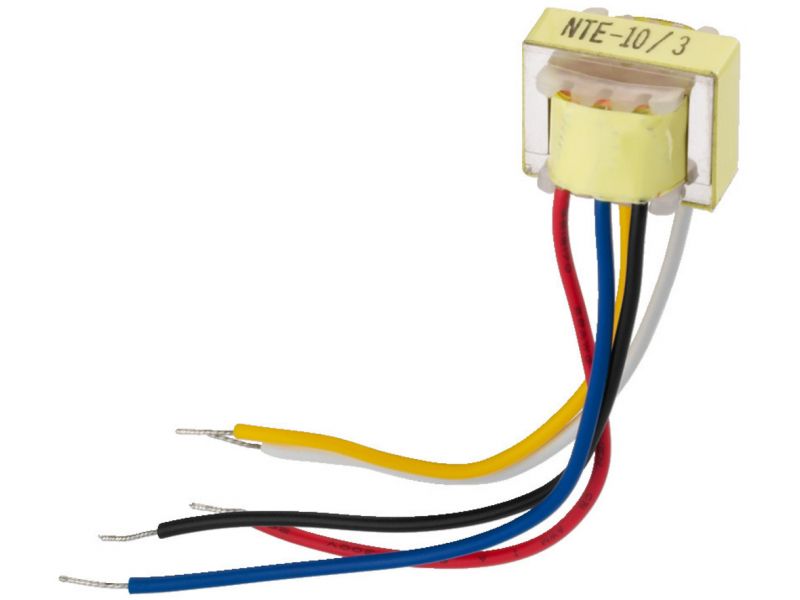

NTE-10/3
Audio transformer 1:3/1:10 for microphone signals,
from NEUTRIK.
- Very compact design, e.g. also suitable for installation into connector housings
- Unshielded version with bare wire connections (70 mm)
- Wideband version
- Balance adjustment
- Galvanic isolation to avoid/eliminate hum loops
- Max. input voltage: 350 mV/380 mV (1% THD/50 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametrii
| Description | transformer |
| Frequency range | 20-20,000 Hz |
| Input signal | 380 mV |

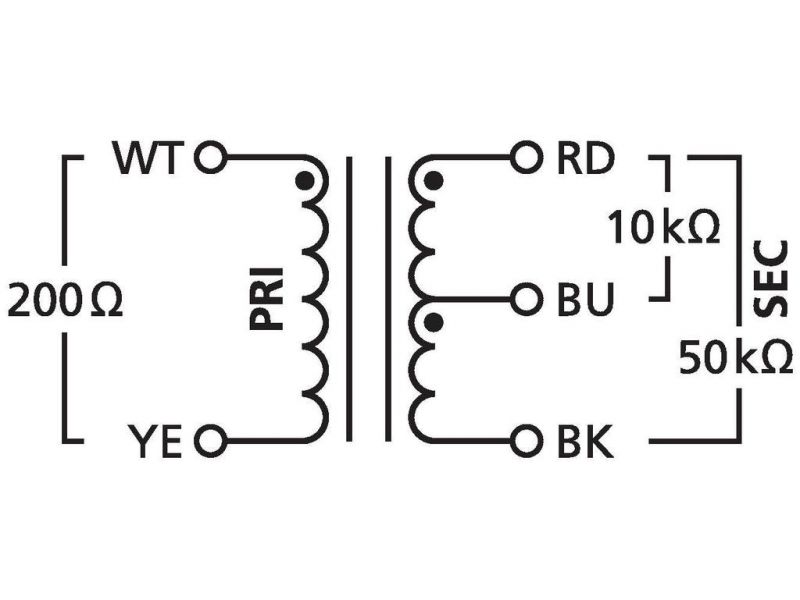

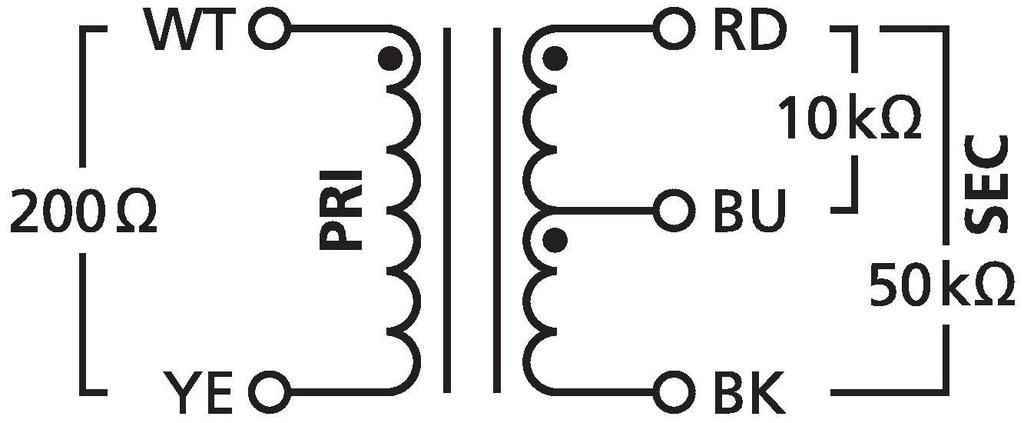

| Input impedance | 200 Ω |
| Output impedance | 10 kΩ/50 kΩ |
| Transmission ratio | 1:3/1:10 |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 14 x 11 x 12 mm(w/o cable) |
| Weight | 7 g |
| Inputs | bare wire connections |
| Outputs | bare wire connections |
