PA-102

Cod EAN: 4007754240788

Mono PA mixing amplifier, 8.5 W 1 adjustable microphone input 1 adjustable line input Supplied with hand-held push-to-talk microphone Siren function via push-button Metal housing Supplied with mounting brackets 12 V battery operation Manufacturer...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-102

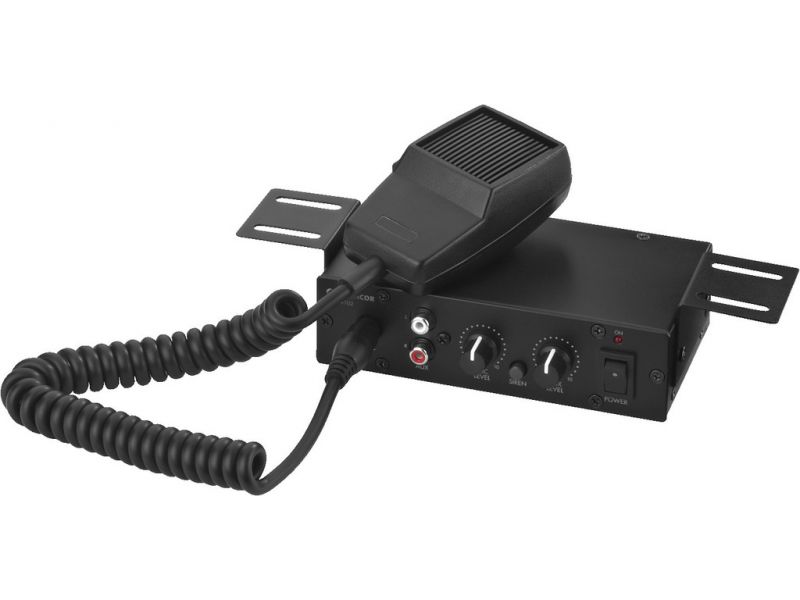

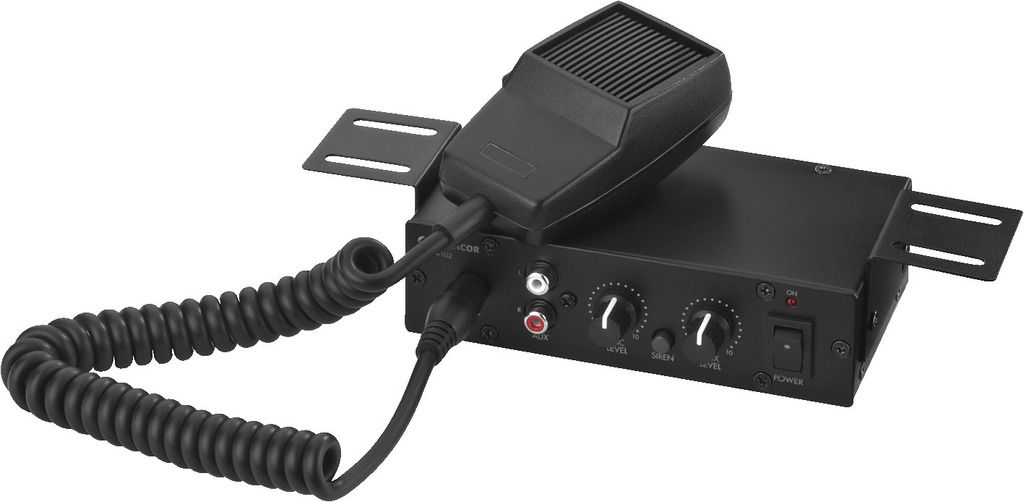

Mono PA mixing amplifier, 8.5 W
  • 1 adjustable microphone input
  • 1 adjustable line input
  • Supplied with hand-held push-to-talk microphone
  • Siren function via push-button
  • Metal housing
  • Supplied with mounting brackets
  • 12 V battery operation
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 15 W
Power rating 8.5 W
Channels 1
Inputs 3.4 mV/2.2 kΩ (mic), 240 mV/11 kΩ (line)
Frequency range 20-20,000 Hz
S/N ratio 70 dB
THD < 0.3%
Power supply DC 12 V/2 A
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 2 A
Admiss. ambient temp. 0-40 °C
Width 151 mm
Height 41 mm
Depth 115 mm
Weight 410 g

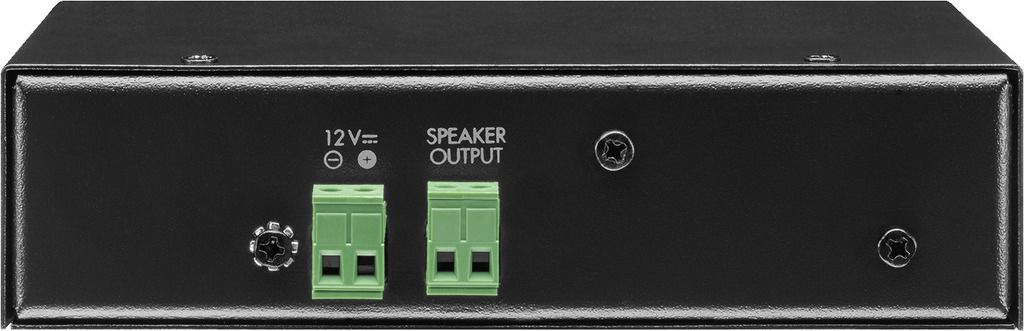

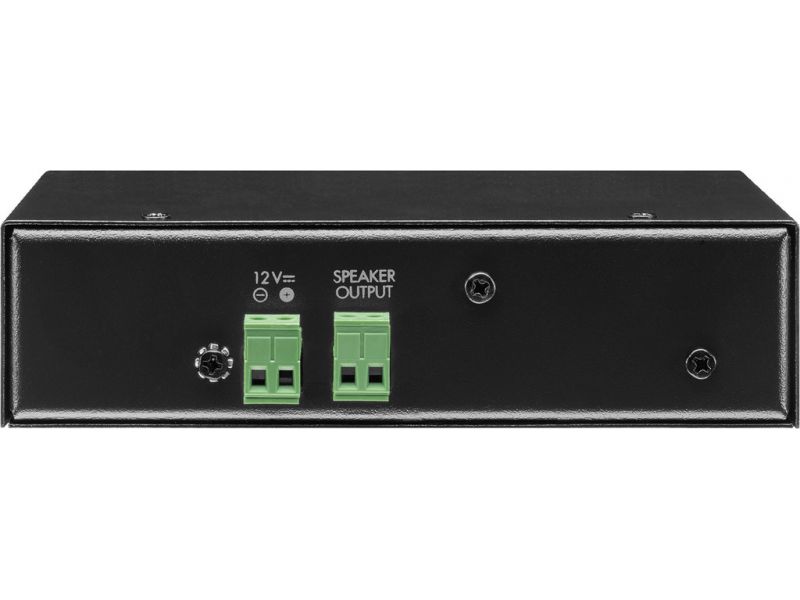

Connections 1 x 6.3 mm jack (mic input), 1 x RCA L/R (line input), screw terminal (speakers), screw terminal (power supply)
Packaging dimensions (W x H x L) 0.13 x 0.12 x 0.205 m
Gross weight 0.76 kg
Net weight 0.656 kg

Fisiere de descarcat

Fisa produsului PA-102 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
