PA-1960

Cod EAN: 4007754203967

High-power mono PA amplifier 1 x 960 W Additional, adjustable priority input with switchable priority function 100 V slave input for inserting the amplifier into a 100 V speaker line Switchable 400 Hz high-pass filter 6 dB/oct. 2 insertion facilities...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-1960

High-power mono PA amplifier
  • 1 x 960 W
  • Additional, adjustable priority input with switchable priority function
  • 100 V slave input for inserting the amplifier into a 100 V speaker line
  • Switchable 400 Hz high-pass filter 6 dB/oct.

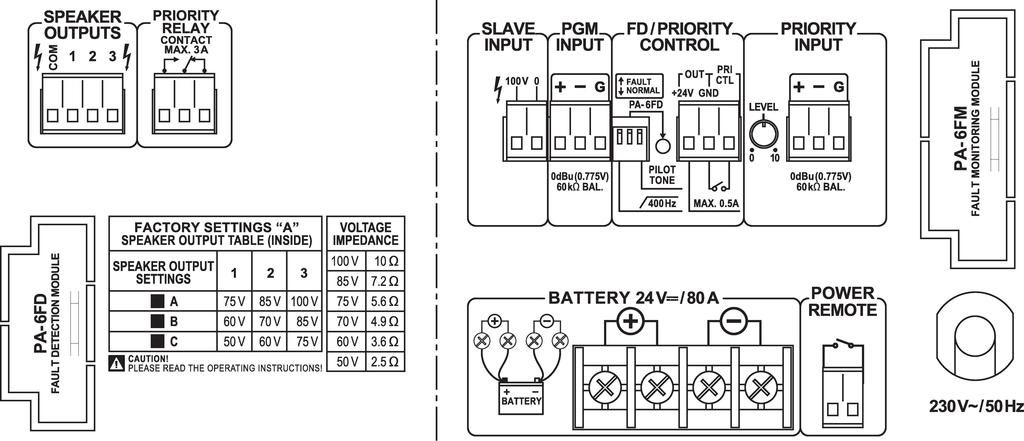

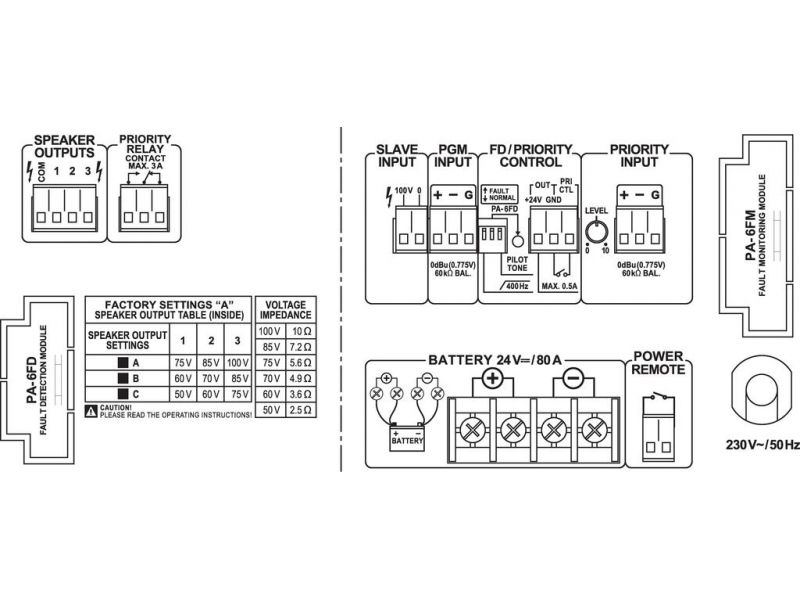

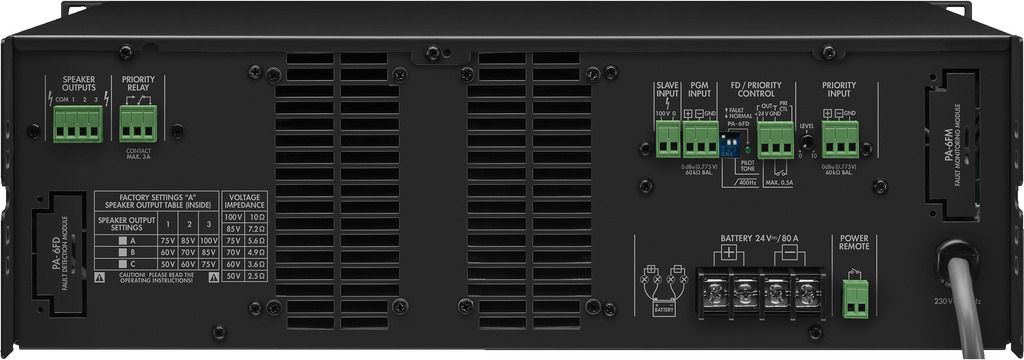

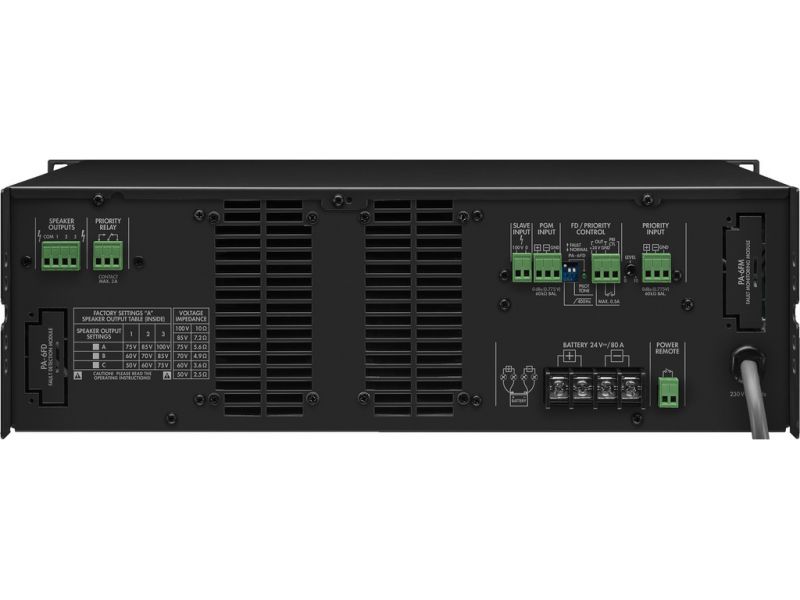

  • 2 insertion facilities on the rear panel for optional modules with the following features:
  • PA-6FD: fault detection module
  • PA-6FM: fault monitoring module
  • Connection for external on/off switch (remote start)
  • Temperature-controlled fan, continuously adjustable

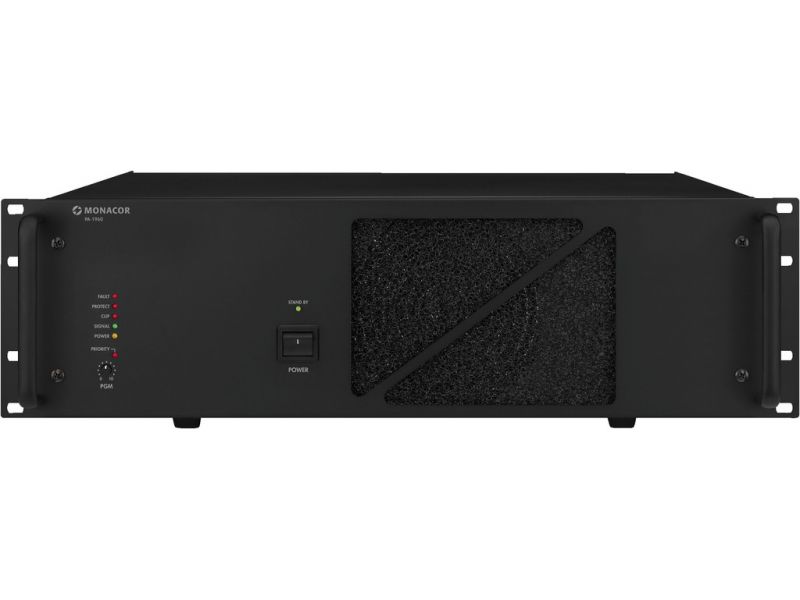

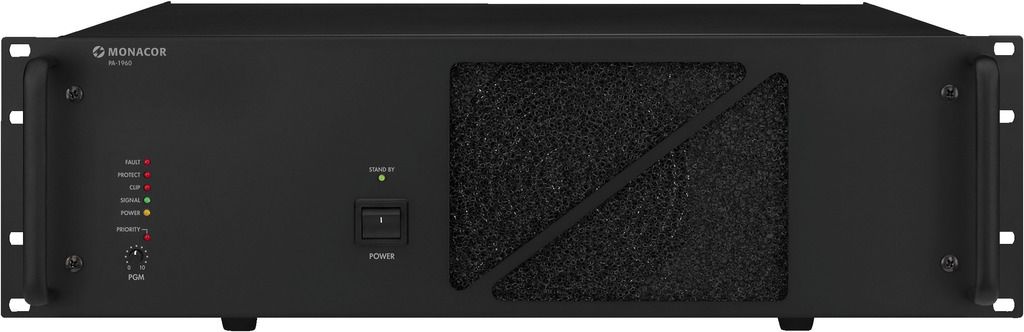

  • LED indication for fault, protect, clip, signal, priority
  • Mains operation or 24 V emergency power operation
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 960 W
Power rating 960 W
Power rating at 100 V 960 W
Power rating at 70 V 960 W
Output impedance 75 V/5.6 Ω, 85 V/7.2 Ω, 100 V/10 Ω
Channels 1
Inputs 0.775 V/60 kΩ, bal.
Frequency range 35-20,000 Hz
S/N ratio > 100 dB
THD < 0.4%
Power supply ˜ 230 V/50 Hz/2,600 VA, DC 24 V/80 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 2,600 VA
Standby current DC 24 V
Operating voltage (possible alternative) 80 A
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 133 mm
Depth 374 mm
Rack units, RU 3
Weight 25 kg
Connections screw contacts (inputs) screw contacts (speakers)
Packaging dimensions (W x H x L) 0.54 x 0.21 x 0.48 m
Gross weight 28.26 kg
Net weight 26.3 kg

Fisiere de descarcat

Fisa produsului PA-1960 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
