PA-704

Cod EAN: 4007754274240

Mono PA mixing amplifier 1 x 35 W 2 low-impedance microphone inputs 1 aux input, 1 phono input Speaker outputs via screw terminal contacts Input and output level controls 2-way tone control for the output Connection for a microphone talk button to sw...

Citeste mai mult

Intreaba despre produs
Cumpara acum

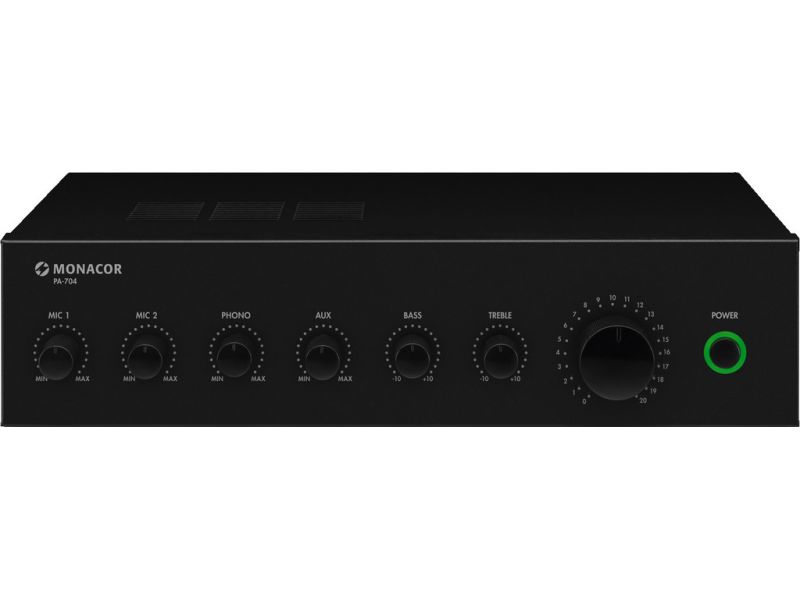

PA-704

Mono PA mixing amplifier
  • 1 x 35 W
  • 2 low-impedance microphone inputs
  • 1 aux input, 1 phono input
  • Speaker outputs via screw terminal contacts
  • Input and output level controls
  • 2-way tone control for the output
  • Connection for a microphone talk button to switch off the other sources during announcements
  • Mains operation and 12-24 V emergency power operation
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 70 W
Power rating 35 W
Power rating at 4 Ω 35 W
Power rating at 8 Ω 35 W
Power rating at 100 V 35 W
Power rating at 70 V 35 W
Channels 4
Inputs 5 mV (mic), 210 mV (aux), 5 mV (phono)
Frequency range 100-18,000 Hz
Equalizer bass ±10 dB/150 Hz
Equalizer treble ±10 dB/6 kHz
S/N ratio > 55 dB
THD < 1%
Power supply ˜ 230 V/50 Hz/100 VA DC  12-24 V/2.5 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Operating voltage (possible alternative) DC 12-24 V
Power supply (possible alternative) DC 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 85 mm
Depth 230 mm
Weight 4.97 kg

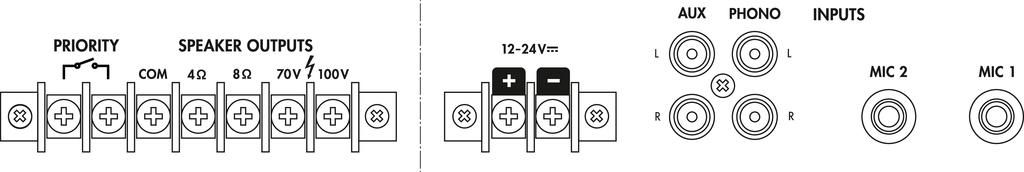

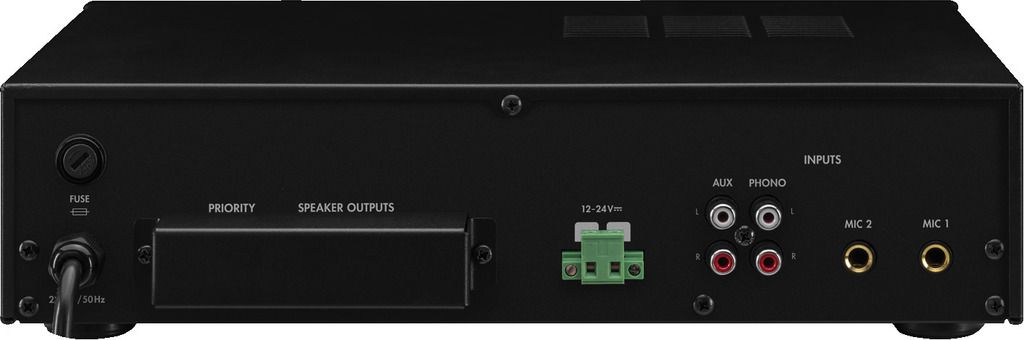

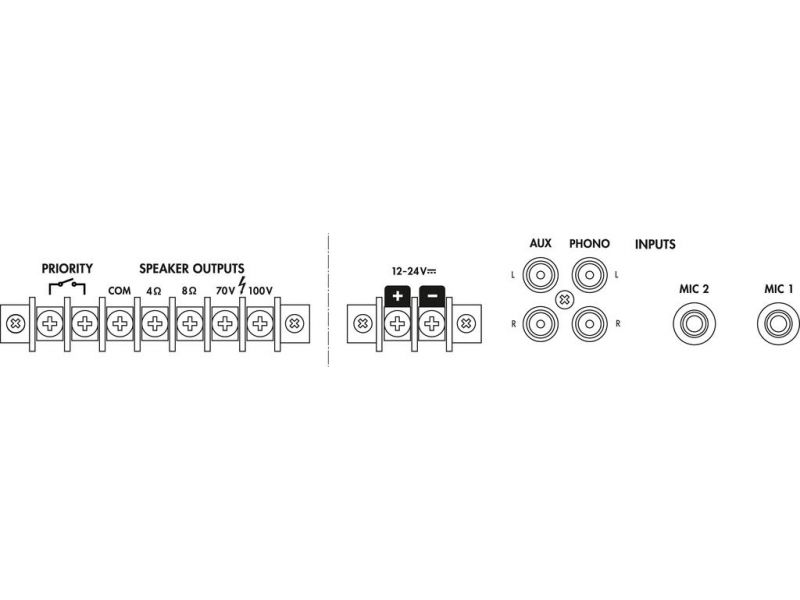

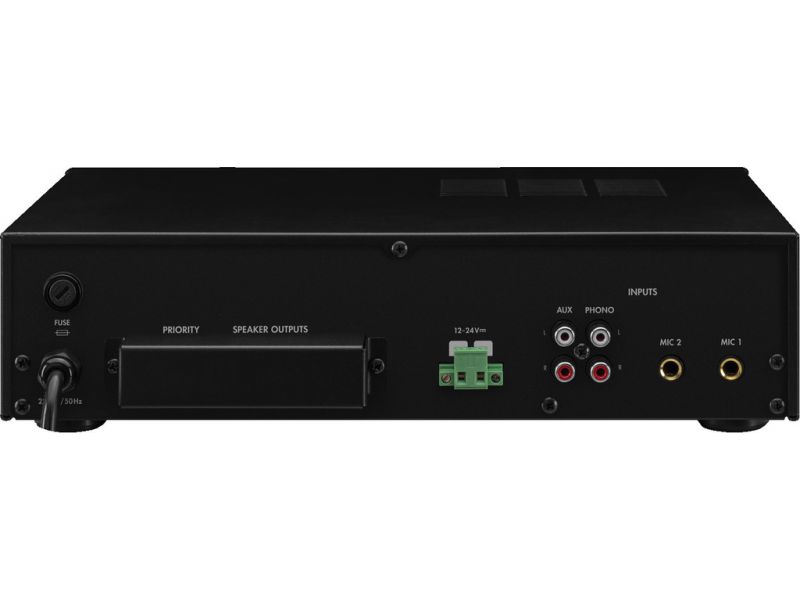

Connections 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.37 x 0.14 x 0.28 m
Gross weight 5.33 kg
Net weight 4.97 kg

Fisiere de descarcat

Fisa produsului PA-704 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
