PA-924S

Cod EAN: 4007754261868

Mono PA power amplifier 1 x 240 W Temperature-controlled fan, continuously adjustable Protected against overheating, overload and short circuit LED indication for clip, protect, overtemperature, output level and 100 V/70 V Feed-through output (link)...

Citeste mai mult

Intreaba despre produs
Cumpara acum

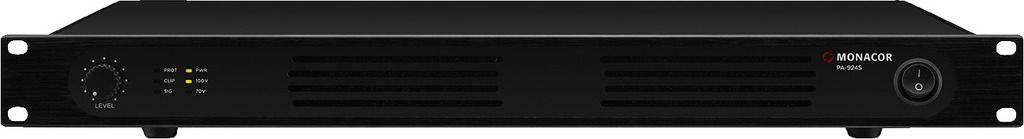

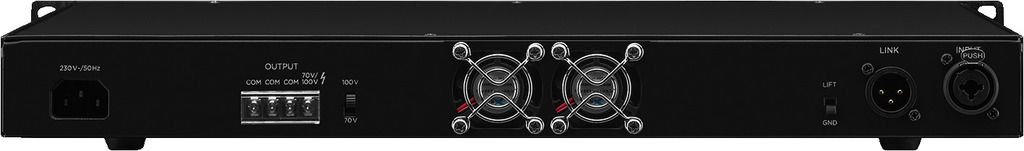

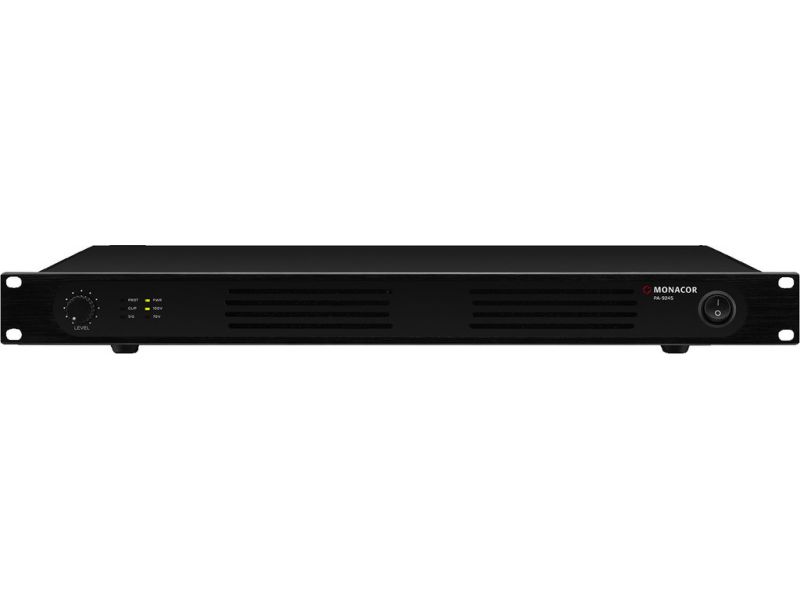

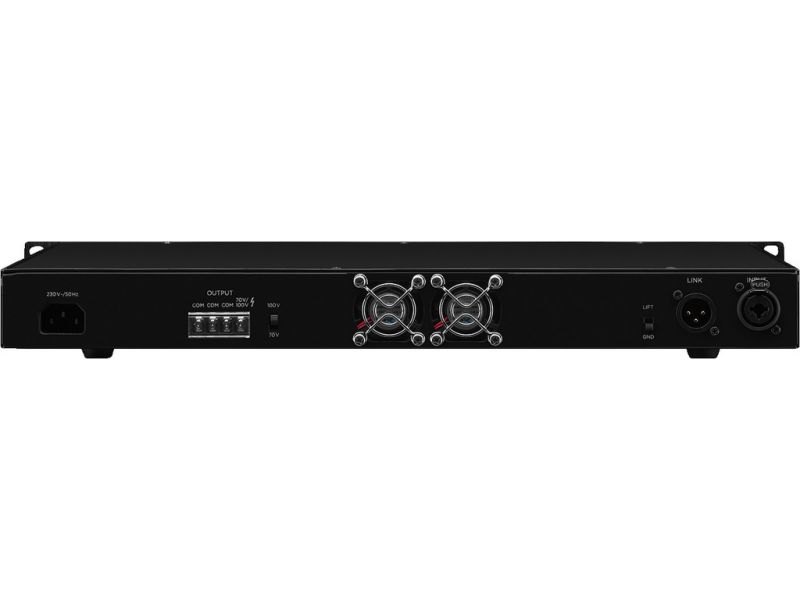

PA-924S

Mono PA power amplifier
  • 1 x 240 W
  • Temperature-controlled fan, continuously adjustable
  • Protected against overheating, overload and short circuit
  • LED indication for clip, protect, overtemperature, output level and 100 V/70 V
  • Feed-through output (link)
  • Speaker outputs via screw terminal contacts

Parametrii

Peak output power 240 W
Power rating 240 W
Power rating at 4 Ω 240 W
Power rating at 100 V 240 W
Power rating at 70 V 240 W
Output impedance 70 V/20 Ω, 100 V/40 Ω
Channels 1
Inputs 650 mV/10 kΩ, balanced
Frequency range 80-16,000 Hz
S/N ratio > 98 dB(A)
THD < 1%
Power supply ˜ 230 V/50 Hz/495 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 495 VA
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 44 mm
Depth 255 mm
Rack units, RU 1
Weight 3.8 kg

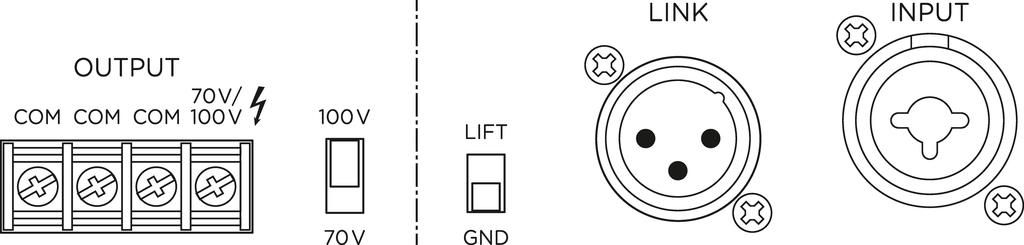

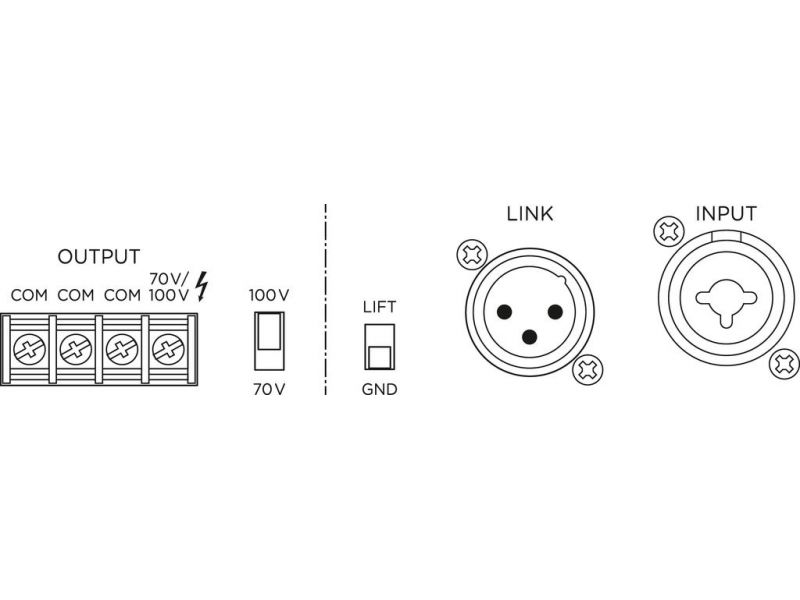

Connections 1 x combo 6.3 mm/XLR (input),1 x XLR (link), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.36 x 0.14 x 0.54 m
Gross weight 4.93 kg
Net weight 3.99 kg

Fisiere de descarcat

Fisa produsului PA-924S konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare schaltbild
