PA-M4RC

Cod EAN: 4007754273397

PA zone paging microphone, for PA matrix mixing amplifier PA-M224 or PA-M412. 4 zone selector switch ALL-CALL button Plug-in electret gooseneck microphone (3-pole XLR jack) Phantom power for gooseneck microphone LED indication for signal status Po...

Citeste mai mult

Intreaba despre produs
Cumpara acum

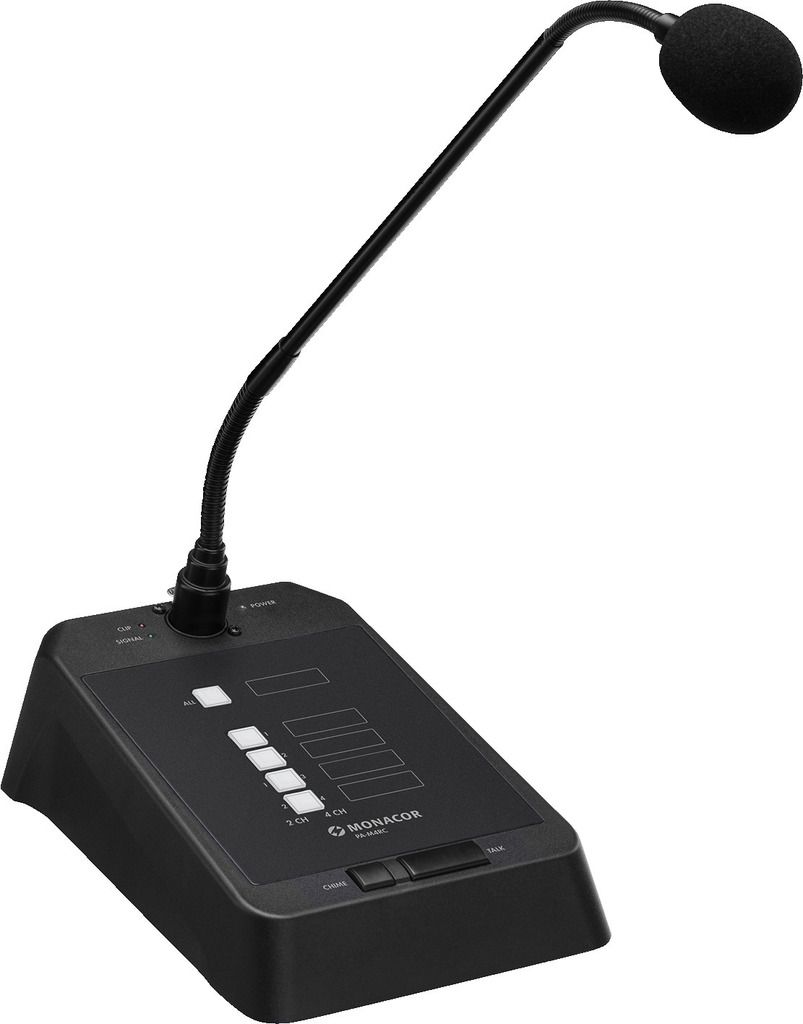

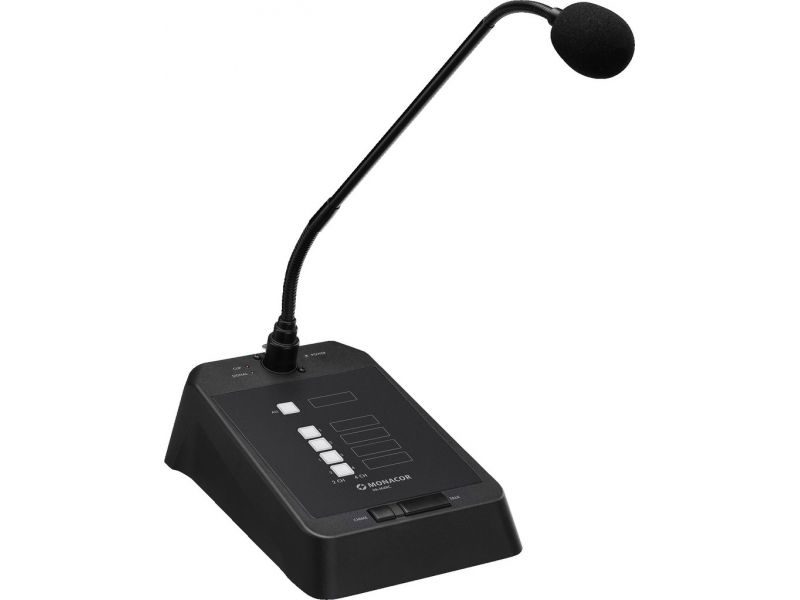

PA-M4RC

PA zone paging microphone,
for PA matrix mixing amplifier PA-M224 or PA-M412.
  • 4 zone selector switch
  • ALL-CALL button
  • Plug-in electret gooseneck microphone (3-pole XLR jack)
  • Phantom power for gooseneck microphone
  • LED indication for signal status
  • Power supply via PA-M224 or PA-M412
  • Connection to PA-M224 or PA-M412 via RJ45 jack and Cat. 5e network cable (copper, supplied w/o cable), cable length up to 200 m
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packaging dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

Fisiere de descarcat

Fisa produsului PA-M4RC konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
