PAB-120WP/SW

Cod EAN: 4007754223927

Weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PAB-120WP/SW

Weatherproof PA speakers with IP classification.
Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

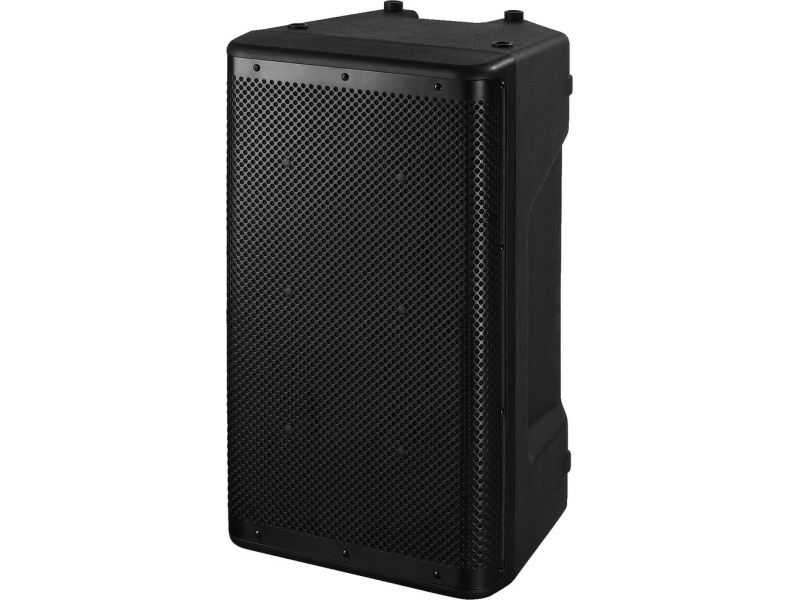

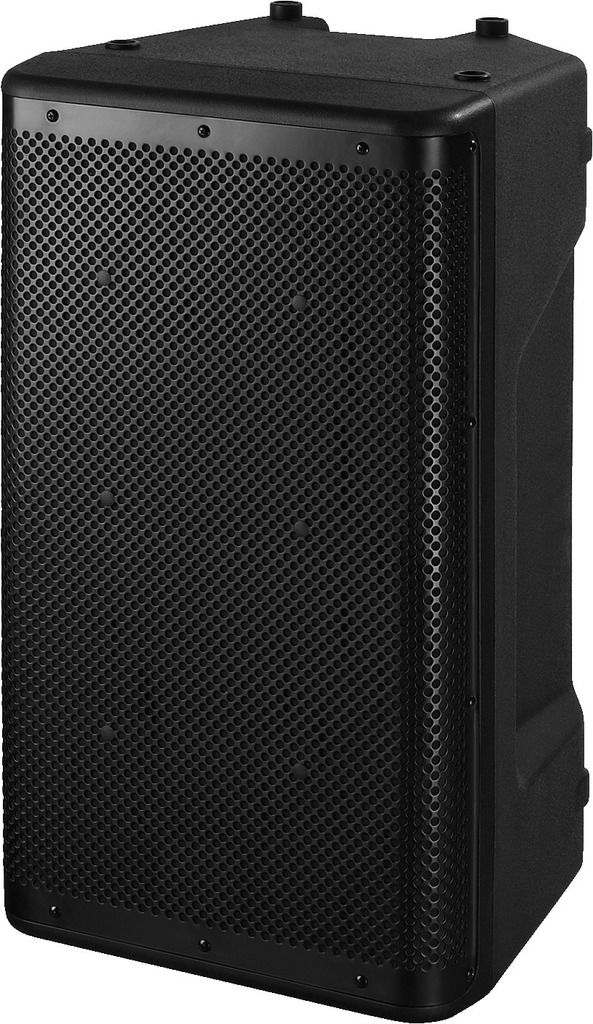

Weatherproof high-performance PA speaker system, 120 W
  • High-performance 2-way bass-reflex system in an ABS cabinet
  • 100 V transmission technology
  • 30 cm (12") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze

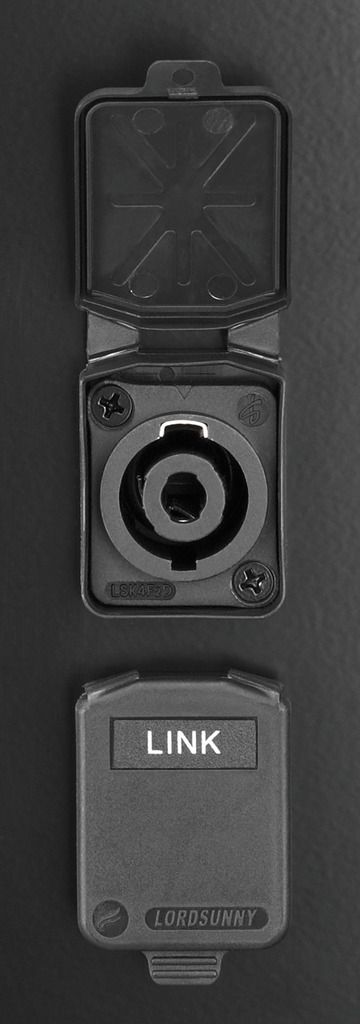

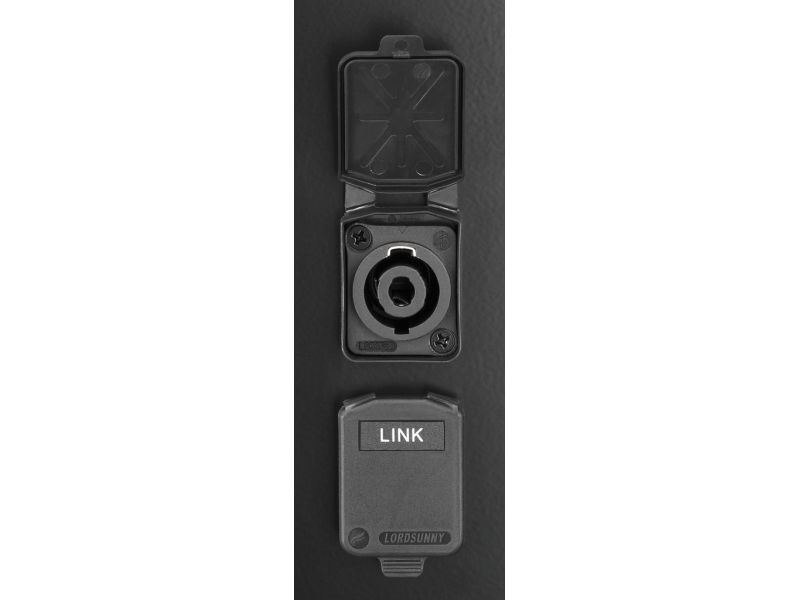

  • SPEAKER in and parallel out
  • Metal parts made of stainless steel
  • 4 x M10 threaded insert each at the top and bottom for suspended installation
  • Stand sleeve
  • Ball-proof according to DIN 18032, Part 3
Production Partner 04/2012
“With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions.” Test author Anselm Goertz
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 120 W

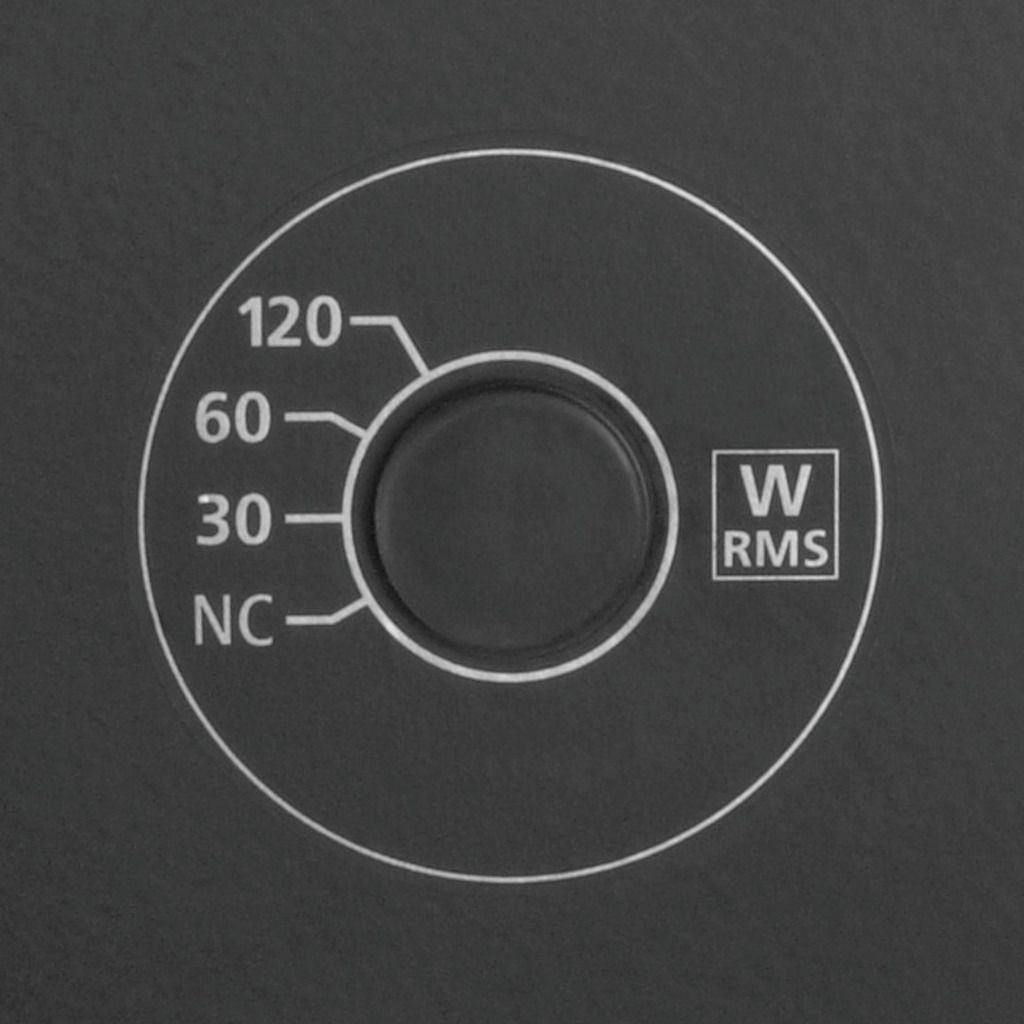

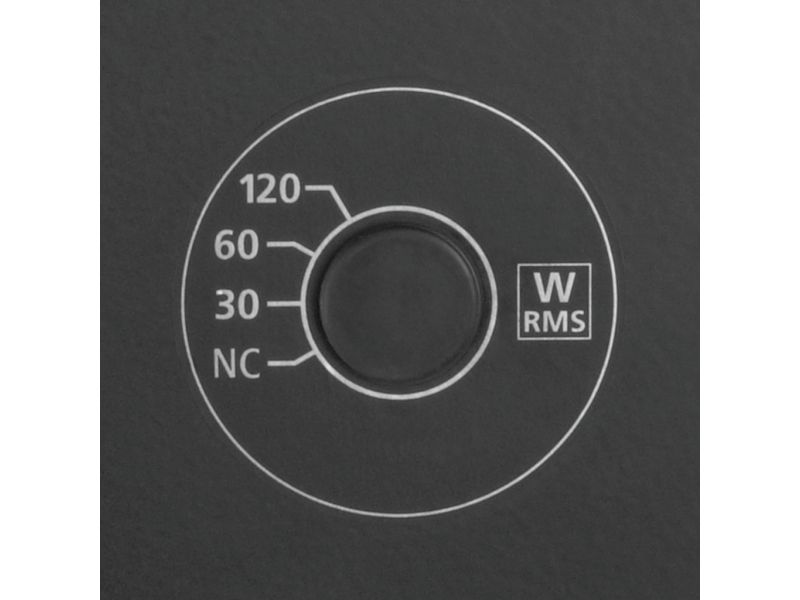

Power rating (RMS) 120/60/30 W
Frequency range 42-20,000 Hz
System 2-way bass-reflex
Bass speaker 30 cm (12") PA bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 30 cm (12")
SPL 98 dB/W/m
Max. rated SPL 119 dB
Radiation angle/beam angle H: 100°/V: 60°
Radiation angle, horizontal 100°
Radiation angle, vertical 60°
Housing material ABS
Colour black
Mounting device M10 threaded inserts, stand sleeve
Protected against ball rebound yes
Protection class IP45
Admiss. ambient temp. -20 °C to +40 °C
Dimensions 370 x 655 x 410 mm
Width 370 mm
Height 655 mm
Depth 410 mm
Weight 22.14 kg
Inputs 1 x SPEAKER
Outputs 1 x SPEAKER, par. out
Packaging dimensions (W x H x L) 0.46 x 0.72 x 0.43 m
Gross weight 27.48 kg
Net weight 22.14 kg

Fisiere de descarcat

Fisa produsului PAB-120WP/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca
