PSS-1500E
Cod EAN: 4007754211146
Switch-mode power supply, 2.1/1.5 A, high energy efficiency, complies with EU ecodesign directive. Saves electricity costs due to low power consumption in standby mode (< 0.3 W) Switchable output voltage Protected against short circuit, overload an...

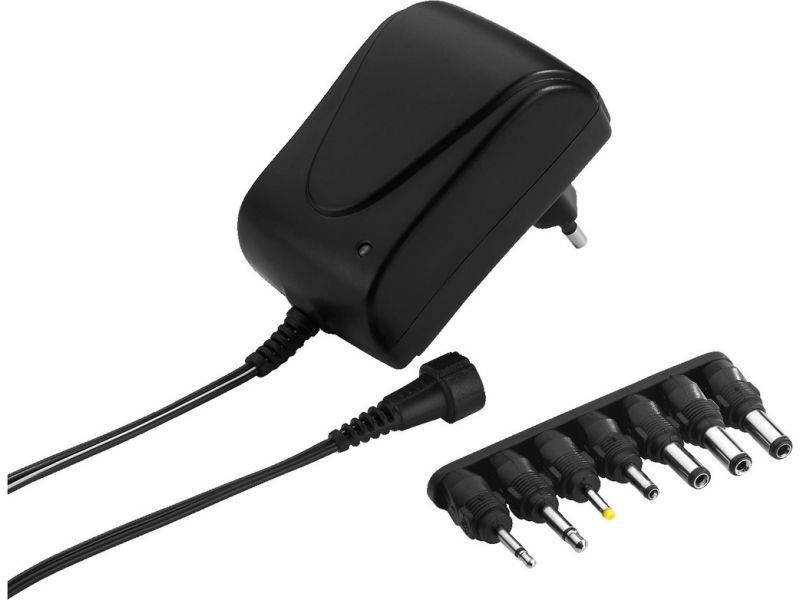

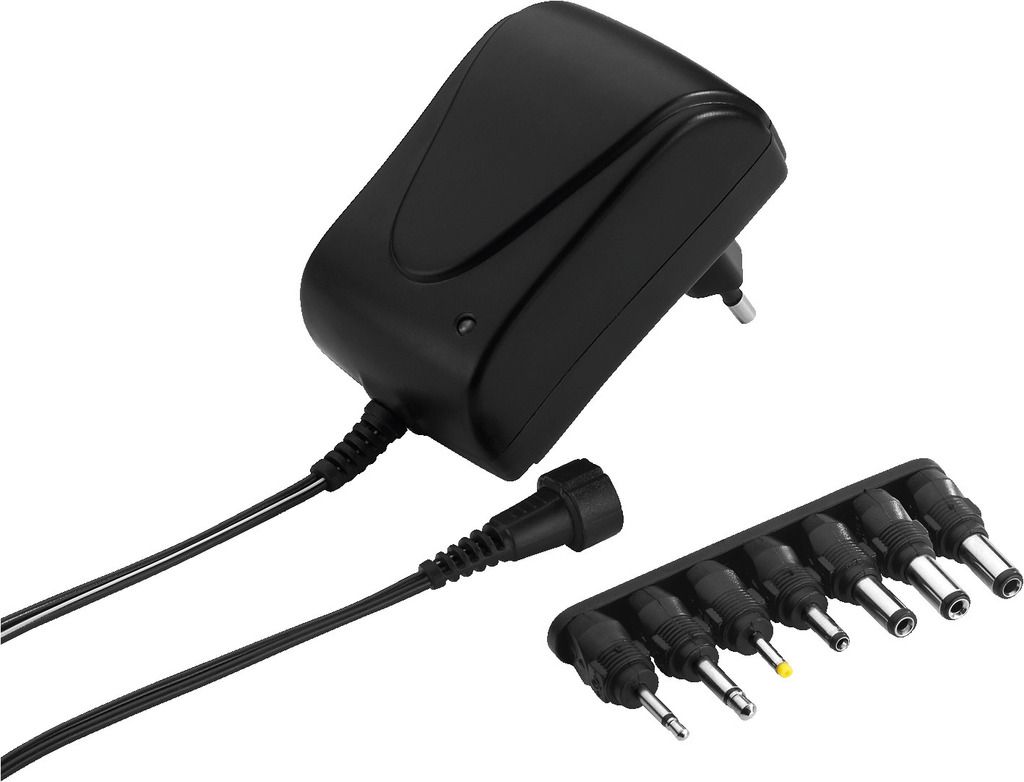

PSS-1500E
Switch-mode power supply, 2.1/1.5 A,
high energy efficiency, complies with EU ecodesign directive.
- Saves electricity costs due to low power consumption in standby mode (< 0.3 W)
- Switchable output voltage
- Protected against short circuit, overload and overheating
- Power LED
- 1.8 m connection cable
- Selectable polarity by reversing the supplied adapters
- 7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, barrel plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Category | switch-mode power supply |
| Input voltage | ˜ 100-240 V/50-60 Hz/400 mA |
| Output voltage | DC 3/4.5/5 V (2.1 A) DC 6/7.5/9/12 V (1.5 A) |
| Output current | 2.1/1.5 A |
| Polarity selection | yes |
| Switchable output voltage | yes |
| Connections | plug-in adapter |
| Cable length | 1.8 m |
| Short-circuit protection | yes |
| Overload protection | yes |
| Overheat protection | yes |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 52 x 54 x 82 mm |
| Weight | 127 g |
| Other features | eco |
