RACK-MXT52MP3

Cod EAN: 4007754414660

Wall-mounted housing, for mounting the mixer with integrated MP3 player MXT-52MP3. Sheet steel version Light grey powder coating (RAL 7035) Attached hinged cover, opens downwards, non-removable, lockable Round rear panel cutout (40 mm) for cable in...

Citeste mai mult

Intreaba despre produs
Cumpara acum


RACK-MXT52MP3

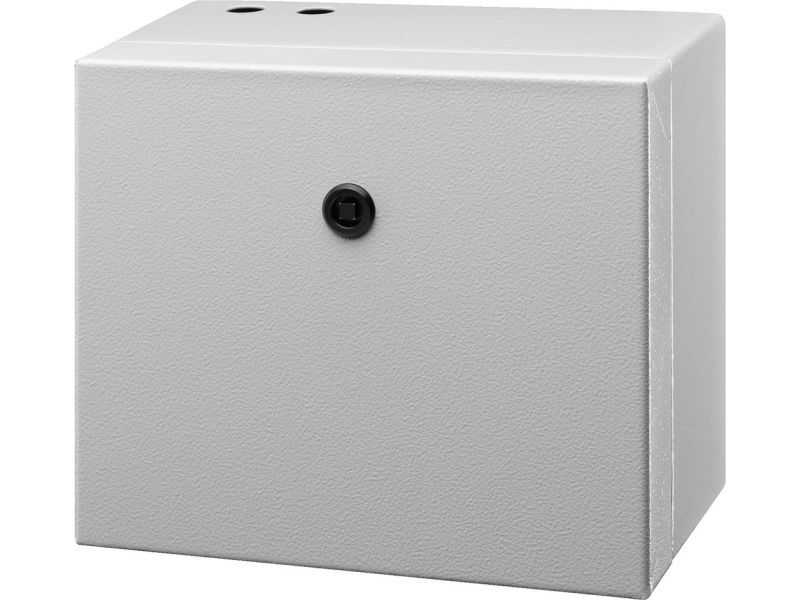

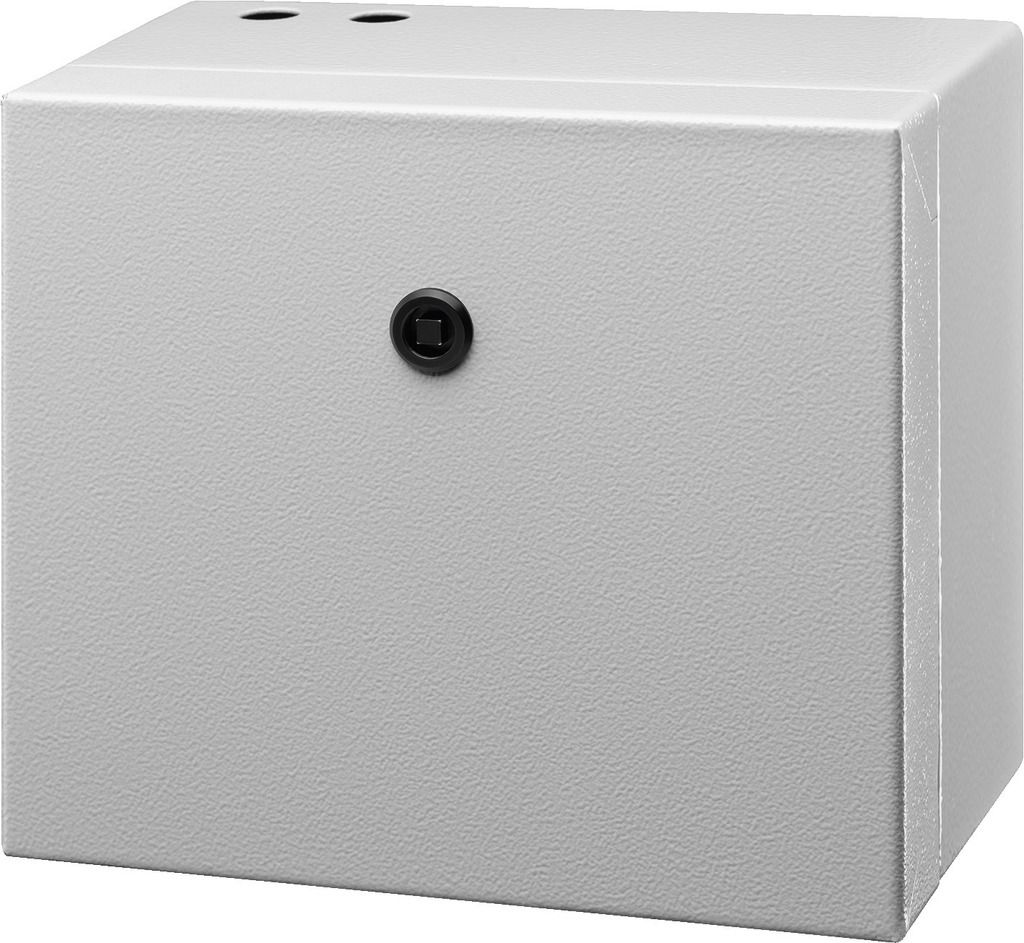

Wall-mounted housing,
for mounting the mixer with integrated MP3 player MXT-52MP3.
  • Sheet steel version
  • Light grey powder coating (RAL 7035)

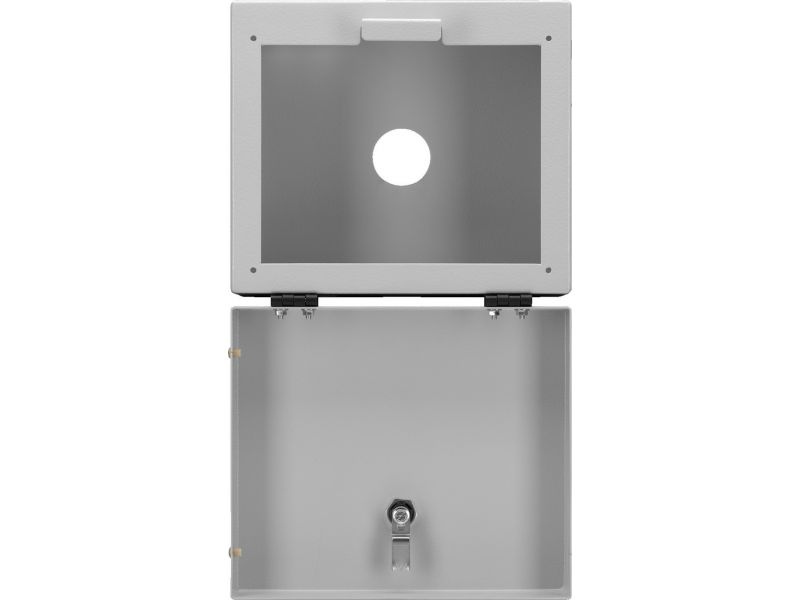

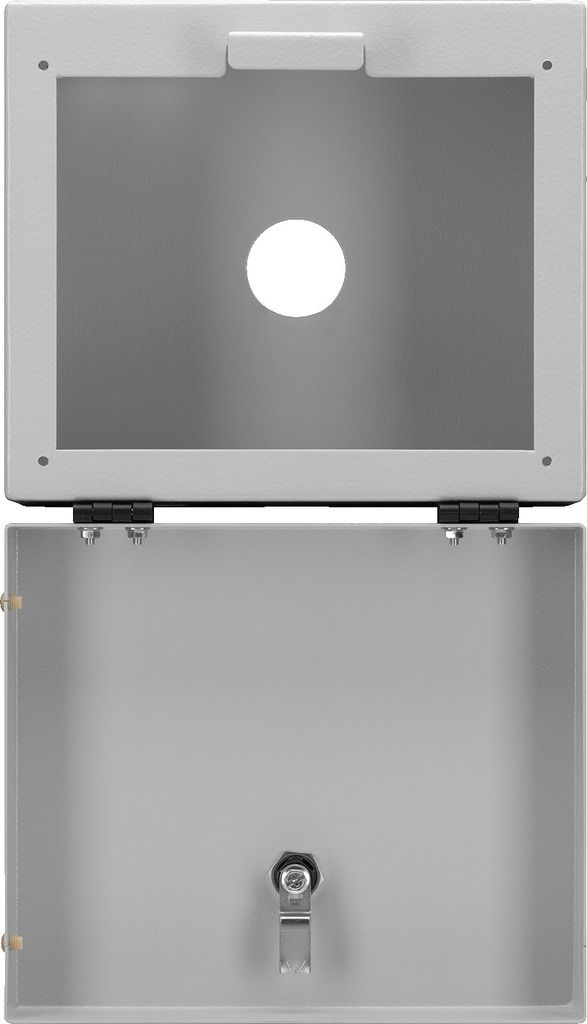

  • Attached hinged cover, opens downwards, non-removable, lockable
  • Round rear panel cutout (40 mm) for cable inlet
  • Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
  • Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
  • Max. mounting depth behind the front panel: 74 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Intended use/capacity wall-mounted housing
Size suitable for MXT-52MP3
Colour grey (RAL 7035)
Version hinged cover, opens downwards, non-removable, lockable
Material sheet steel housing, powder-coated
Mounting accessories matching key
Usable depth 74 mm

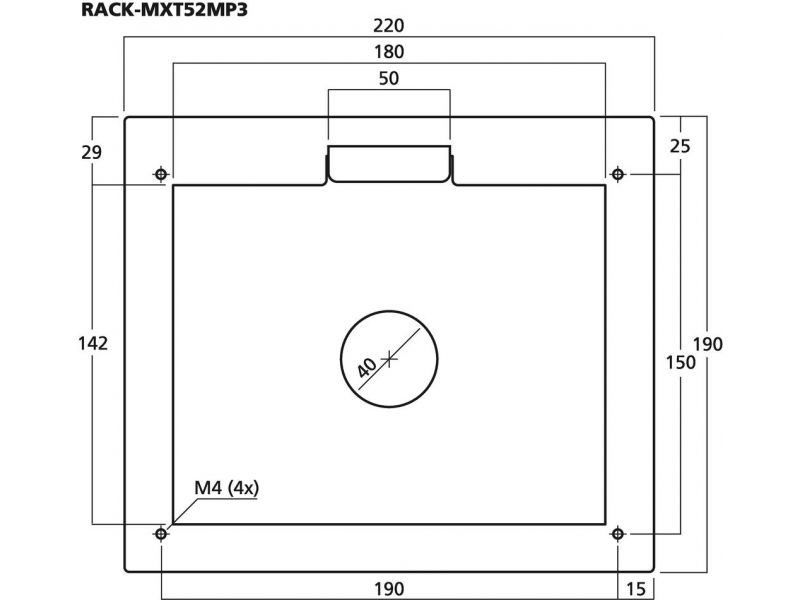

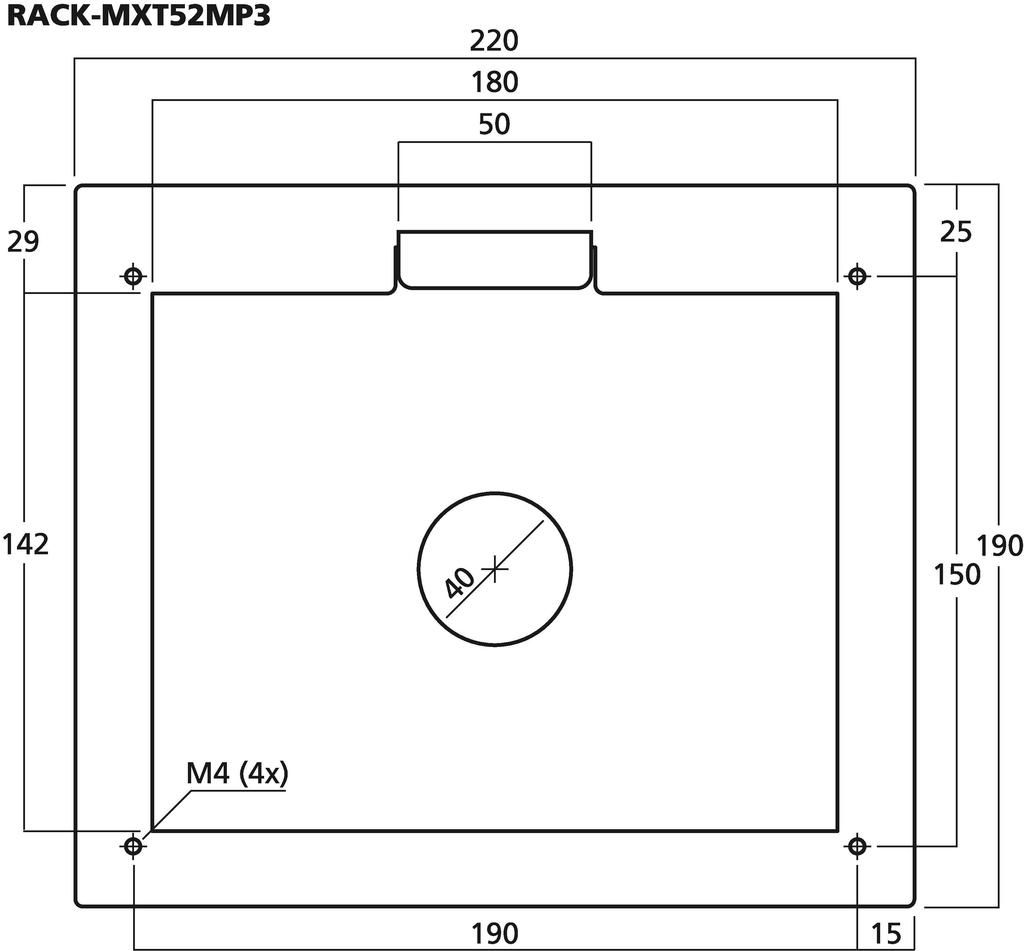

Outside dimensions 220 x 190 x 126 mm
Width 220 mm
Height 190 mm
Depth 126 mm
Weight 2 kg

Fisiere de descarcat

Fisa produsului RACK-MXT52MP3 pdf-zeichnung
