RBT-56

Cod EAN: 4007754250275

Hi-fi ribbon tweeter, 10 W, 4 Ω Magnetostatic tweeter of compact size Neodymium magnet system Fine and brilliant reproduction of the high frequencies Round cone with Kapton and aluminium film For use from 5,000 Hz on Plastic sound diffuser panel (fro...

Citeste mai mult

Intreaba despre produs
Cumpara acum


RBT-56

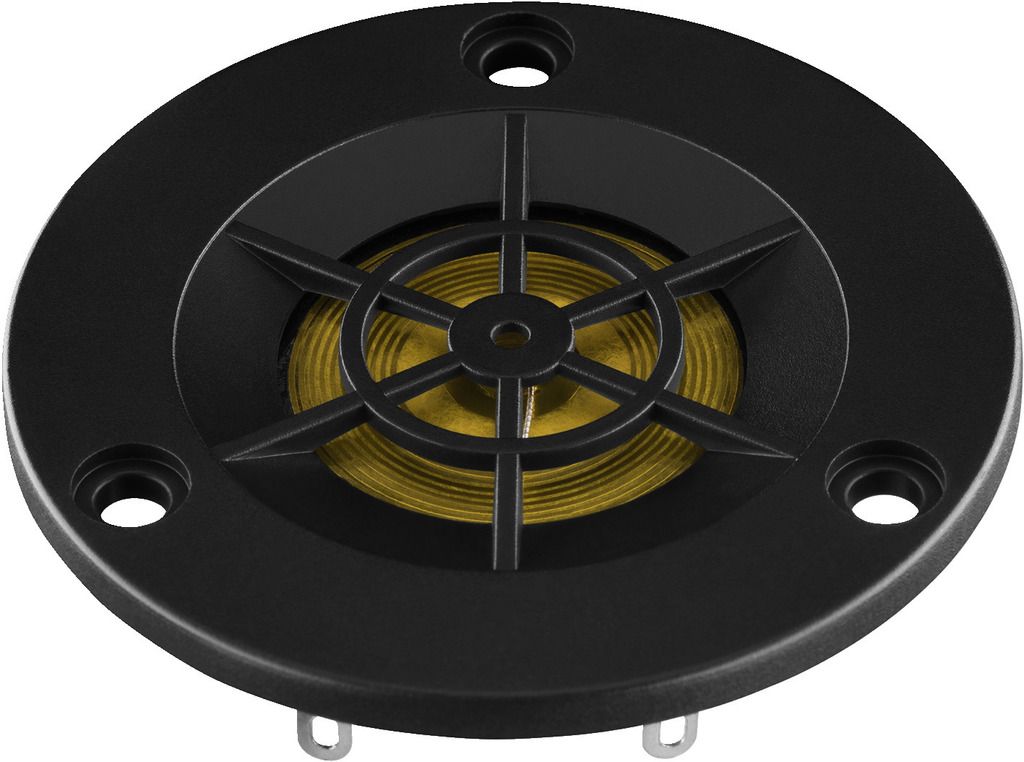

Hi-fi ribbon tweeter, 10 W, 4 Ω
  • Magnetostatic tweeter of compact size
  • Neodymium magnet system
  • Fine and brilliant reproduction of the high frequencies
  • Round cone with Kapton and aluminium film
  • For use from 5,000 Hz on
  • Plastic sound diffuser panel (front)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

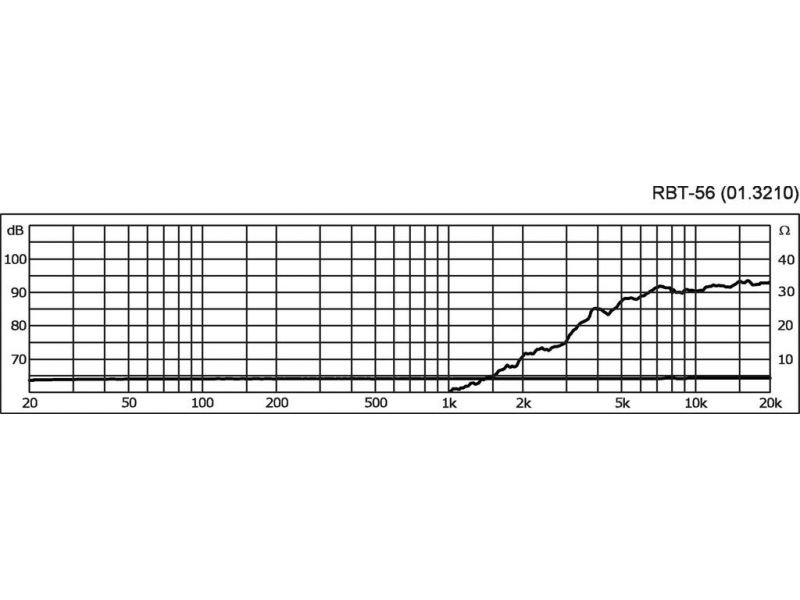

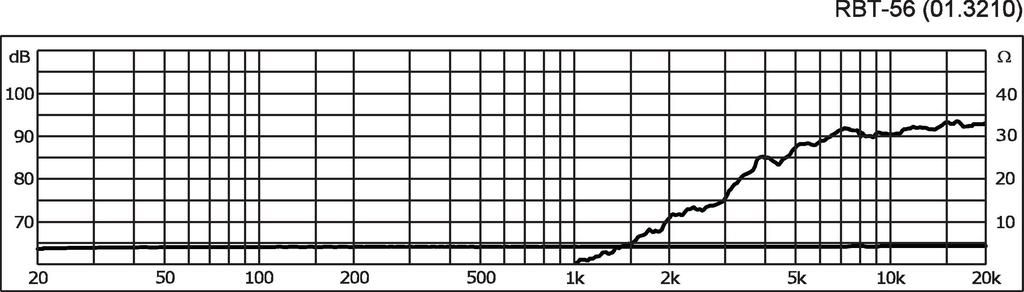

Frequency range 5,000-40,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 5,000 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W
SPL 90 dB/W/m
DC resistance (Re) 3.5 Ω
Magnet diameter magnetostatic speaker

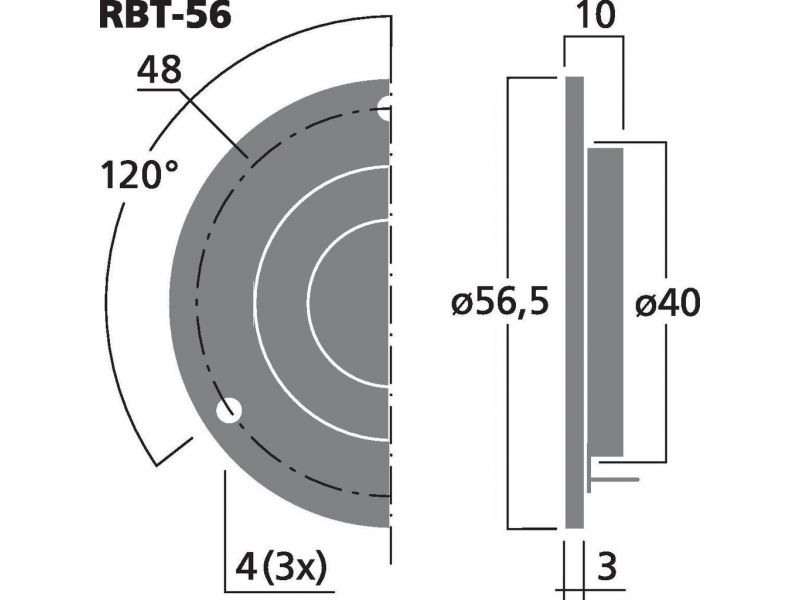

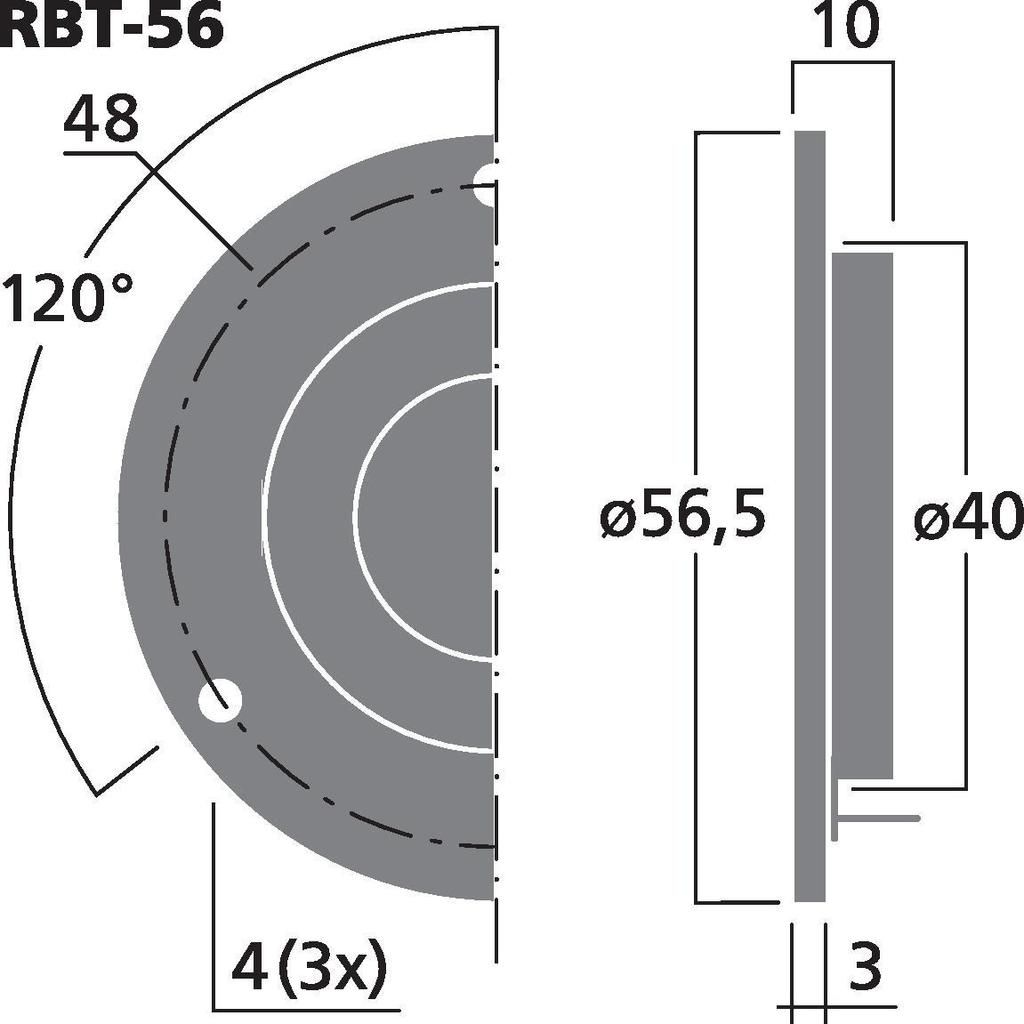

Mounting cutout Ø 40 mm
Mounting depth 10 mm
Mounting hole diameter Ø 48 mm
Dimensions 56.5 mm
Outside diameter Ø 56.5 mm
Width Ø 56.5 mm
Height Ø 56.5 mm
Depth 10 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.035 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.065 x 0.015 x 0.075 m
Gross weight 0.045 kg
Net weight 0.035 kg

Fisiere de descarcat

Fisa produsului RBT-56 konformitaetserklaerung-ce konformitaetserklaerung-ukca
