RL-3

Cod EAN: 4007754429947

PA sound projector for ceiling mounting 100 V transmission technology Full range speaker (13 cm) with high sound pressure and excellent frequency range 100 V transformer with power taps 6/6/1.5 W Silver-coloured aluminium housing with protective gr...

Citeste mai mult

Intreaba despre produs
Cumpara acum

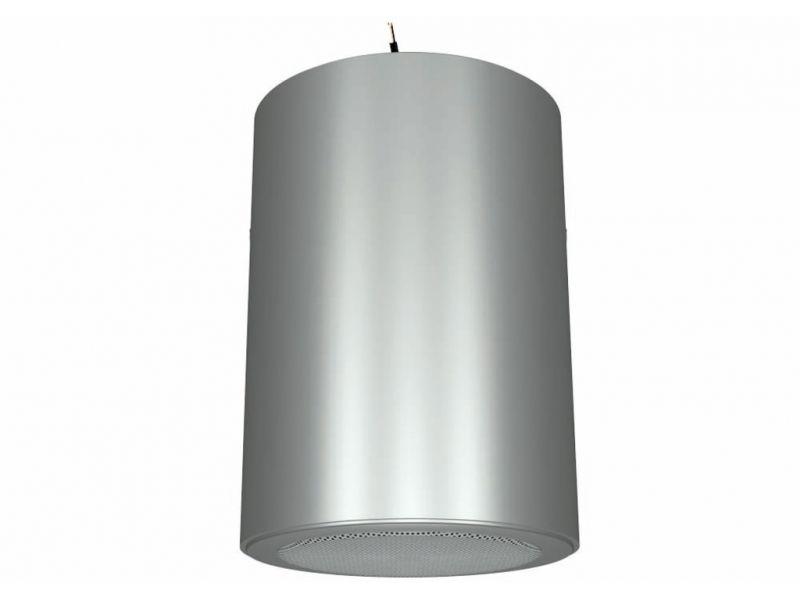

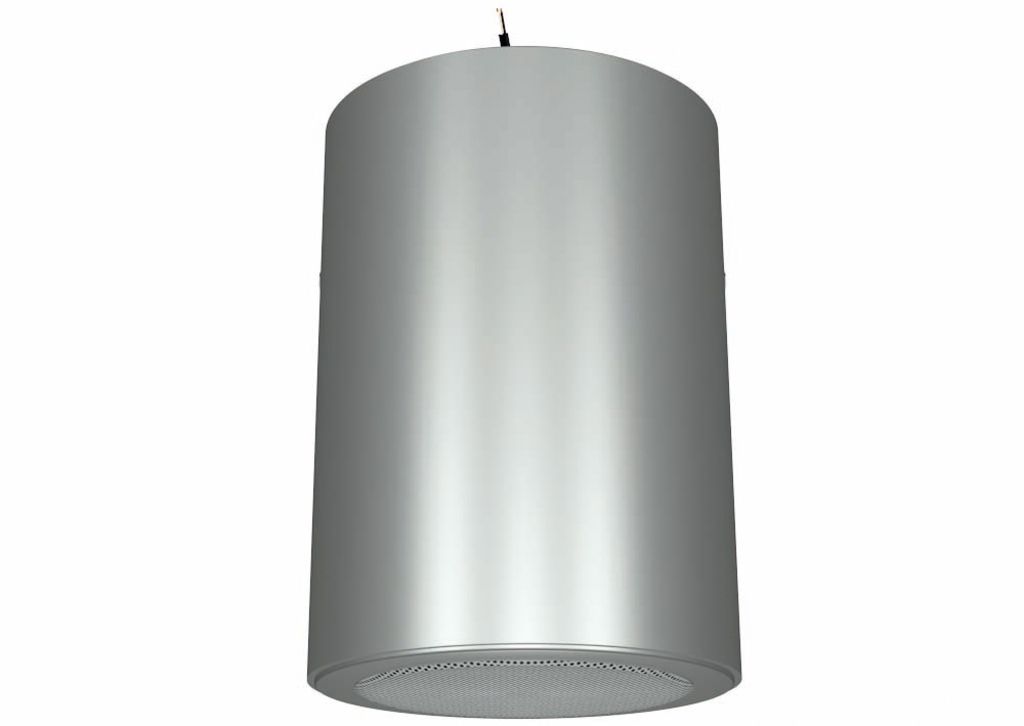

RL-3

PA sound projector
for ceiling mounting
  • 100 V transmission technology
  • Full range speaker (13 cm) with high sound pressure and excellent frequency range
  • 100 V transformer with power taps 6/6/1.5 W
  • Silver-coloured aluminium housing with protective grille
  • Connection via pressure clamps
  • Supplied with mounting material
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 70-19,000 Hz
Full range speaker 13 cm
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour silver, RAL 9006
Mounting device aluminium bracket
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Height Ø 144 mm
Depth 210 mm
Weight 2.6 kg
Inputs pressure clamps
Packaging dimensions (W x H x L) 0.175 x 0.175 x 0.267 m
Gross weight 2.7 kg
Net weight 2.6 kg

Fisiere de descarcat

Fisa produsului RL-3
