RU-850TB/5

Cod EAN: 4007754268676

UHF PLL pocket transmitter Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector Bandwidth: 36 MHz 6 groups, each with up to 22 compatible preset channels (114 channels) REMOSET ULTRASONIC tech...

Citeste mai mult



RU-850TB/5

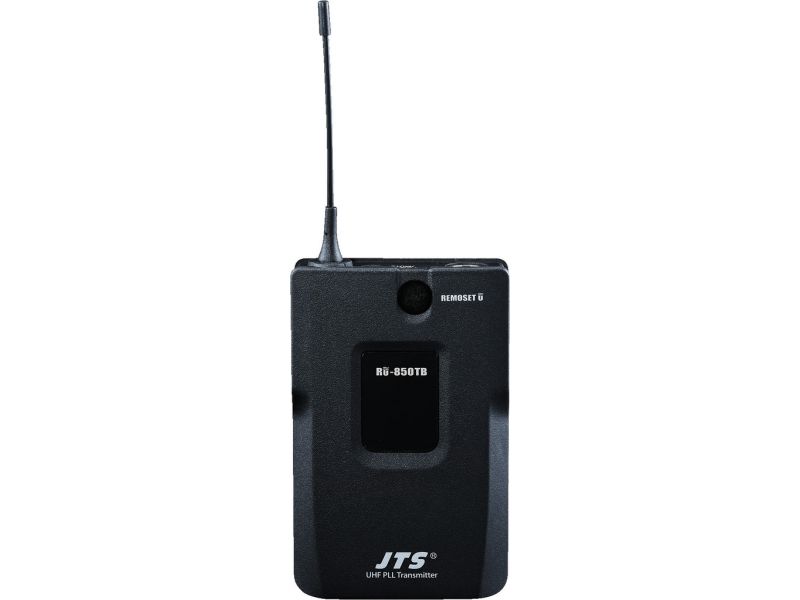

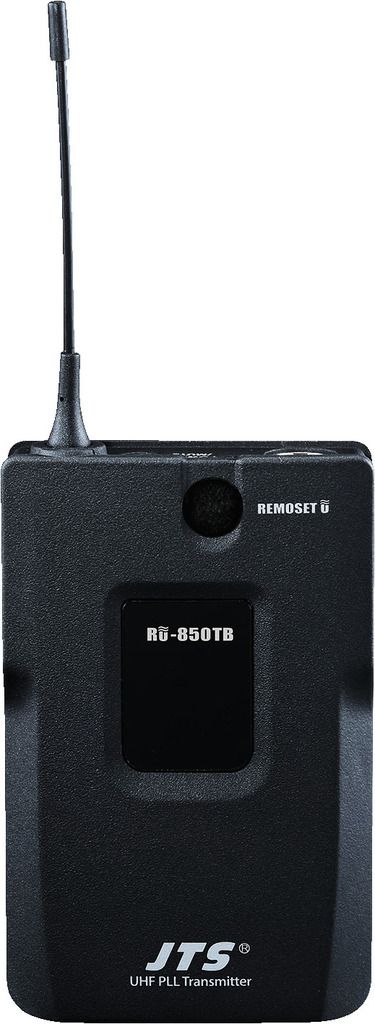

UHF PLL pocket transmitter
  • Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector
  • Bandwidth: 36 MHz
  • 6 groups, each with up to 22 compatible preset channels (114 channels)
  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
  • Sensitivity (±15 dB), additional 20 dB attenuation and transmitting power (10/50 mW) can be configured via receiver
  • Mute function
  • Low battery alert

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Parametrii

Description pocket transmitter
Carrier frequency range 506-542 MHz
Audio frequency range 60-15,000 Hz
Channels 1
Operating time 30 h
Admiss. ambient temp. 0-40 °C
Transmitting power 10/50 mW
Power supply transmitter 2 x batt. AA size,  alkaline (not supplied)
Width transmitter 62 mm
Height transmitter 97 mm
Depth transmitter 20 mm
Weight transmitter 69 g
Connections transmitter 4-pole mini XLR
