SA-100

Cod EAN: 4007754226942

Compact universal stereo amplifier, 50 W Silent operation due to fanless cooling concept Additional 3.5 mm connection with switchable sensitivity on the front panel USB port on the front panel for power supply and for charging external devices Audio...

Citeste mai mult

Intreaba despre produs
Cumpara acum

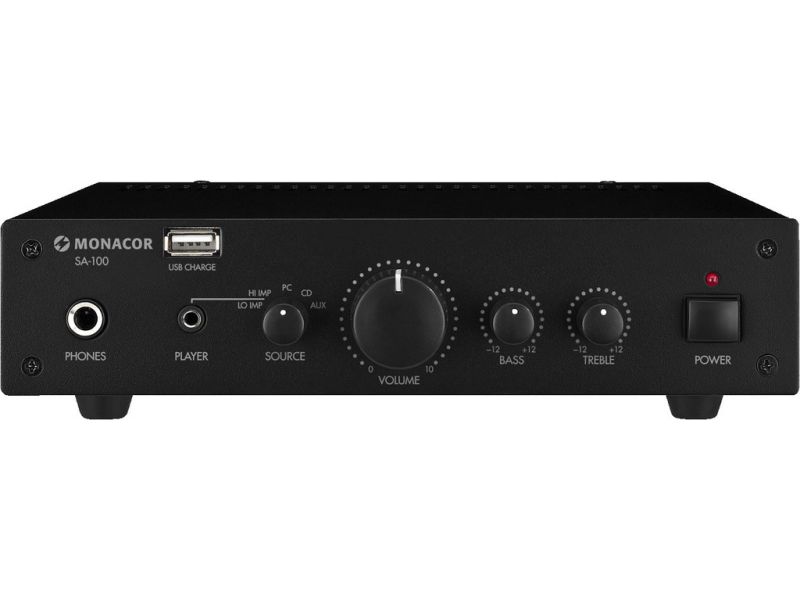

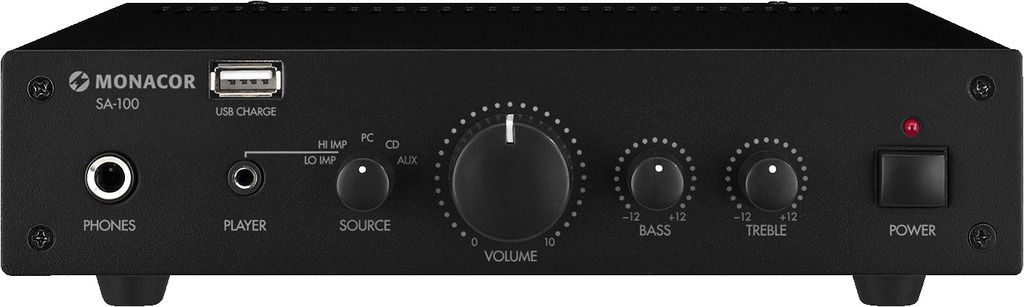

SA-100

Compact universal stereo amplifier, 50 W
  • Silent operation due to fanless cooling concept
  • Additional 3.5 mm connection with switchable sensitivity on the front panel
  • USB port on the front panel for power supply and for charging external devices
  • Audio source selector switch
  • Controls for volume, bass and treble
  • 6.3 mm headphone output
  • Robust metal housing
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Parametrii

Peak output power 2 x 50 W
Power rating 50 W
Power rating at 4 Ω 2 x 25 W
Power rating at 8 Ω 2 x 20 W
Channels 2
Inputs 140 mV/46 kΩ (PC, CD, aux)140 mV/12 kΩ, 25 mV/32 kΩ (player)
Frequency range 20-20,000 Hz
Equalizer bass ± 12 dB
Equalizer treble ± 12 dB
S/N ratio > 70 dB
Power supply ˜ 230 V/50 Hz/150 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 150 VA
Admiss. ambient temp. 0-40 °C
Width 212 mm
Height 56 mm
Depth 250 mm
Weight 2.6 kg

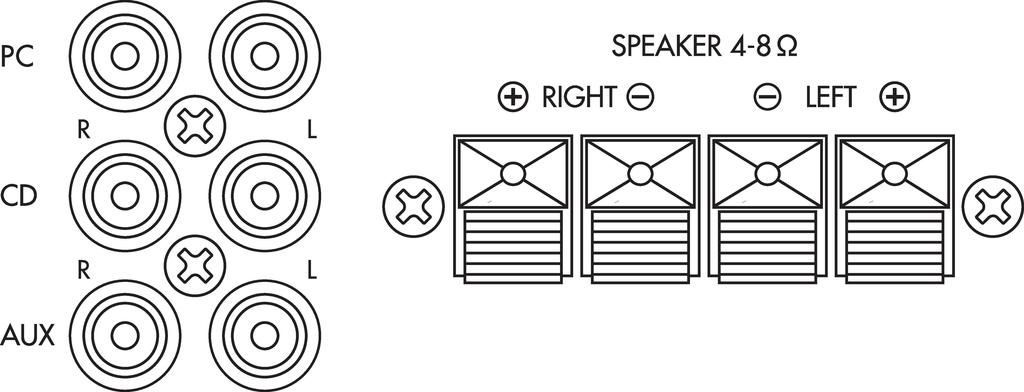

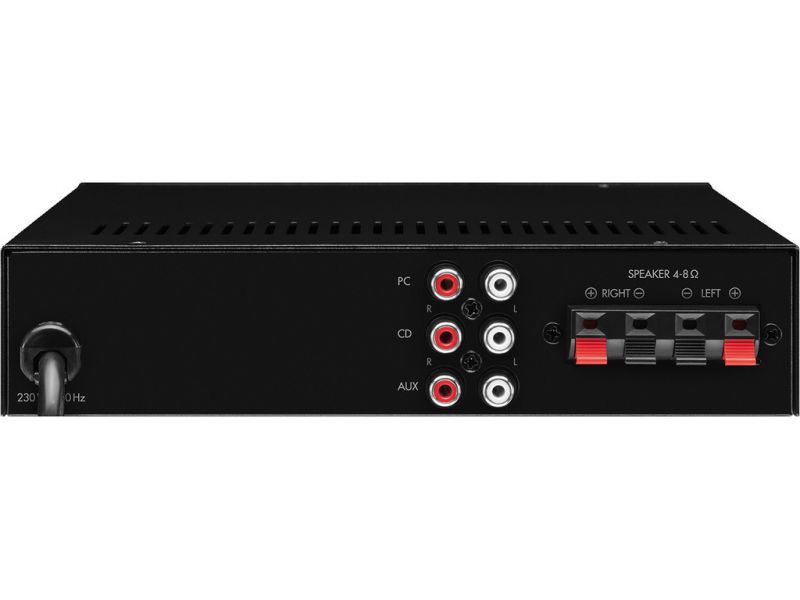

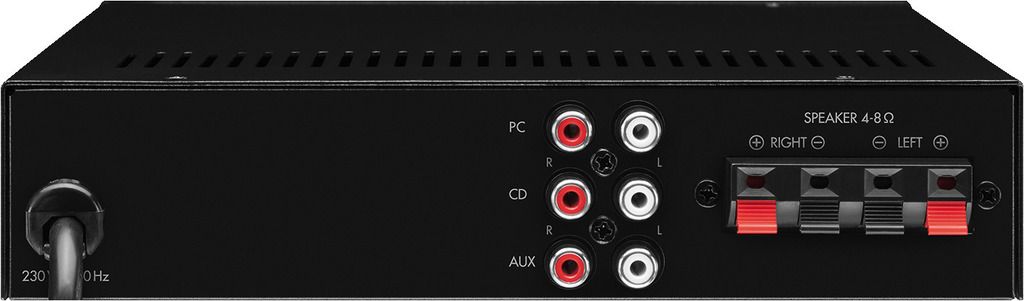

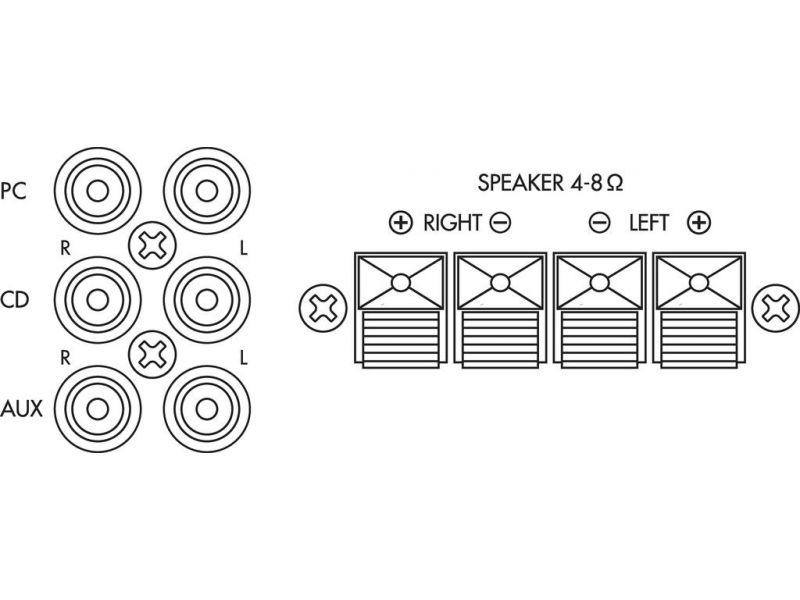

Connections 1 x RCA L/R (PC),1 x RCA L/R (CD),1 x RCA L/R (aux),1 x 3.5 mm jack (player),4 x spring-load. speaker term. (speakers)
Packaging dimensions (W x H x L) 0.315 x 0.105 x 0.315 m
Gross weight 3.11 kg
Net weight 2.6 kg

Fisiere de descarcat

Fisa produsului SA-100 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
