SA-160BT
Cod EAN: 4007754244809
Mini stereo amplifier, 2 x 30 W, with Bluetooth interface, NFC and remote control. Integrated hi-fi audio amplifier For speakers with an impedance of 8 Ω Volume control with integrated source selector function, LED indicator Near Field Communicatio...

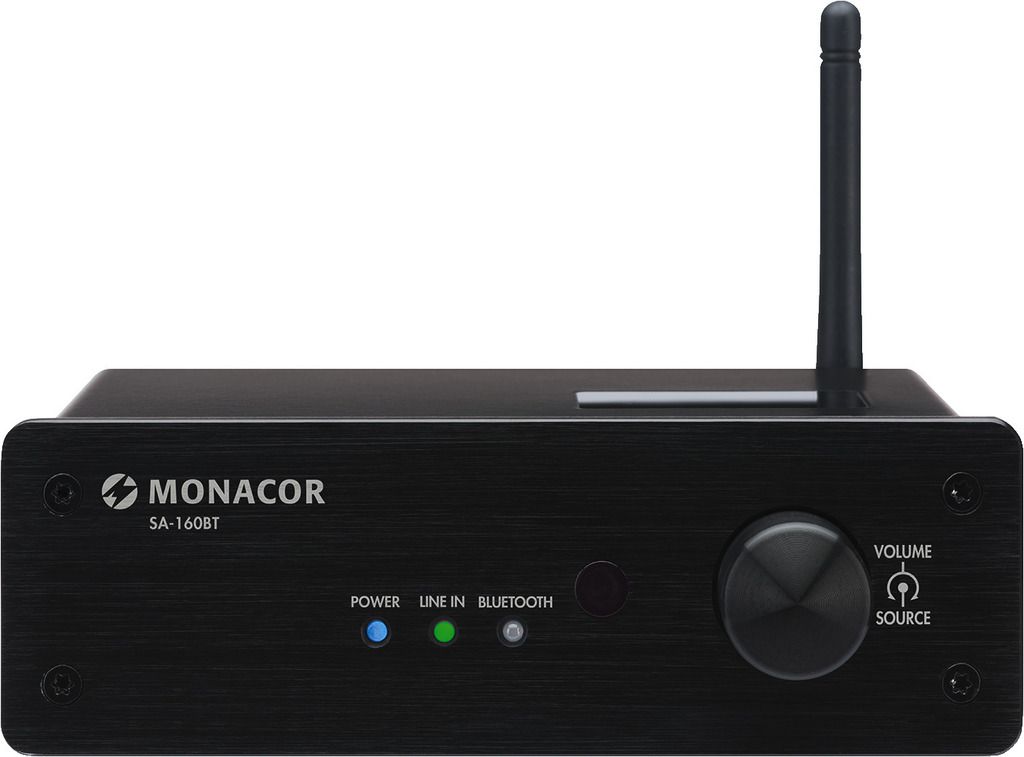

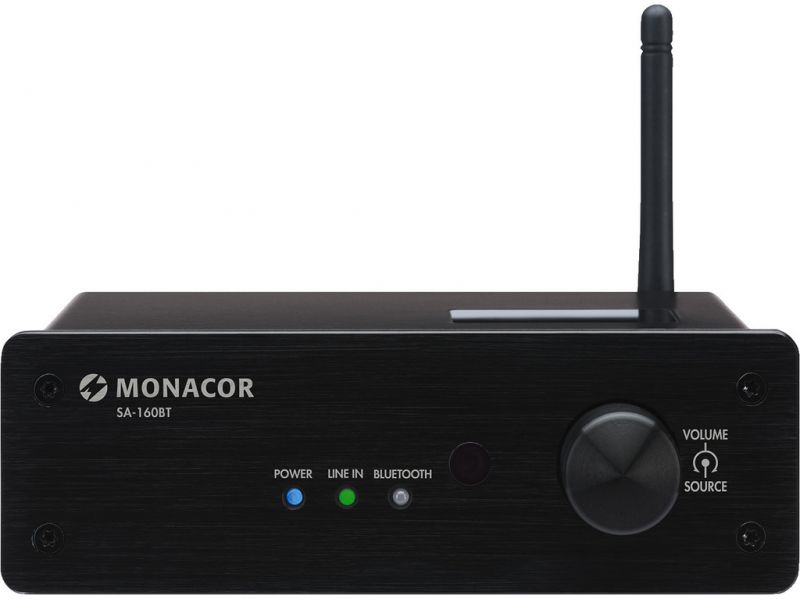

SA-160BT
Mini stereo amplifier, 2 x 30 W,
with Bluetooth interface, NFC and remote control.
- Integrated hi-fi audio amplifier
- For speakers with an impedance of 8 Ω
- Volume control with integrated source selector function, LED indicator
- Near Field Communication (NFC)

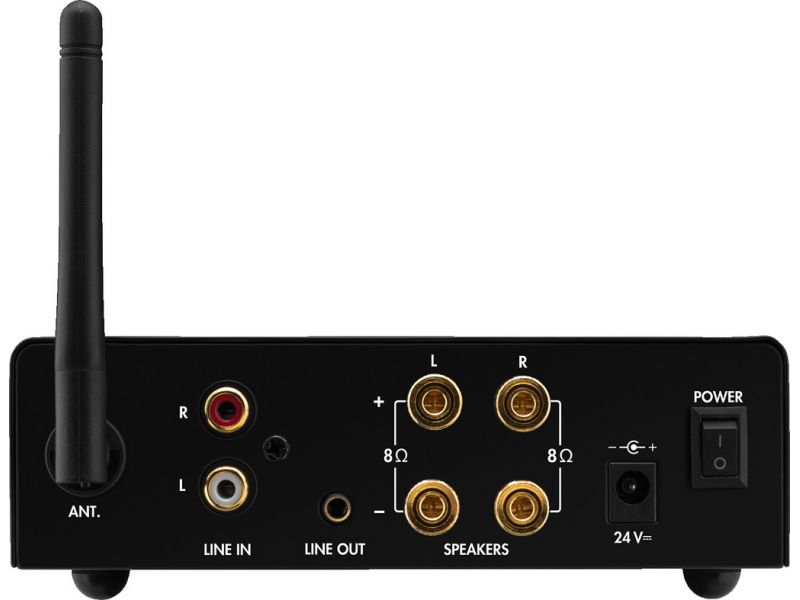

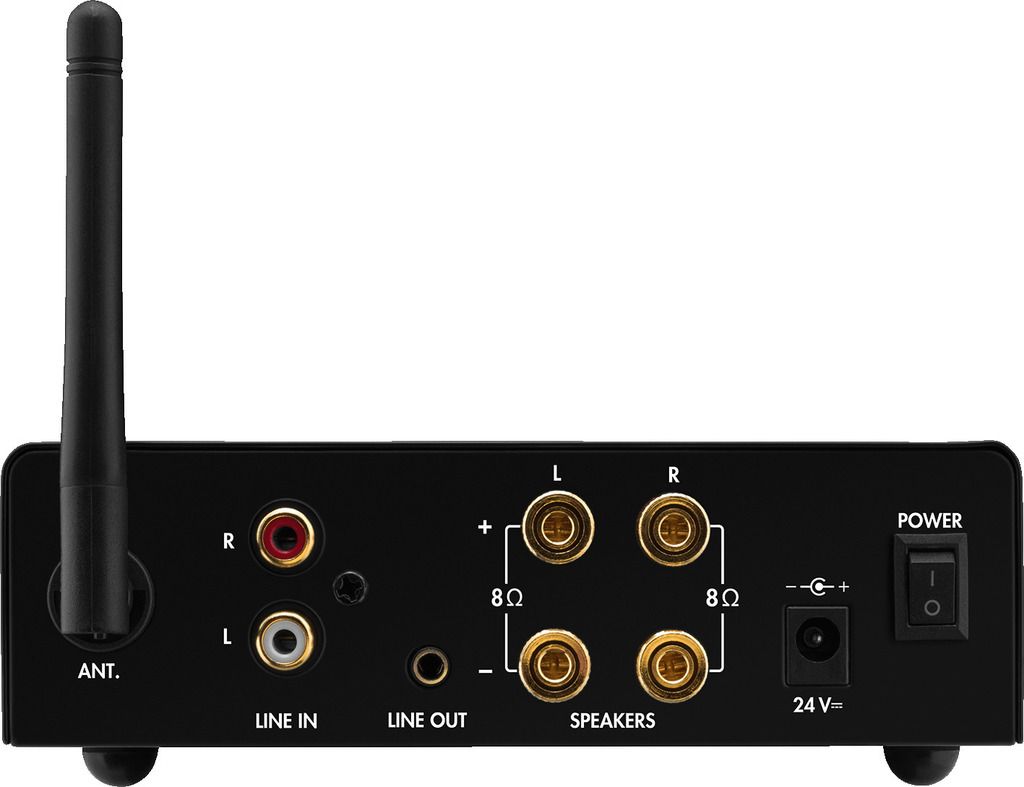

- Gold-plated speaker terminals
- 1 stereo input via RCA jacks L/R
- 1 line output via 3.5 mm stereo jack
- Fixed antenna
- Metal housing
- Power is provided via enclosed power supply
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Parametrii
| Peak output power | 2 x 60 W |
| Power rating | 60 W |
| Power rating at 8 Ω | 2 x 30 W |
| Channels | 2 |
| Inputs | 660 mV/10 kΩ |
| Frequency range | 20-20,000 Hz |
| S/N ratio | > 99 dB(A) |
| Power supply | via encl. power supply |
| Standby current | 100 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 150 mm |
| Height | 49 mm |
| Depth | 122 mm |
| Weight | 610 g |
| Connections | 1 x RCA L/R (line), 4 x spring-load. speaker term.(speakers) |
| Packaging dimensions (W x H x L) | 0.21 x 0.07 x 0.3 m |
| Gross weight | 1.26 kg |
| Net weight | 0.995 kg |
