SP-200X

Cod EAN: 4007754024395

Hi-fi full range speaker, 35 W, 8 Ω One-piece rubber gasket Very good linearity High efficiency For PA systems of special sound requirements or in large column speakers HOBBY HiFi 01/2012 “The SPH-200X impresses with an excellent sound quality....

Citeste mai mult

Intreaba despre produs
Cumpara acum

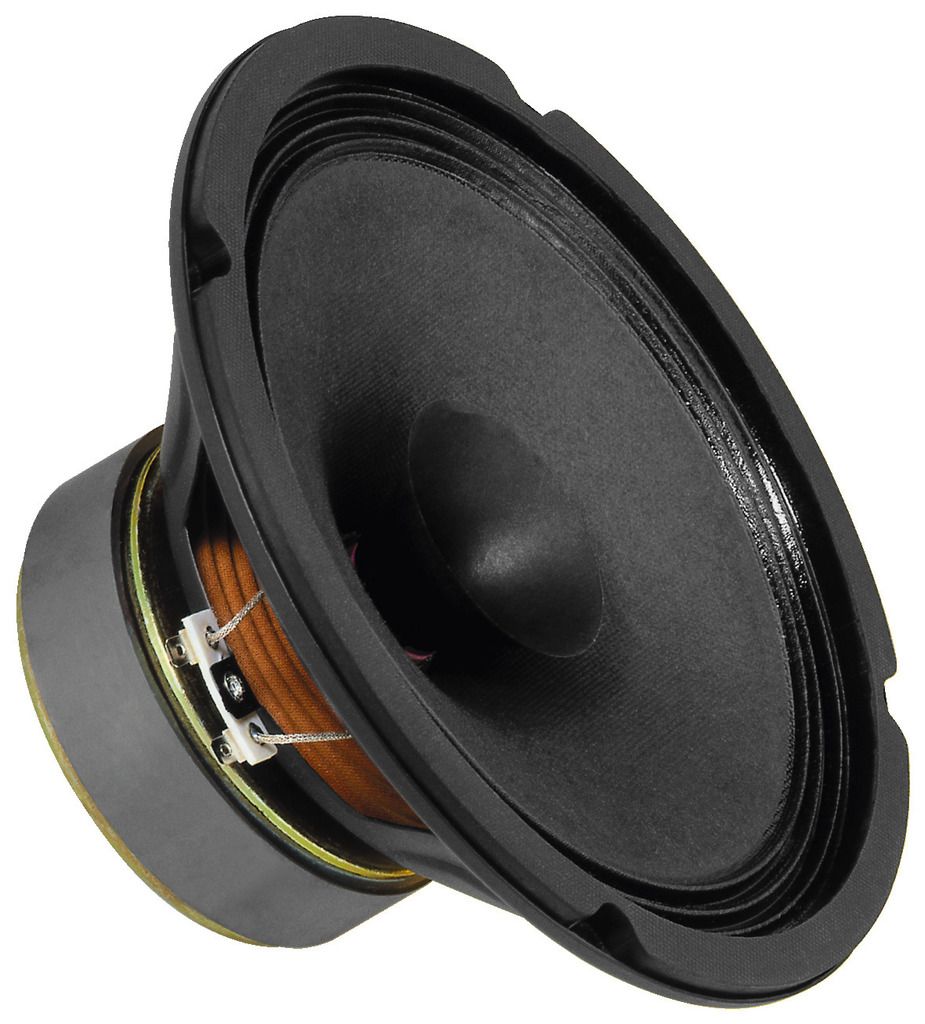

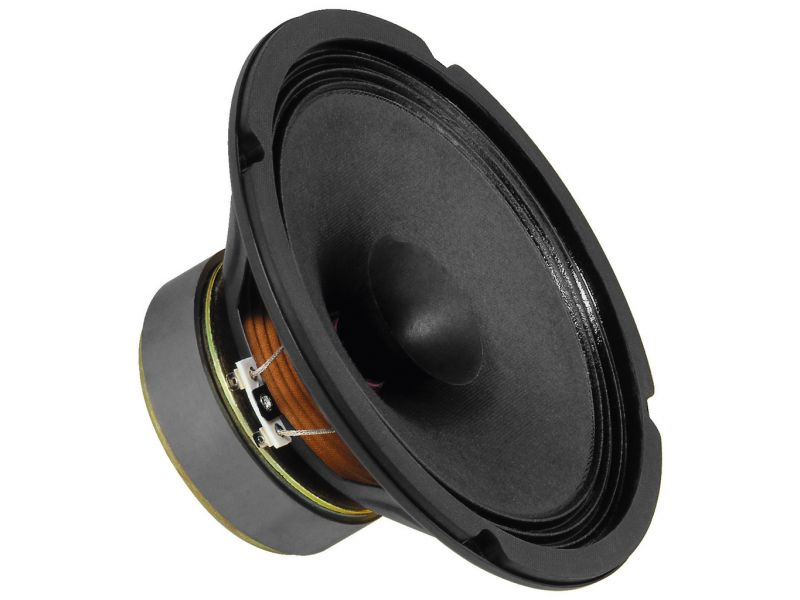

SP-200X

Hi-fi full range speaker, 35 W, 8 Ω
  • One-piece rubber gasket
  • Very good linearity
  • High efficiency
  • For PA systems of special sound requirements or in large column speakers
HOBBY HiFi 01/2012
“The SPH-200X impresses with an excellent sound quality.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

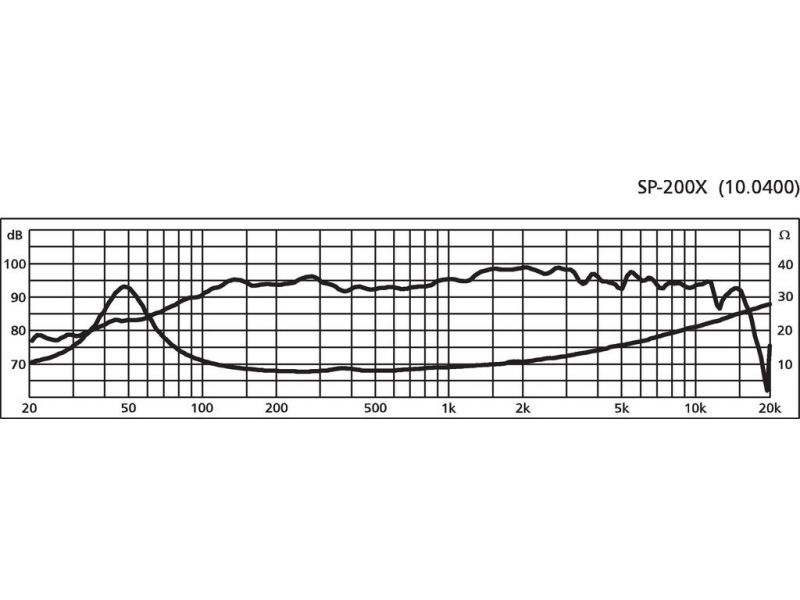

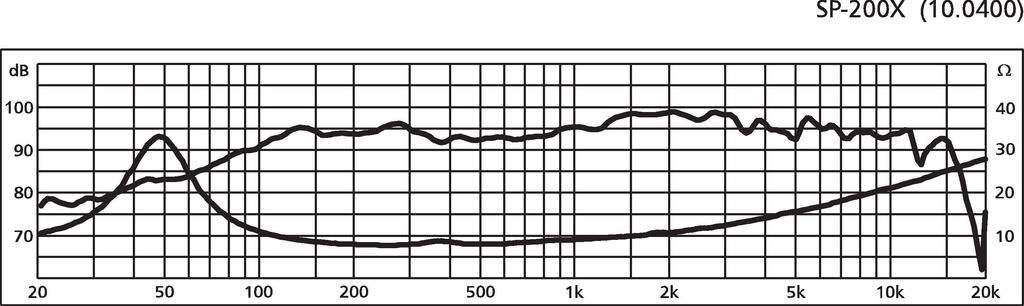

Frequency range f3-15,000 Hz
Resonant frequency (fs) 50 Hz
Power rating (RMS) 35 W
Peak music power output (MAX) 70 W
SPL 92 dB/W/m
Suspension compl. (Cms) 0.77 mm/N
Moving mass (Mms) 11.5 g
Mech. Q factor (Qms) 1.96
Electr. Q factor (Qes) 0.7
Total Q factor (Qts) 0.52
Equivalent volume (Vas) 48 l
DC resistance (Re) 7.2 Ω
Force factor (BxL) 6.10 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.6 mm
Eff. cone area (Sd) 210 cm2
Magnet weight 500 g
Magnet diameter Ø 100 mm

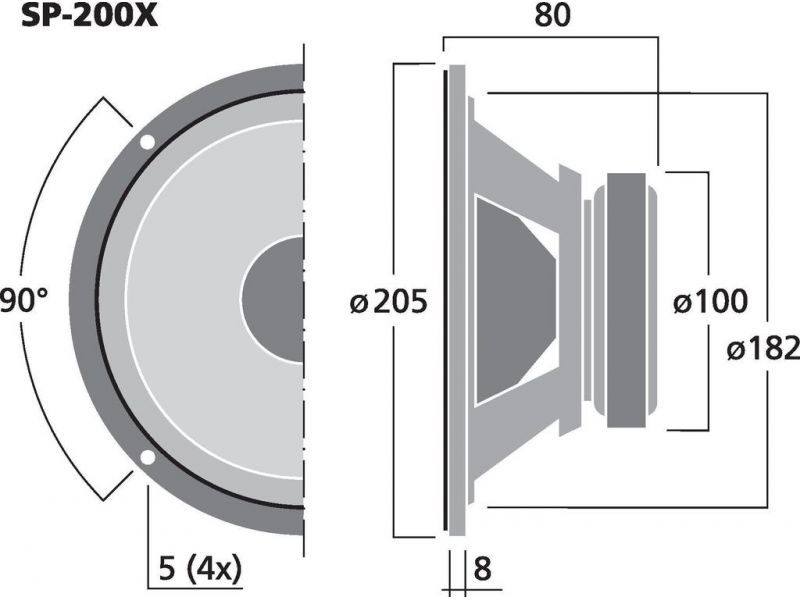

Mounting cutout Ø 188 mm
Mounting depth 72 mm
Dimensions Ø 205 mm x 80 mm
Outside diameter Ø 205 mm
Width Ø 205 mm
Height Ø 205 mm
Depth 80 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.35 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.22 x 0.1 x 0.23 m
Gross weight 1.465 kg
Net weight 1.35 kg

Fisiere de descarcat

Fisa produsului SP-200X konformitaetserklaerung-ce konformitaetserklaerung-ukca
