SP-202E

Cod EAN: 4007754153514

Hi-fi bass-midrange speaker, 50 W, 4 Ω All-round speaker Foam surround Replacement speaker for closed speaker systems HOBBY HIFI 04/2013 “A very talented 2-way speaker, thanks to a very clean reproduction of the midrange. Despite a very attrac...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-202E

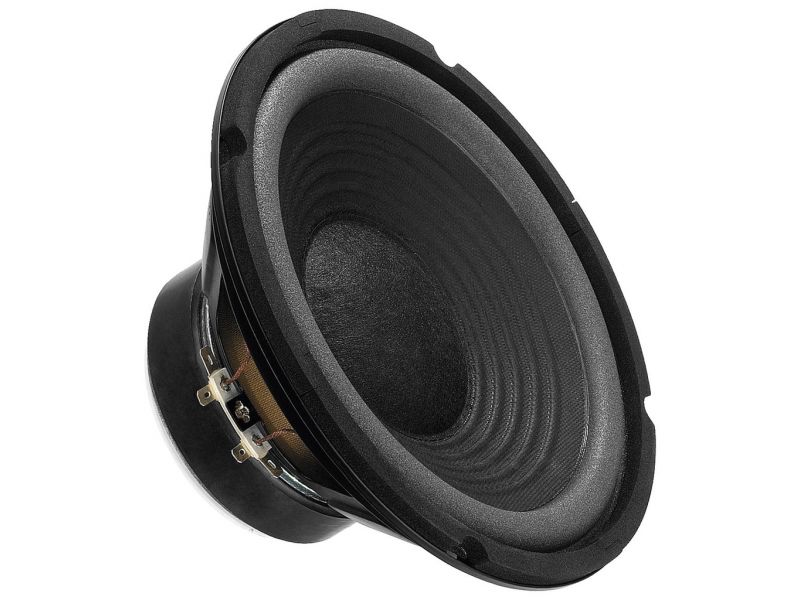

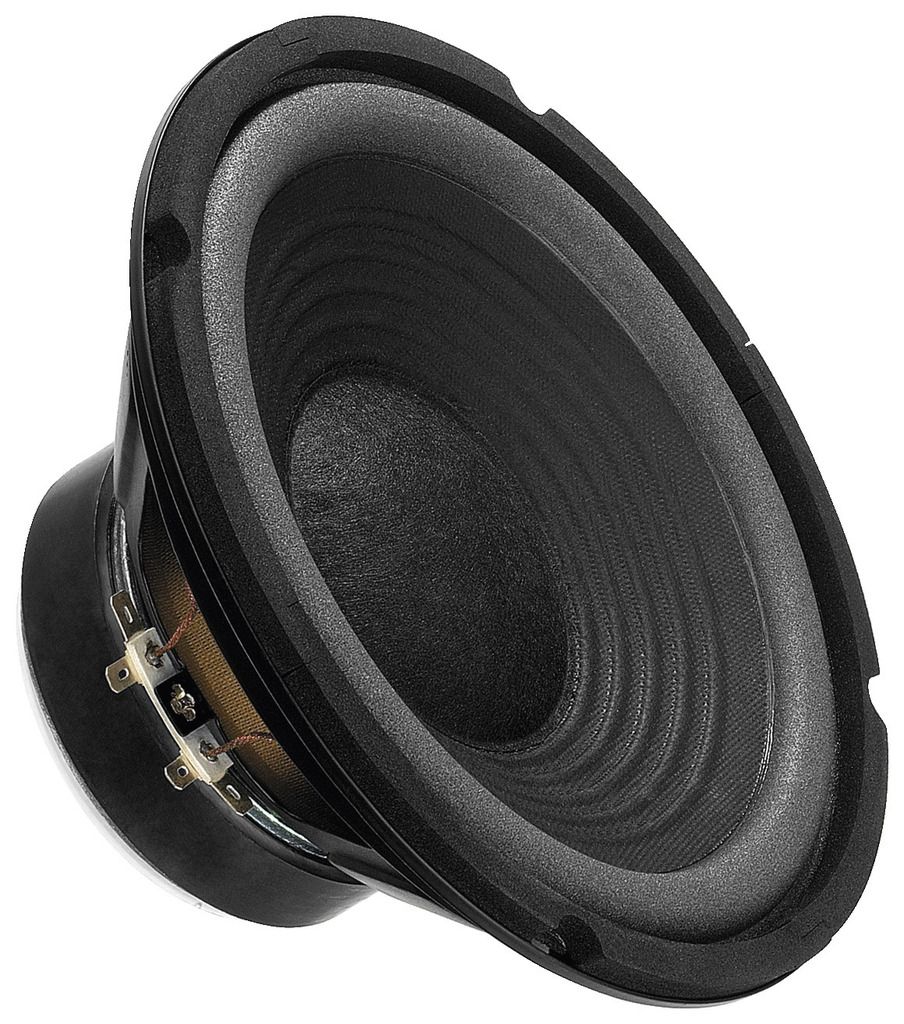

Hi-fi bass-midrange speaker, 50 W, 4 Ω
  • All-round speaker
  • Foam surround
  • Replacement speaker for closed speaker systems
HOBBY HIFI 04/2013
“A very talented 2-way speaker, thanks to a very clean reproduction of the midrange. Despite a very attractive price, the SP-202E from MONACOR is ideally suited for 2-way applications and promises an excellent sound quality.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

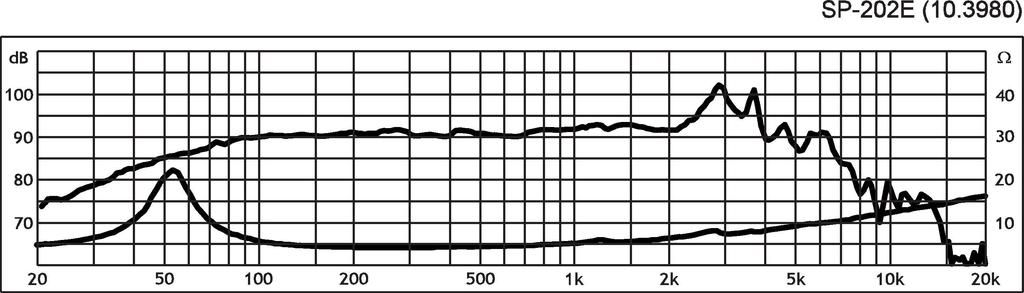

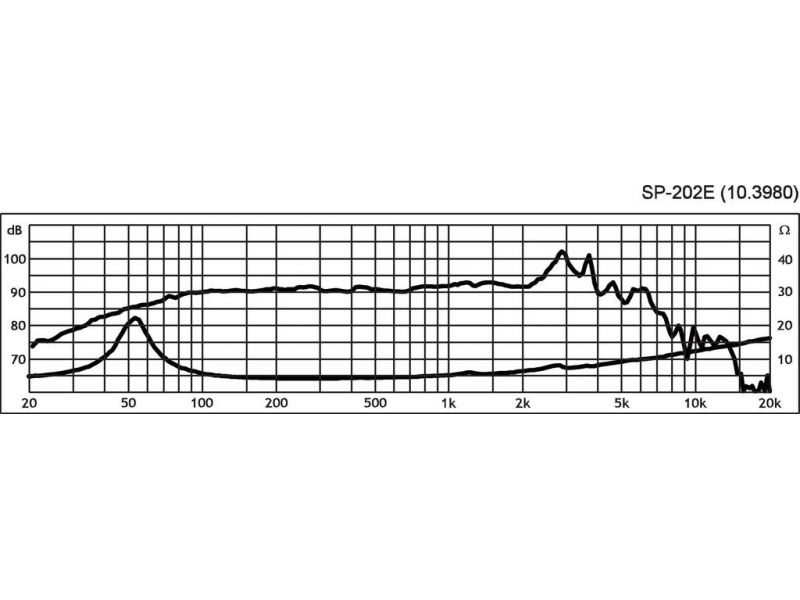

Frequency range f3-6,000 Hz
Resonant frequency (fs) 51 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 93 dB/W/m
Suspension compl. (Cms) 0.62 mm/N
Moving mass (Mms) 15 g
Mech. Q factor (Qms) 4.5
Electr. Q factor (Qes) 0.81
Total Q factor (Qts) 0.69
Equivalent volume (Vas) 39 l
DC resistance (Re) 3.85 Ω
Force factor (BxL) 4.86 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 210 cm2
Magnet weight 570 g

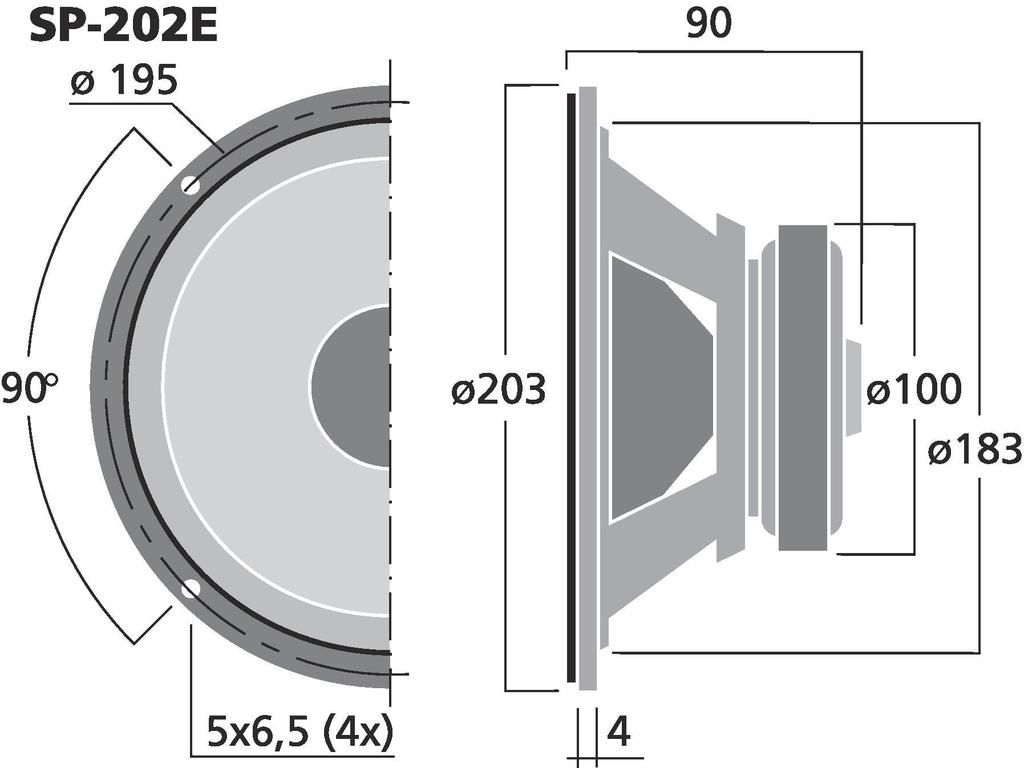

Mounting cutout Ø 183 mm
Mounting depth 82 mm
Mounting hole diameter Ø 195 mm
Dimensions Ø 203 mm x 82 mm
Outside diameter Ø 203 mm
Width Ø 203 mm
Height Ø 203 mm
Depth 90 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.39 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.21 x 0.095 x 0.21 m
Gross weight 1.41 kg
Net weight 1.39 kg

Fisiere de descarcat

Fisa produsului SP-202E konformitaetserklaerung-ce konformitaetserklaerung-ukca
