SP-23/4RDP

Cod EAN: 4007754024463

Miniature flush-mount speaker, 8 Ω For general applications in models, intercom systems, miniature radios Miniature flush-mount speaker Legend scale drawing: Width = Ø A Depth = E Magnet diameter = Ø B Mounting cutout = Ø C Mounting depth...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-23/4RDP

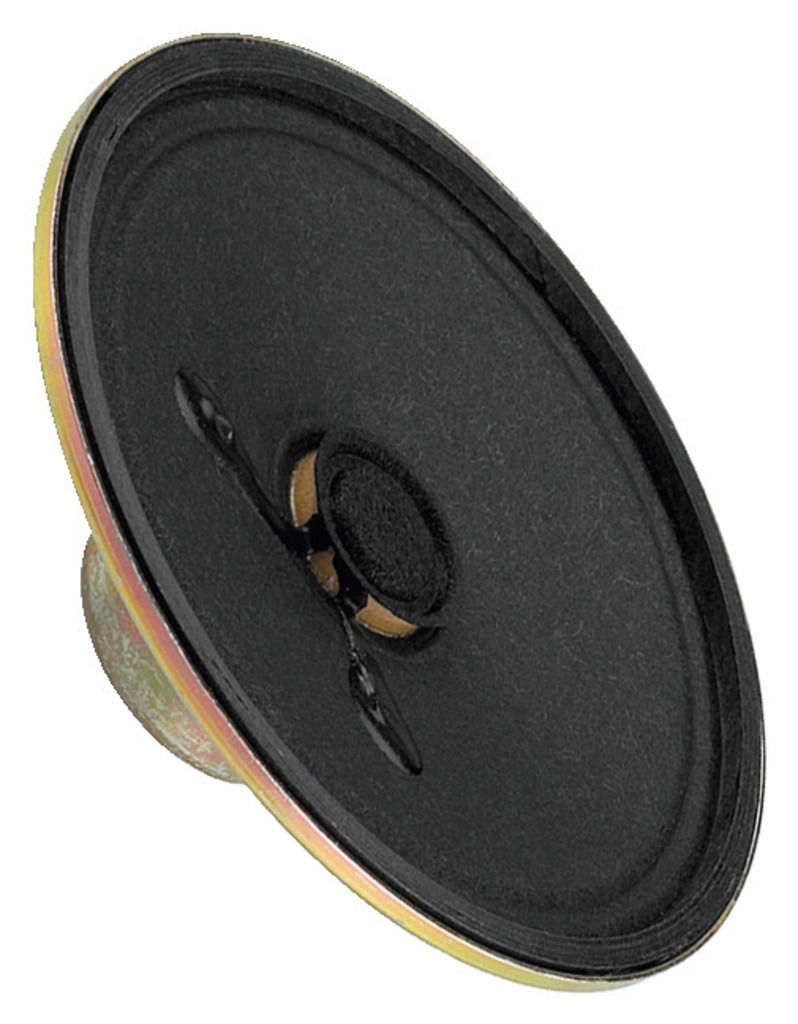

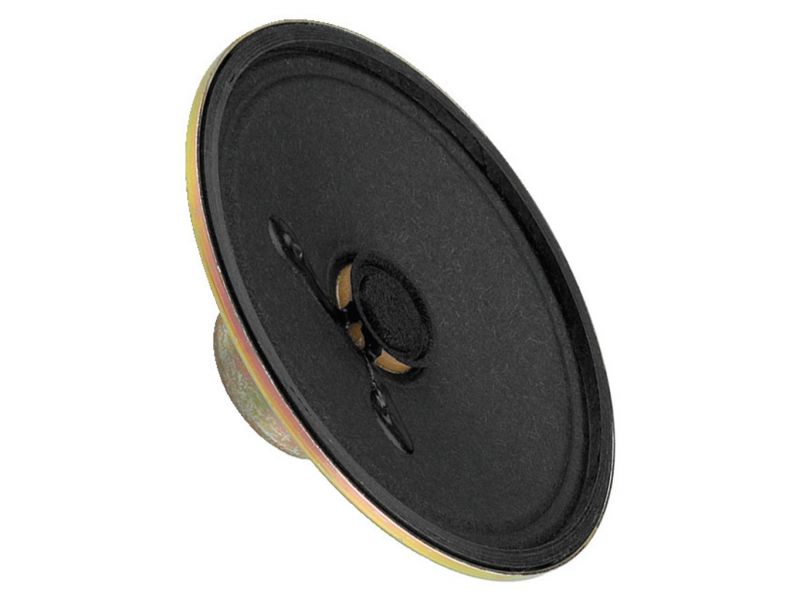

Miniature flush-mount speaker, 8 Ω
  • For general applications in models, intercom systems, miniature radios
Miniature flush-mount speaker

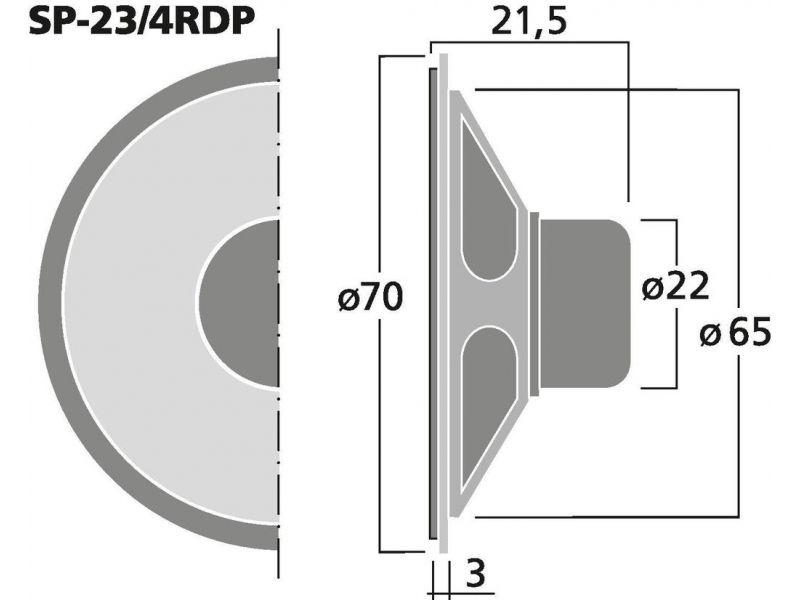

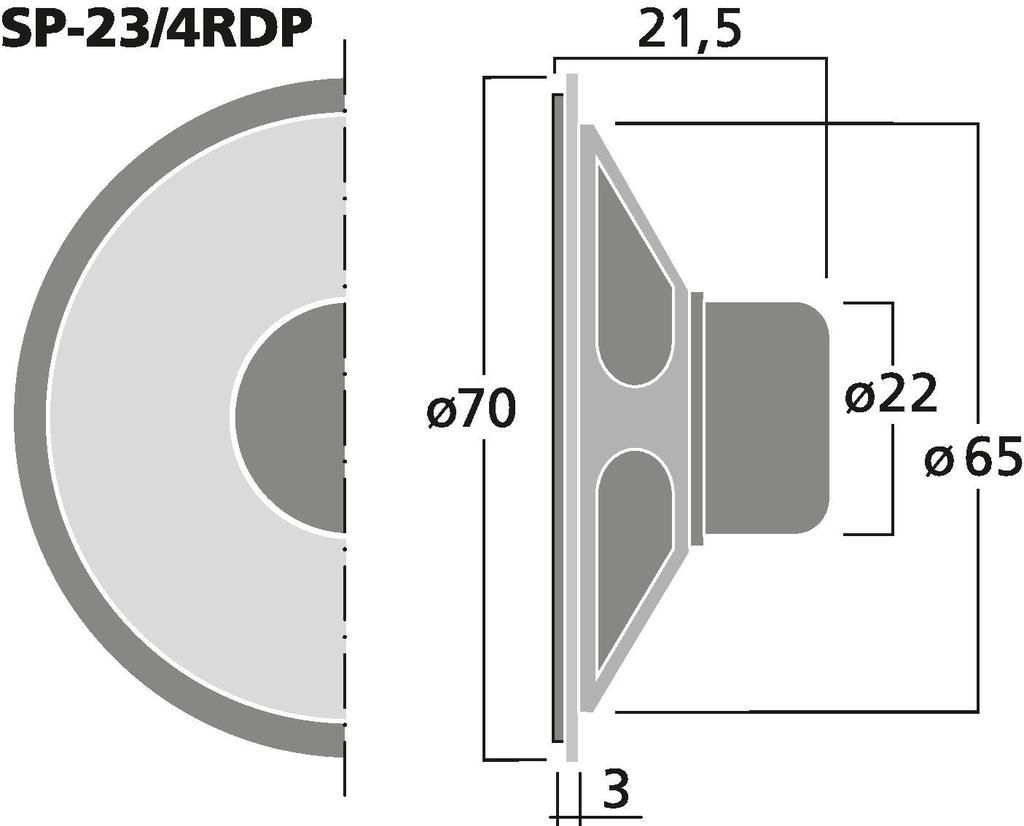

Legend scale drawing:
  • Width = Ø A
  • Depth = E
  • Magnet diameter = Ø B
  • Mounting cutout = Ø C
  • Mounting depth = E-D
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 350-15,000 Hz
Power rating (RMS) 0.5 W
SPL power capability: < 1 W
Magnet diameter Ø 22 mm
Mounting cutout Ø 65 mm
Mounting depth 18 mm
Dimensions Ø 70 mm x 21.5 mm
Outside diameter Ø 70 mm
Width Ø 70 mm
Height Ø 70 mm
Depth 21.5 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.045 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.075 x 0.025 x 0.075 m
Gross weight 0.055 kg
Net weight 0.045 kg

Fisiere de descarcat

Fisa produsului SP-23/4RDP konformitaetserklaerung-ce konformitaetserklaerung-ukca
