SP-252C

Cod EAN: 4007754095593

Car hi-fi bass speaker, 100 W, 4Ω 25 cm (10") bass speaker Coated cone Also suitable as a bass addition for free air applications Protruding lower pole plate for a long excursion Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKons...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-252C

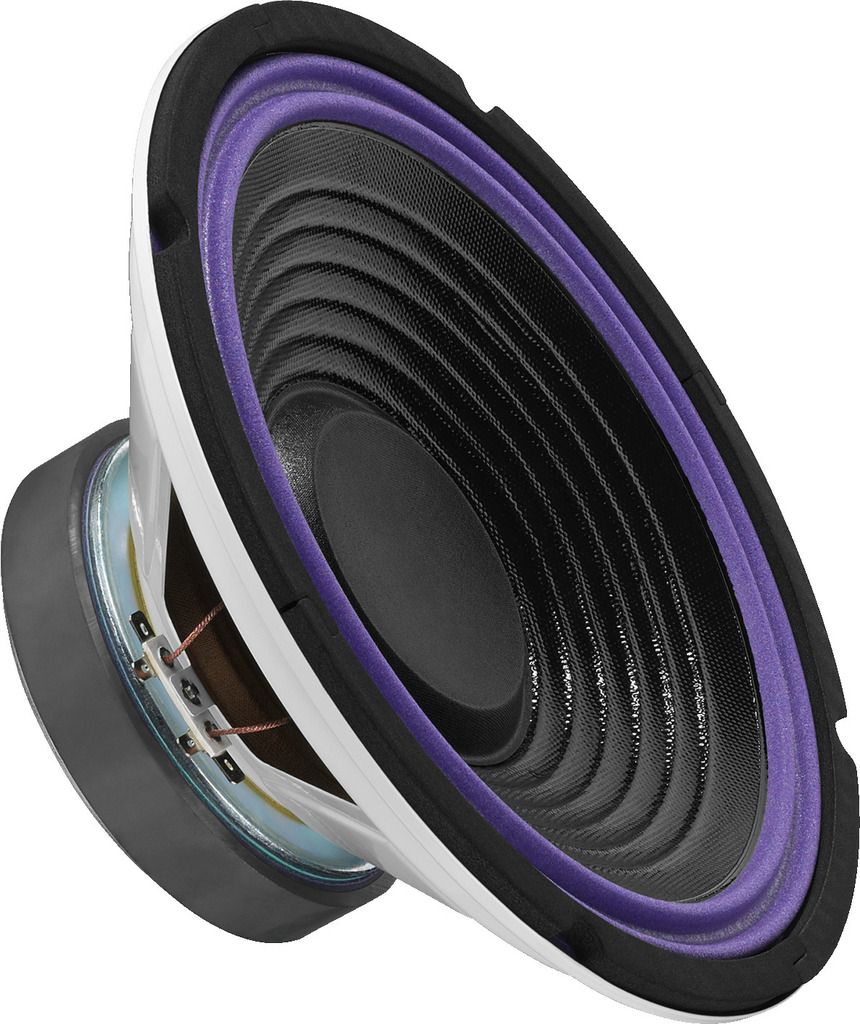

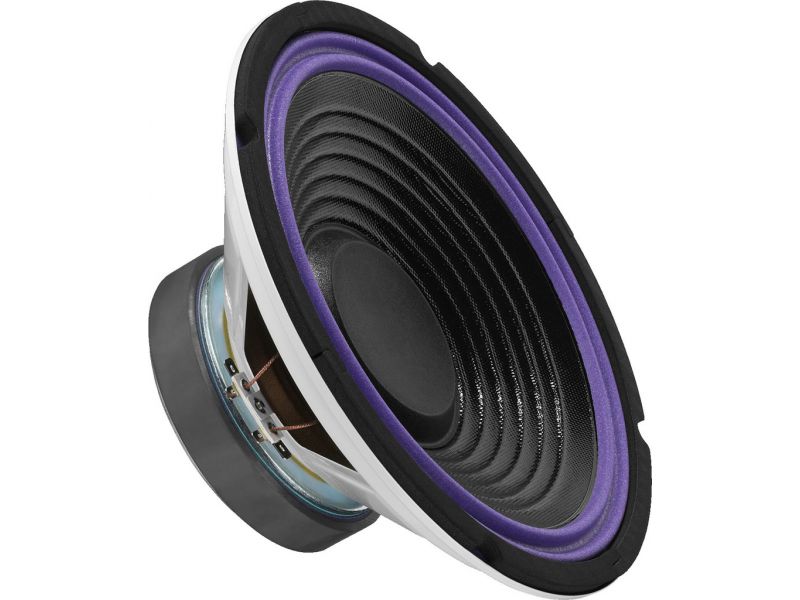

Car hi-fi bass speaker, 100 W, 4Ω
  • 25 cm (10") bass speaker
  • Coated cone
  • Also suitable as a bass addition for free air applications
  • Protruding lower pole plate for a long excursion
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

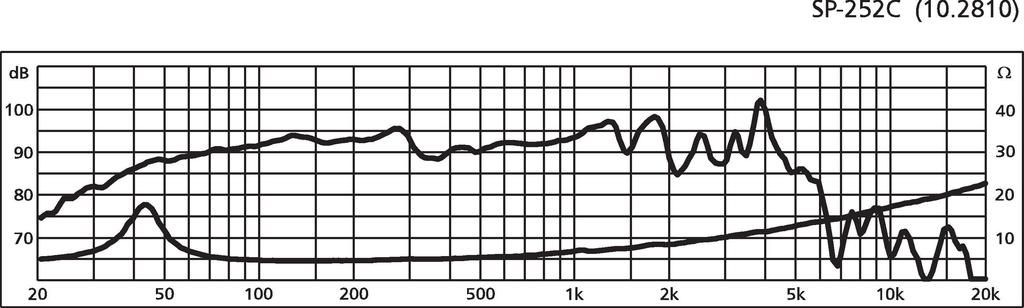

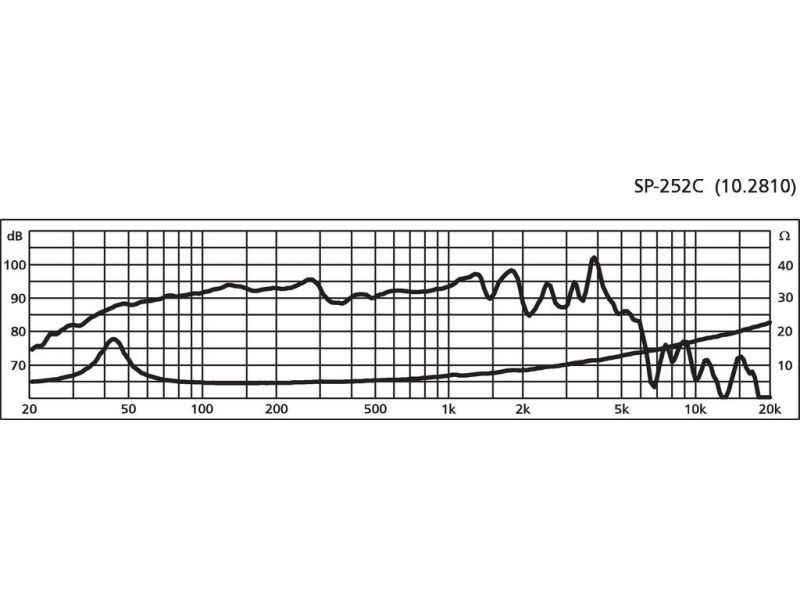

Frequency range f3-3,500 Hz
Resonant frequency (fs) 35 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,000 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 200 W
SPL 93 dB/W/m
Suspension compl. (Cms) 0.55 mm/N
Moving mass (Mms) 38 g
Mech. Q factor (Qms) 3.15
Electr. Q factor (Qes) 0.47
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 96 l
DC resistance (Re) 3.7 Ω
Force factor (BxL) 8.08 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 39 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 5 mm
Eff. cone area (Sd) 353 cm2
Magnet weight 850 g
Magnet diameter Ø 125 mm

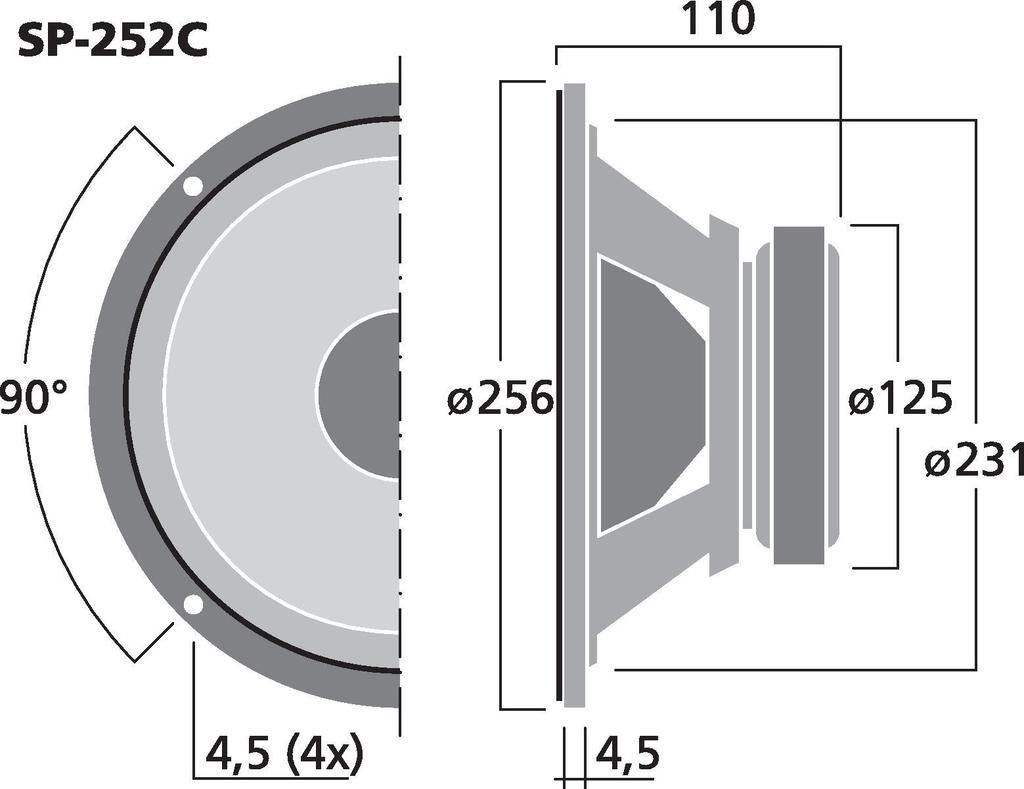

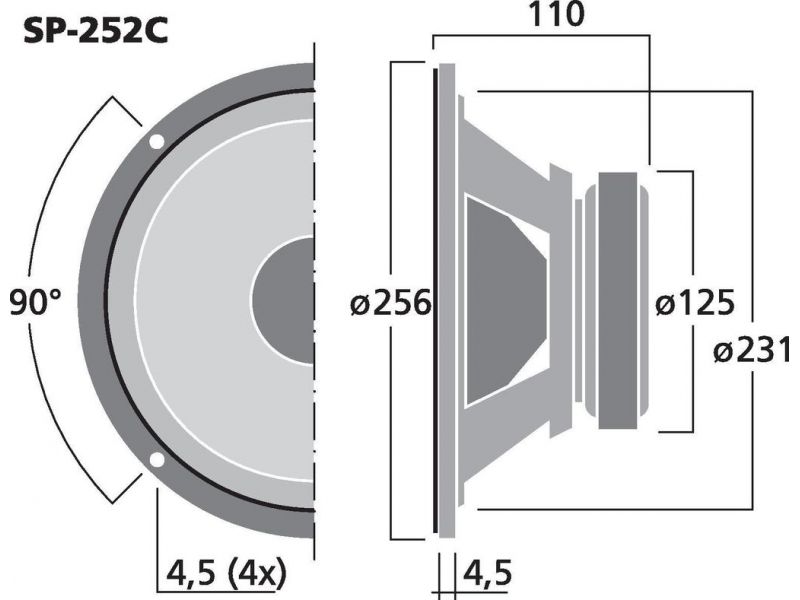

Mounting cutout Ø 231 mm
Mounting depth 110 mm
Dimensions Ø 256 mm x 110 mm
Outside diameter Ø 256 mm
Width Ø 256 mm
Height Ø 256 mm
Depth 110 mm
Colour black/violet
Admiss. ambient temp. 0-40 °C
Weight 2.4 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.265 x 0.125 x 0.265 m
Gross weight 2.61 kg
Net weight 2.4 kg

Fisiere de descarcat

Fisa produsului SP-252C konformitaetserklaerung-ce konformitaetserklaerung-ukca
