SP-252E

Cod EAN: 4007754153521

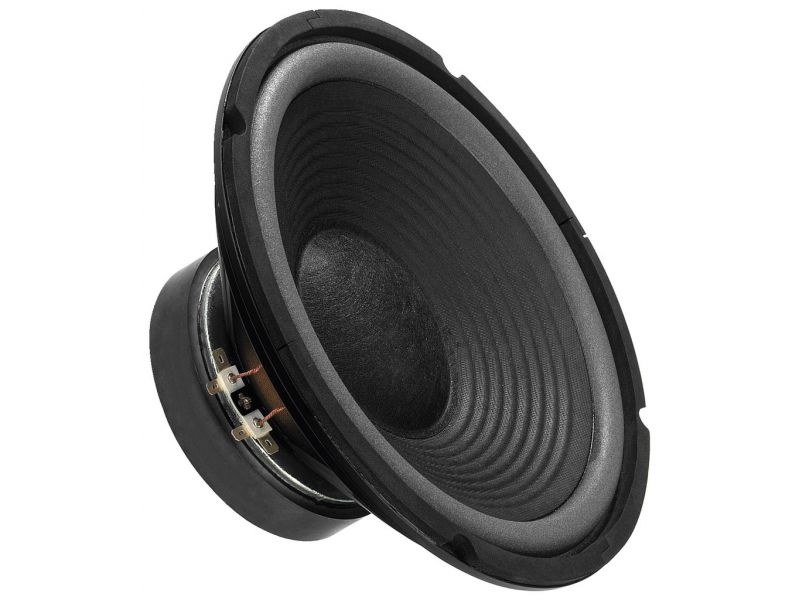

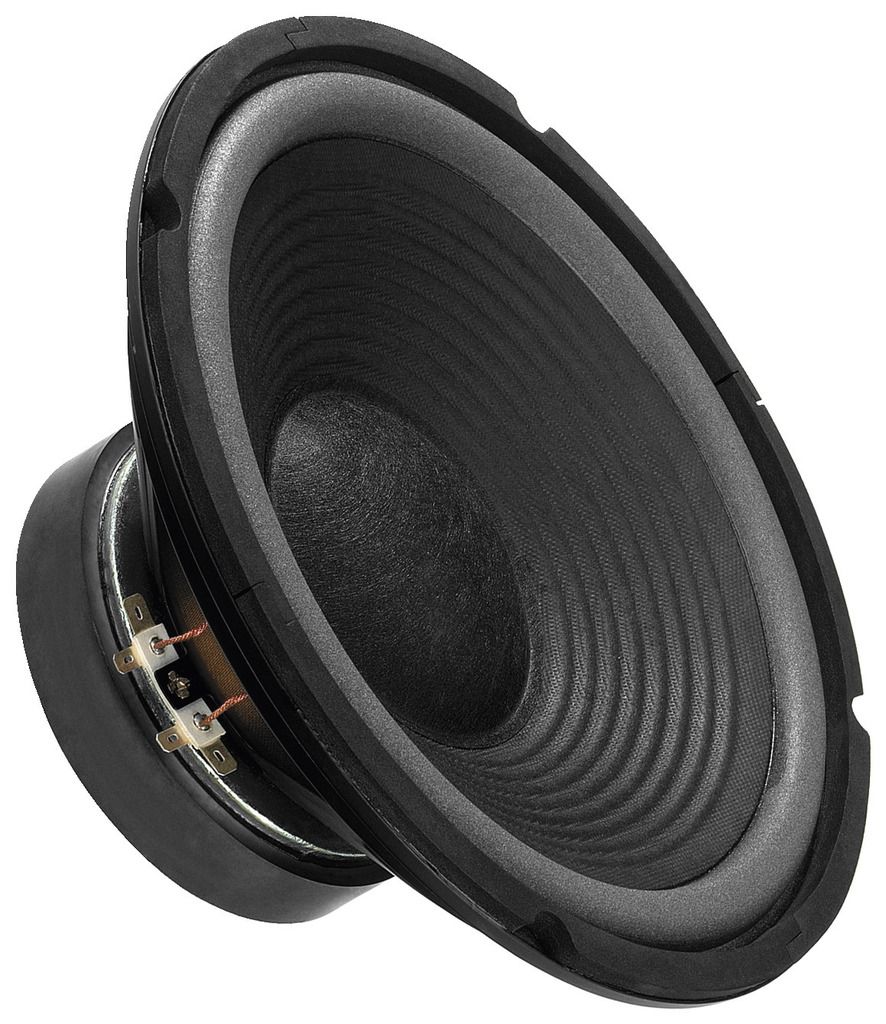

Hi-fi bass-midrange speaker, 75 W, 4 Ω All-round speaker Foam surround Replacement speaker for closed cabinets

Intreaba despre produs
Cumpara acum


SP-252E

Hi-fi bass-midrange speaker, 75 W, 4 Ω
  • All-round speaker
  • Foam surround
  • Replacement speaker for closed cabinets

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

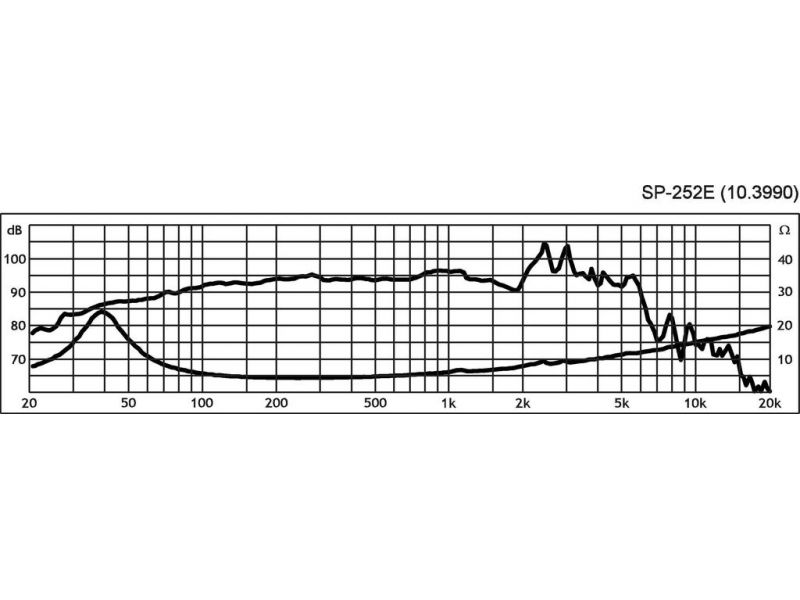

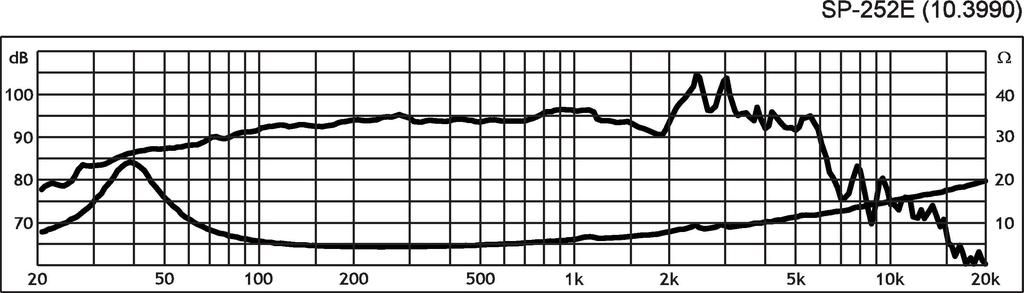

Frequency range f3-6,000 Hz
Resonant frequency (fs) 42 Hz
Power rating (RMS) 75 W
Peak music power output (MAX) 150 W
SPL 94 dB/W/m
Suspension compl. (Cms) 0.33 mm/N
Moving mass (Mms) 43 g
Mech. Q factor (Qms) 3.13
Electr. Q factor (Qes) 0.60
Total Q factor (Qts) 0.50
Equivalent volume (Vas) 57 l
DC resistance (Re) 3.75 Ω
Force factor (BxL) 8.50 Tm
Voice coil induct. (Le) 1.1 mH
Voice coil diameter Ø 35.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 353 cm2
Magnet weight 960 g
Magnet diameter Ø 125 mm

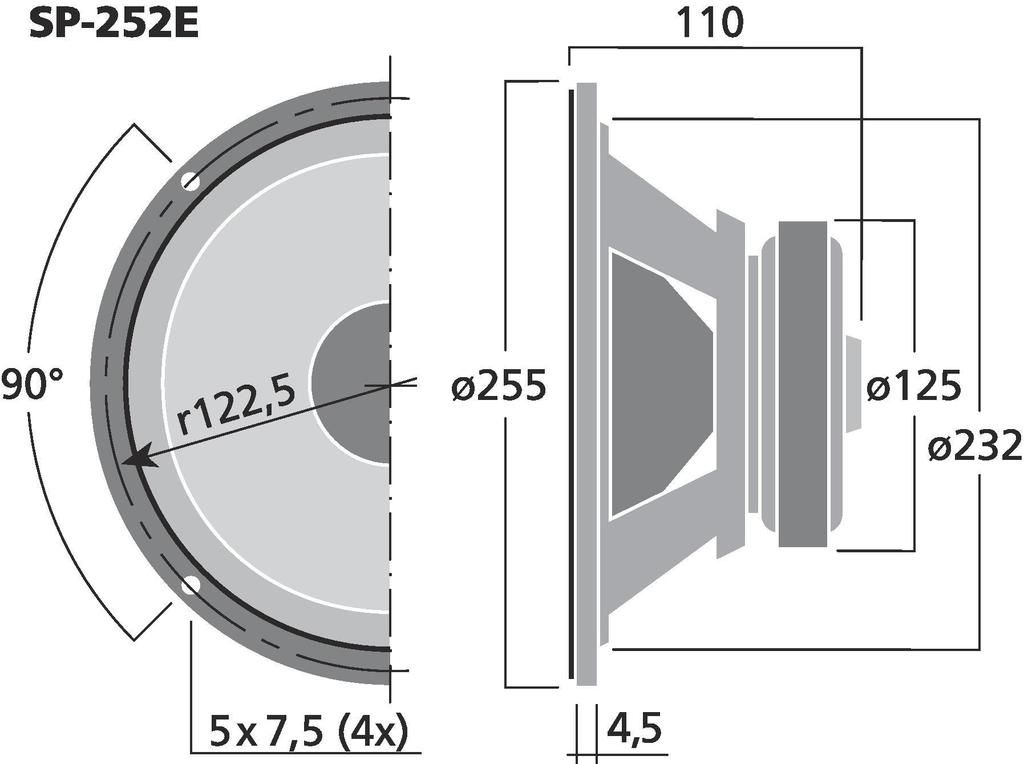

Mounting cutout Ø 232 mm
Mounting depth 110 mm
Mounting hole diameter Ø 245 mm
Dimensions Ø 255 mm x 110 mm
Outside diameter Ø 255 mm
Width Ø 255 mm
Height Ø 255 mm
Depth 110 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.3 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.26 x 0.12 x 0.26 m
Gross weight 2.42 kg
Net weight 2.295 kg

Fisiere de descarcat

Fisa produsului SP-252E konformitaetserklaerung-ce konformitaetserklaerung-ukca
