SP-252PA

Cod EAN: 4007754134896

Universal bass-midrange speaker, 75 W, 8 Ω For bass-midrange applications, also in power speaker systems.

Intreaba despre produs
Cumpara acum


SP-252PA

Universal bass-midrange speaker, 75 W, 8 Ω
For bass-midrange applications, also in power speaker systems.

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

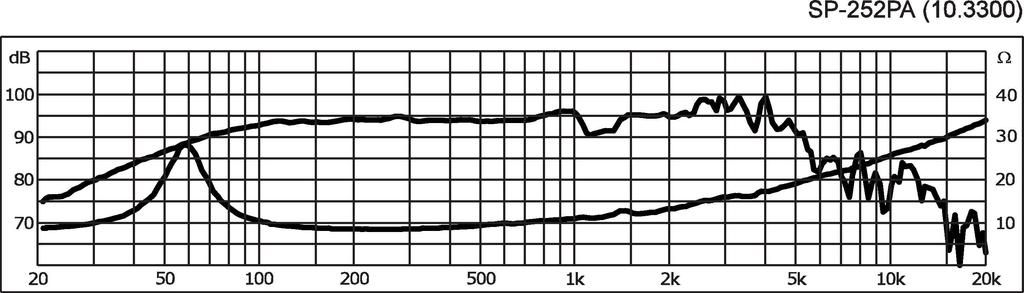

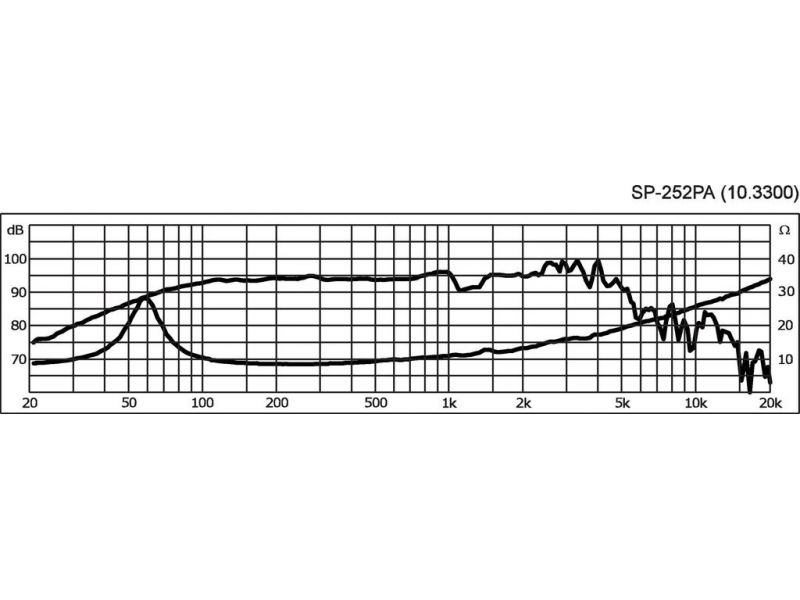

Frequency range f3-4,500 Hz
Resonant frequency (fs) 55 Hz
Power rating (RMS) 75 W
Peak music power output (MAX) 150 W
SPL 90 dB/W/m
Suspension compl. (Cms) 0.18 mm/N
Moving mass (Mms) 30 g
Mech. Q factor (Qms) 2.13
Electr. Q factor (Qes) 1
Total Q factor (Qts) 0.7
Equivalent volume (Vas) 30 l
DC resistance (Re) 7.7 Ω
Force factor (BxL) 9.70 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 39 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 350 cm2
Magnet weight 850 g
Magnet diameter Ø 119 mm

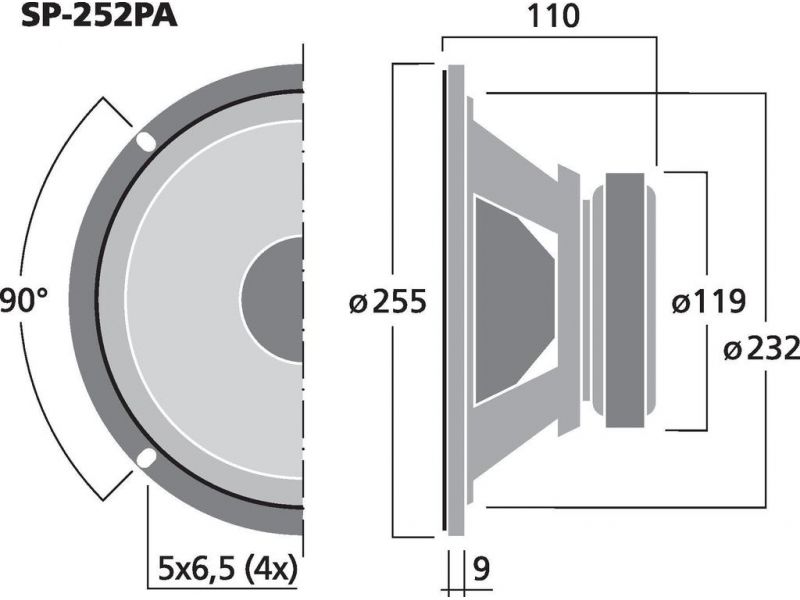

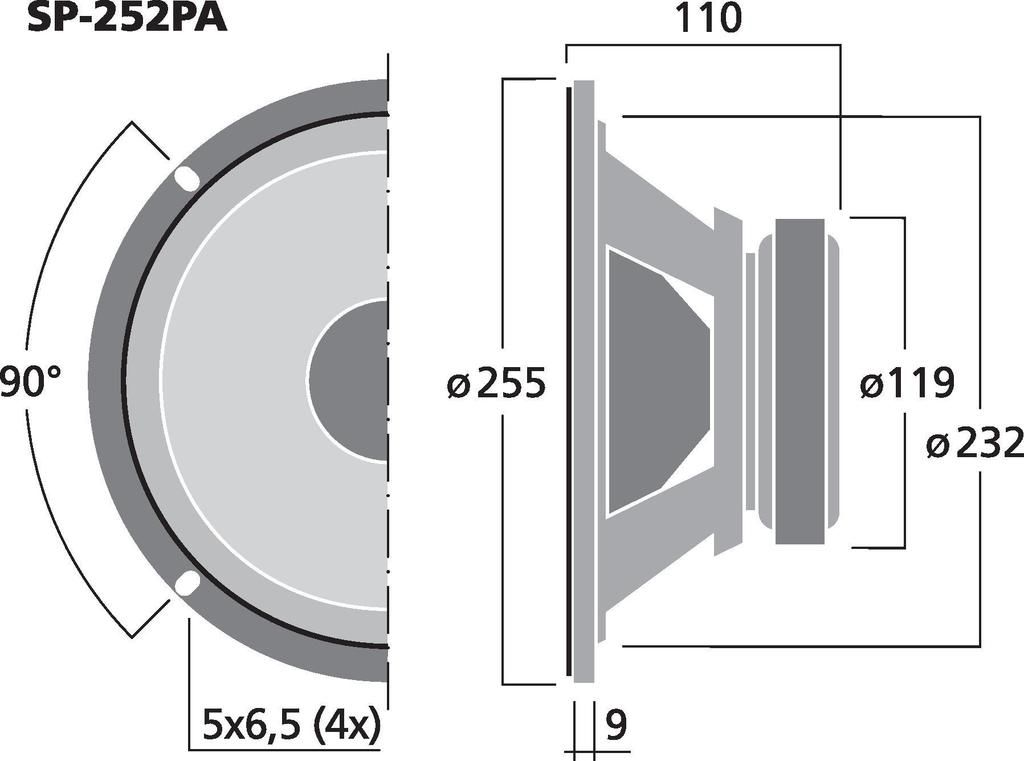

Mounting cutout Ø 232 mm
Mounting depth 101 mm
Dimensions Ø 255 x 110 mm
Outside diameter Ø 255 mm
Width Ø 255 mm
Height Ø 255 mm
Depth 110 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.21 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.26 x 0.12 x 0.26 m
Gross weight 2.405 kg
Net weight 2.21 kg

Fisiere de descarcat

Fisa produsului SP-252PA konformitaetserklaerung-ce konformitaetserklaerung-ukca
