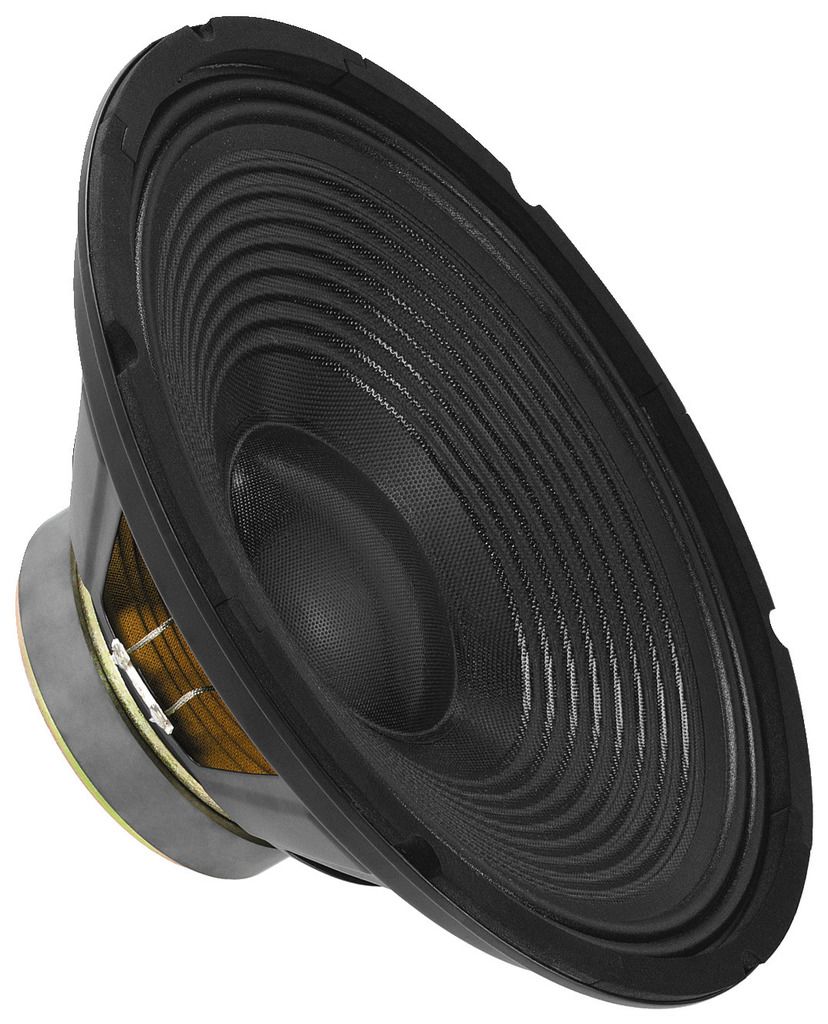

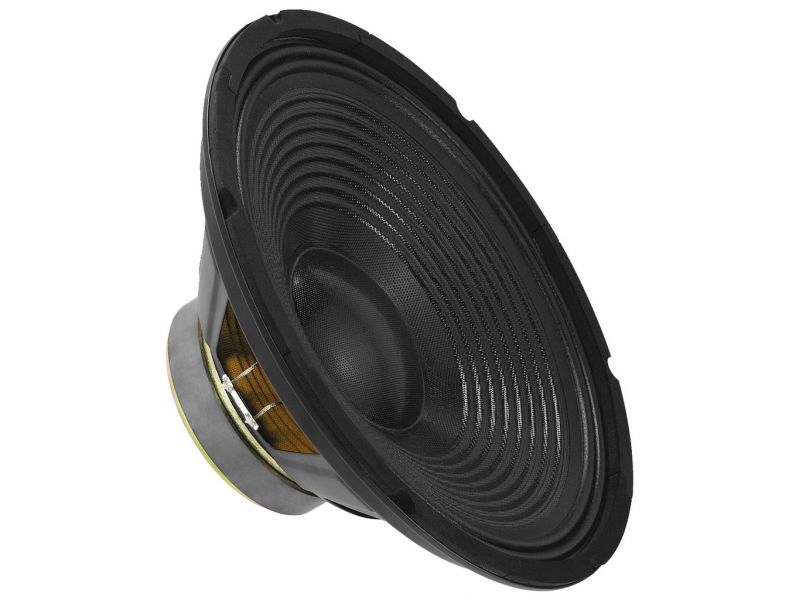

SP-302PA
Cod EAN: 4007754134902
Universal bass speaker, 100 W, 8 Ω For bass applications, also in power speaker systems.
SP-302PA
Universal bass speaker, 100 W, 8 Ω
For bass applications, also in power speaker systems.
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

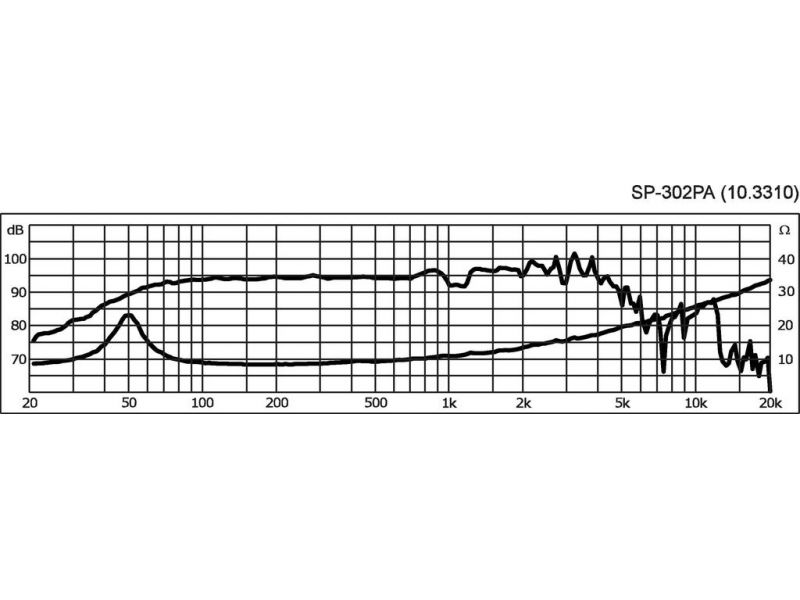

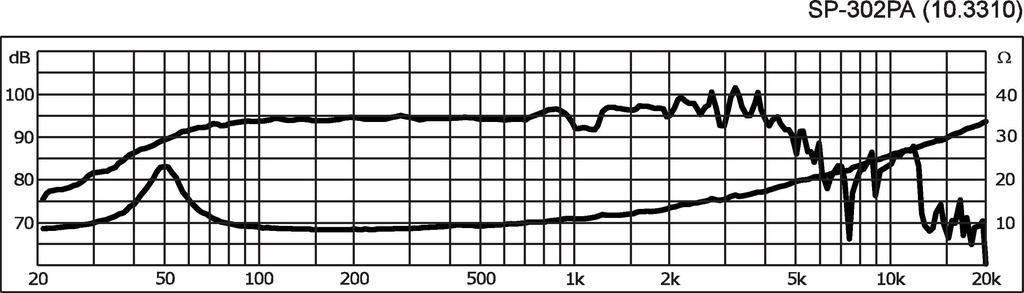

| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 45 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.15 mm/N |
| Moving mass (Mms) | 57 g |
| Mech. Q factor (Qms) | 2.2 |
| Electr. Q factor (Qes) | 1.47 |
| Total Q factor (Qts) | 0.89 |
| Equivalent volume (Vas) | 51 l |
| DC resistance (Re) | 7.7 Ω |
| Force factor (BxL) | 10.50 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 38 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 542 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 119 mm |

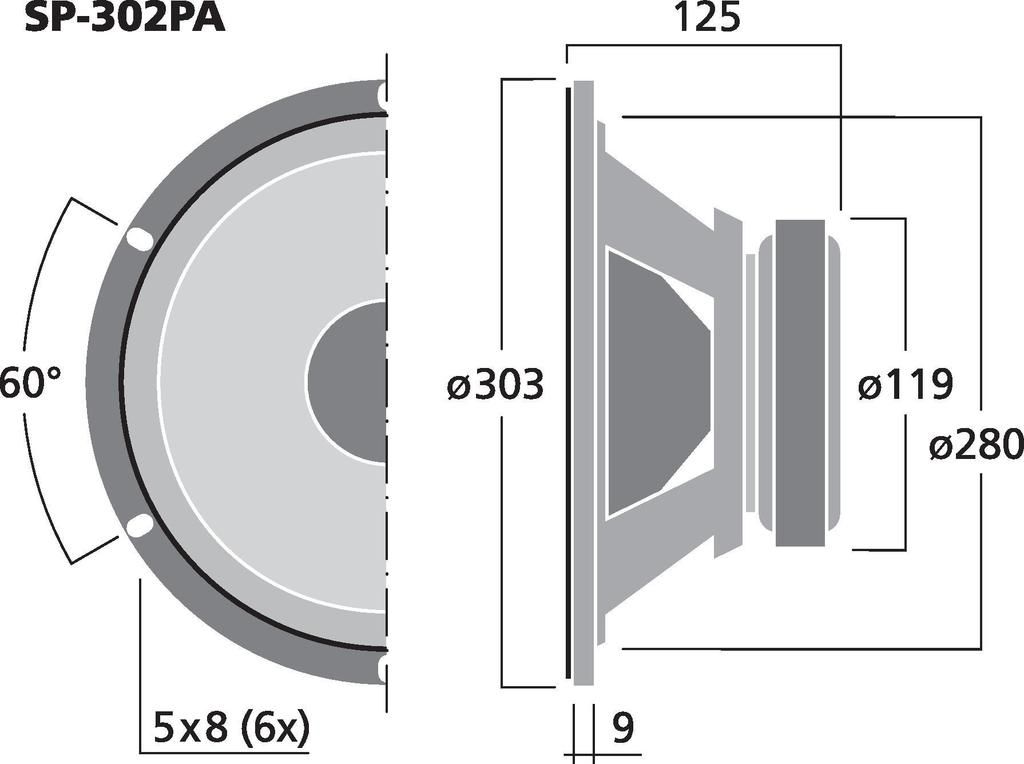

| Mounting cutout | Ø 280 mm |
| Mounting depth | 116 mm |
| Dimensions | Ø 303 mm x 125 mm |
| Outside diameter | Ø 303 mm |
| Width | Ø 303 mm |
| Height | Ø 303 mm |
| Depth | 125 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.36 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.315 x 0.135 x 0.315 m |
| Gross weight | 2.5 kg |
| Net weight | 2.36 kg |
