SP-3RDP

Cod EAN: 4007754024524

Miniature flush-mount speaker, 8 Ω For general applications in models, intercom systems, miniature radios Miniature flush-mount speaker Legend scale drawing: Width = Ø A Depth = E Magnet diameter = Ø B Mounting cutout = Ø C Mounting depth...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-3RDP

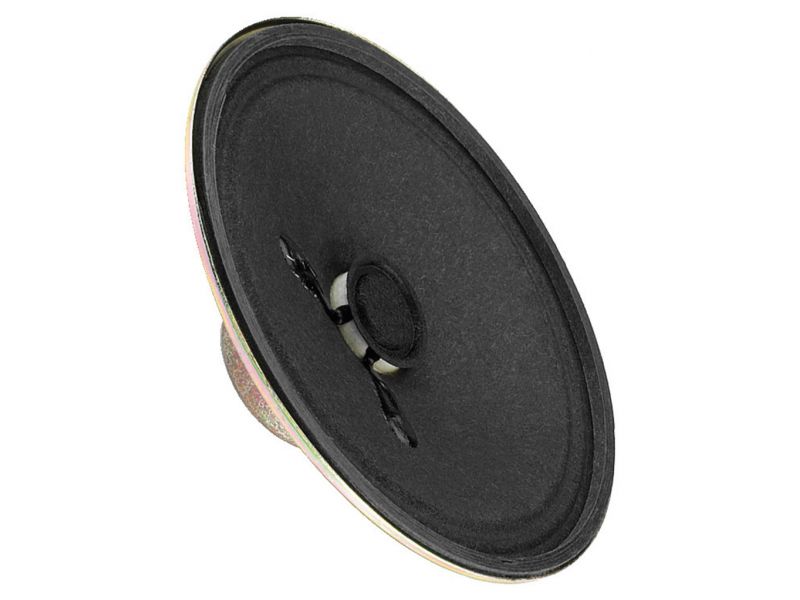

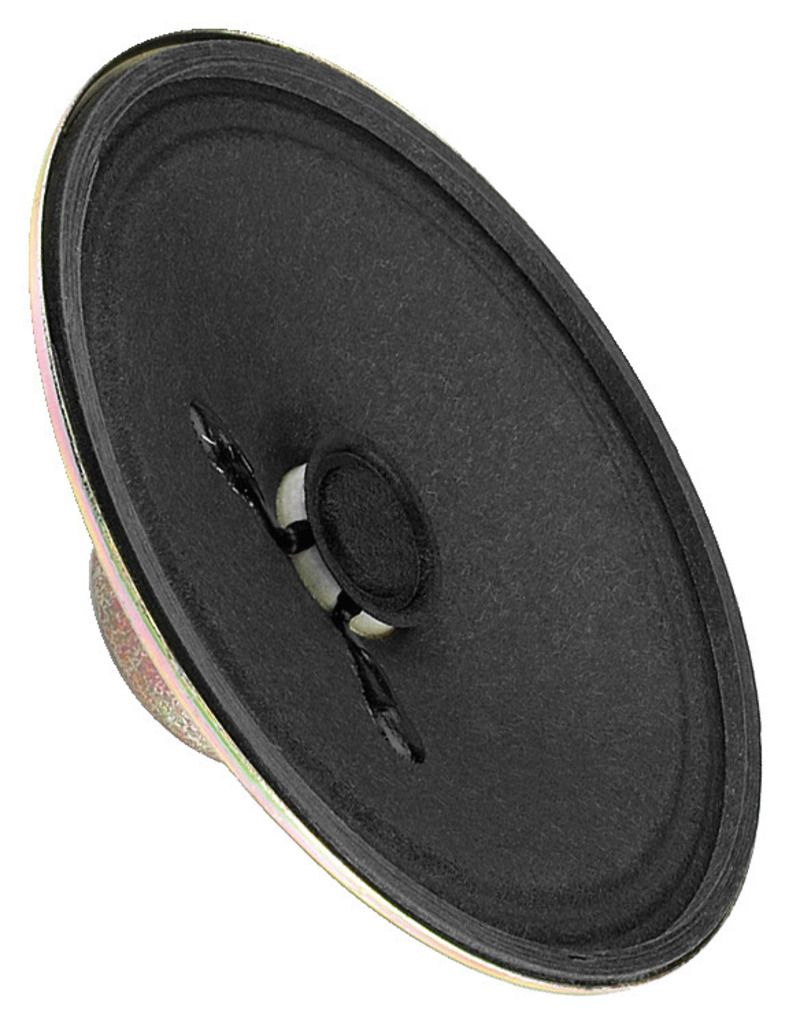

Miniature flush-mount speaker, 8 Ω
  • For general applications in models, intercom systems, miniature radios
Miniature flush-mount speaker

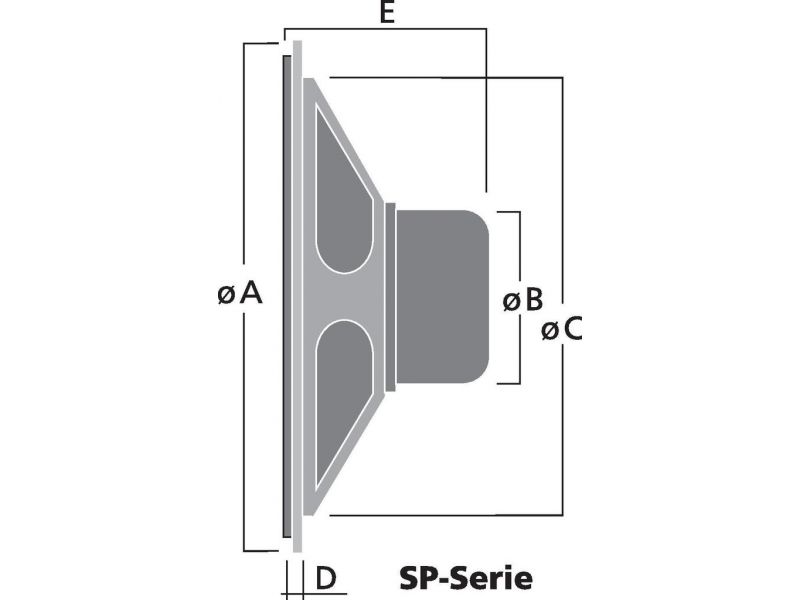

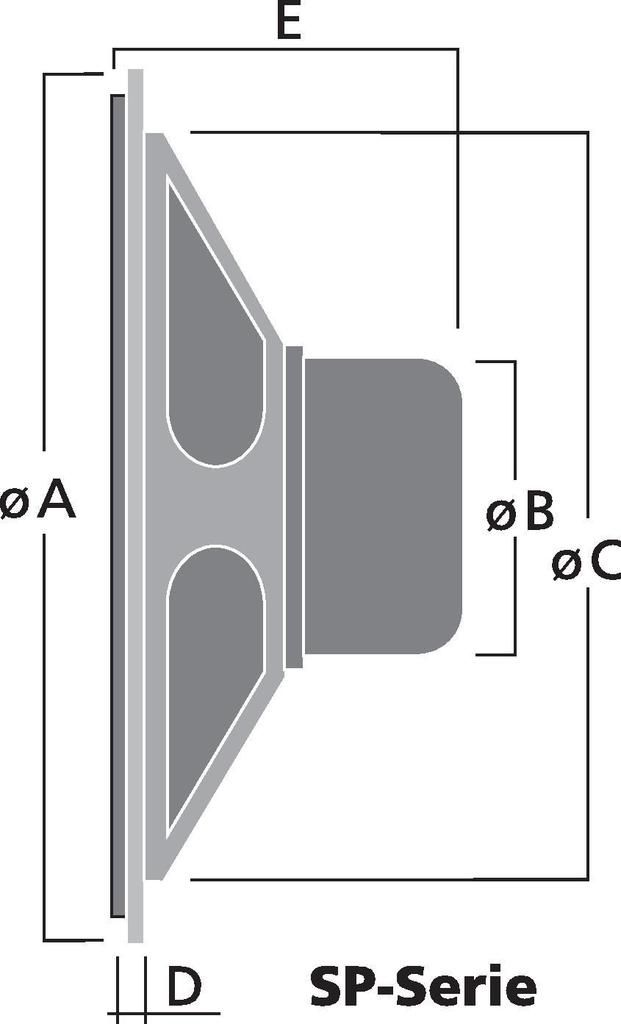

Legend scale drawing:
  • Width = Ø A
  • Depth = E
  • Magnet diameter = Ø B
  • Mounting cutout = Ø C
  • Mounting depth = E-D
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 350-15,000 Hz
Power rating (RMS) 0.5 W

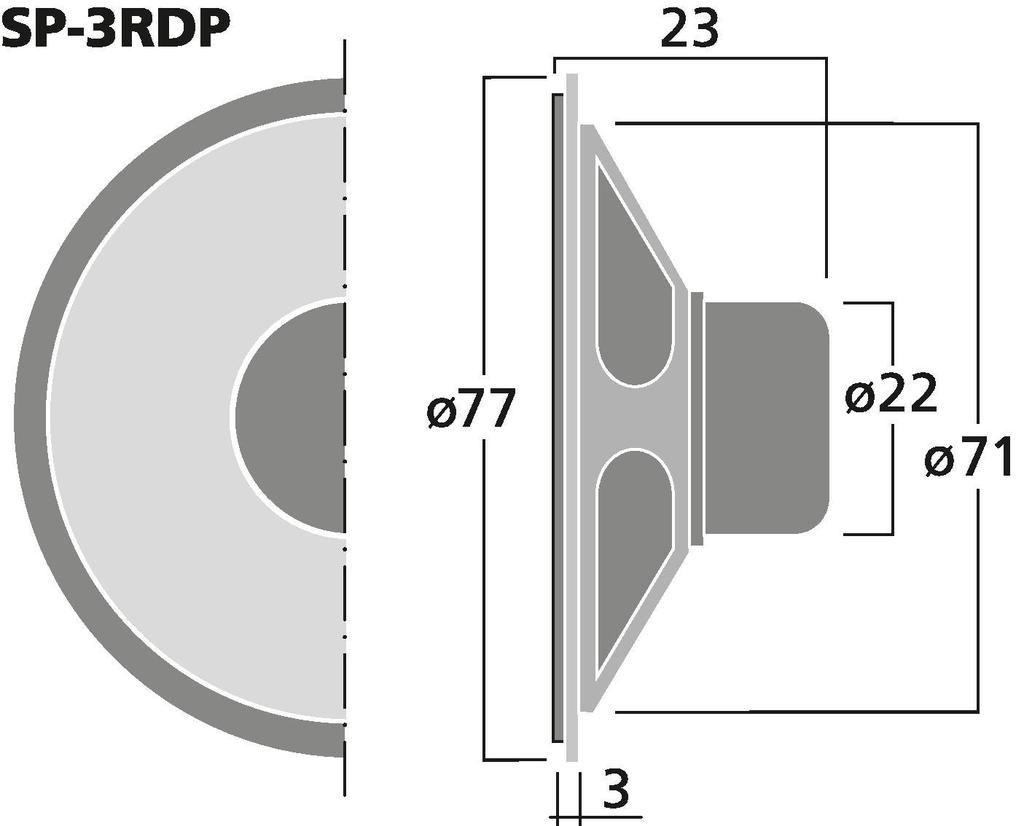

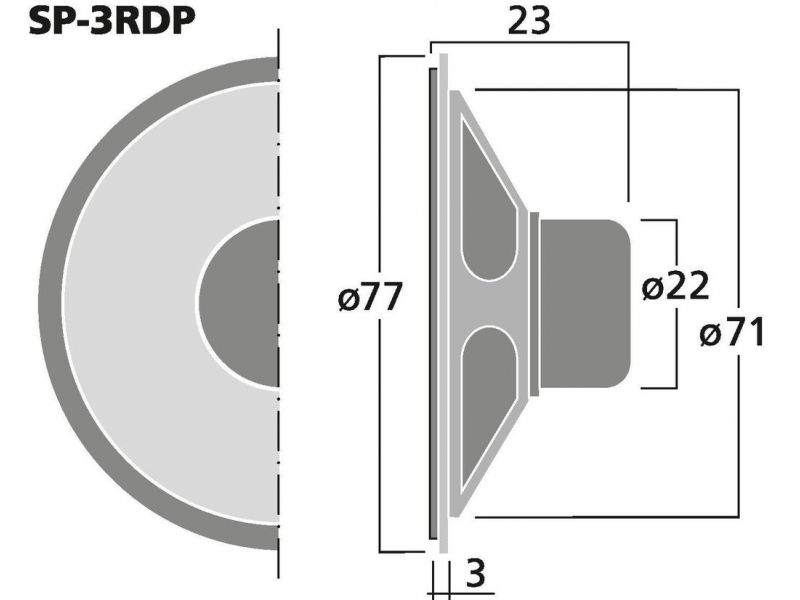

Magnet diameter Ø 22 mm
Mounting cutout Ø 71 mm
Mounting depth 23 mm
Dimensions Ø 77 mm x 23 mm
Outside diameter Ø 77 mm
Width Ø 77 mm
Height Ø 77 mm
Depth 23 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.05 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.08 x 0.025 x 0.08 m
Gross weight 0.059 kg
Net weight 0.05 kg

Fisiere de descarcat

Fisa produsului SP-3RDP konformitaetserklaerung-ce konformitaetserklaerung-ukca
