SP-6/8SQ

Cod EAN: 4007754187533

Miniature speaker, 10 W, 8 Ω For standard applications Sound pressure with good linearity from approx. 120 Hz up to the high range Neodymium magnet

Intreaba despre produs
Cumpara acum

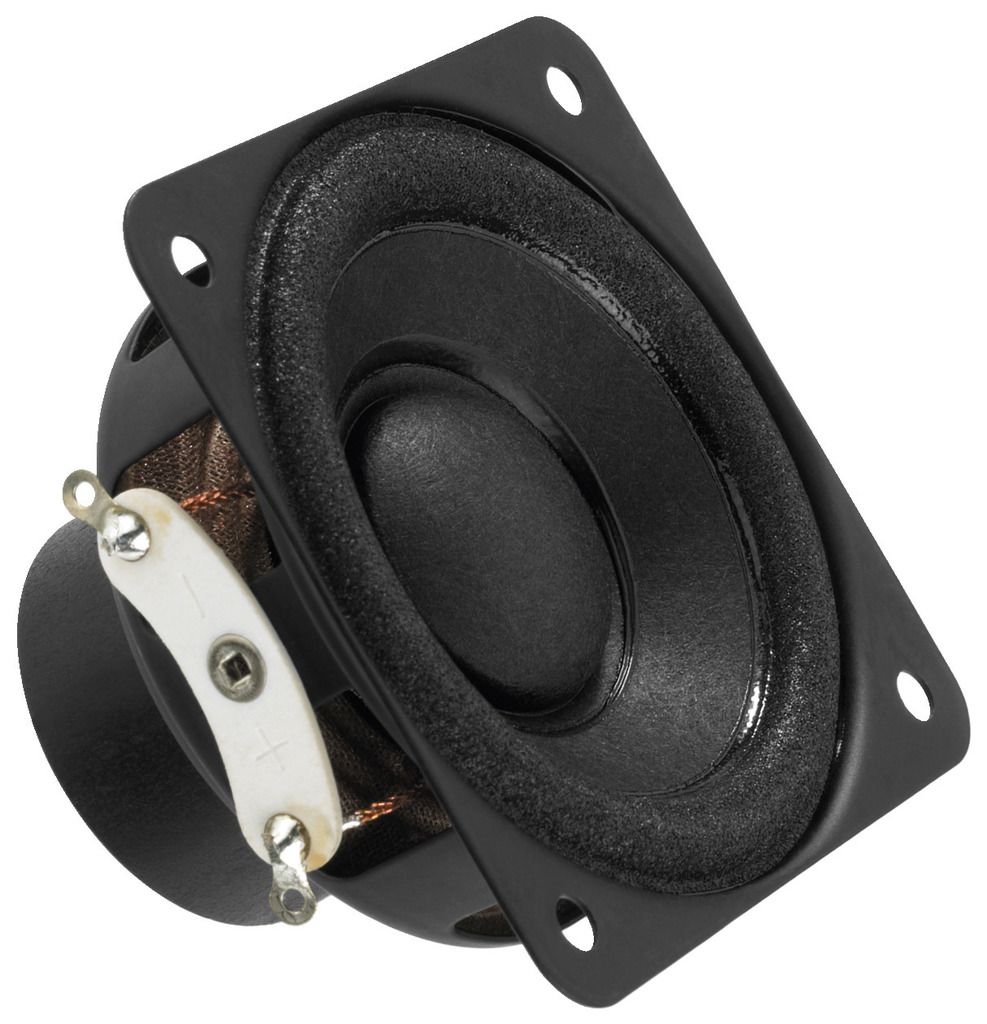

SP-6/8SQ

Miniature speaker, 10 W, 8 Ω
  • For standard applications
  • Sound pressure with good linearity from approx. 120 Hz up to the high range
  • Neodymium magnet

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-20,000 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W
SPL 81 dB

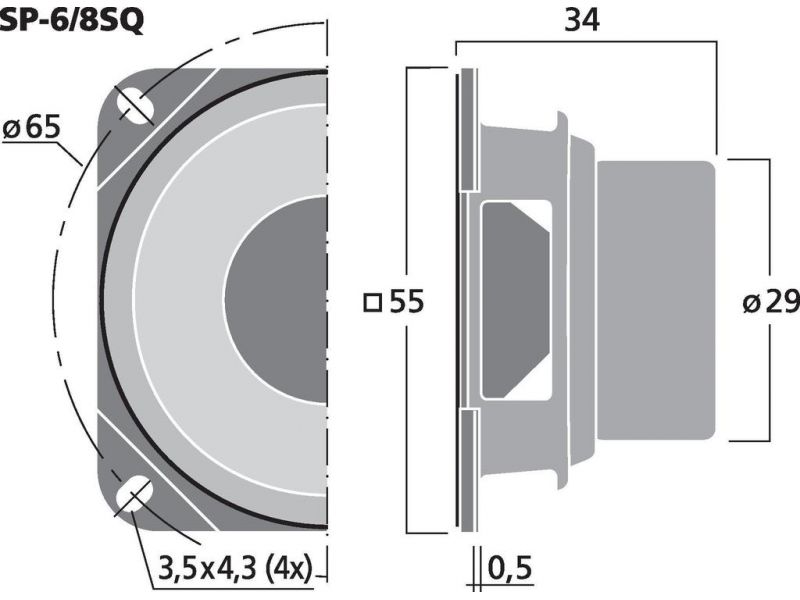

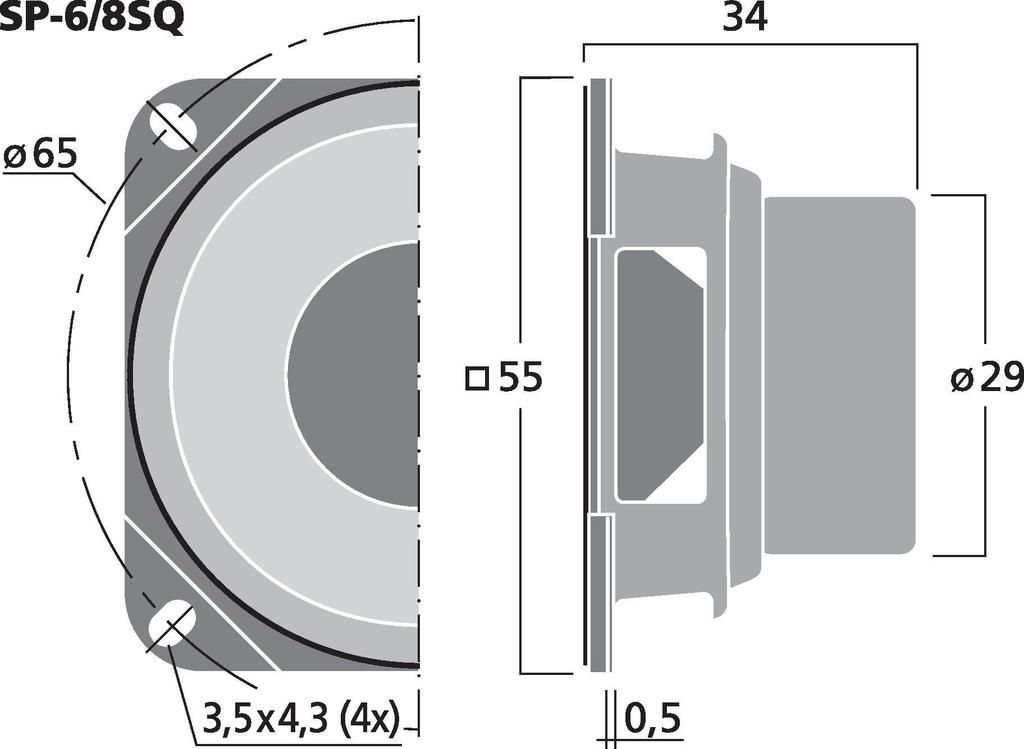

Magnet diameter Ø 29 mm
Mounting cutout Ø 50.5 mm
Mounting depth 33.5 mm
Mounting hole diameter Ø 65 mm
Dimensions 55 x 55 x 34 mm
Width 55 mm
Height 55 mm
Depth 34 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.087 kg
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.065 x 0.045 x 0.065 m
Gross weight 0.1 kg
Net weight 0.087 kg

Fisiere de descarcat

Fisa produsului SP-6/8SQ konformitaetserklaerung-ce konformitaetserklaerung-ukca
