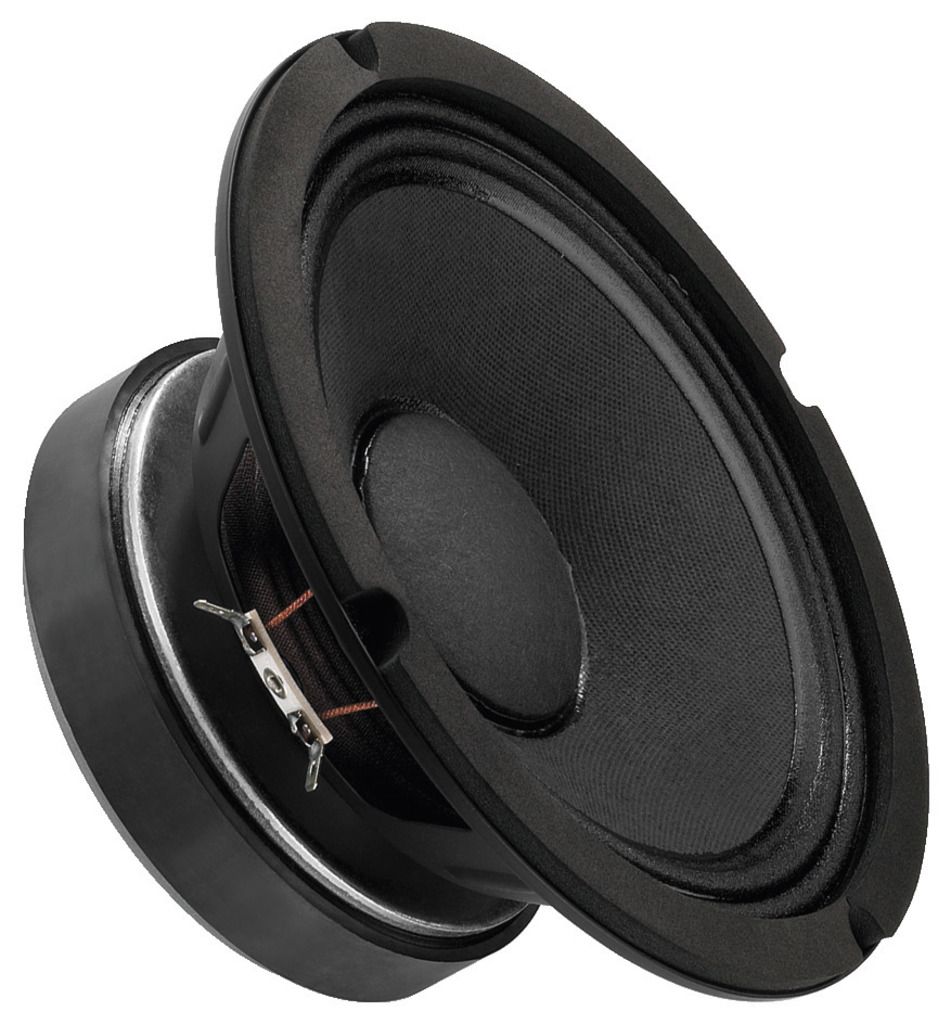

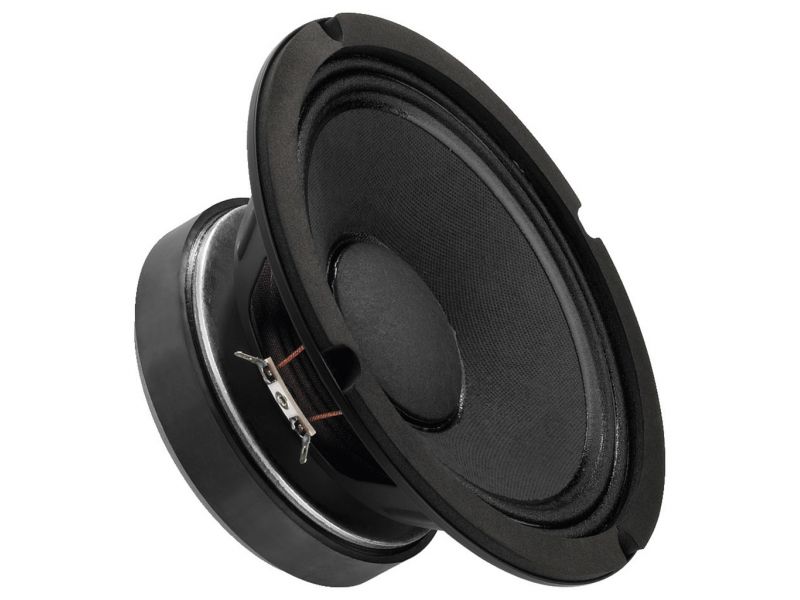

SP-8/150PA

Cod EAN: 4007754073706

PA bass-midrange speaker, 150 W, 8 Ω Good medium efficiency Wide bandwidth radiation for midrange applications Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com

Intreaba despre produs
Cumpara acum


SP-8/150PA

PA bass-midrange speaker, 150 W, 8 Ω
  • Good medium efficiency
  • Wide bandwidth radiation for midrange applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

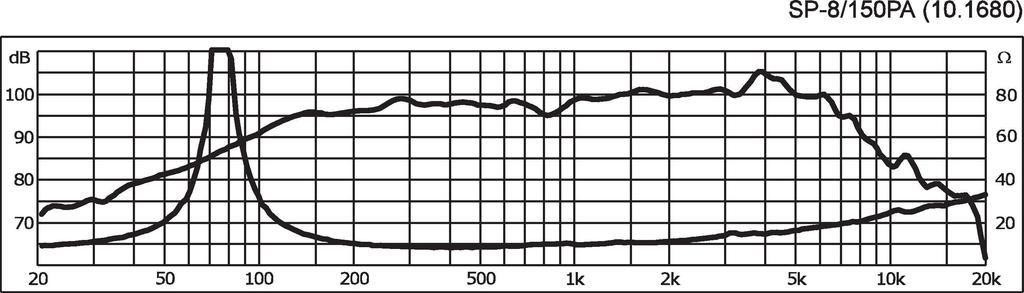

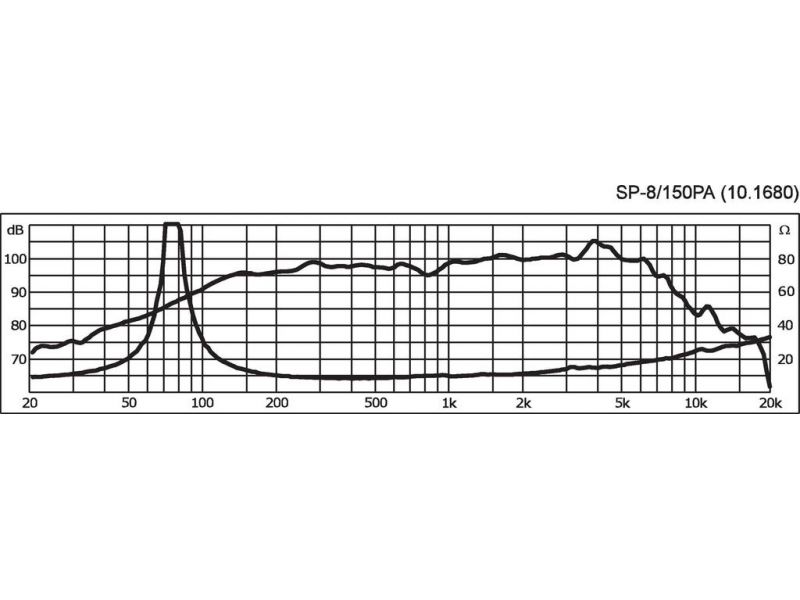

Frequency range f3-8,000 Hz
Resonant frequency (fs) 88 Hz
Power rating (RMS) 150 W
Peak music power output (MAX) 300 W
SPL 96 dB/W/m
Suspension compl. (Cms) 0.16 mm/N
Moving mass (Mms) 20 g
Mech. Q factor (Qms) 4.12
Electr. Q factor (Qes) 0.48
Total Q factor (Qts) 0.43
Equivalent volume (Vas) 12 l
DC resistance (Re) 6.9 Ω
Force factor (BxL) 12.60 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1.25 mm
Eff. cone area (Sd) 219 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 140 mm

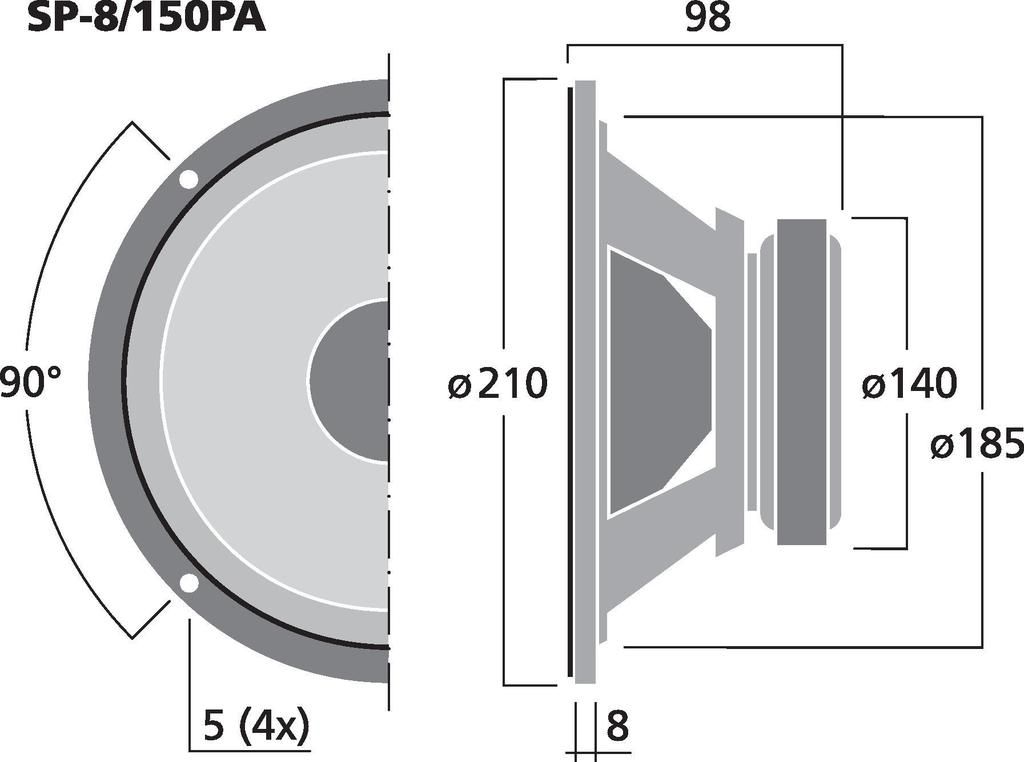

Mounting cutout Ø 185 mm
Mounting depth 90 mm
Dimensions Ø 210 mm x 98 mm
Outside diameter Ø 210 mm
Width Ø 210 mm
Height Ø 210 mm
Depth 98 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.965 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.27 x 0.135 x 0.27 m
Gross weight 3.3 kg
Net weight 2.965 kg

Fisiere de descarcat

Fisa produsului SP-8/150PA konformitaetserklaerung-ce konformitaetserklaerung-ukca
