SP-8/4SQ

Cod EAN: 4007754137767

Universal speaker, 10 W, 4 Ω For standard wide bandwidth applications Sound pressure from approx. 100 Hz on

Intreaba despre produs
Cumpara acum


SP-8/4SQ

Universal speaker, 10 W, 4 Ω
  • For standard wide bandwidth applications
  • Sound pressure from approx. 100 Hz on

Parametrii

Impedance (Z) 4 Ω
Frequency range f3-16,000 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W

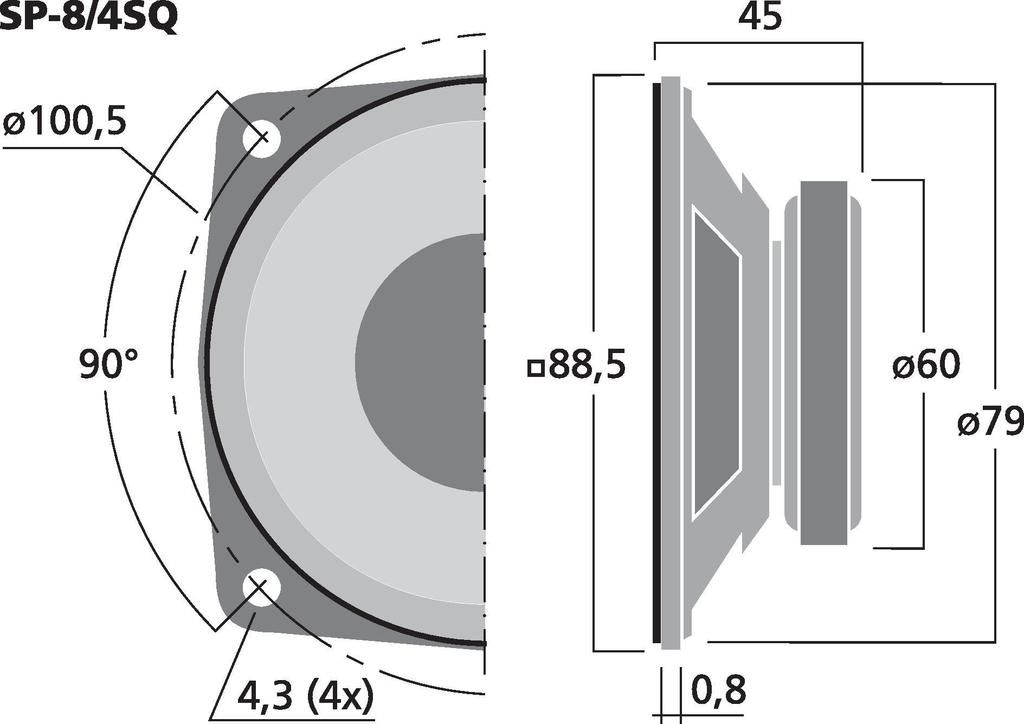

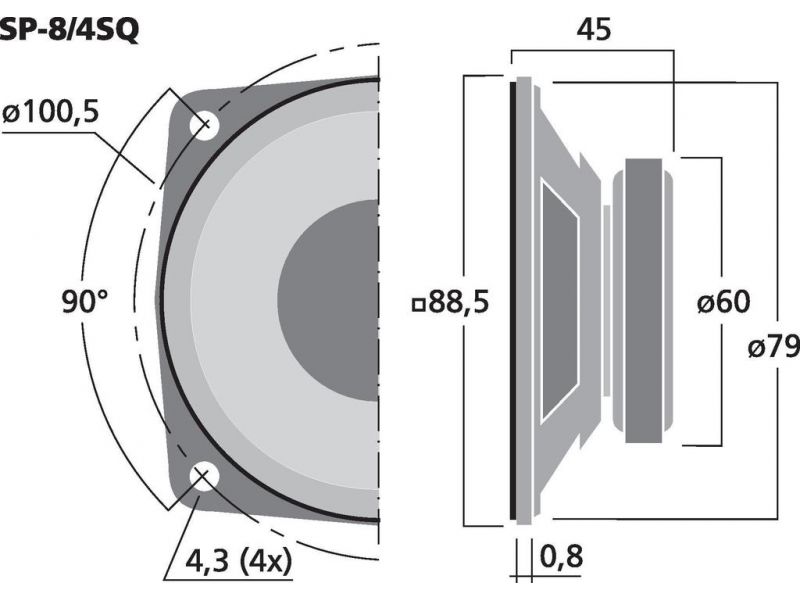

Magnet diameter Ø 60 mm
Mounting cutout Ø 79 mm
Mounting depth 44.2 mm
Mounting hole diameter Ø 105 mm
Dimensions 88.5 x 88.5 x 45 mm
Width 88.5 mm
Height 88.5 mm
Depth 45 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 262 g
Packing unit 1
Type of speaker 3"
Packing dimensions (W x H x L) 0.095 x 0.05 x 0.095 m
Gross weight 0.286 kg
Net weight 0.262 kg

Fisiere de descarcat

Fisa produsului SP-8/4SQ konformitaetserklaerung-ce konformitaetserklaerung-ukca
