SP-8/4SQS
Cod EAN: 4007754137774
Universal speaker, 10 W, 4 Ω Magnetic shielding For wide bandwidth applications (e.g. TV) Sound pressure from approx. 100 Hz on

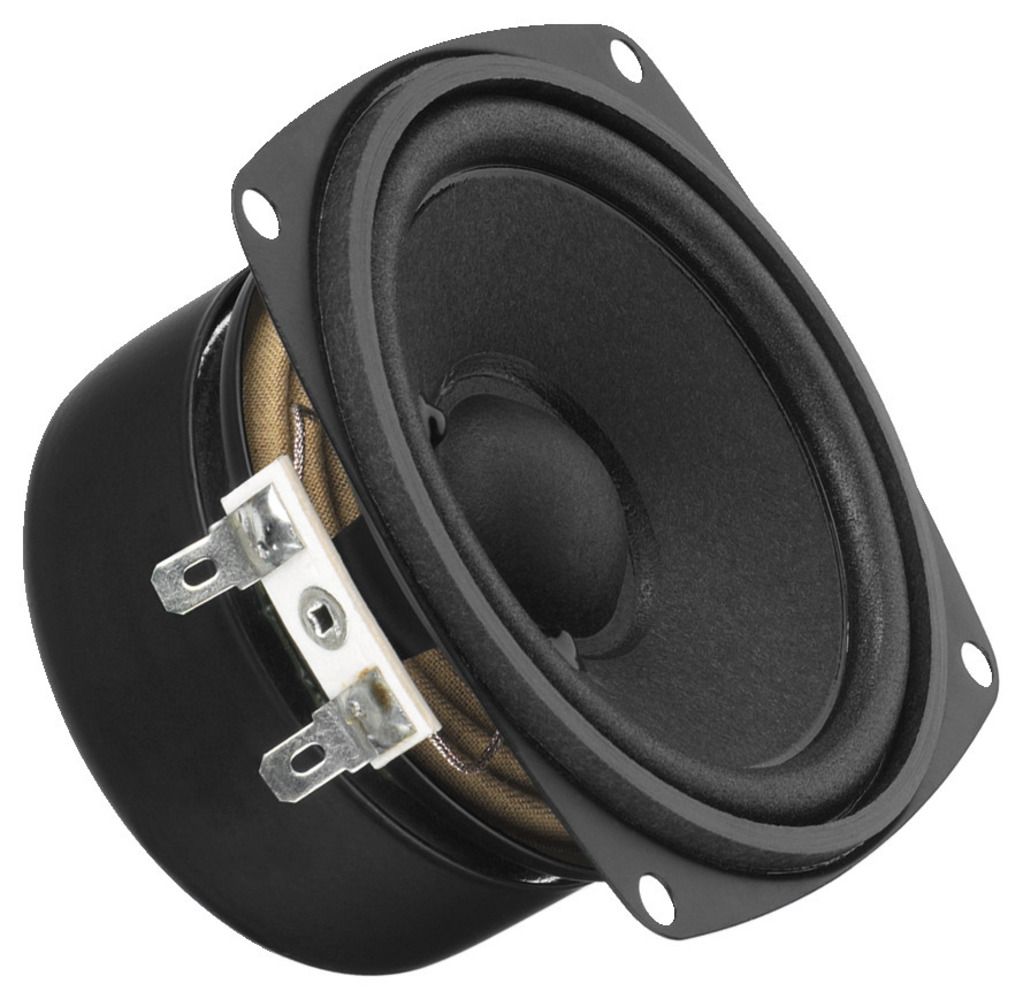

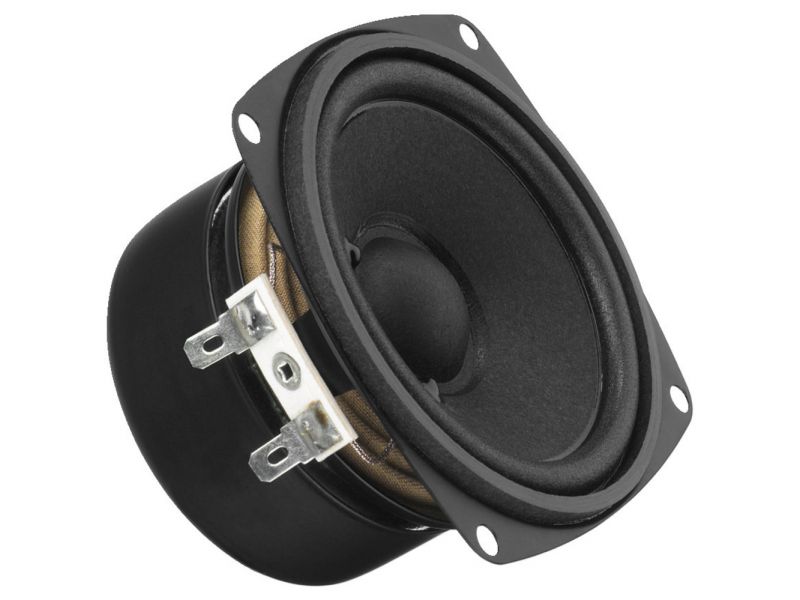

SP-8/4SQS
Universal speaker, 10 W, 4 Ω
- Magnetic shielding
- For wide bandwidth applications (e.g. TV)
- Sound pressure from approx. 100 Hz on
Parametrii
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |
| Frequency range | f3-16,000 Hz |
| Power rating (RMS) | 10 W |
| Peak music power output (MAX) | 20 W |
| SPL | 83 dB |

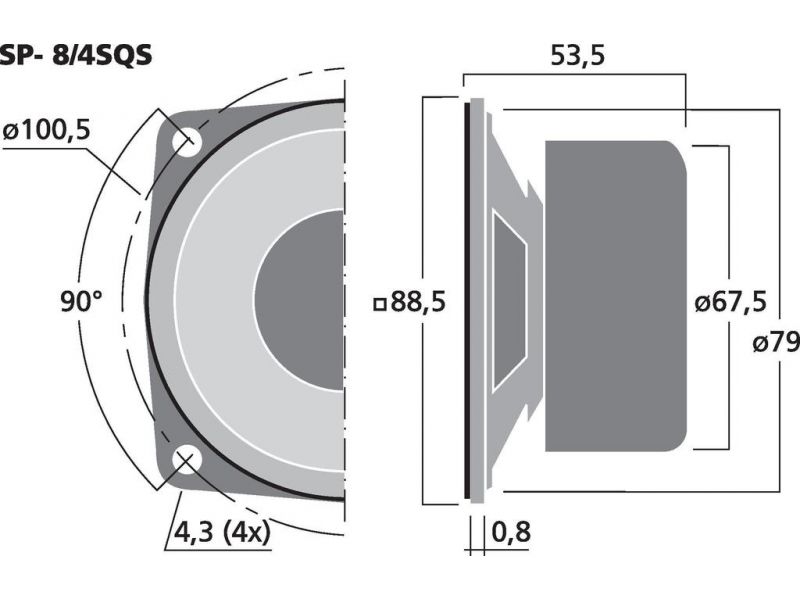

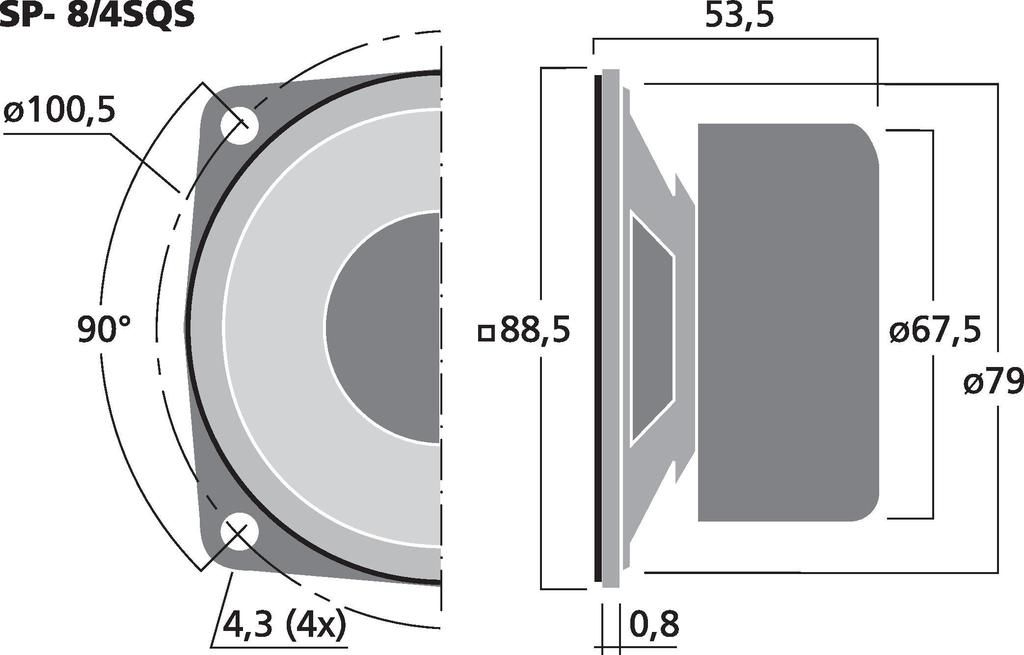

| Magnet diameter | Ø 67.5 mm |
| Mounting cutout | Ø 79 mm |
| Mounting depth | 52.7 mm |
| Mounting hole diameter | Ø 100.5 mm |
| Dimensions | 88.5 x 88.5 x 53.5 mm |
| Width | 88.5 mm |
| Height | 88.5 mm |
| Depth | 53.5 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.405 kg |
| Packing unit | 1 |
| Type of speaker | 3" |
| Packaging dimensions (W x H x L) | 0.095 x 0.06 x 0.095 m |
| Gross weight | 0.43 kg |
| Net weight | 0.405 kg |
