SP-90
Cod EAN: 4007754024999

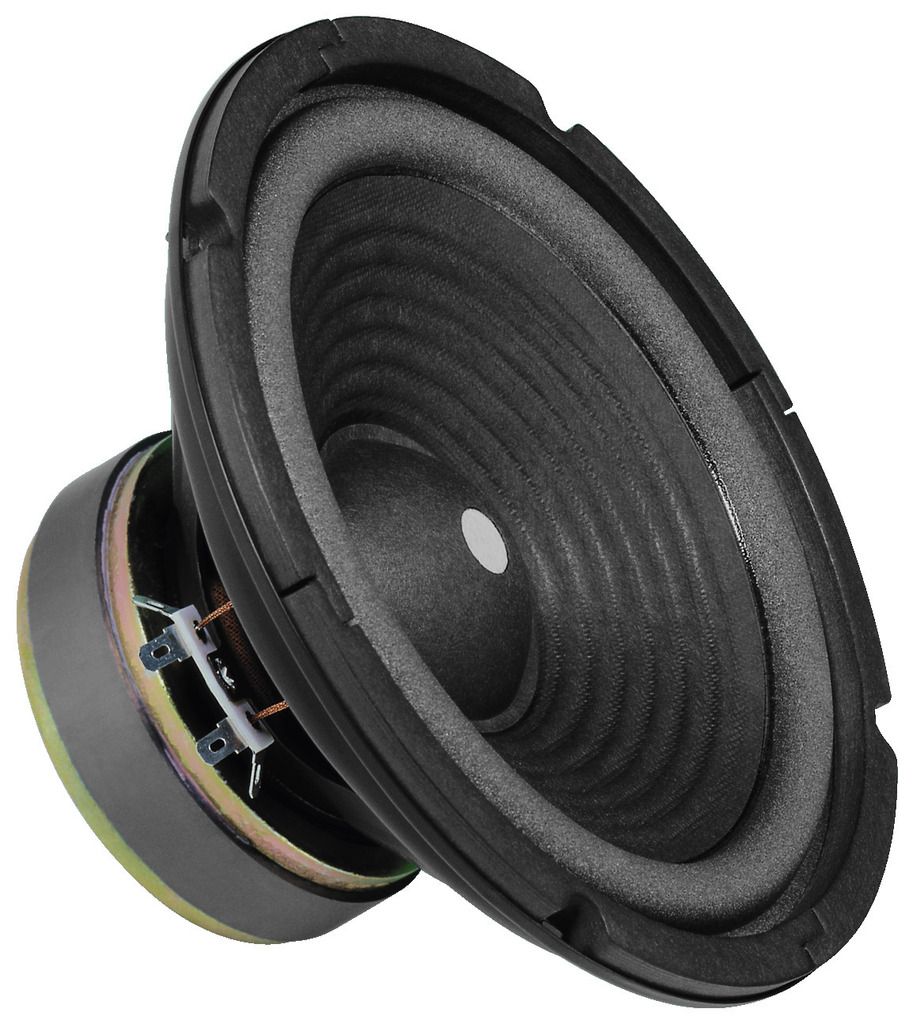

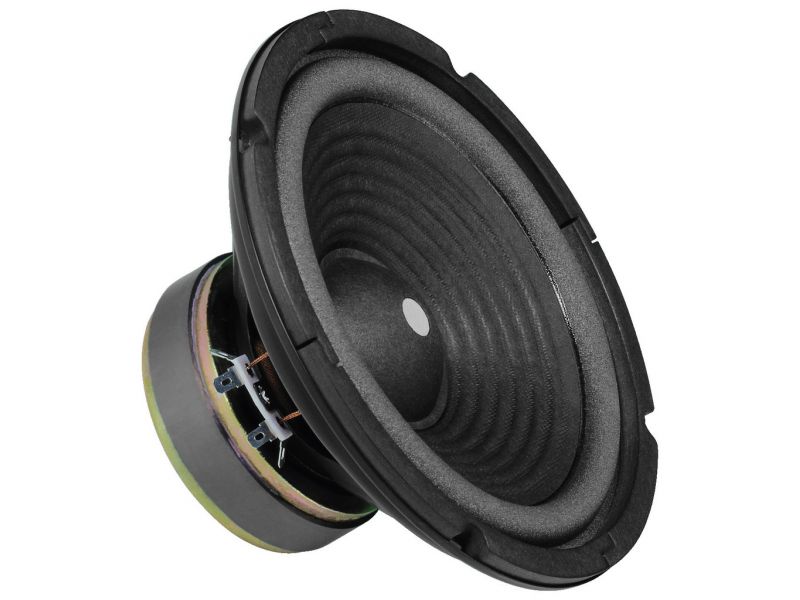

Universal bass speaker, 35 W, 8 Ω Soft suspension For general bass applications
SP-90
Universal bass speaker, 35 W, 8 Ω
- Soft suspension
- For general bass applications
Parametrii
| Impedance (Z) | 8 Ω |

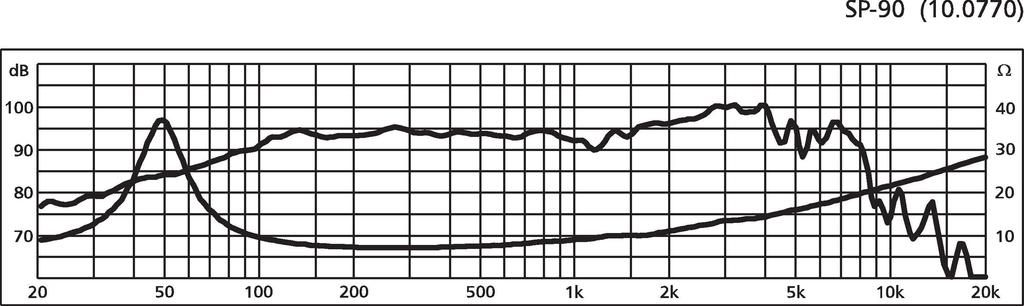

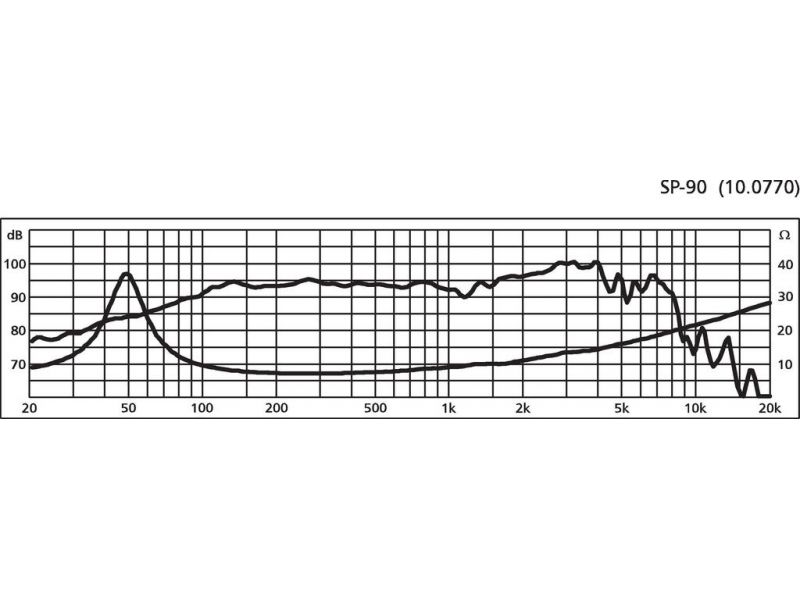

| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 45 Hz |
| Power rating (RMS) | 35 W |
| Peak music power output (MAX) | 70 W |
| SPL | 92 dB/W/m |
| Suspension compl. (Cms) | 0.8 mm/N |
| Moving mass (Mms) | 17 g |
| Mech. Q factor (Qms) | 3.36 |
| Electr. Q factor (Qes) | 0.68 |
| Total Q factor (Qts) | 0.57 |
| Equivalent volume (Vas) | 42 l |
| DC resistance (Re) | 6.5 Ω |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 380 g |
| Magnet diameter | Ø 100 mm |

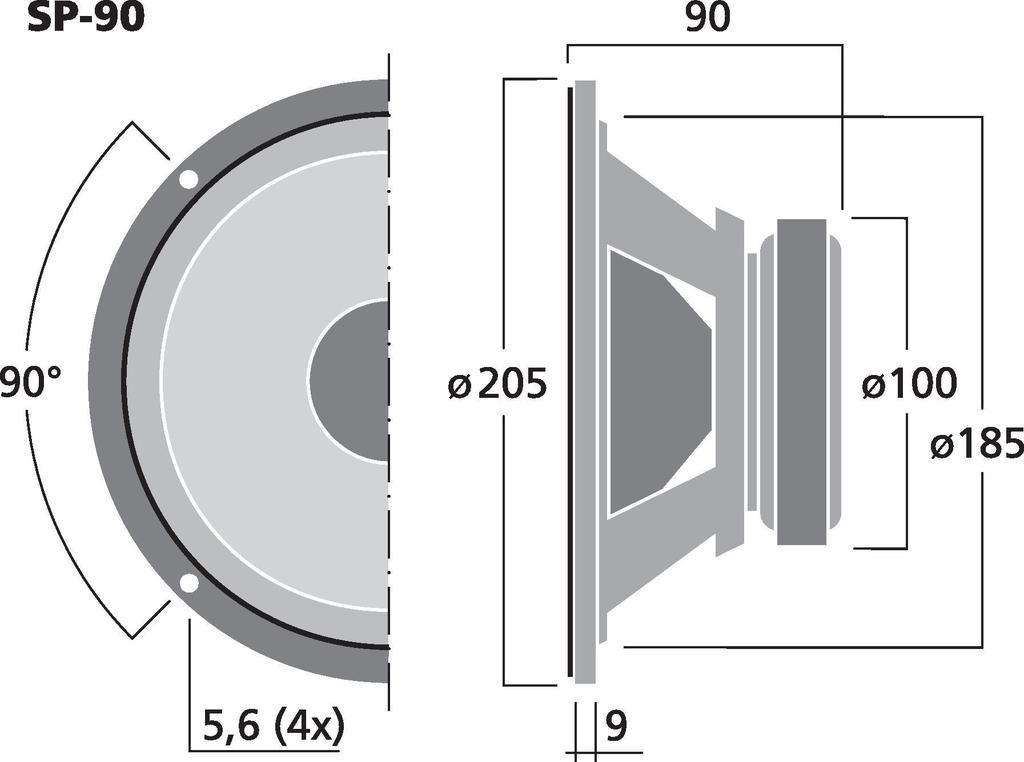

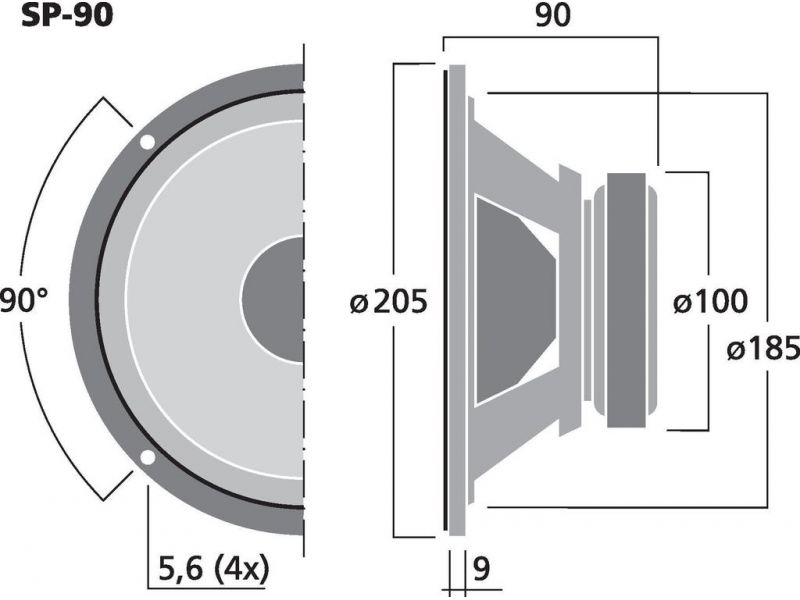

| Mounting cutout | Ø 185 mm |
| Mounting depth | 81 mm |
| Mounting hole diameter | Ø 192 mm |
| Hole spacing X-axis | 135 mm |
| Hole spacing Y-axis | 135 mm |
| Dimensions | Ø 205 mm x 90 mm |
| Outside diameter | Ø 205 mm |
| Width | Ø 205 mm |
| Depth | 90 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.223 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packing dimensions (W x H x L) | 0.21 x 0.1 x 0.21 m |
| Gross weight | 1.388 kg |
| Net weight | 1.223 kg |
