SPH-174KE
Cod EAN: 4007754261899
Hi-fi bass-midrange speaker, 50 W, 8 Ω Hi-fi bass-midrange speaker of classic design High-quality Kevlar cone Robust sheet steel basket with 4-hole screw connection Very linear frequency response For universal use in closed, bass-reflex and TML cabin...

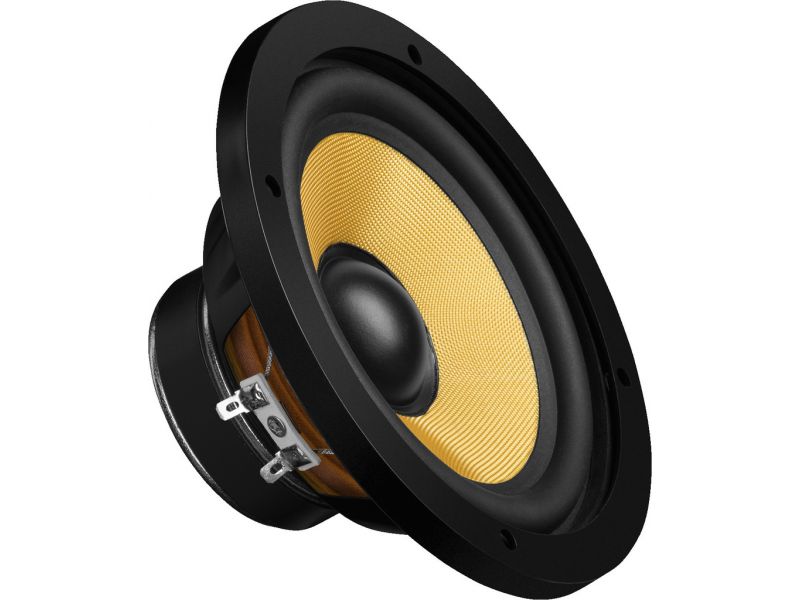

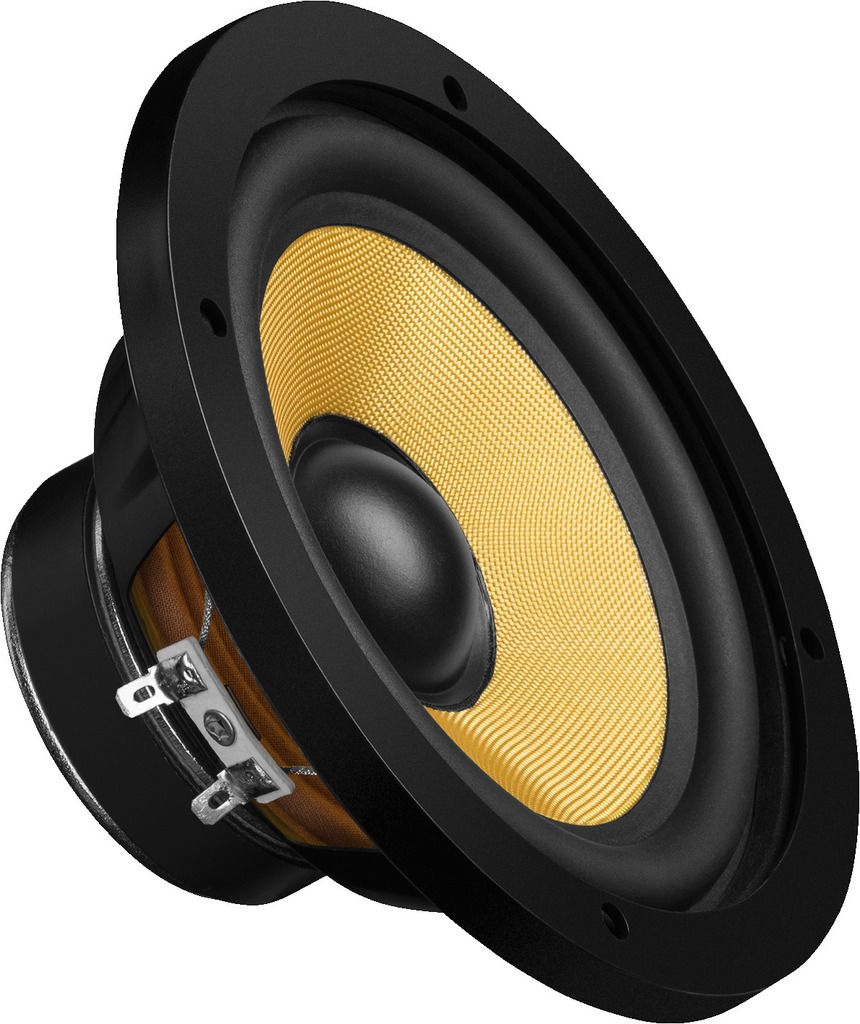

SPH-174KE
Hi-fi bass-midrange speaker, 50 W, 8 Ω
- Hi-fi bass-midrange speaker of classic design
- High-quality Kevlar cone
- Robust sheet steel basket with 4-hole screw connection
- Very linear frequency response
- For universal use in closed, bass-reflex and TML cabinets
- Including plastic trim ring for basket (Ø 175 mm x 11 mm)
Klang+Ton, 5/2018
“Bass-midrange speaker with excellent technical features available at an attractive price and particularly suitable for closed cabinets.”
HOBBY HiFi 06/2018
“An excellent bass-midrange speaker for a cost-efficient 2-way project. Hobby HiFi concept MONA, edition 06/2018”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

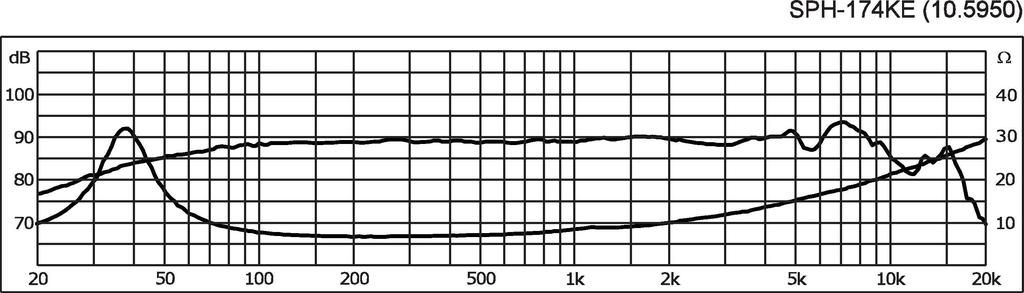

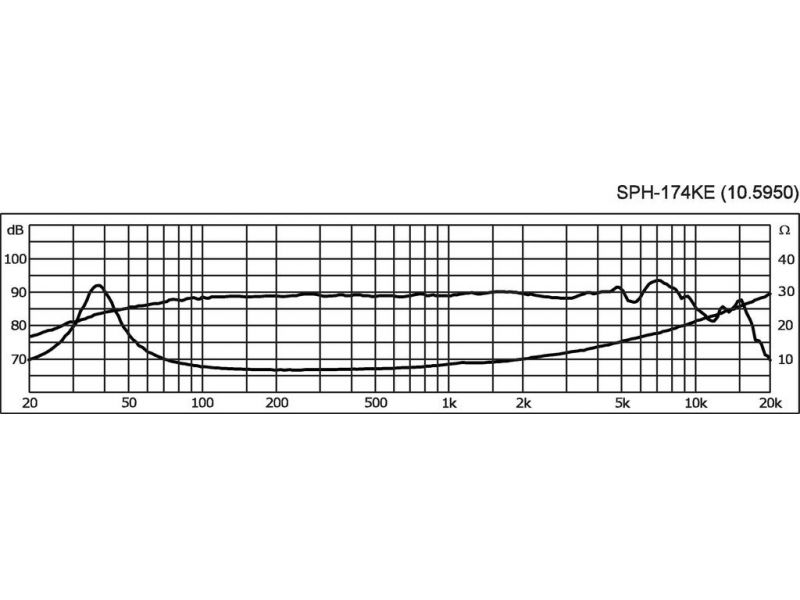

| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 42 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 88 dB/W/m |
| Suspension compl. (Cms) | 0.98 mm/N |
| Moving mass (Mms) | 14.23 g |
| Mech. Q factor (Qms) | 2.59 |
| Electr. Q factor (Qes) | 0.64 |
| Total Q factor (Qts) | 0.51 |
| Equivalent volume (Vas) | 26 l |
| DC resistance (Re) | 6.39 Ω |
| Force factor (BxL) | 5.91 Tm |
| Voice coil induct. (Le) | 0.43 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3 mm |
| Eff. cone area (Sd) | 137 cm2 |
| Magnet weight | 320 g |
| Magnet diameter | Ø 80 mm |

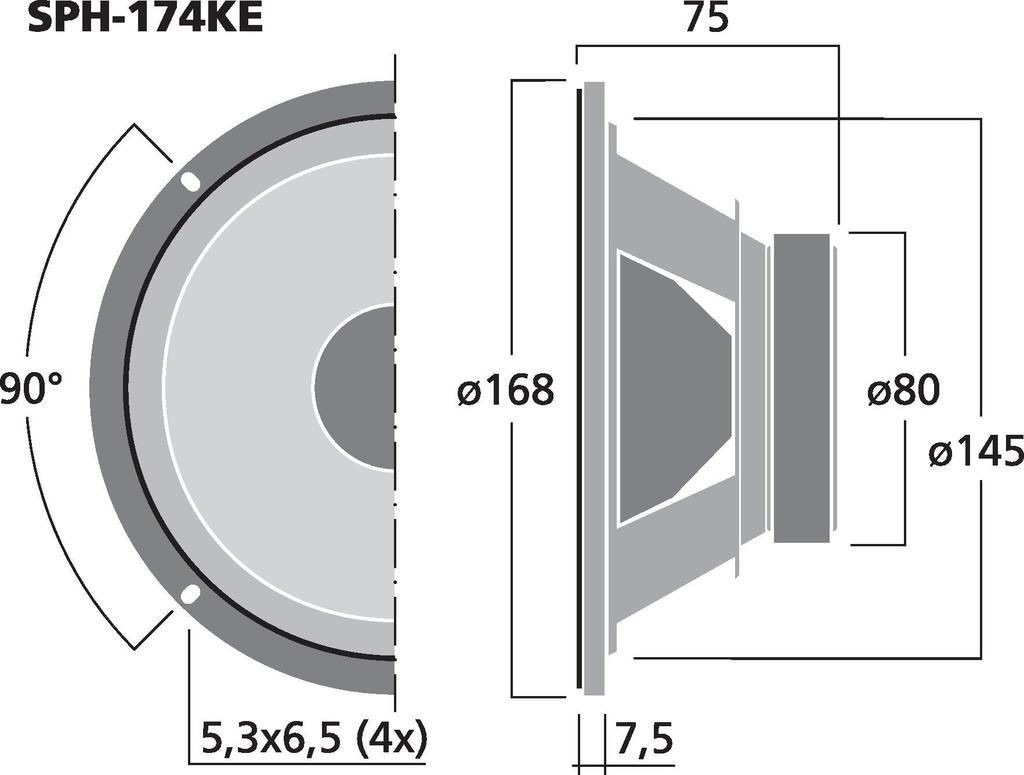

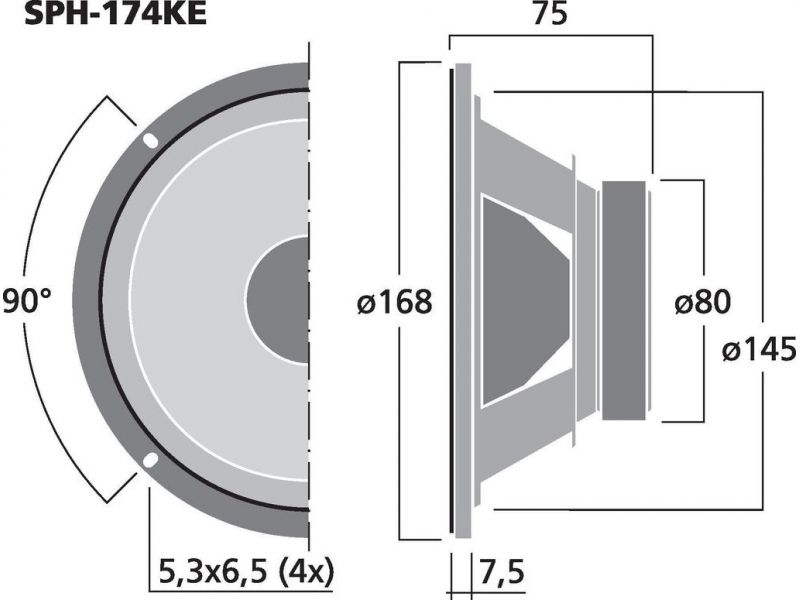

| Mounting cutout | Ø 145 mm |
| Mounting depth | 68 mm |
| Mounting hole diameter | Ø 158 mm |
| Hole spacing X-axis | 111.7 mm |
| Hole spacing Y-axis | 111.7 mm |
| Dimensions | Ø 168 mm x 75 mm |
| Outside diameter | Ø 168 mm |
| Width | Ø 168 mm |
| Height | Ø 168 mm |
| Depth | 75 mm |
| Colour | black/yellow |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.78 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.19 x 0.1 x 0.19 m |
| Gross weight | 0.924 kg |
| Net weight | 0.781 kg |
