SPH-176

Cod EAN: 4007754165487

High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω Coated paper cone, yet high pulsed power Rubber surround Bass-optimised drive characteristics Allows for setting up speaker systems of highest level stability with an amazingly deep bass reproductio...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-176

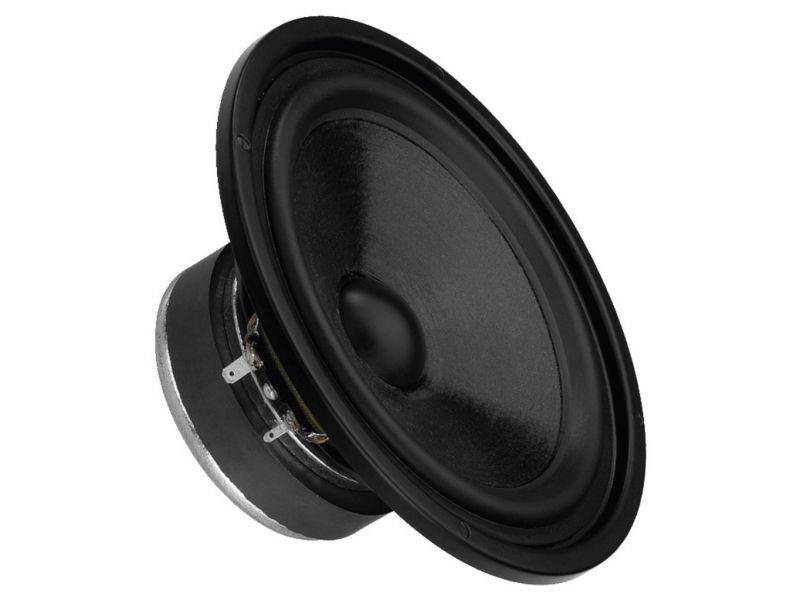

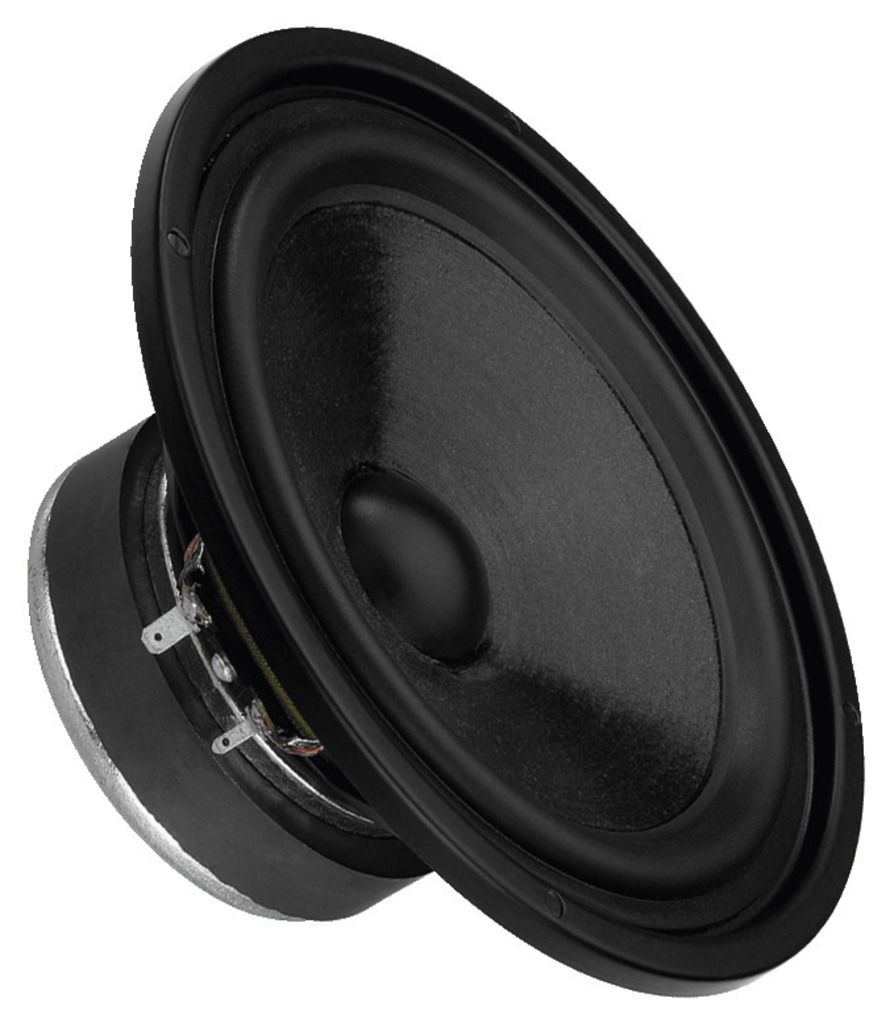

High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω
  • Coated paper cone, yet high pulsed power
  • Rubber surround
  • Bass-optimised drive characteristics
  • Allows for setting up speaker systems of highest level stability with an amazingly deep bass reproduction
  • Ideally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-4,500 Hz
Resonant frequency (fs) 39 Hz
Power rating (RMS) 70 W
Peak music power output (MAX) 120 W
SPL 90 dB/W/m
Suspension compl. (Cms) 1.01 mm/N
Moving mass (Mms) 14 g
Mech. Q factor (Qms) 2.27
Electr. Q factor (Qes) 0.44
Total Q factor (Qts) 0.37
Equivalent volume (Vas) 27 l
DC resistance (Re) 6.6 Ω
Force factor (BxL) 7.70 Tm
Voice coil induct. (Le) 0.75 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 5.5 mm
Eff. cone area (Sd) 140 cm2
Magnet weight 450 g
Magnet diameter Ø 90 mm

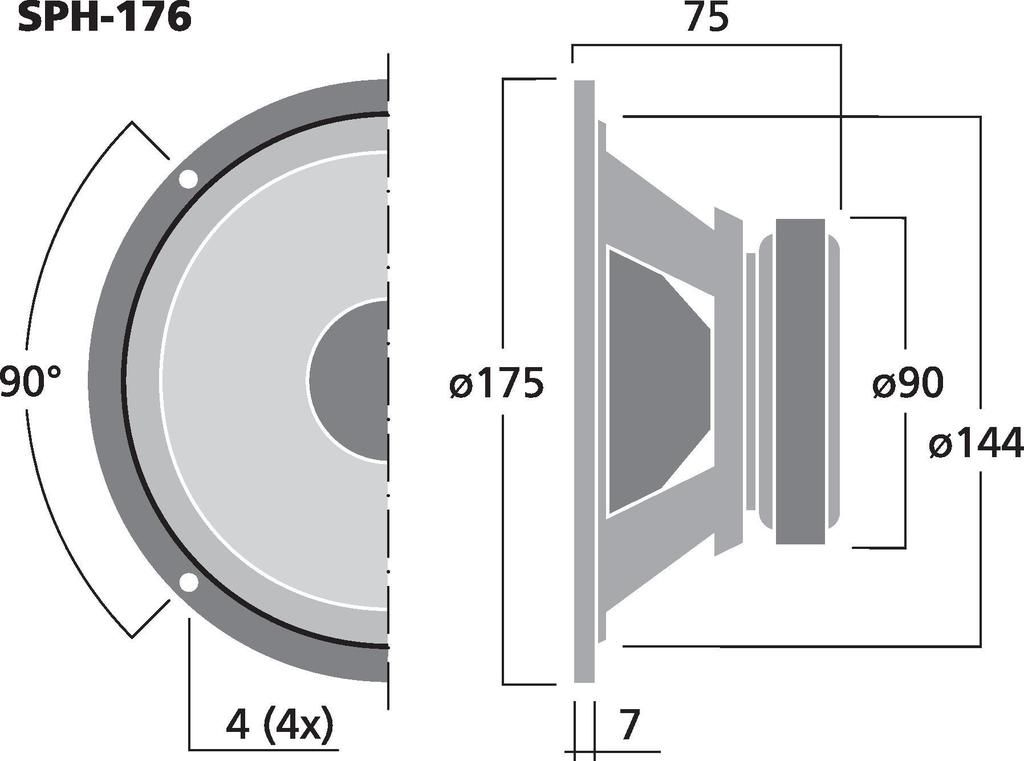

Mounting cutout Ø 144 mm
Mounting depth 68 mm
Dimensions Ø 175 mm x 75 mm
Outside diameter Ø 175 mm
Width Ø 175 mm
Height Ø 175 mm
Depth 75 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.23 kg
Packing unit 1
Type of speaker 6.75"
Packaging dimensions (W x H x L) 0.195 x 0.1 x 0.195 m
Gross weight 1.34 kg
Net weight 1.23 kg

Fisiere de descarcat

Fisa produsului SPH-176 konformitaetserklaerung-ce konformitaetserklaerung-ukca
