SPH-210

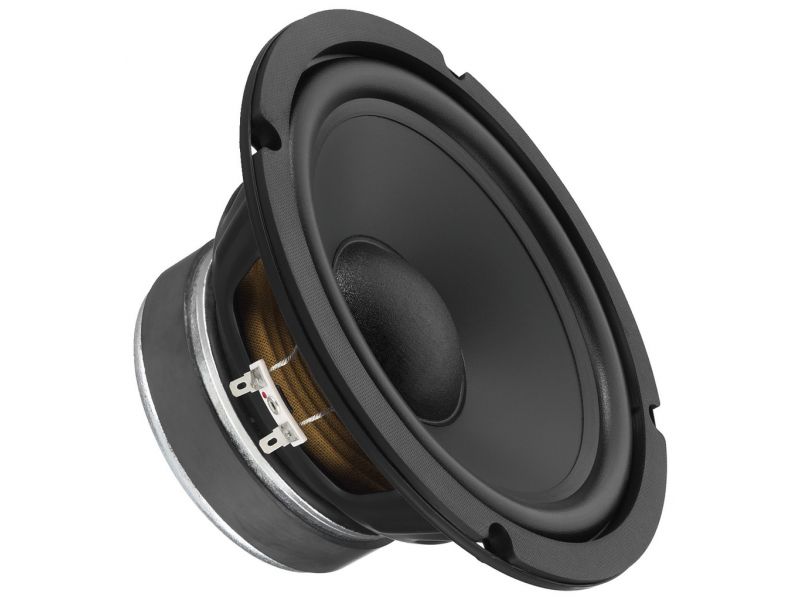

Hi-fi bass-midrange speaker, 50 W, 8 Ω
  • For high-quality 2-way or 3-way speaker systems
  • As a replacement speaker for older high-quality speaker systems
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-4,000 Hz
Resonant frequency (fs) 28 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 90 dB/W/m
Suspension compl. (Cms) 1.32 mm/N
Moving mass (Mms) 24.5 g
Mech. Q factor (Qms) 2.14
Electr. Q factor (Qes) 0.27
Total Q factor (Qts) 0.24
Equivalent volume (Vas) 81 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 10.30 Tm
Voice coil induct. (Le) 1.0 mH
Voice coil diameter Ø 35.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 210 cm2
Magnet weight 840 g
Magnet diameter Ø 120 mm
Mounting cutout Ø 183 mm
Mounting depth 89 mm
Dimensions Ø 210 mm x 99 mm
Outside diameter Ø 210 mm
Width Ø 210 mm
Height Ø 210 mm
Depth 99 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.52 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.22 x 0.125 x 0.23 m
Gross weight 2.68 kg
Net weight 2.52 kg
