SPH-250TC

Cod EAN: 4007754025408

Hi-fi bass speaker and subwoofer, 2 x 100 W, 2 x 8 Ω Stabilised polypropylene cone Dual voice coil Perfect parameters for a very deep bass reproduction in small bass-reflex cabinets and band-pass cabinets For any bass application in hi-fi, home cinem...

Citeste mai mult

Intreaba despre produs
Cumpara acum

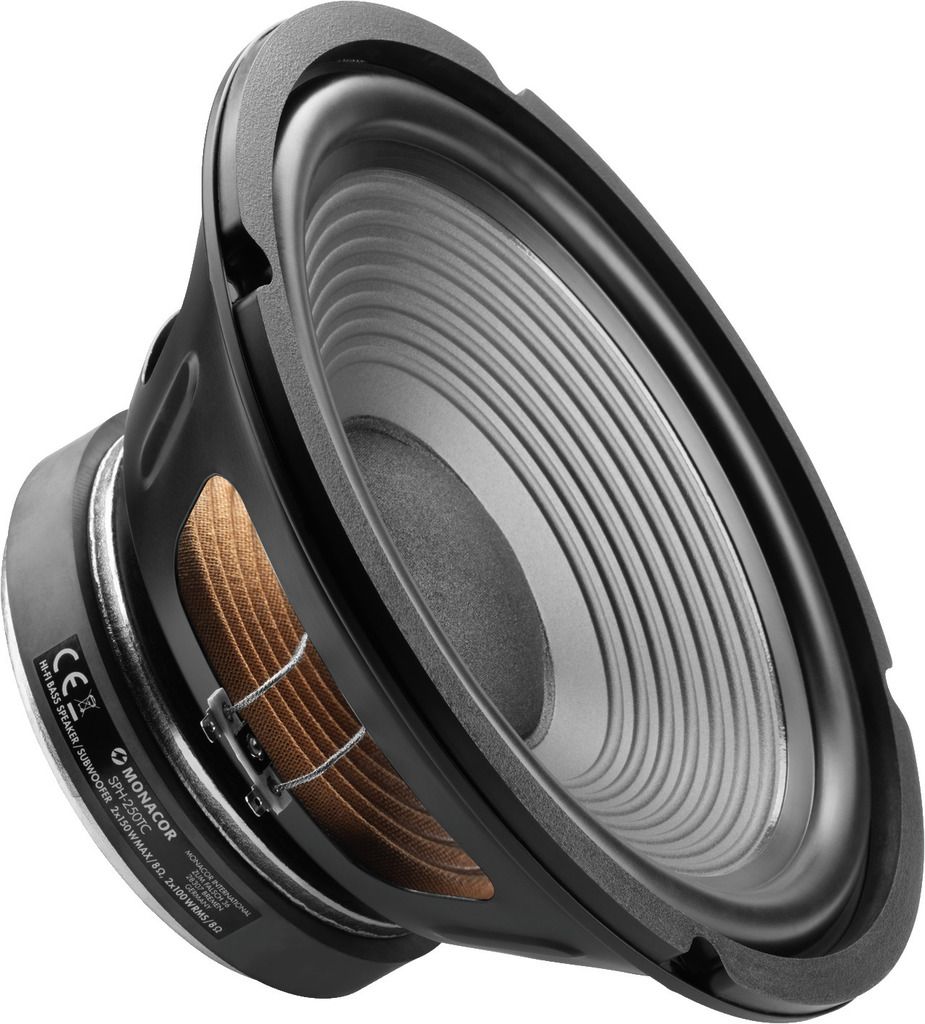

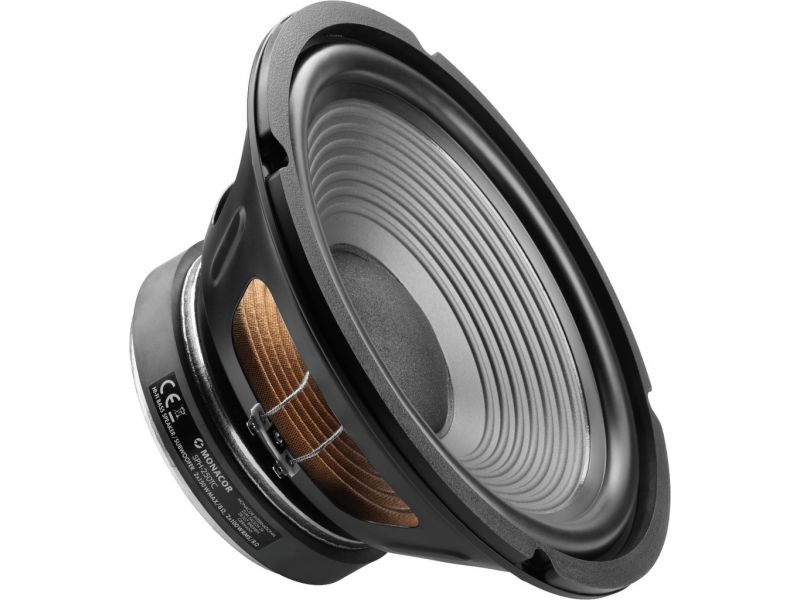

SPH-250TC

Hi-fi bass speaker and subwoofer, 2 x 100 W, 2 x 8 Ω
  • Stabilised polypropylene cone
  • Dual voice coil
  • Perfect parameters for a very deep bass reproduction in small bass-reflex cabinets and band-pass cabinets
  • For any bass application in hi-fi, home cinema and car hi-fi systems and for 3-way combinations
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 2 x 8 Ω
Transmission technology cable

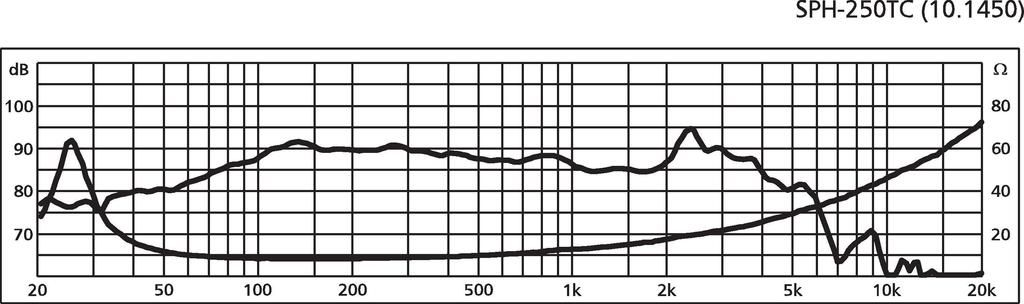

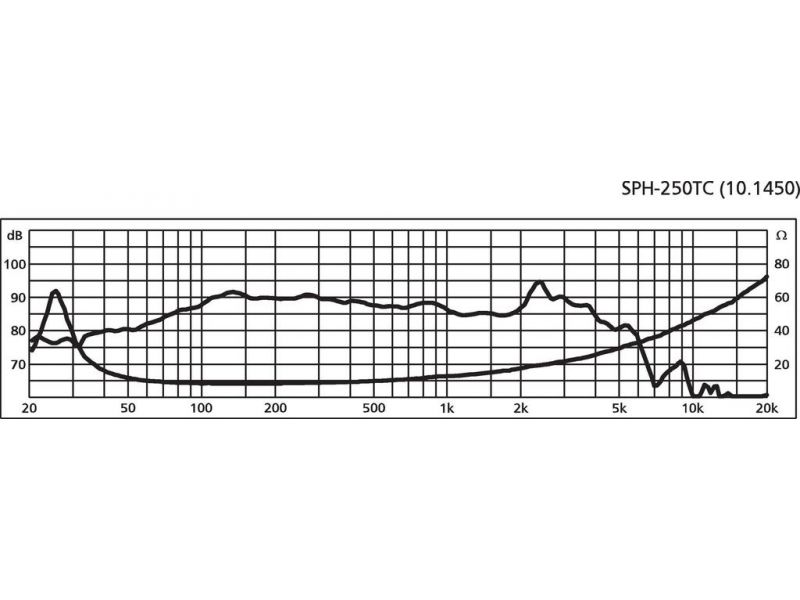

Frequency range f3-3,500 Hz
Resonant frequency (fs) 26 Hz
Power rating (RMS) 2 x 100 W
Peak music power output (MAX) 2 x 150 W
SPL 91 dB/W/m
Suspension compl. (Cms) 0.5 mm/N
Moving mass (Mms) 55 g
Mech. Q factor (Qms) 3.31
Electr. Q factor (Qes) 0.27
Total Q factor (Qts) 0.25
Equivalent volume (Vas) 84 l
DC resistance (Re) 2 x 6.8 Ω/3.4 Ω
Force factor (BxL) 11.10 Tm
Voice coil induct. (Le) 2 x 1.1 mH/1.1 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 4.5 mm
Eff. cone area (Sd) 346 cm2
Magnet weight 1.2 kg
Magnet diameter Ø 145 mm

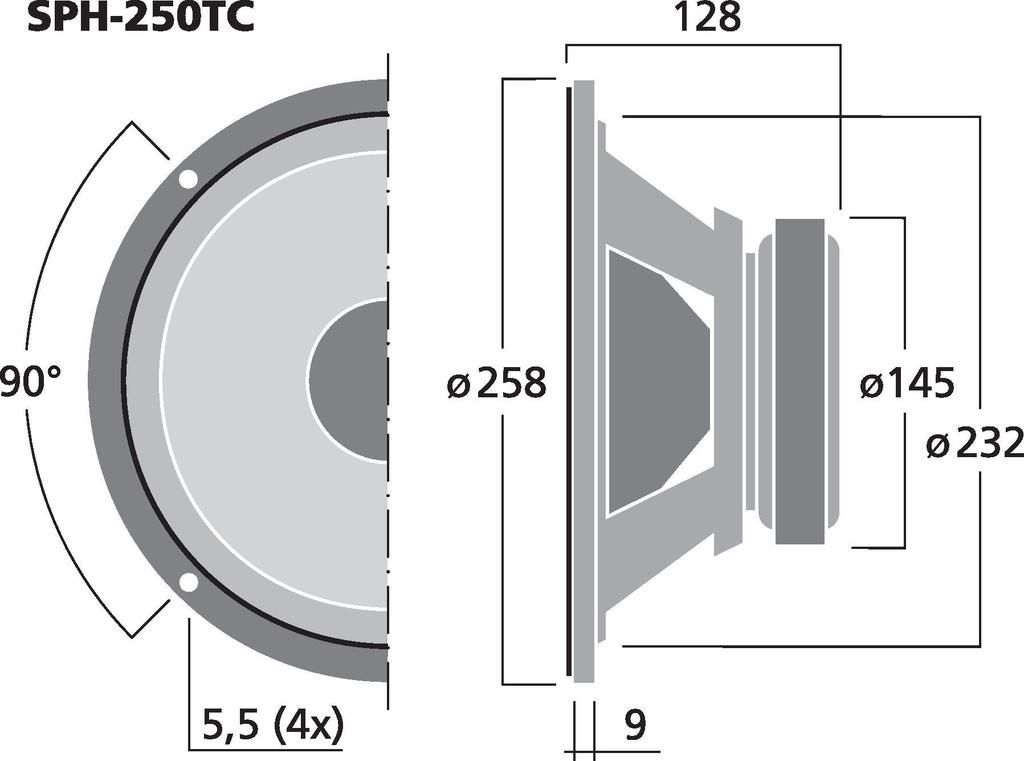

Mounting cutout Ø 232 mm
Mounting depth 119 mm
Dimensions Ø 258 mm x 128 mm
Outside diameter Ø 258 mm
Width Ø 258 mm
Height Ø 258 mm
Depth 128 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 3.7 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.27 x 0.145 x 0.27 m
Gross weight 4.12 kg
Net weight 3.7 kg

Fisiere de descarcat

Fisa produsului SPH-250TC konformitaetserklaerung-ce konformitaetserklaerung-ukca
