SPH-300KE
Cod EAN: 4007754064889
Top hi-fi bass speaker, 120 W, 8 Ω Finely textured Kevlar fibre cone Diecast aluminium basket Drive of very long excursion A very deep bass reproduction in bass-reflex cabinets Clear pulsed reproduction and yet a deep bass reproduction in closed cabi...

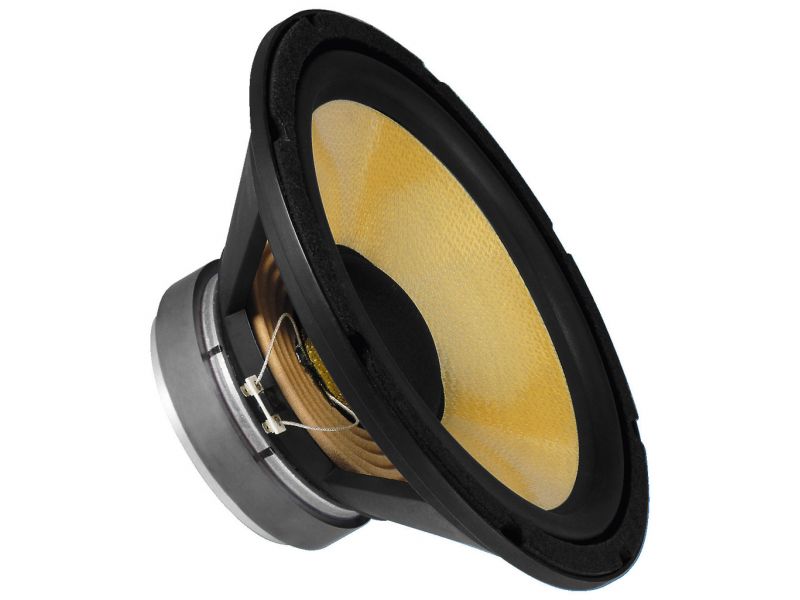

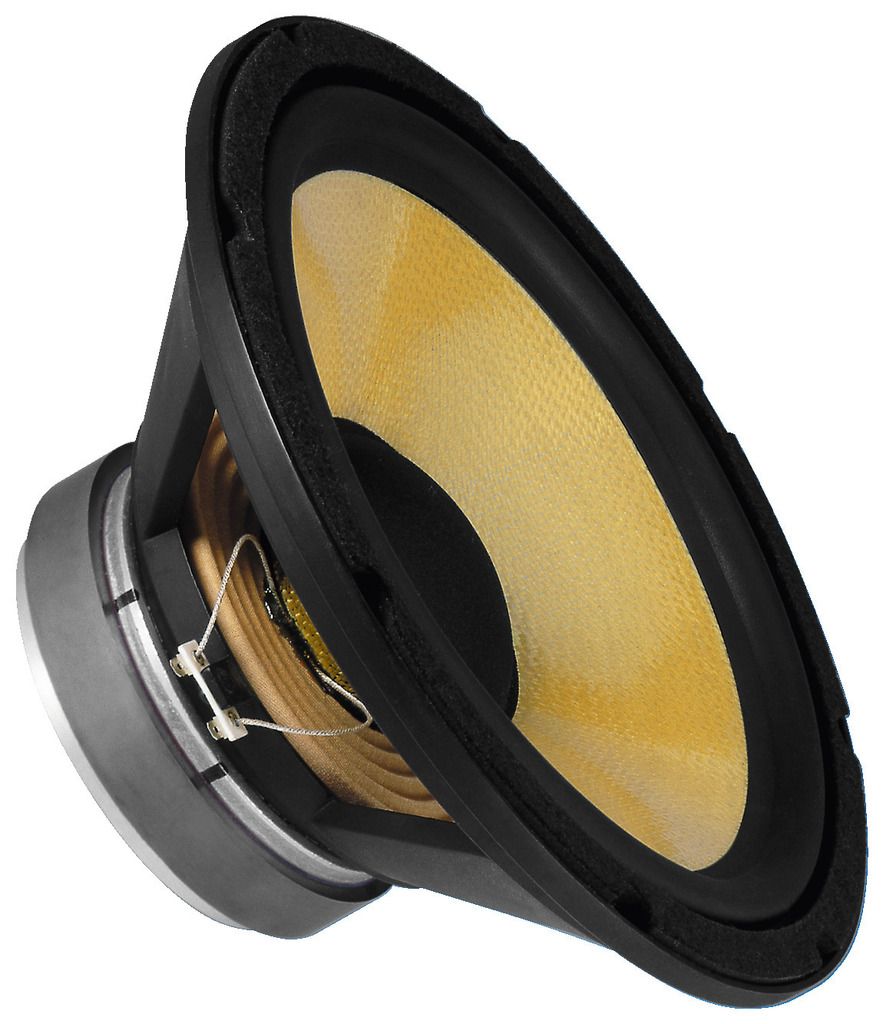

SPH-300KE
Top hi-fi bass speaker, 120 W, 8 Ω
- Finely textured Kevlar fibre cone
- Diecast aluminium basket
- Drive of very long excursion
- A very deep bass reproduction in bass-reflex cabinets
- Clear pulsed reproduction and yet a deep bass reproduction in closed cabinets
- For any hi-fi and high-end application
HOBBY HiFi 04/2015
“Deep bass reproduction, level stability, wide bandwidth and low distortion: the SPH-300KE provides excellent results in every category ... a real all-rounder.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

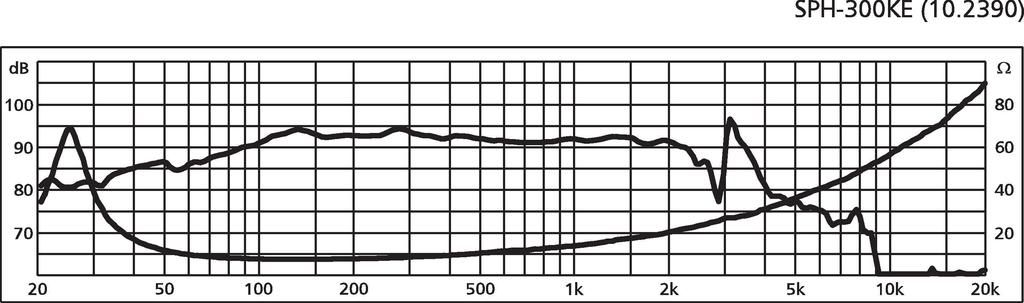

| Frequency range | f3-2,200 Hz |
| Resonant frequency (fs) | 22 Hz |
| Power rating (RMS) | 120 W |
| Peak music power output (MAX) | 200 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.81 mm/N |
| Moving mass (Mms) | 65 g |
| Mech. Q factor (Qms) | 4.15 |
| Electr. Q factor (Qes) | 0.36 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 250 l |
| DC resistance (Re) | 6.2 Ω |
| Force factor (BxL) | 12.50 Tm |
| Voice coil induct. (Le) | 1.5 mH |
| Voice coil diameter | Ø 65.5 mm |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 6.5 mm |
| Eff. cone area (Sd) | 496 cm2 |
| Magnet weight | 1.2 kg + 79 g |
| Magnet diameter | Ø 145 mm |

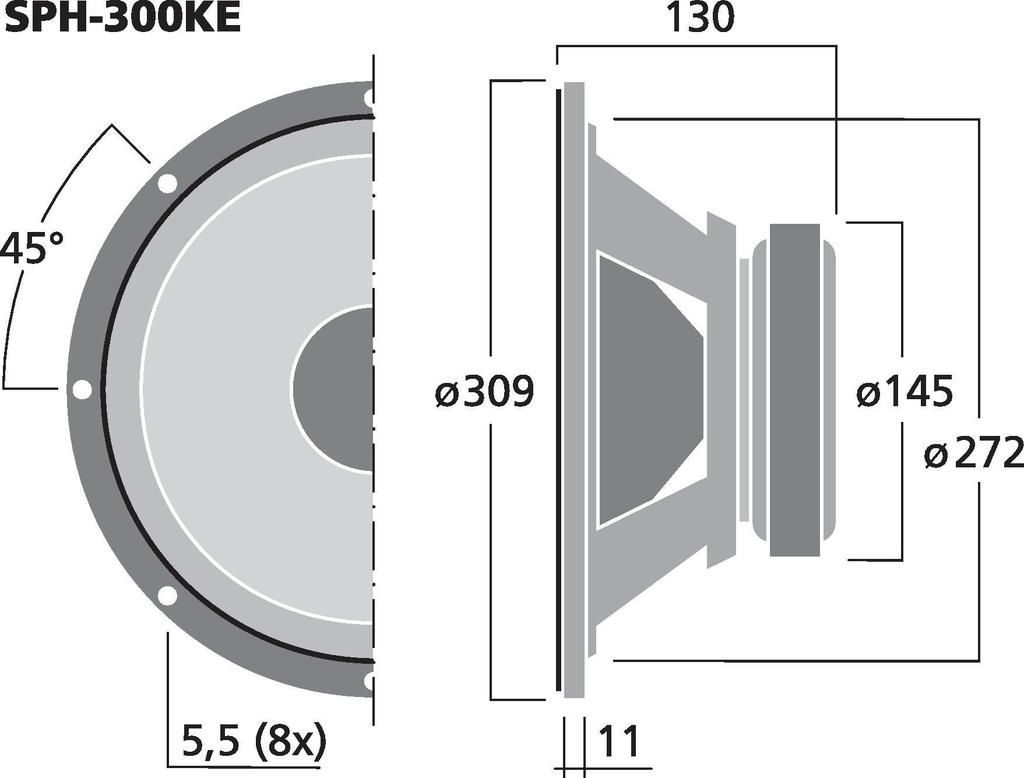

| Mounting cutout | Ø 272 mm |
| Mounting depth | 119 mm |
| Dimensions | Ø 309 mm x 130 mm |
| Outside diameter | Ø 309 mm |
| Width | Ø 309 mm |
| Height | Ø 309 mm |
| Depth | 130 mm |
| Colour | black/yellow |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.3 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.32 x 0.165 x 0.32 m |
| Gross weight | 4.86 kg |
| Net weight | 4.3 kg |
