SPH-6M

Cod EAN: 4007754223040

Hi-fi bass speaker, 60 W, 8 Ω High-quality hi-fi bass speaker of long excursion Damped low-resonance polypropylene cone Robust diecast aluminium basket of an elegant design with 6-hole screw connection Magnet system with drilled pole core and protrud...

Citeste mai mult



SPH-6M

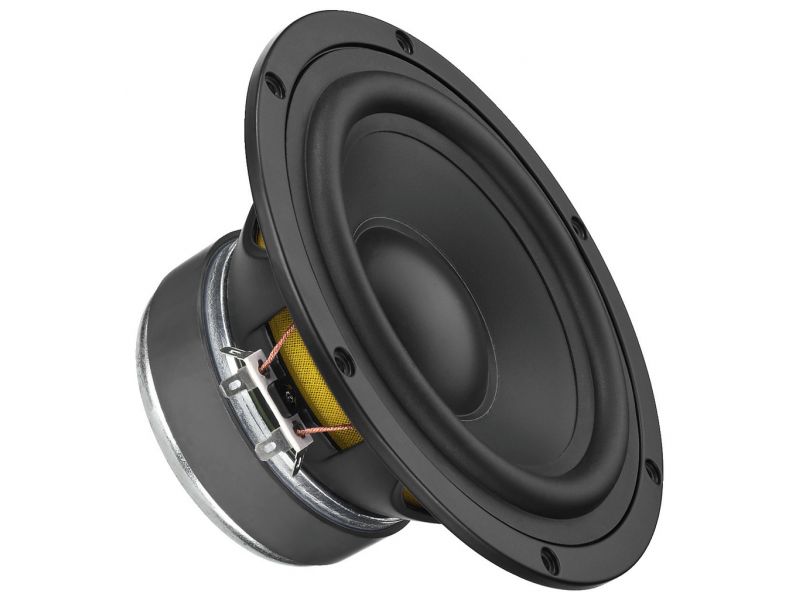

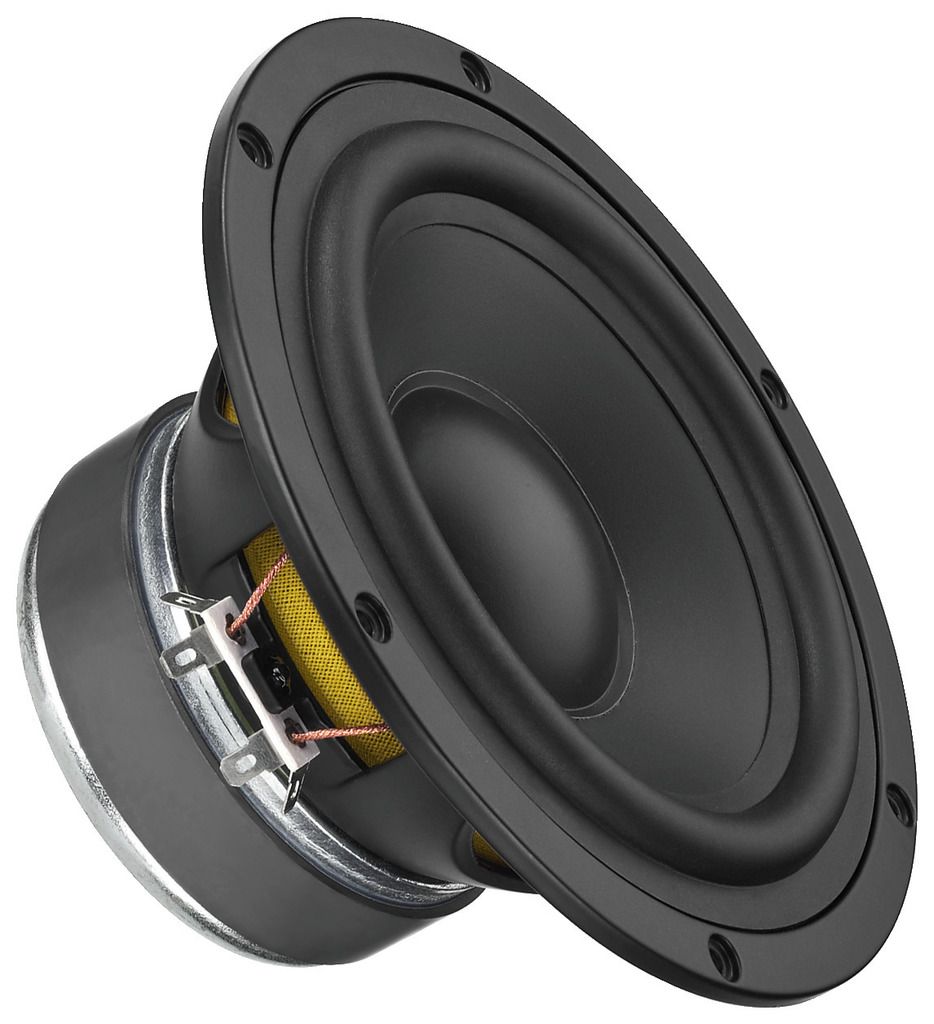

Hi-fi bass speaker, 60 W, 8 Ω
  • High-quality hi-fi bass speaker of long excursion
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core and protruding rear pole plate
  • Very well-suited for bass-reflex speaker systems
Klang+Ton 01/2014
“The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction.”
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)

HOBBY HiFi 02/2012
“Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz).”

Parametrii

Impedance (Z) 8 Ω

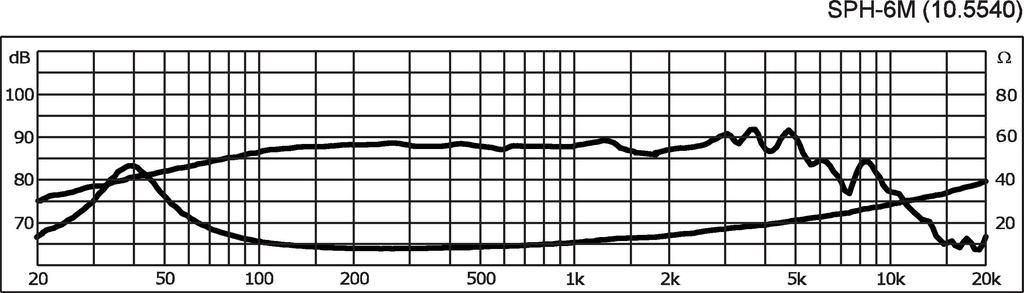

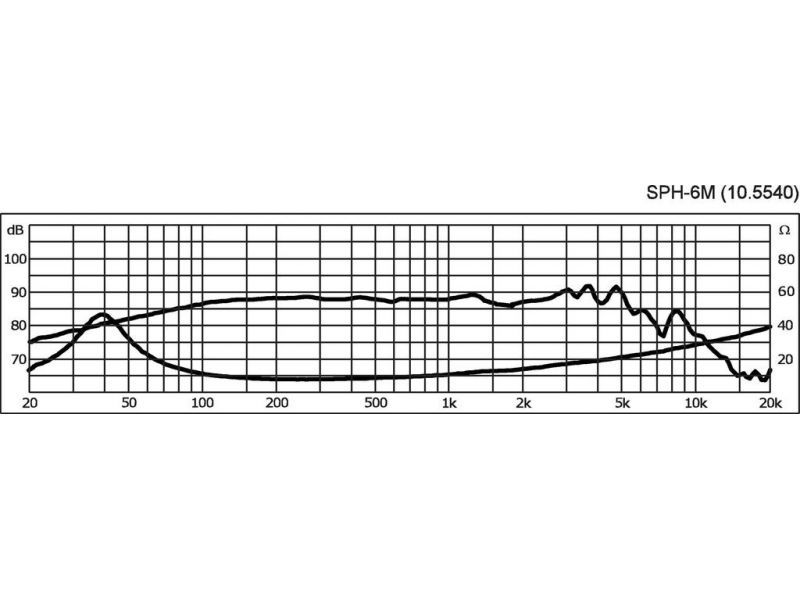

Frequency range f3-3,000 Hz
Resonant frequency (fs) 39 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 120 W
SPL 88 dB/W/m
Suspension compl. (Cms) 0.78 mm/N
Moving mass (Mms) 20 g
Mech. Q factor (Qms) 2.26
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.30
Equivalent volume (Vas) 17.6 l
DC resistance (Re) 6.33 Ω
Force factor (BxL) 9.68 Tm
Voice coil induct. (Le) 0.82 mH
Voice coil diameter Ø 37 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 127 cm2
Magnet weight 630 g
Magnet diameter Ø 100 mm

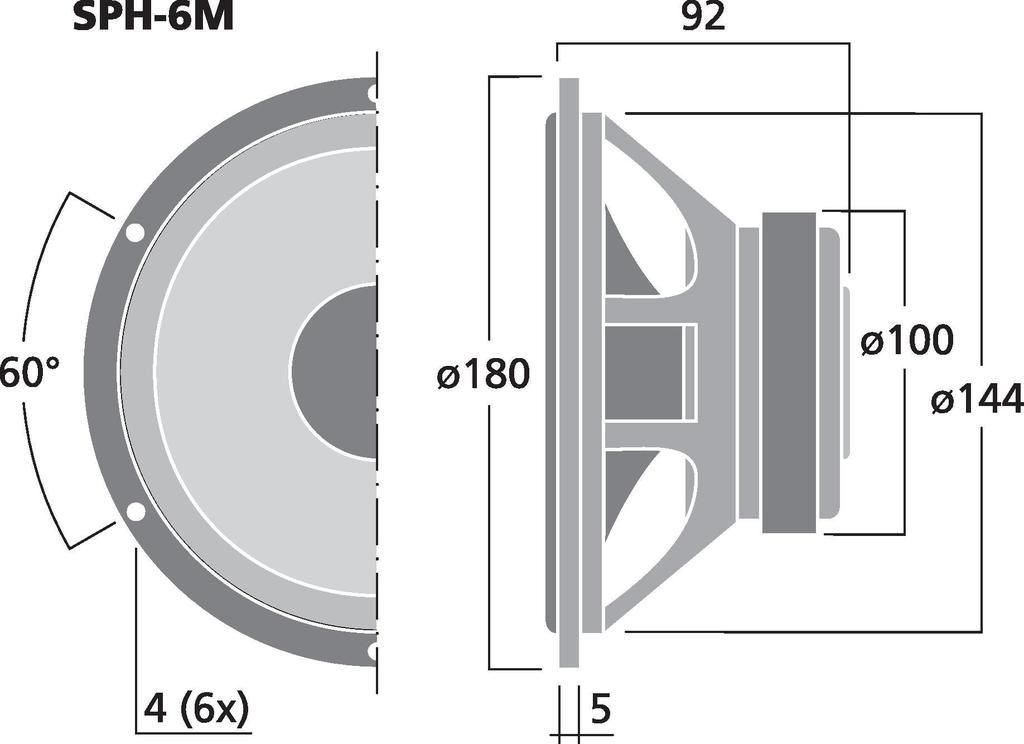

Mounting cutout Ø 144 mm
Mounting depth 87 mm
Dimensions Ø 180 mm x 92 mm
Outside diameter Ø 180 mm
Width Ø 180 mm
Depth 92 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.005 kg
Packing unit 1
Type of speaker 6.5"
Packing dimensions (W x H x L) 0.2 x 0.13 x 0.2 m
Gross weight 2.235 kg
Net weight 2.005 kg
