SPH-8M

Cod EAN: 4007754221299

Hi-fi bass speaker, 100 W, 8 Ω Hi-fi bass speaker of excellent workmanship Damped low-resonance polypropylene cone Robust diecast aluminium basket of an elegant design with 6-hole screw connection Magnet system with drilled pole core Very well-suited...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-8M

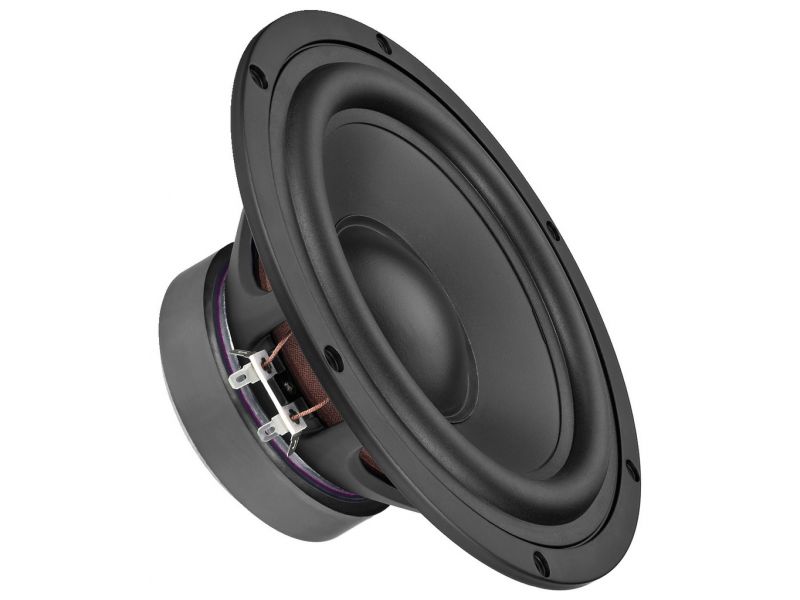

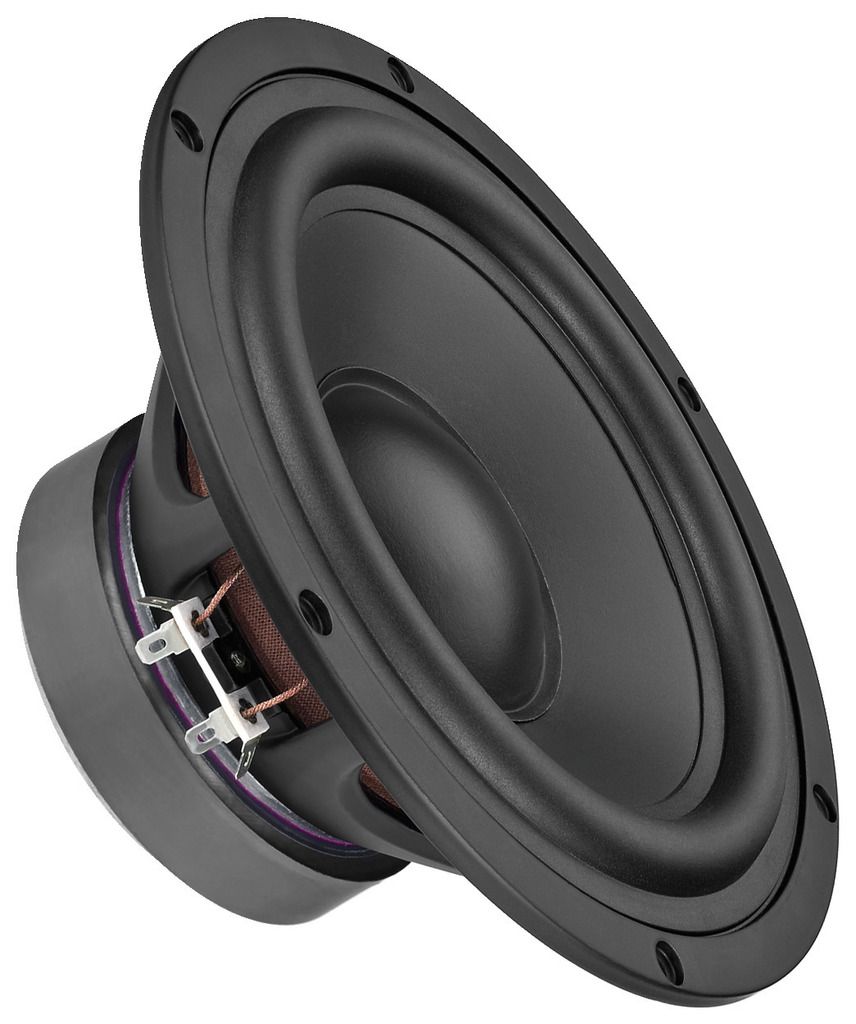

Hi-fi bass speaker, 100 W, 8 Ω
  • Hi-fi bass speaker of excellent workmanship
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core
  • Very well-suited for bass-reflex and closed speaker systems
Hobby HiFi 06/2011
“Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

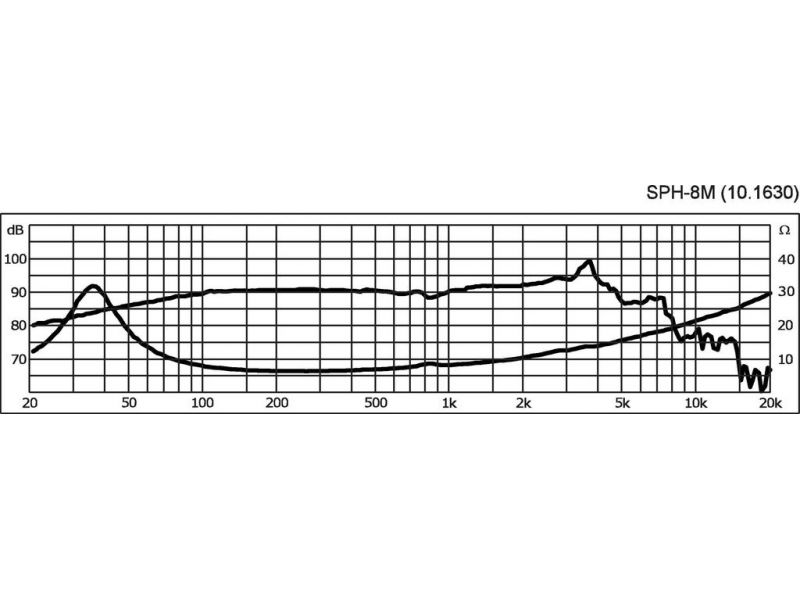

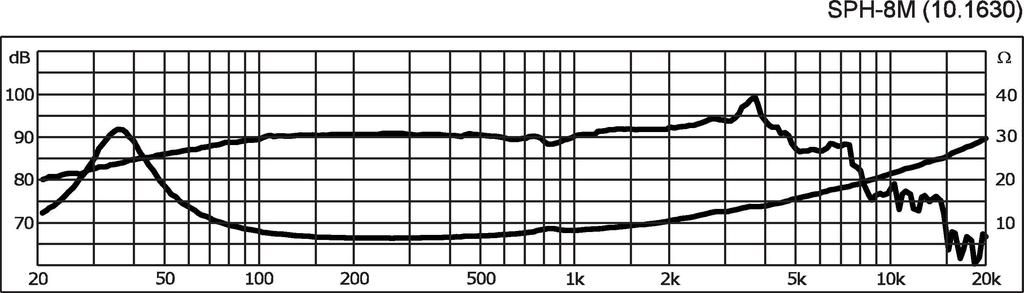

Frequency range f3-2,500 Hz
Resonant frequency (fs) 35 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 150 W
SPL 89 dB/W/m
Suspension compl. (Cms) 0.71 mm/N
Moving mass (Mms) 27 g
Mech. Q factor (Qms) 2.26
Electr. Q factor (Qes) 0.50
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 44 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 9.01 Tm
Voice coil induct. (Le) 0.78 mH
Voice coil diameter Ø 38 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4.5 mm
Eff. cone area (Sd) 240 cm2
Magnet weight 790 g
Magnet diameter Ø 110 mm

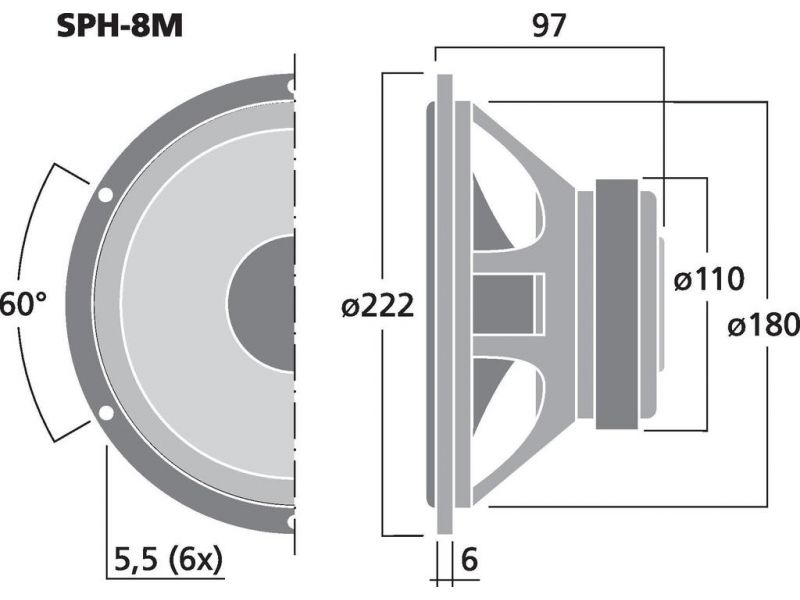

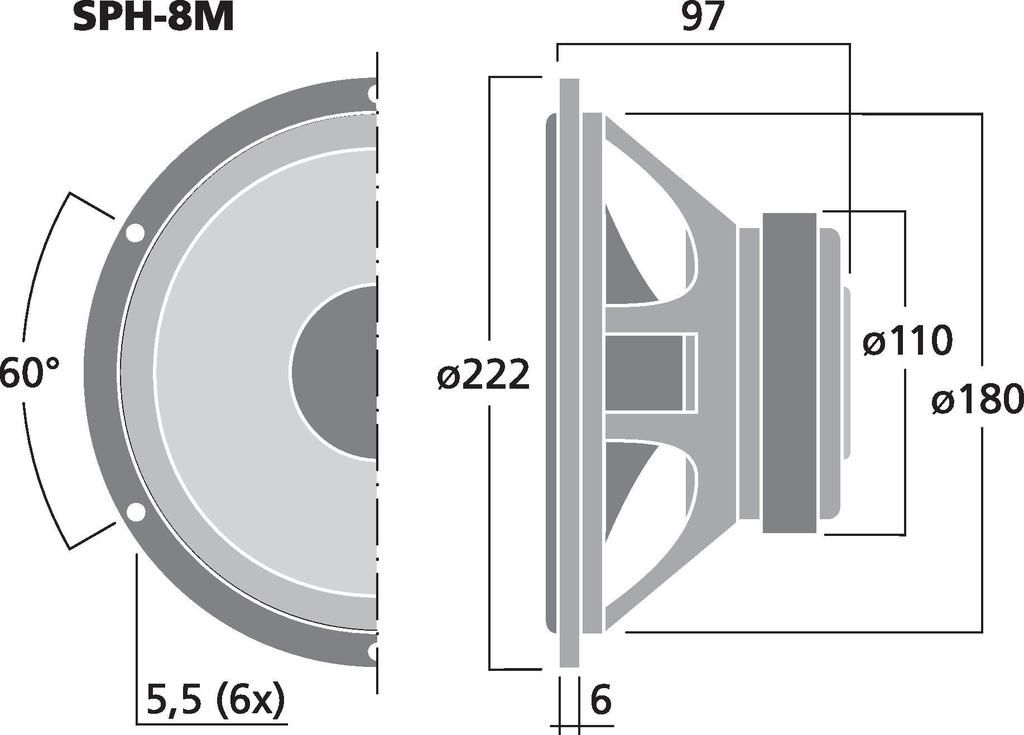

Mounting cutout Ø 180 mm
Mounting depth 91 mm
Dimensions Ø 222 mm x 97 mm
Outside diameter Ø 222 mm
Width Ø 222 mm
Height Ø 222 mm
Depth 97 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.2 kg
Packing unit 1
Type of speaker 22 cm
Packaging dimensions (W x H x L) 0.245 x 0.14 x 0.24 m
Gross weight 2.52 kg
Net weight 2.2 kg

Fisiere de descarcat

Fisa produsului SPH-8M konformitaetserklaerung-ce konformitaetserklaerung-ukca
