SPX-20M

Cod EAN: 4007754217001

Miniature hi-fi full range speaker, 15 W, 8 Ω Round steel basket with rear-ventilated centering spider Adhesive mounting or clamp mounting Inverse laminated cone Efficient neodymium drive system Perfect full range reproduction with an excellent effic...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPX-20M

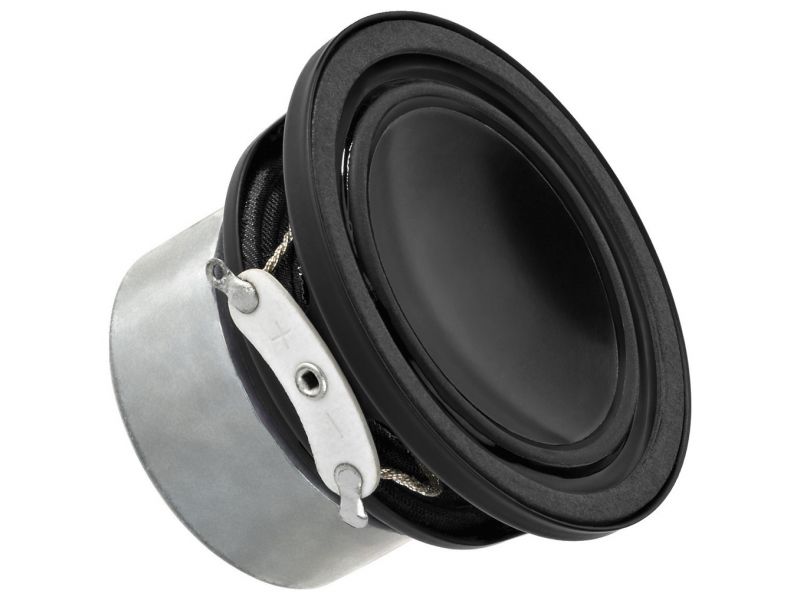

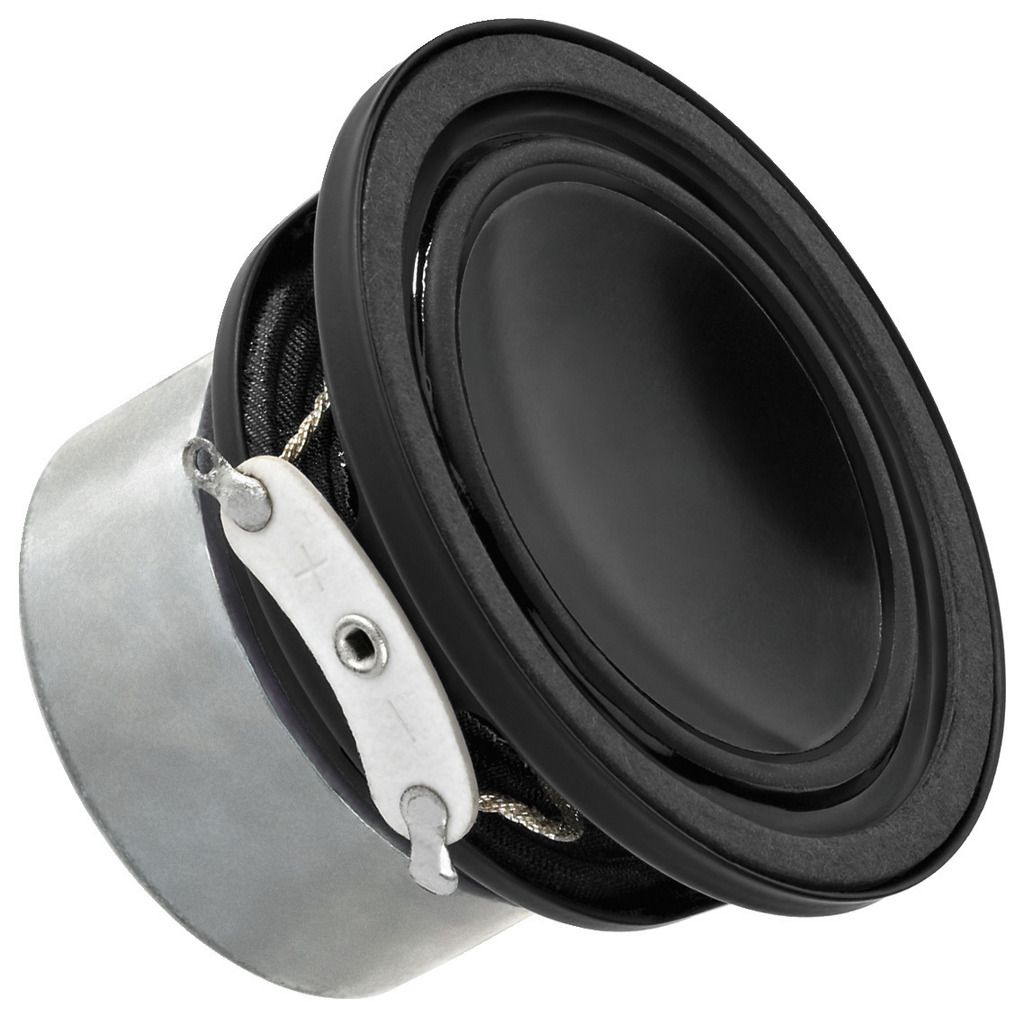

Miniature hi-fi full range speaker, 15 W, 8 Ω
  • Round steel basket with rear-ventilated centering spider
  • Adhesive mounting or clamp mounting
  • Inverse laminated cone
  • Efficient neodymium drive system
  • Perfect full range reproduction with an excellent efficiency in relation to its size
  • 25 mm voice coil of high power capability
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

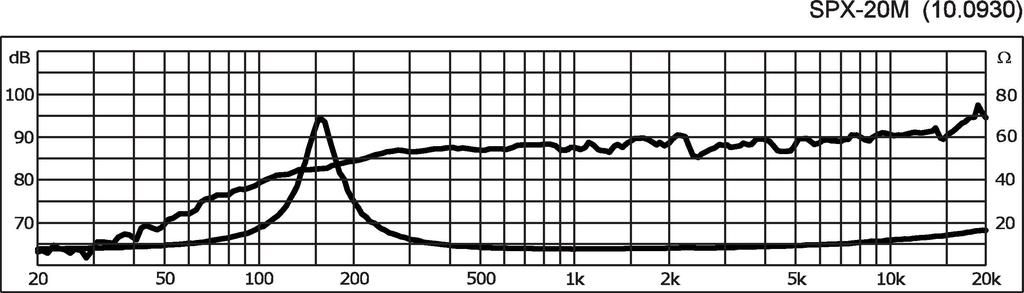

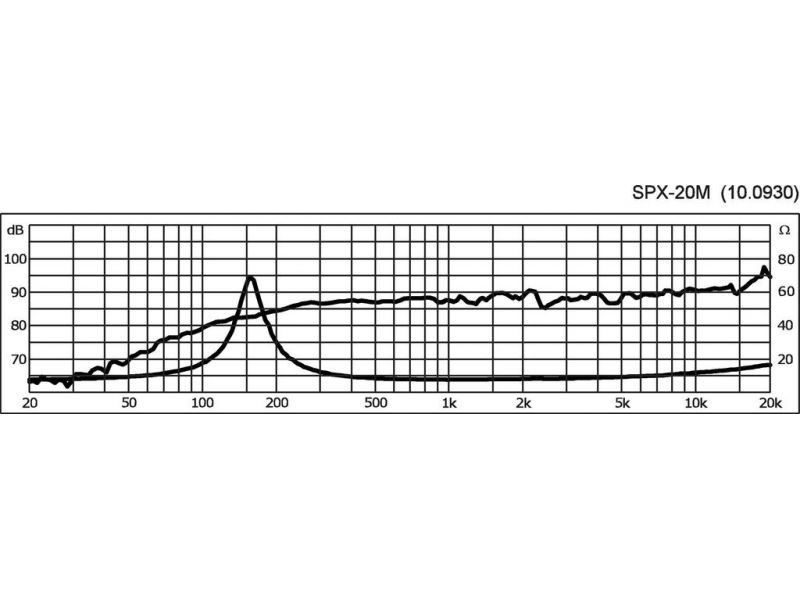

Frequency range f3-22,000 Hz
Resonant frequency (fs) 157 Hz
Power rating (RMS) 15 W
Peak music power output (MAX) 30 W
SPL 87 dB/W/m
Suspension compl. (Cms) 0.76 mm/N
Moving mass (Mms) 1.3 g
Mech. Q factor (Qms) 4.52
Electr. Q factor (Qes) 0.46
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 0.2 l
DC resistance (Re) 6.9 Ω
Force factor (BxL) 4.50 Tm
Voice coil induct. (Le) 0.13 mH
Voice coil diameter Ø 25 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 0.5 mm
Eff. cone area (Sd) 13 cm2
Magnet weight neodymium

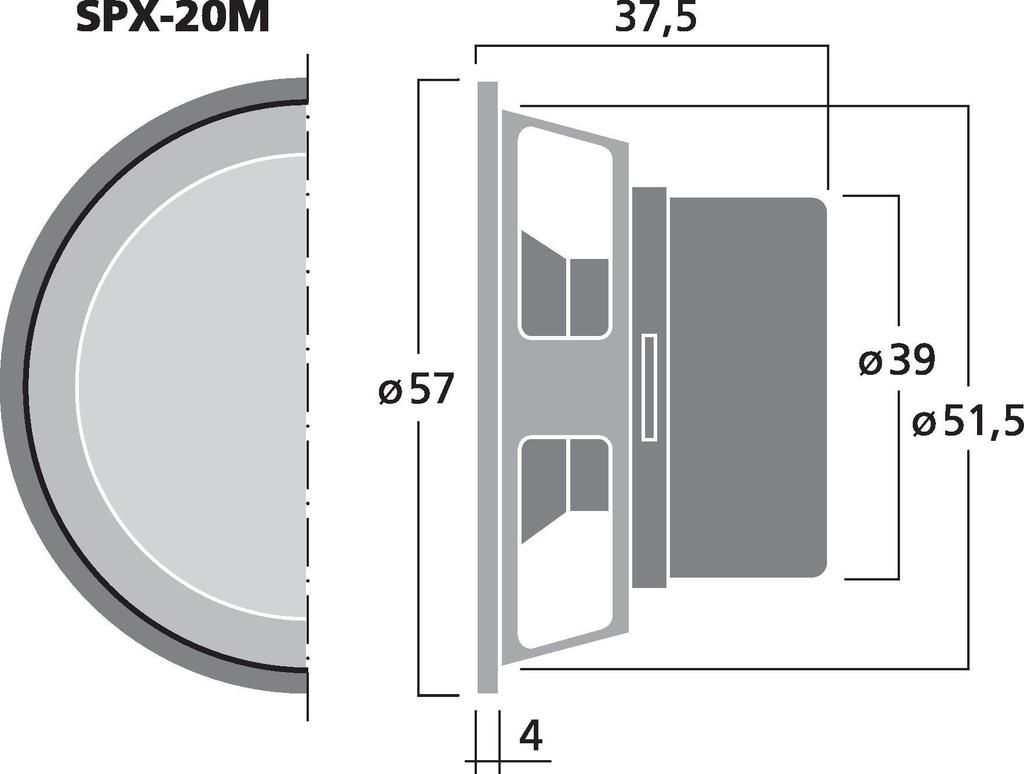

Magnet diameter Ø 39 mm
Mounting cutout Ø 51.5 mm
Mounting depth 33.5 mm
Dimensions Ø 57 mm x 37.5 mm
Outside diameter Ø 57 mm
Width Ø 57 mm
Height Ø 57 mm
Depth 37.5 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.17 kg
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.06 x 0.045 x 0.06 m
Gross weight 0.185 kg
Net weight 0.172 kg
