SPX-32M

Cod EAN: 4007754217018

Hi-fi full range speaker, 20 W, 8 Ω Excellent sound quality High-quality paper cone Wooden phase plug for optimising radiation pattern Rear-ventilated centering spider Shielded magnet system Application in small speakers or satellite systems Ideally...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPX-32M

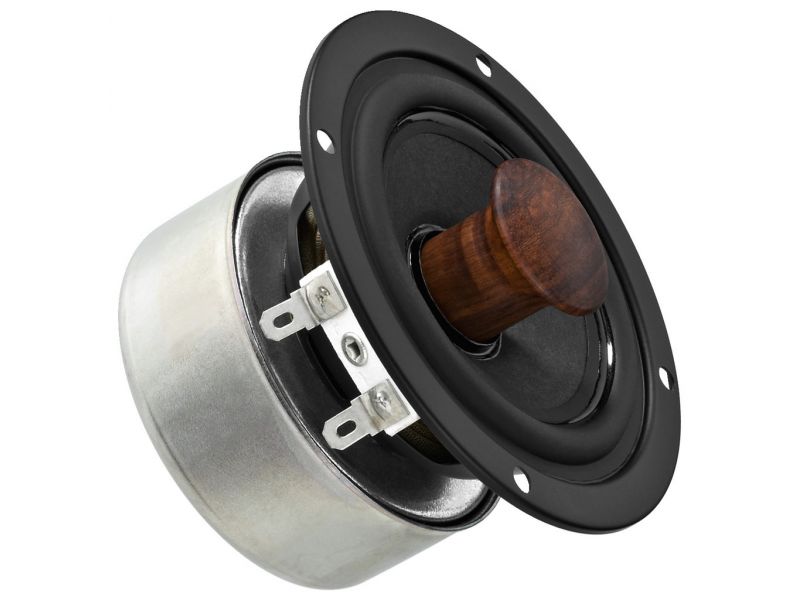

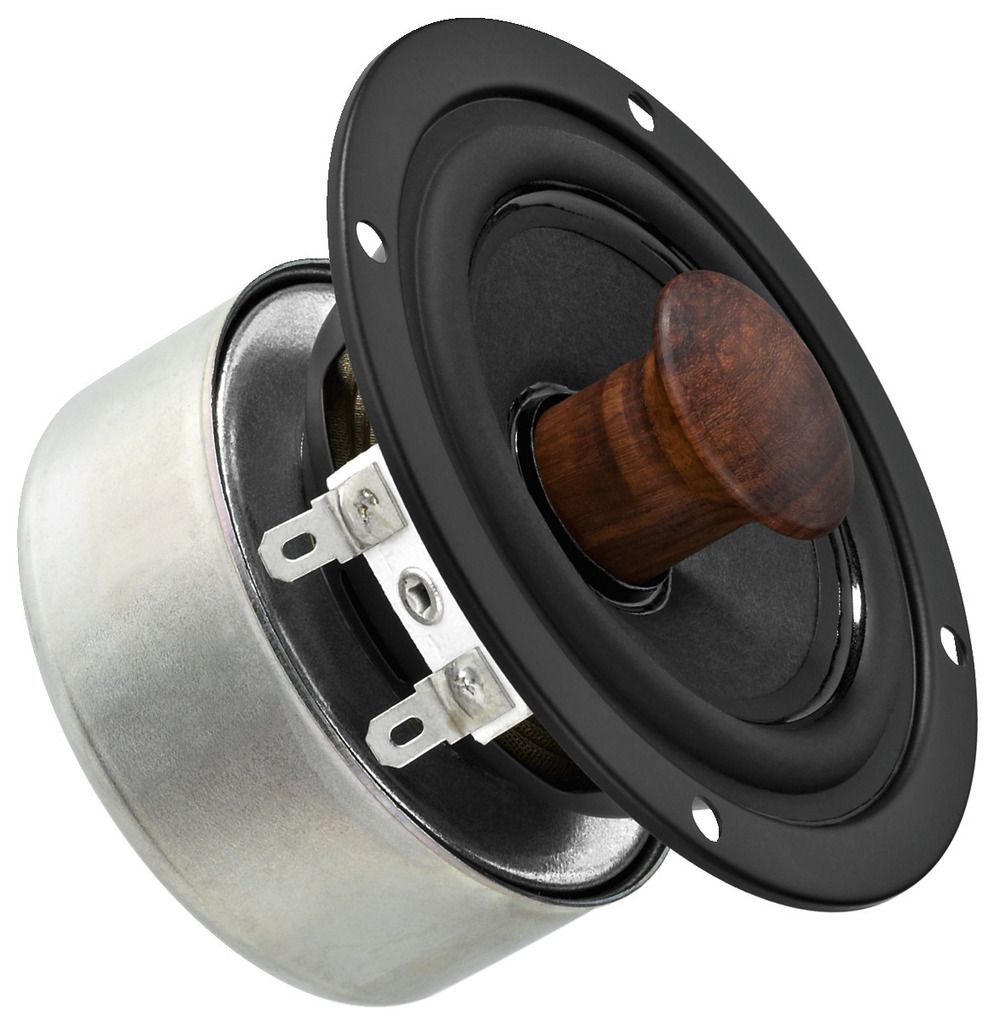

Hi-fi full range speaker, 20 W, 8 Ω
  • Excellent sound quality
  • High-quality paper cone
  • Wooden phase plug for optimising radiation pattern
  • Rear-ventilated centering spider
  • Shielded magnet system
  • Application in small speakers or satellite systems
  • Ideally suited for application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
“Audiophile characteristics due to paper cone and solid wooden phase plug.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

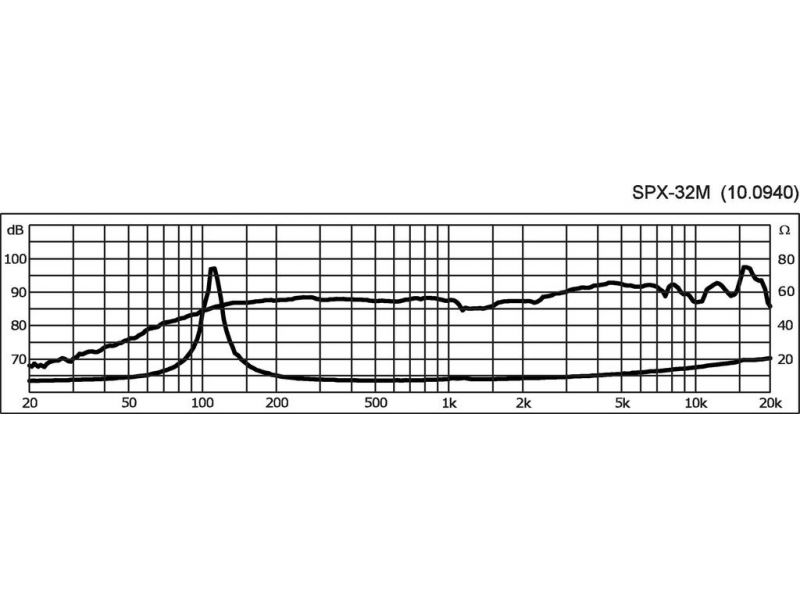

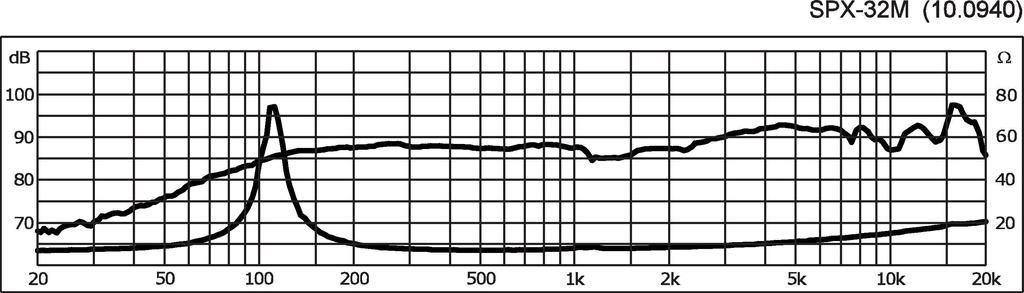

Frequency range f3-22,000 Hz
Resonant frequency (fs) 110 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
SPL 88 dB/W/m
Suspension compl. (Cms) 1.11 mm/N
Moving mass (Mms) 1.7 g
Mech. Q factor (Qms) 7.66
Electr. Q factor (Qes) 0.60
Total Q factor (Qts) 0.56
Equivalent volume (Vas) 1.6 l
DC resistance (Re) 6.6 Ω
Force factor (BxL) 3.69 Tm
Voice coil induct. (Le) 0.18 mH
Voice coil diameter Ø 20 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1.1 mm
Eff. cone area (Sd) 32 cm2
Magnet weight 99 g
Magnet diameter Ø 68 mm

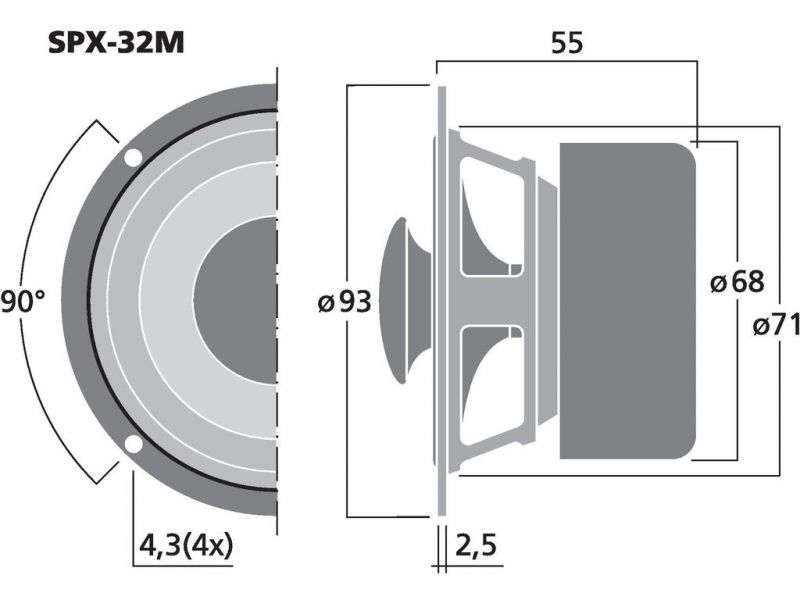

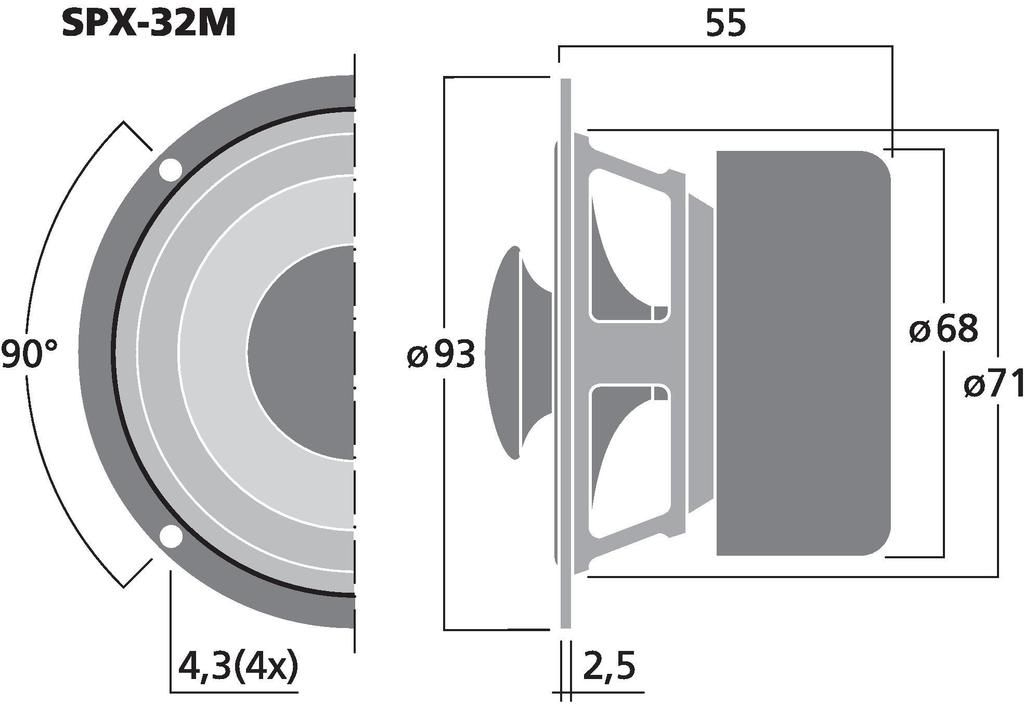

Mounting cutout Ø 71 mm
Mounting depth 52.5 mm
Dimensions Ø 93 mm x 55 mm
Outside diameter Ø 93 mm
Width Ø 93 mm
Height Ø 93 mm
Depth 55 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.498 kg
Packing unit 1
Type of speaker 3"
Packaging dimensions (W x H x L) 0.095 x 0.08 x 0.095 m
Gross weight 0.524 kg
Net weight 0.498 kg
